Duet3D  |  SKU: U-DUET_3_T_DB_V0.5

Duet 3 Tool Distribution Board

$27.00

Description

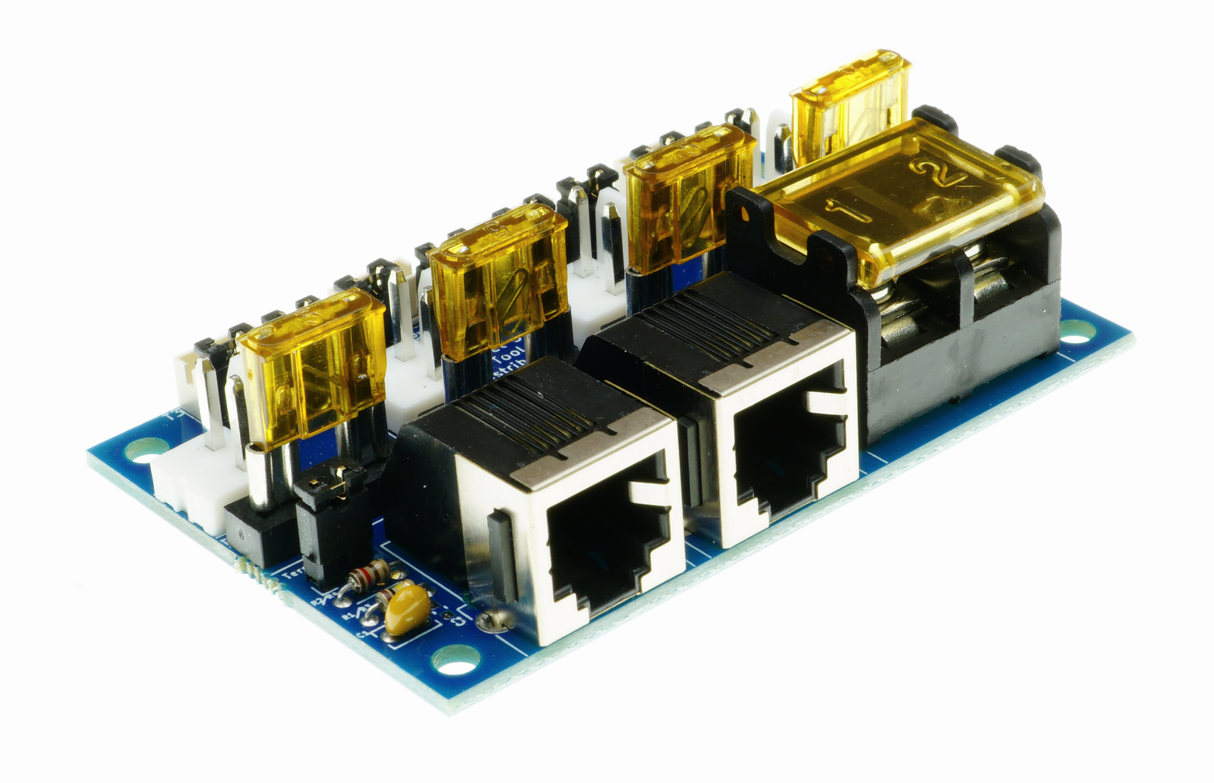

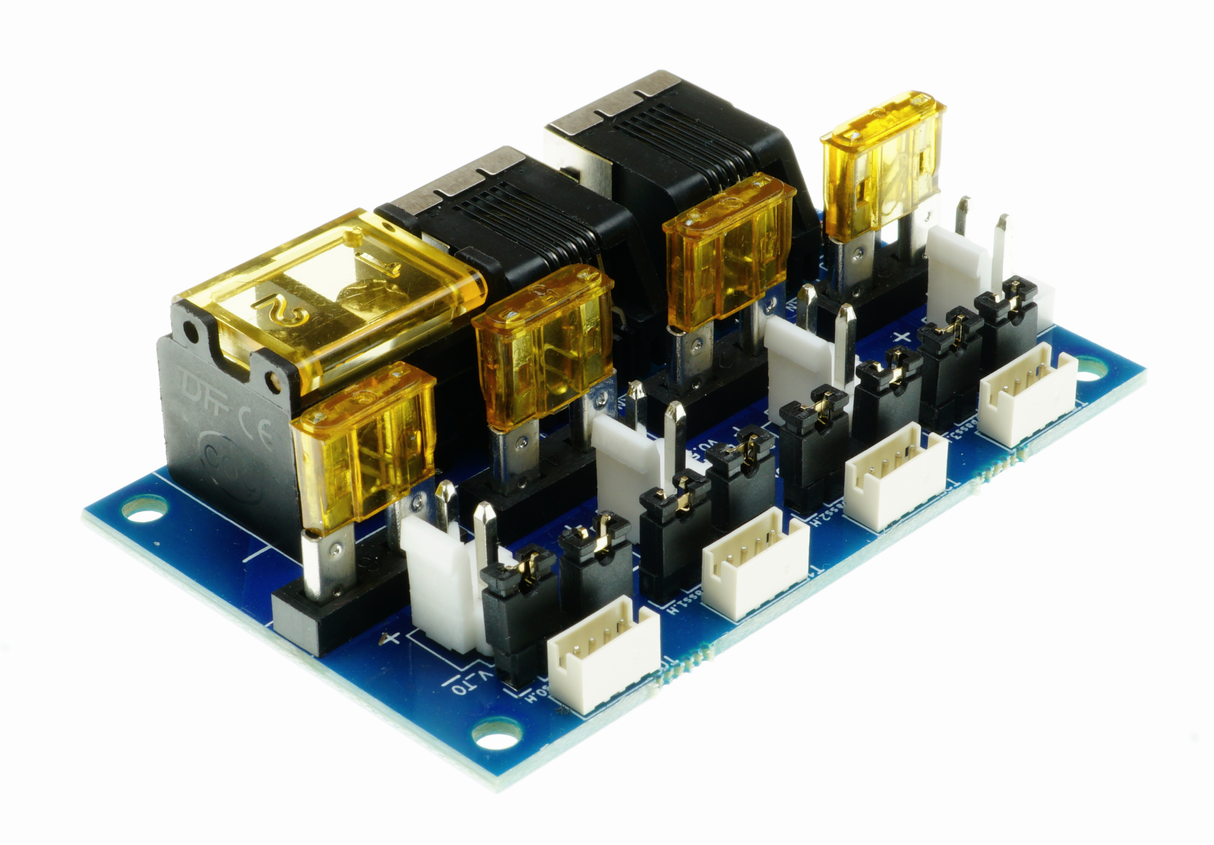

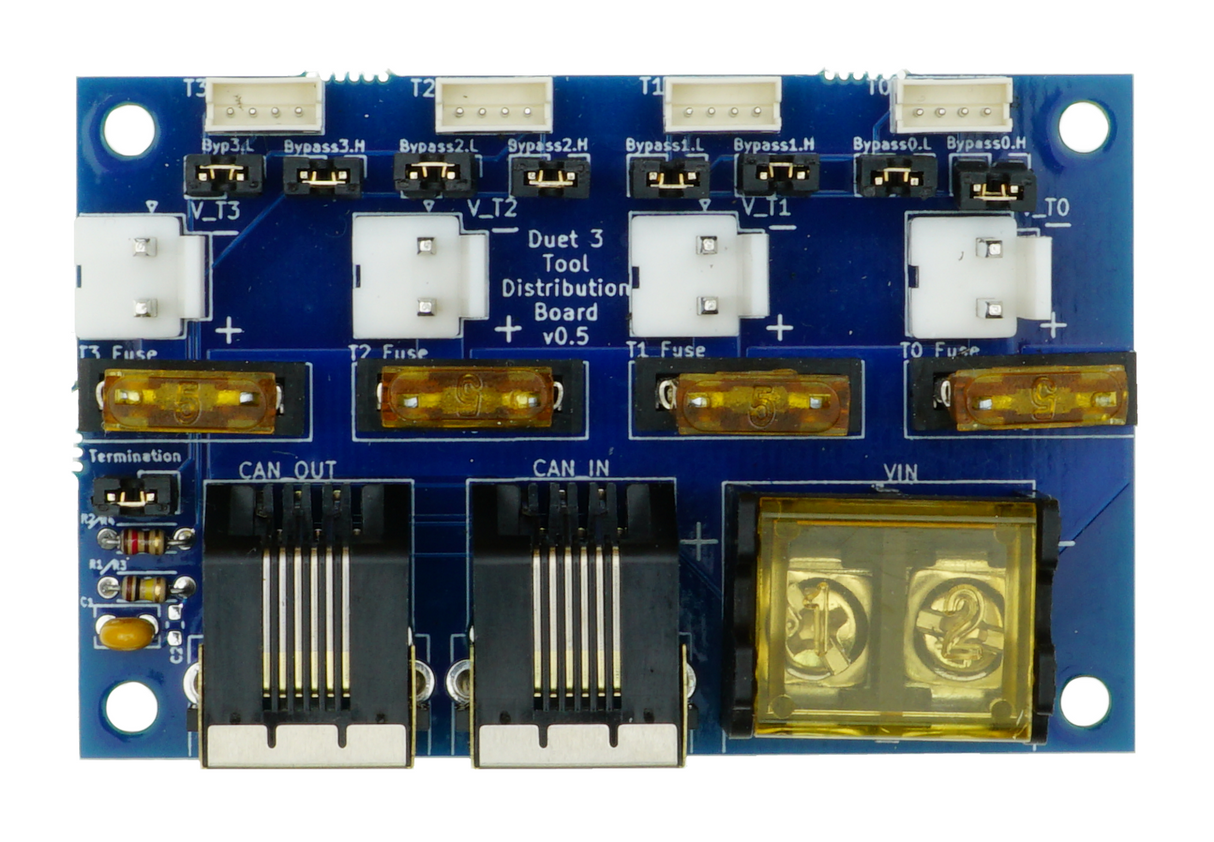

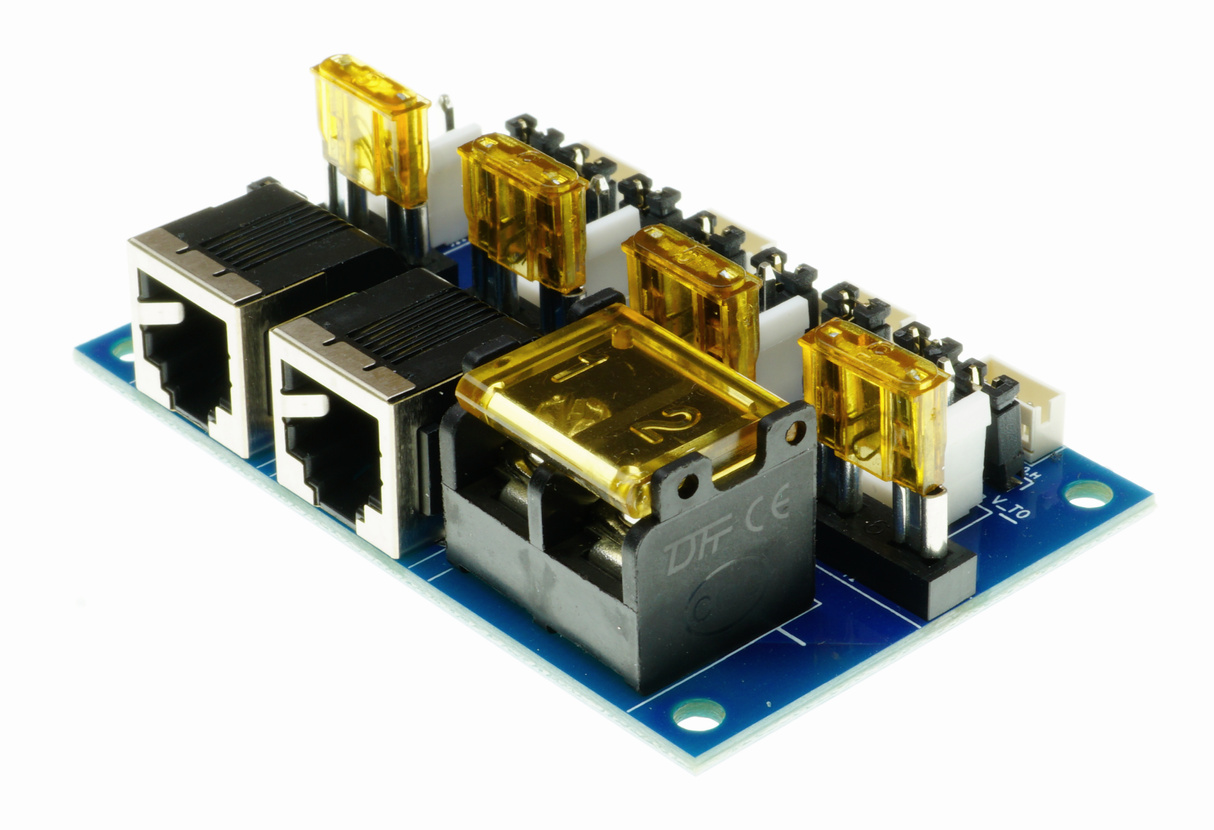

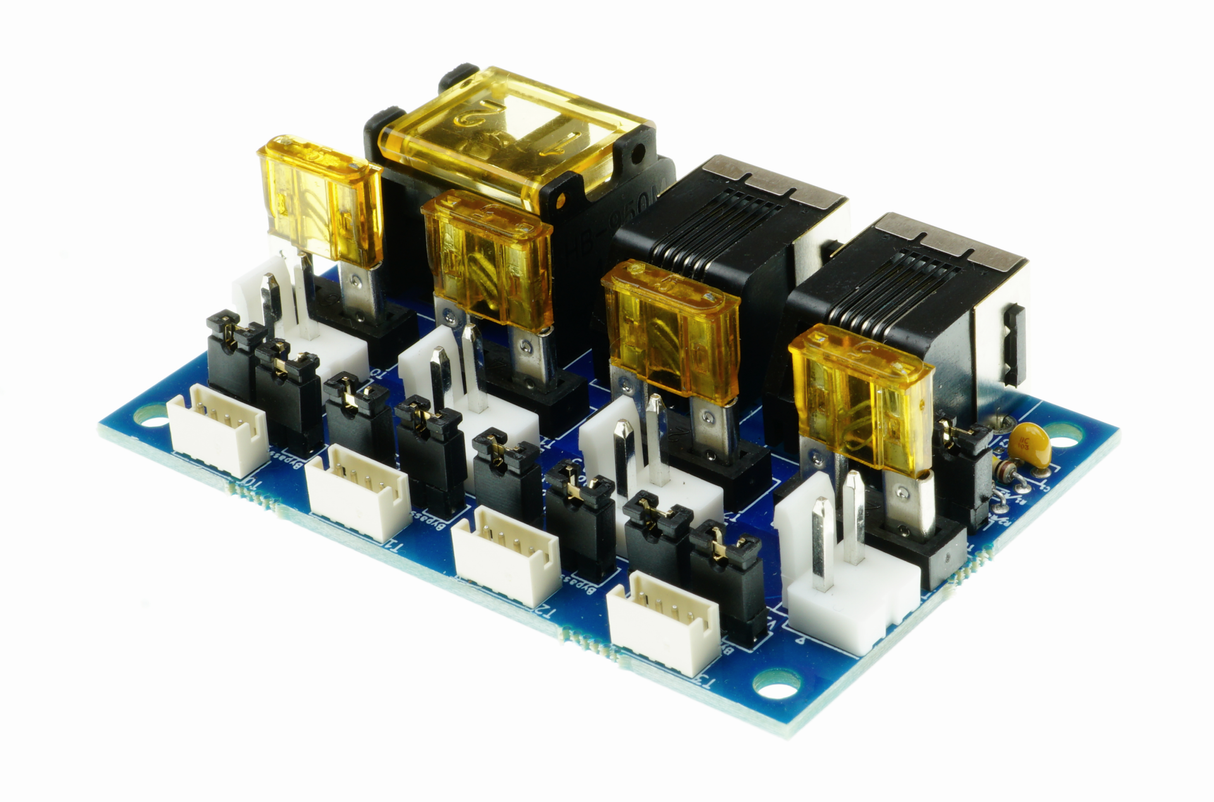

Duet 3 Tool Distribution Board

This board allows for the connection of up to 4 Duet 3 Toolboards to the Duet 3 Mainboard at one time, greatly simplifying the CAN-FD bus and power wiring.

Tool board power outputs are individually fused, and the CAN-FD bus connections can by bypassed if less than 4 tools are connected.

These can be connected to other Duet 3 CAN-FD bus expansion boards (or other tool distribution boards) via the RJ11 connector for CAN-OUT.

    Hardware Overview: https://docs.duet3d.com/Duet3D_hardware/Duet_3_family/Duet_3_Tool_Distribution_Board
