4x Bondtech CHT BiMetal RepRap Coated Nozzle
Couldn't load pickup availability
4x Bondtech CHT BiMetal RepRap Coated Nozzle
Description
Description

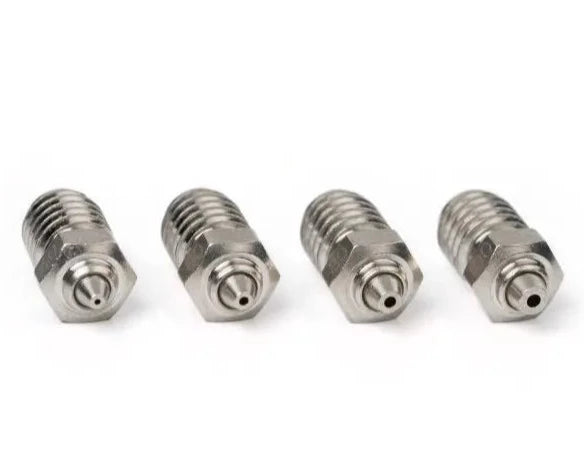

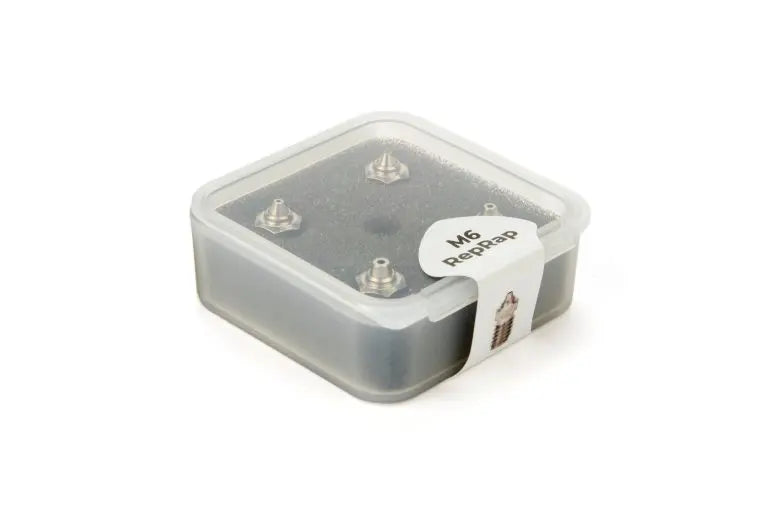

4x Bondtech CHT BiMetal RepRap Coated Nozzle
Copper and Hardened Vanadium Steel nozzles for high flow applications with abrasive materials. 4 Pack of Nozzles including .4/ .6/ .8./ 1.0 mm.
Nozzles are supplied with Nickel Coating (grey color).Increase the Max Volumetric Flow of your RepRap M6 style heat block.
These nozzles are manufactured by Bondtech in-house,
and will fit the following blocks/printers:
- Mosquito® / Magnum
- Mosquito® Liquid
- Mosquito® Magnum+
- Copperhead™
- E3D Chimera and Kraken
- E3D V4, V5 and V6 blocks
- Prusa i3, Prusa Mini
- RepRap M6
ALERT : Avoid Cold Change Of Bondtech CHT Nozzles
Copper is a soft material and doesn’t withstand high mechanical efforts.
Before removing or tightening any Bondtech CHT nozzle, heat it up to 280C, or at least above 250C.
Use at most 1.0 Nm torque. Recommended Torque is 0.5 Nm.
ALERT : Size limitation for fiber loaded filaments
For Carbon or Glass fiber loaded abrasive filaments use only 0.6, 0.8 and 1.0mm nozzle size.
ALERT : For particle loaded filaments
For metal, wood, glitter or other particle loaded abrasive filaments you may use the 0.4mm nozzle size
