Duet 3 Tool Board 1LC

$54.00


Description

Duet 3 Tool Board 1LC V1.3

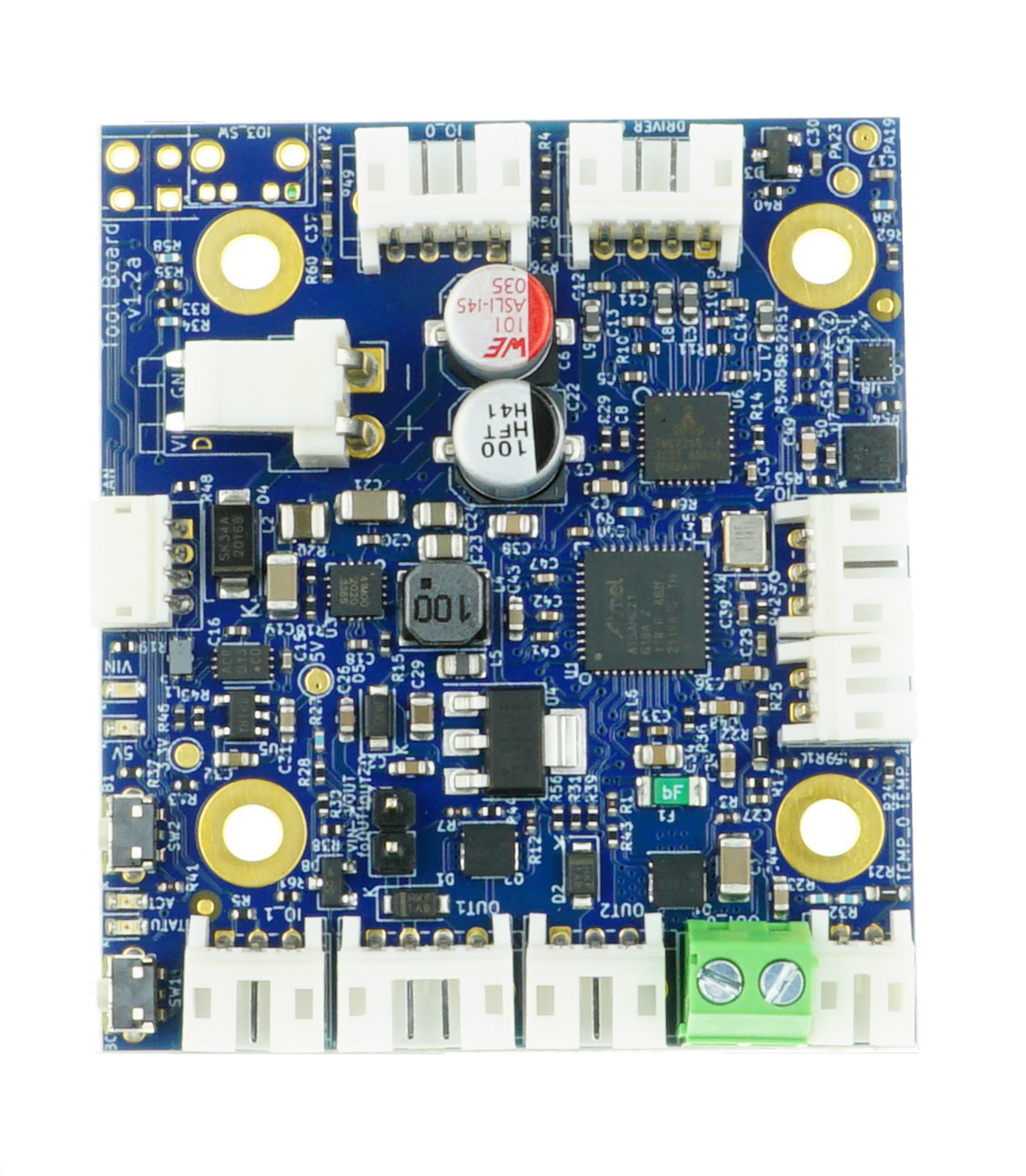

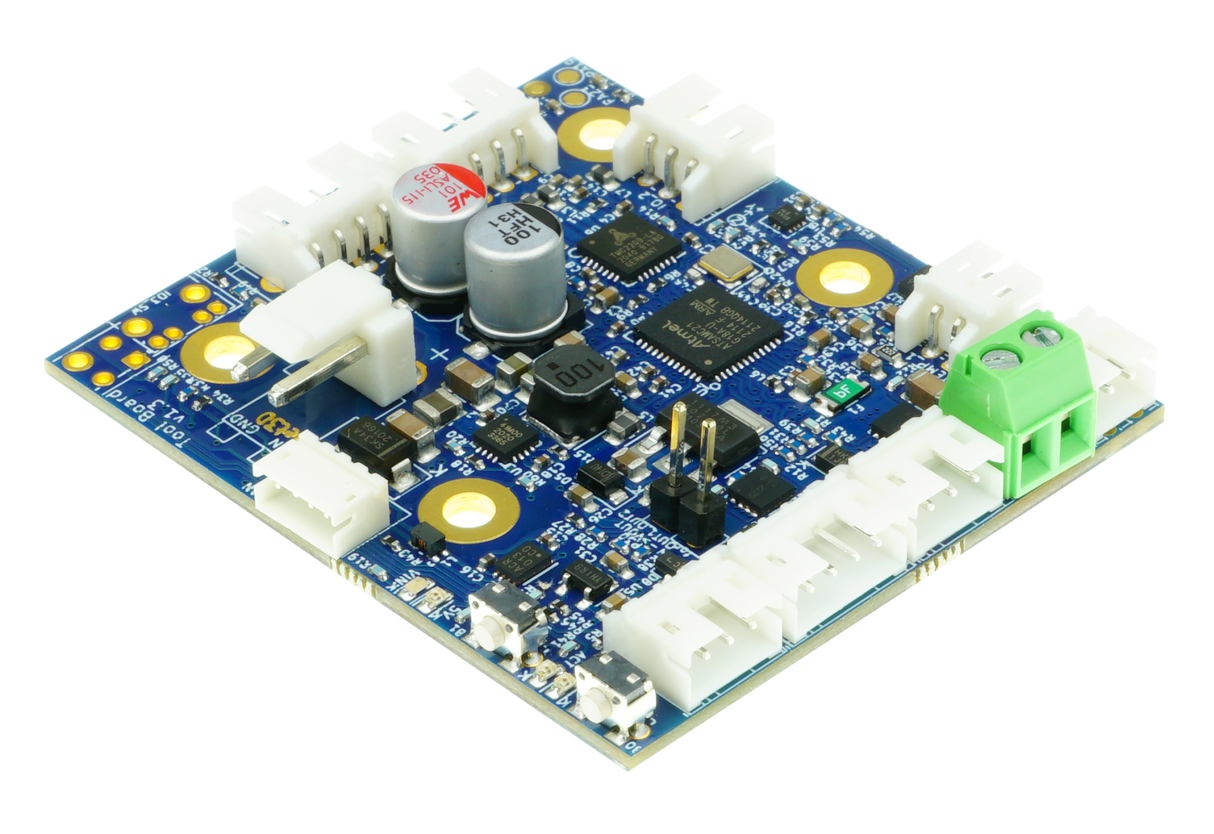

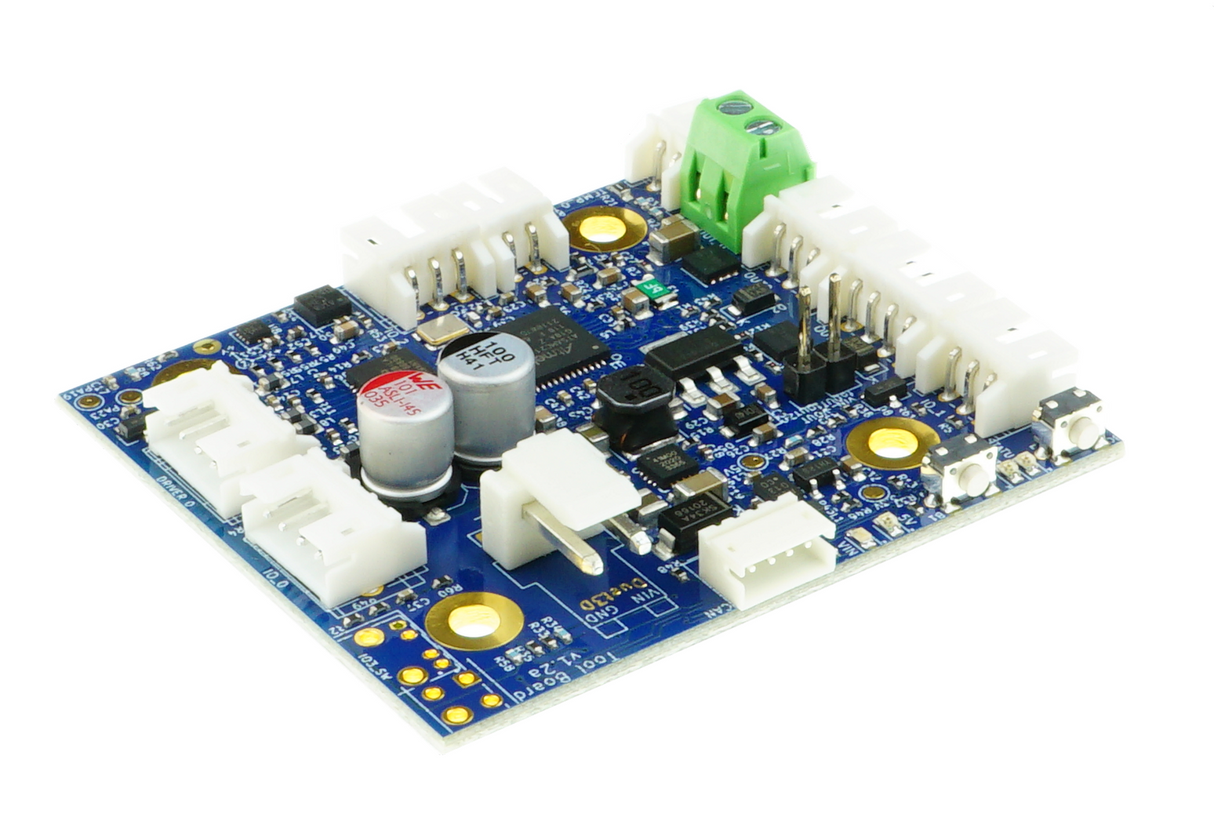

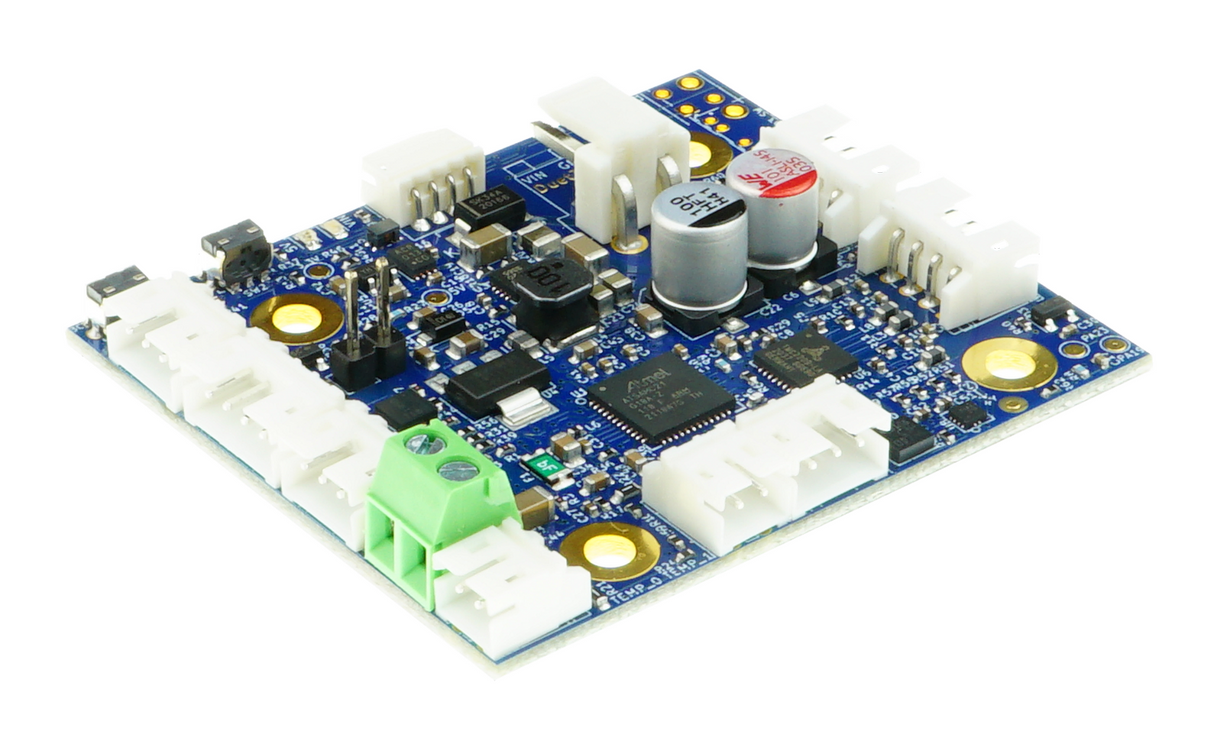

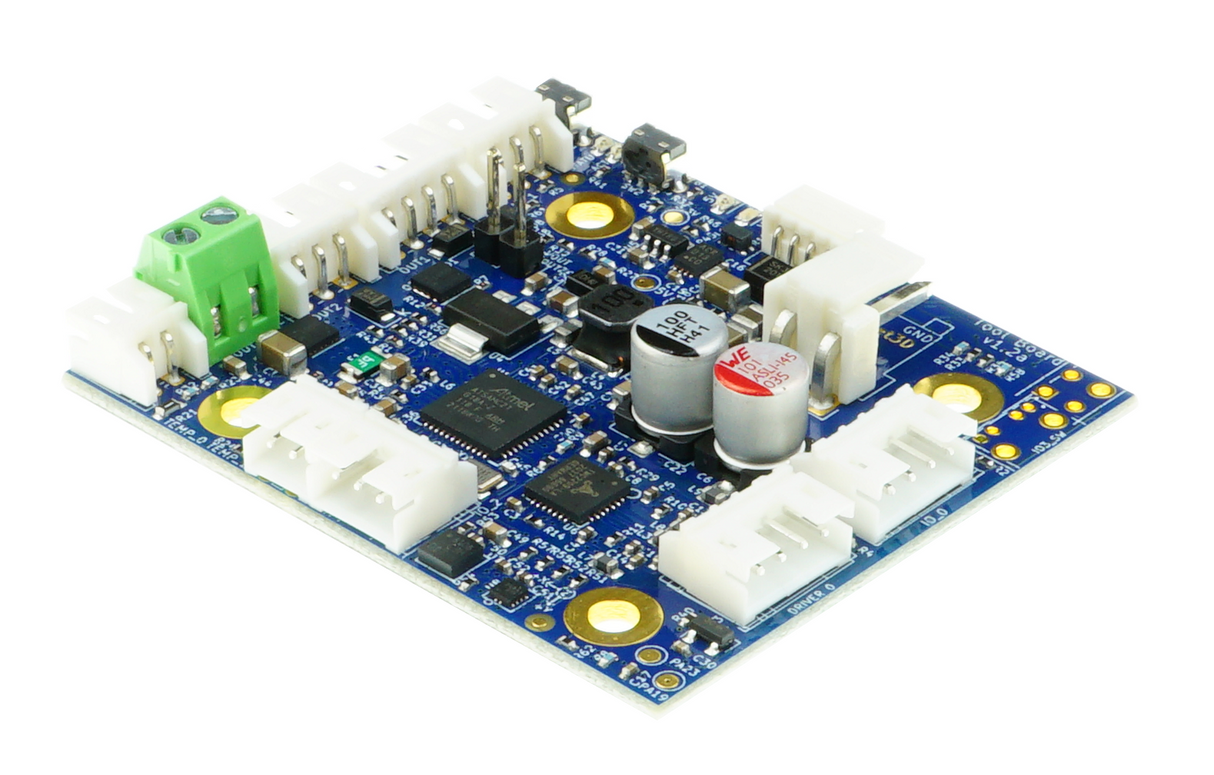

The Duet 3 Tool board: a CAN-FD connected expansion board for Duet 3, designed to provide complete control for a direct drive extruder.

The Duet 3 Tool board is a CAN-FD connected expansion board for the Duet 3 Mainboard that is designed to provide complete control for a direct drive extruder, associated fans, filament sensor and probe. The mounting holes and connector locations match an e3d Hemera (v1.2) or Hemera XS(v1.3) , however it can be used with other direct drive extruders with suitable brackets. The stepper motor, heater, temperature sensor, fans and optionally Z probe and filament monitor all connect to the Duet 3 Tool board, leaving only CAN-FD and power wires to run back to the Duet 3 Mainboard or Tool Distribution Board.

The provided connector pack includes the following:

  • JST PH housings + crimps for the Driver 0, OUT1, 2, IO 0,1,2 and Temp connectors
  • 4-way JST ZH tail 100mm+ with plug (CAN in)
  • 2-way JST VH housing & crimps
  • White single ferrules for heater screw terminals

Hardware Overview: https://docs.duet3d.com/Duet3D_hardware/Duet_3_family/Duet_3_Toolboard_1LC
