The Story

Why Did We Build This Printer, and Who Is It For?

During our time offering printer assembly, printer repair, technical support, and the sales of various 3D printers, the HSP team has worked with a lot of hobby, industrial, and pseudo-industrial printers. We have found that most of them have shortcomings and compromises. It seemed like there was nothing available that provided the capabilities that our own printer farm needed. So we set out to build one.

HSP1 is a printer platform that is designed for companies that want a high speed, reliable, truly industrial tool that doesn't cost half a million dollars. A machine made in the USA with USA-based support from knowledgeable professionals. Our customers want to make prototypes or production parts. They shouldn't need to be 3D printer experts, nor should they need to spend half of their work week just trying to get the printer to function.

HSP1-I is the IDEX variant of the HSP1 platform, and enables users to have 2 independent printheads on the x-axis so 2 different materials can be used to produce a part, such as a dedicated breakaway or soluble support material for the primary plastic used to make the part itself. It is powered by a high speed, fully closed loop motion system so both printheads can get the job done as fast as possible in the massive 640mm x 650mm x 1meter build volume. All of this is powered with a standard 120VAC power outlet, and fits through a standard 36" doorway, so you can put the HSP1-I wherever you want, and relocate it just as easily.

We truly believe that HSP1-I is the best option available for most companies looking for a high speed, reliable large format 3D printing system, and we'd love to see if it would be a good fit for your prototyping or production manufacturing needs. See the section below for the full list of specifications, or click the button to get a quote now!

IDEX

Tough-to-remove supports leave a rough, bumpy finish. That's why the HSP1-I is equipped with an Independent Dual Extrusion (IDEX) system, allowing you to print complex geometries with water-soluble support material.

Reliability

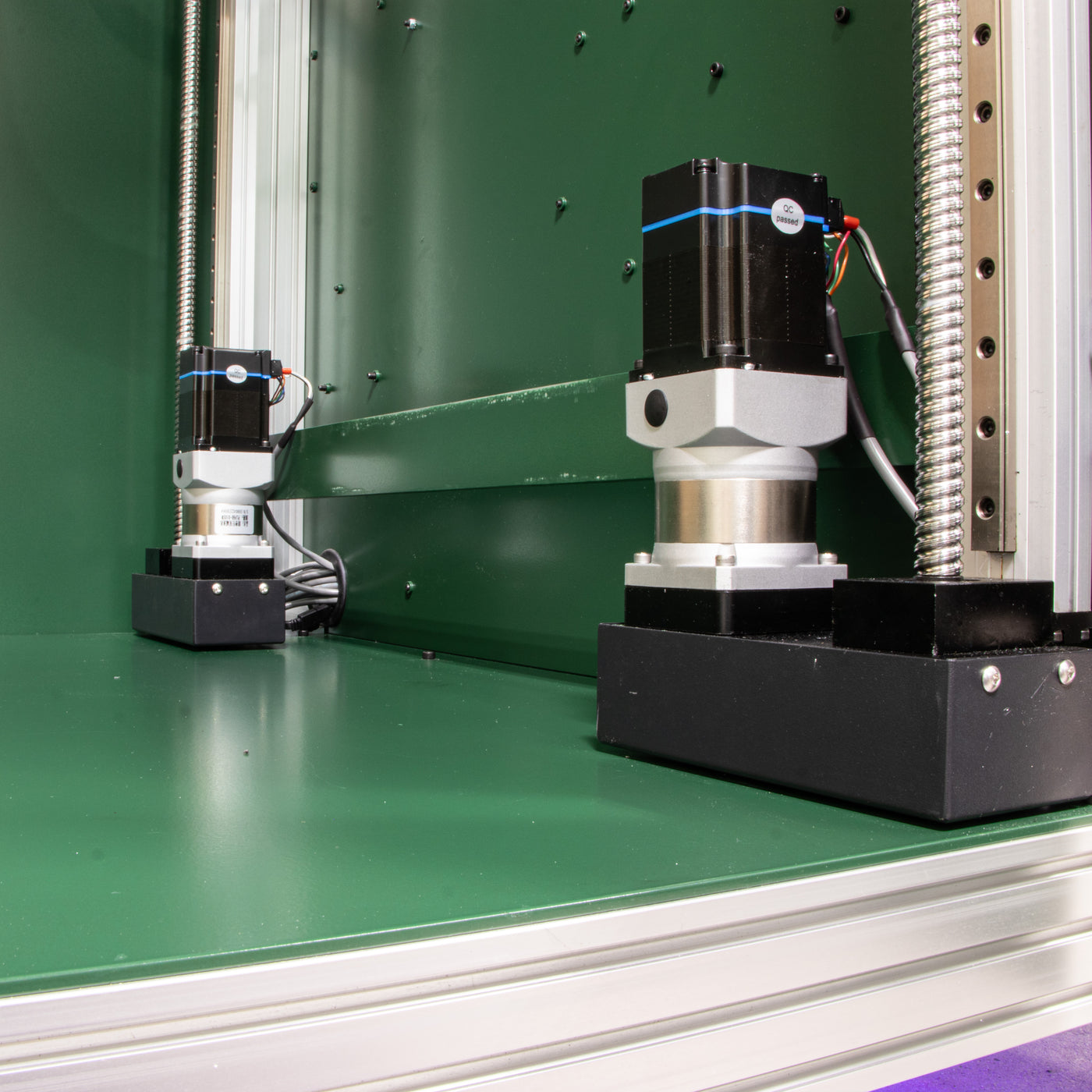

The HSP1-I is simple to use and produces high-quality, high-precision prints. This machine utilizes high-performance, closed-loop stepper motors on all axes, even Z! The HSP1-I always knows where the motor position is, eliminating layer shifting. The Z-axis has Nema23 stepper motors with a 10:1 gearbox attached to large industrial ball screws.

For added consistency, the HSP1-I comes with slicer presets for Layer Line Filament, guaranteeing the best results every time.

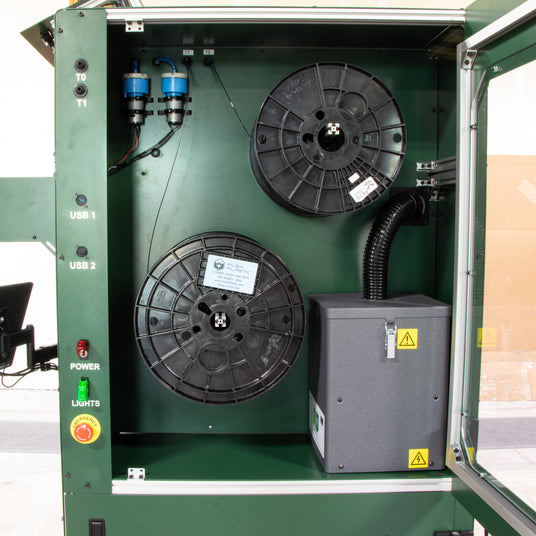

10kg Interior Spool Storage

The HSP1-I holds up to two 10kg spools inside the side panel, keeping everything contained and clean.

Fits Through Standard Sized Doorway

In addition to the HSP1-I showing up fully assembled and calibrated, it can fit through any standard 36-inch doorway for convenient transportation.

BOFA Air Filtration

Every HSP1-I comes equipped with a BOFA air filtration unit. Cleanly housed inside the side panel, you can print any material without worry of VOC inhalation.

Multiple Networking Options

You can access the HSP1-I through Wi-Fi, or keep your printer locally contained for more secure prints.

Support

The HSP1-I is manufactured and supported in the United States! The support team is made of industry professionals with decades of combined printing experience and possess a wealth of information for you to utilize. US-based support provides you with day-of troubleshooting and service, which means no more 12-hour waits between emails!

1 of 5

The Specs

  • Build Volume

    X: 650mm / 26in
    Y: 640mm / 25in
    Z: 1,000mm (1 Meter) / 40in

  • Machine Dimensions

    X: 1,320mm / 52in
    Y: 640mm / 35in
    Z: 1,930mm / 76in

    (Fits through a 36" doorway!)

  • Electrical & Networking

    Works with a standard 120VAC 15A Circuit (Grounded)

    Full Industrial Breaker Protection

    Networked with WiFi or Ethernet, and also works without being on a network

  • Electronics

    Duet 3 Controller Platform

    Open Source RepRap Firmware

    Filament Detection & Clog Sensors

    AC-powered bed heater, up to 110C with Integrated Thermal Fuse

    Closed-Loop Stepper Motors on all 3 axes (X, Y, and Z)

    High Precision Bed Level Sensor

    Independent Tilt and Mesh Bed Leveling

    Open Slicer Compatibility - Use Whatever Slicer You Want

    Material Profiles to be provided for select slicers

    Dual Screens for both local direct control and the web interface without requiring a separate laptop

  • Mechanical

    Print Resolution: >50 microns

    Print Speeds up to 300mm/s, Travel Speeds up to 800mm/s

    Z-Axis Driven by 4 Independent Ballscrews with a 10:1 Gearbox

    X and Y Axes Driven by High Speed GT2 belts

    Linear Rails on X, Y, and Z axes

    Independent Dual Extrusion (IDEX) on Y-Axis

    1/4" MIC-6 Aluminum Print Bed

    Removable Magnetic Flex Plate with Textured PEI Print Surface (Other Surfaces Available)

    Integrated Dual 10kg Spool Holders

    Industrial Casters with Leveling Feet

  • Printheads

    Dual Printheads, Independently Controlled (IDEX)

    1.75mm Diameter Open Filament Compatibility - Use Whatever Materials You Want

    Bondtech LGX Pro Extruders

    Dual Takoto HE20 Hotends with Maximum Flow Rate of over 20mm3/s

    Abrasion-Resistant Nozzles (0.60mm Nozzle Size By Default)

    Dual 50-Watt Industrial Heaters, For 100 Watts of Total Heating Power per Printhead

Contact Us for Quote!
