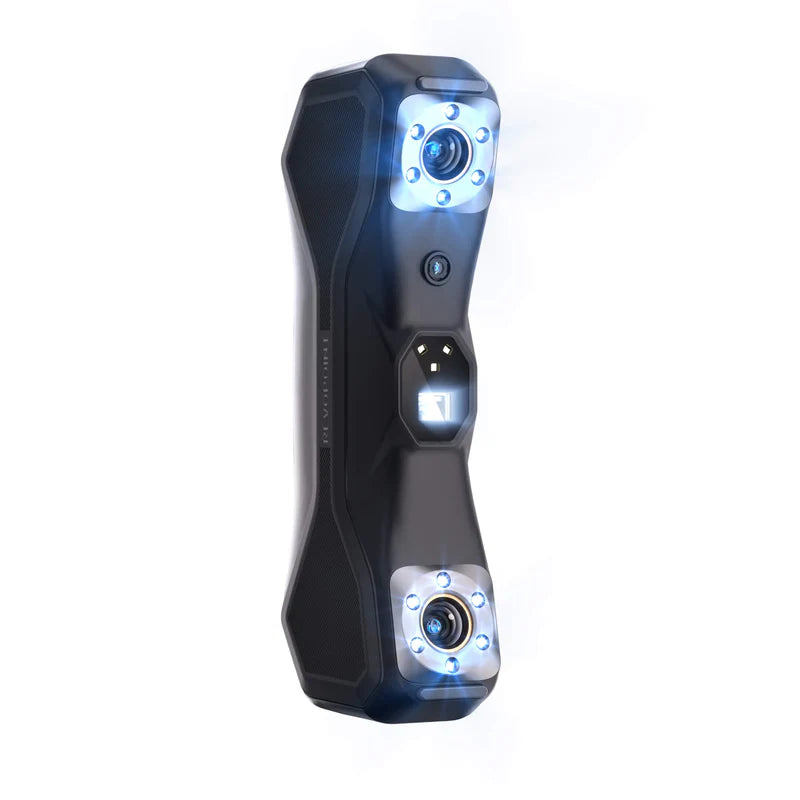

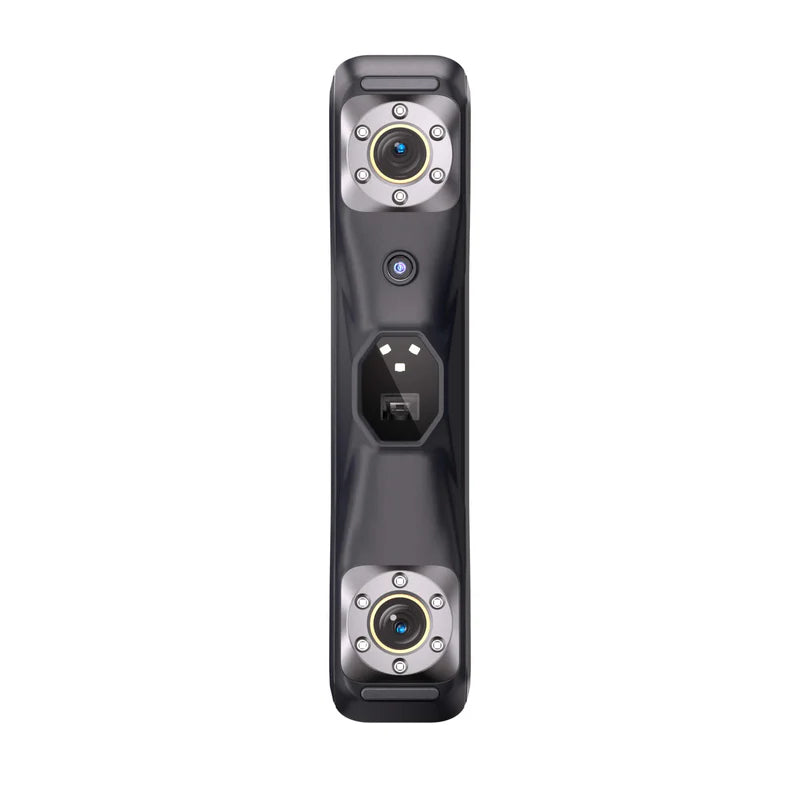

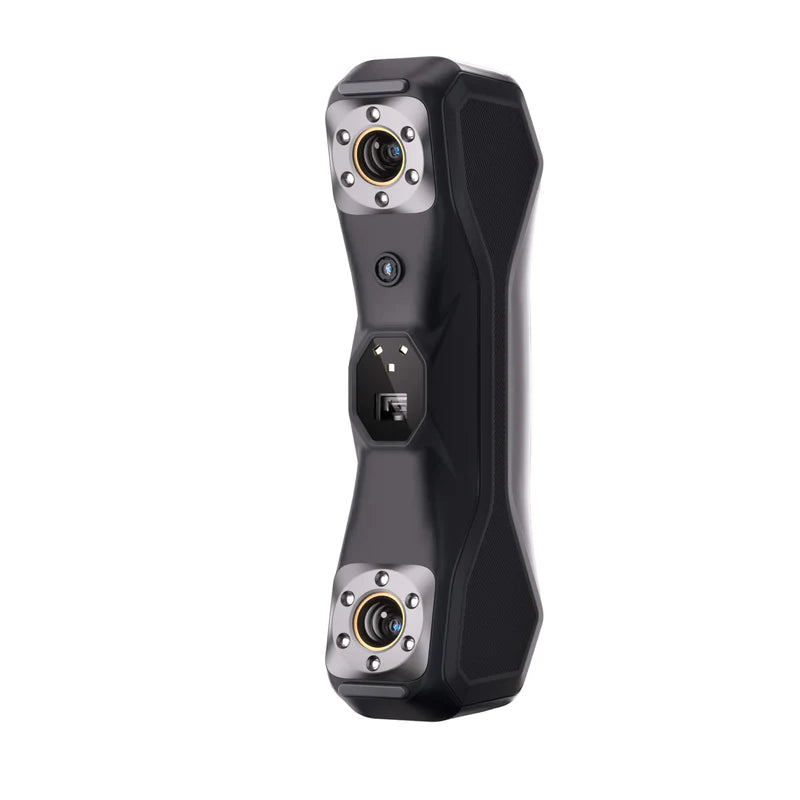

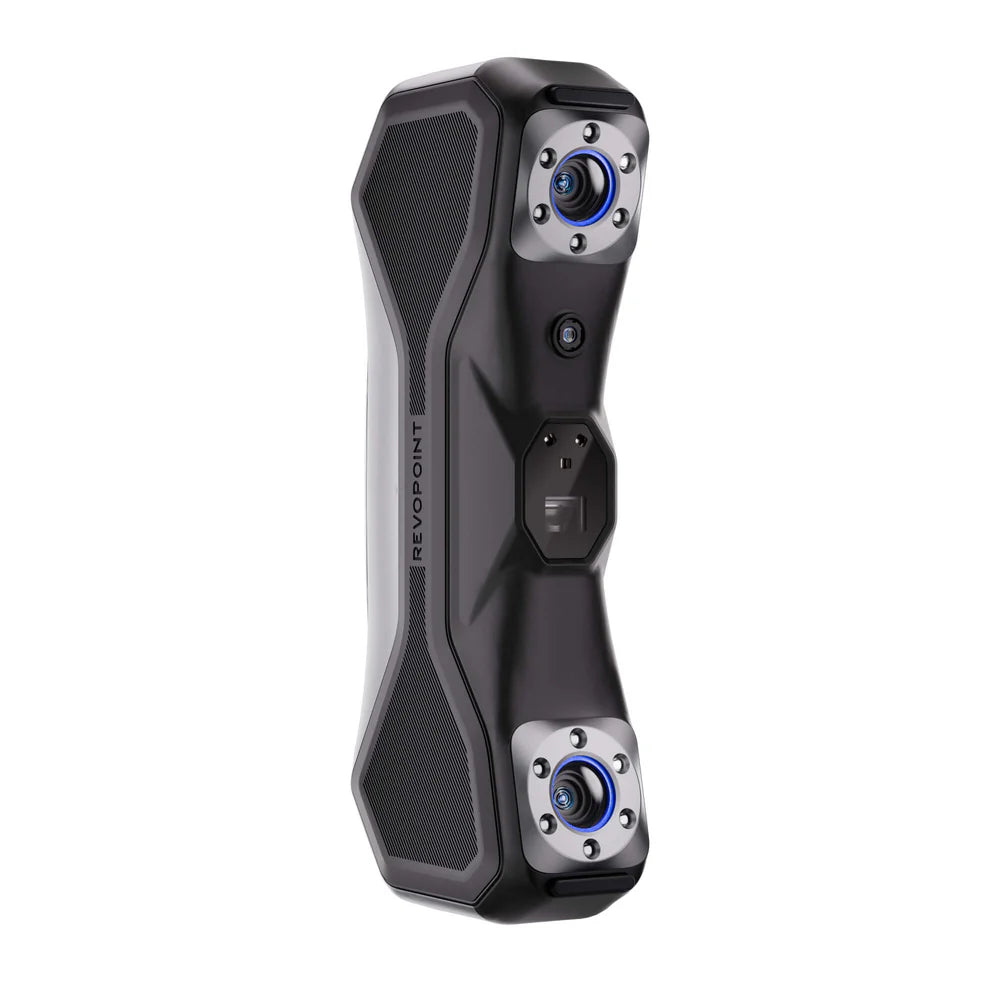

Revopoint MetroX & MetroX Pro: Metrology-Grade 3D Scanners

ꔷ 4 Flexible Scanning Modes
ꔷ Rapid Scans: Up to 30 Cross-lines
ꔷ Industrial-grade Accuracy: Up to 0.02 mm
ꔷ Volumetric Accuracy: Up to 0.02 mm + 0.04 mm × L (m)
ꔷ Scanning Volume: Small to Medium Objects
ꔷ Up to 7,000,000 Points/s in Full-field Structured Light Mode
ꔷ Up to 2,000,000 Points/s in Multi-line Laser Mode

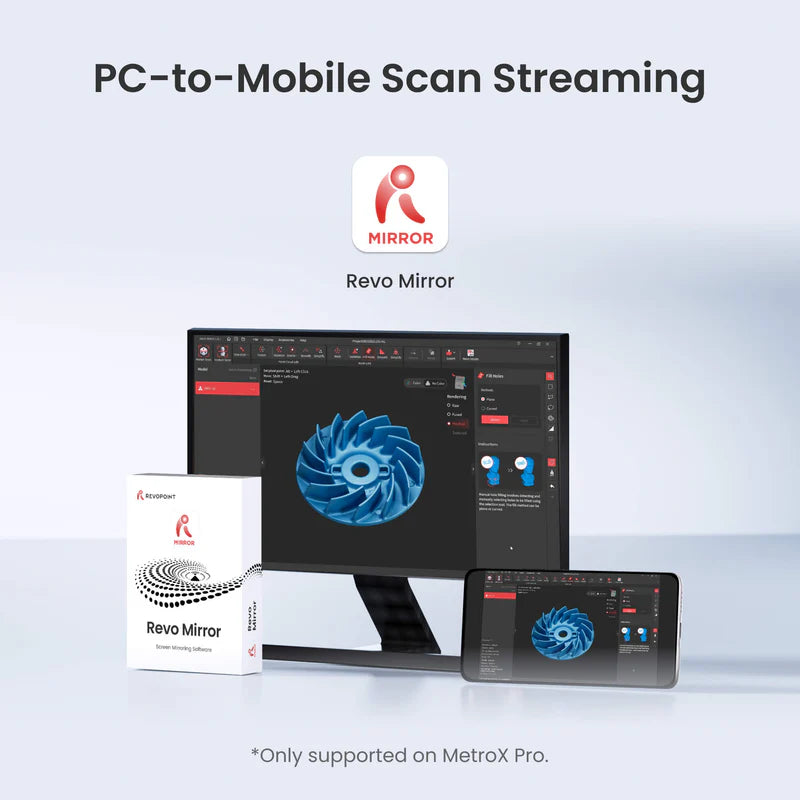

ꔷ PC-to-Mobile Scan Streaming

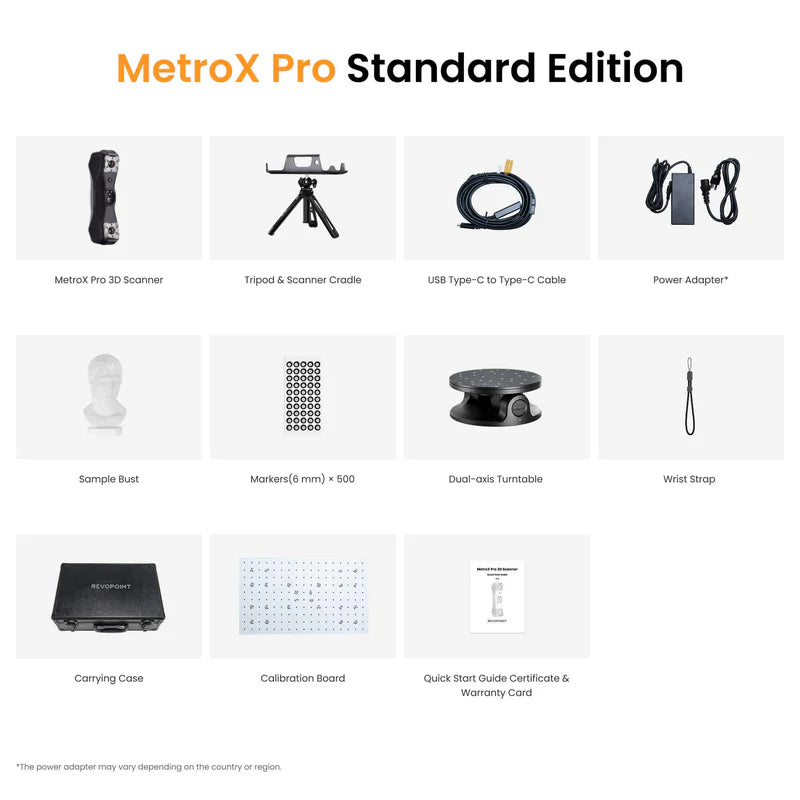

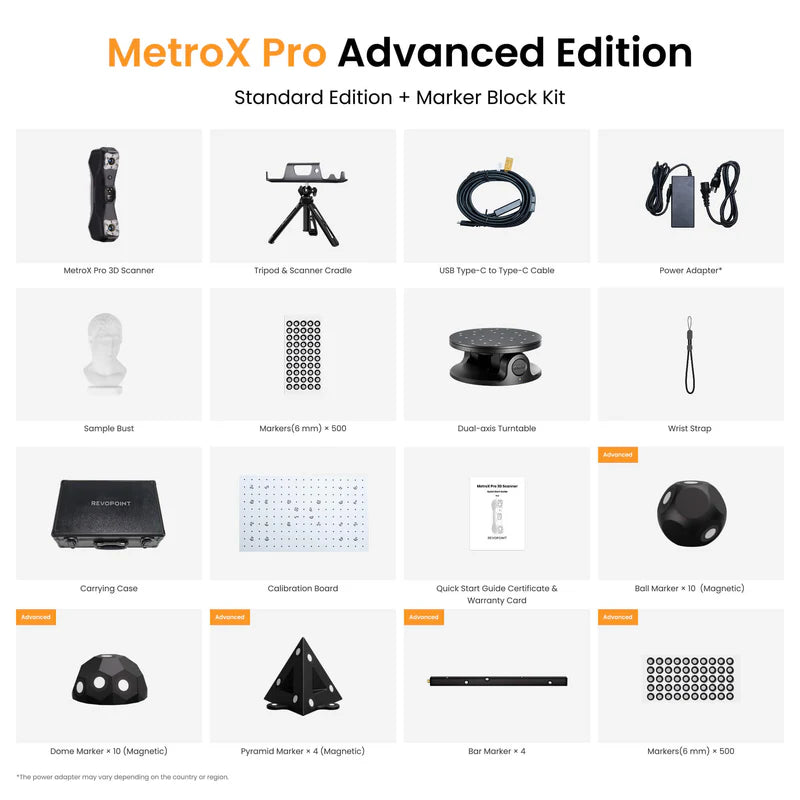

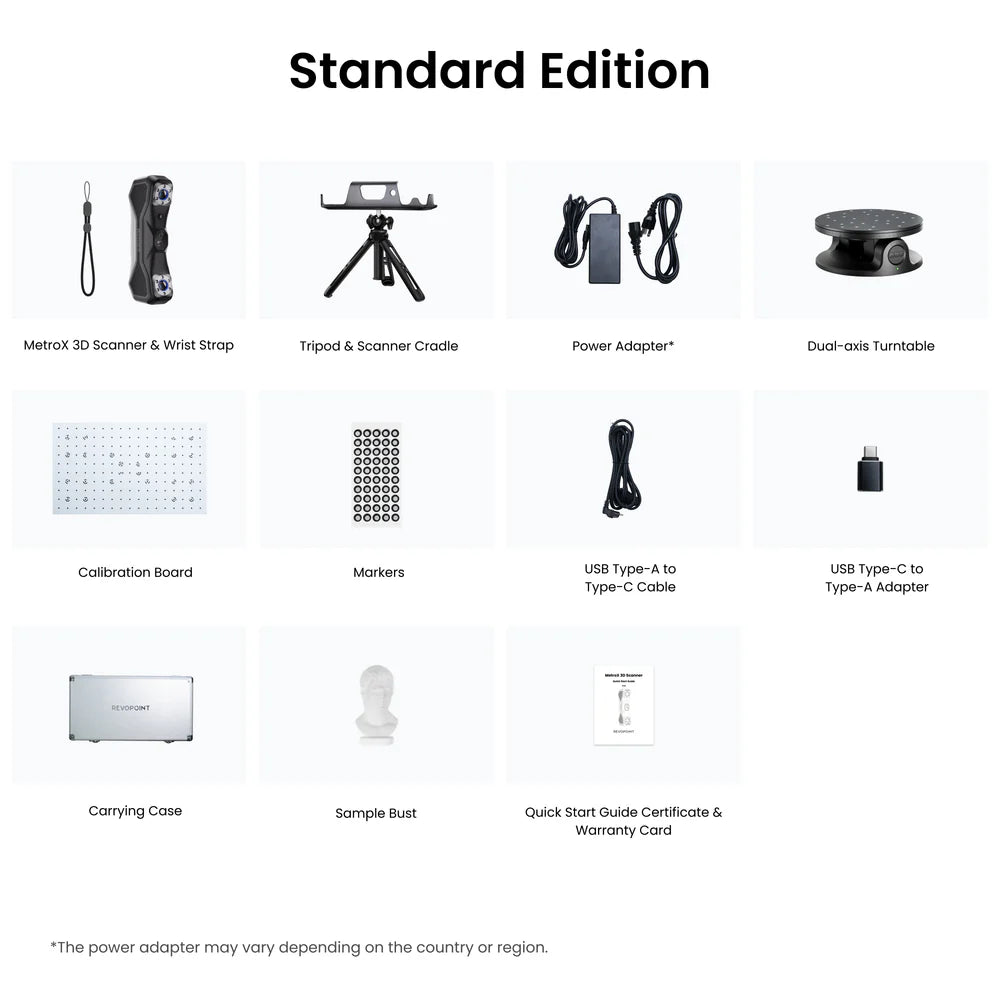

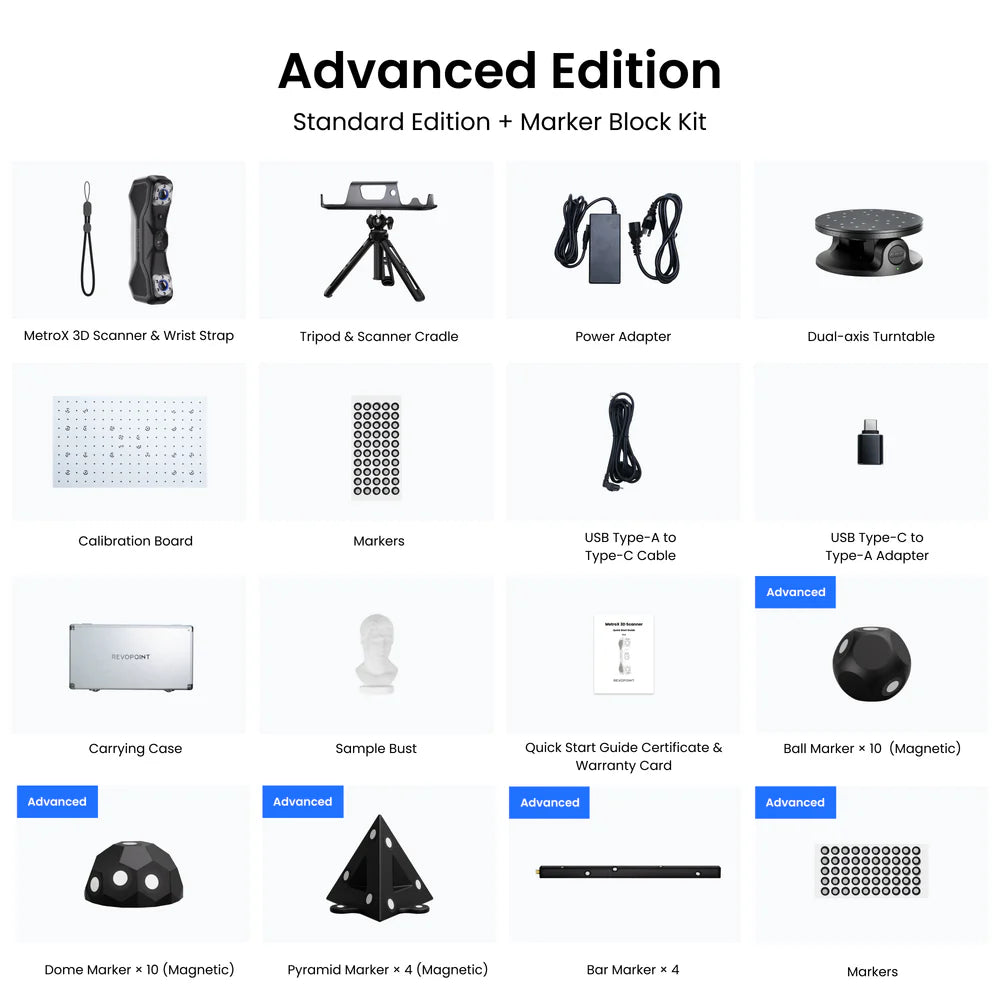

See the pictures for a full listing of what is included in either the Standard or Advanced package.

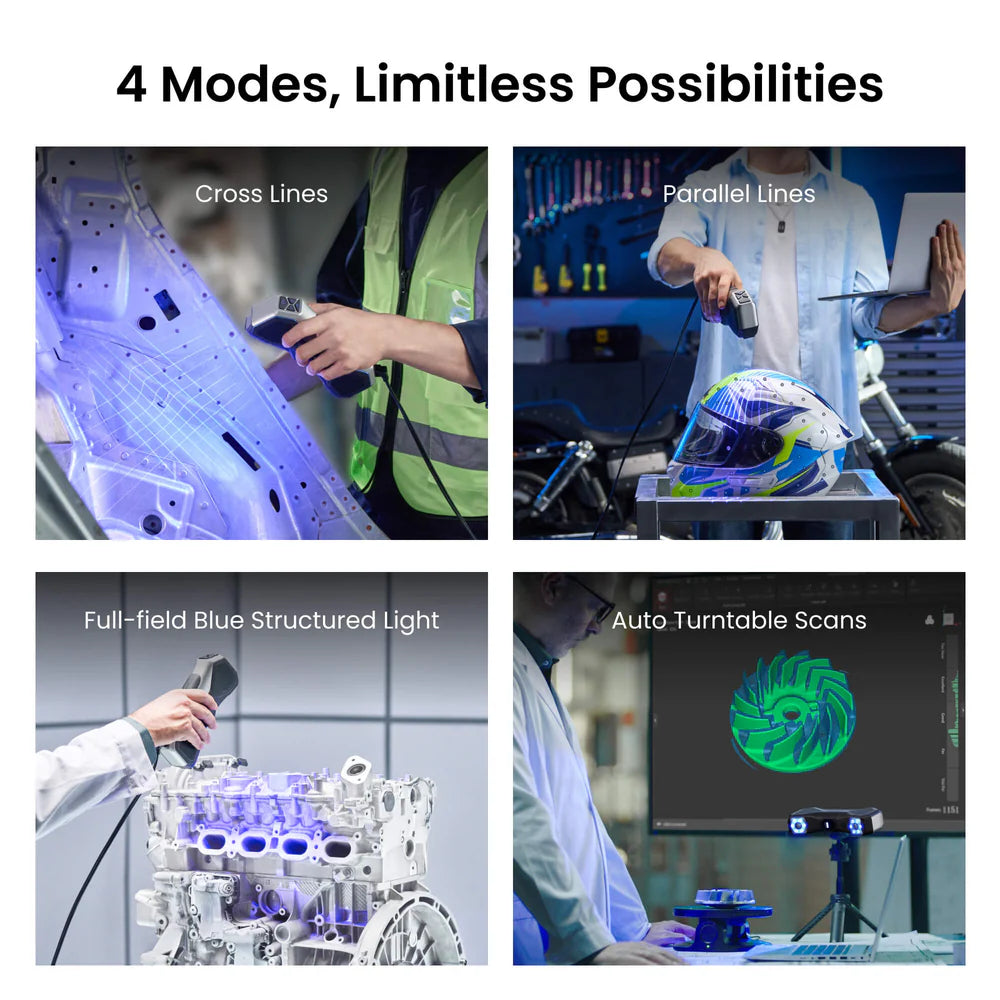

Cross Lines

Up to 800,000 points per second with 14 crossed blue laser lines.

Parallel Lines

Capture objects with 7 high-powered parallel blue laser lines

Full-Field Blue Structured Light

Get it scanned fast at up to 7 million points per second using 62 lines of structured blue light

Auto Turntable

One-click scans with the Dual-Axis Turntable, Revo Scan, and MetroX working in unison

Metrology-Grade Accuracy

Precision: Up to 0.01mm, Accuracy: Up to 0.03mm

Flexible Single Capture Area

160 x 70mm at 200mm or 320 x 215mm at 400mm

No Spray Needed

Scan shiny or black surfaces

Get Scans Done Fast

Up to 7,000,000 points per second in Full-Field Structured Light mode or Up to 8,000,000 points per second in Multi-Line Laser mode

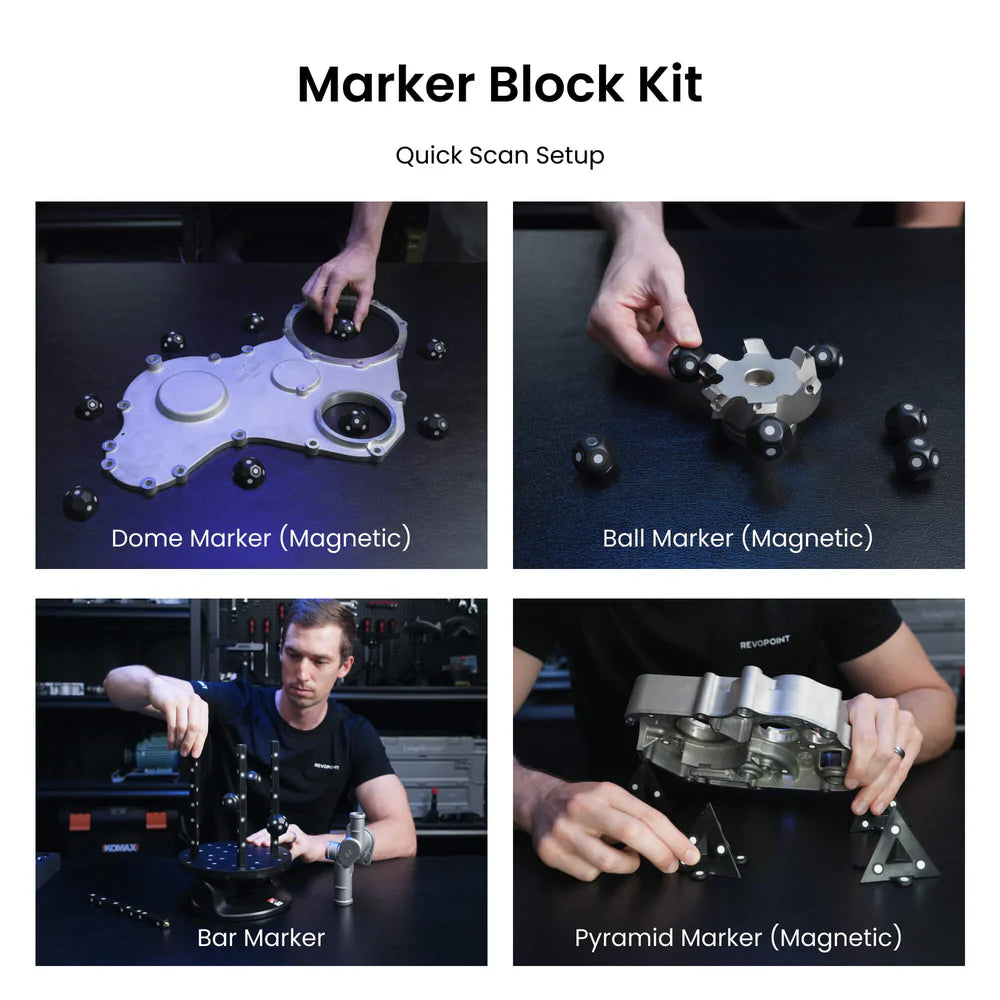

Marker Blocks Help Scan Faster

The handy set of shaped marker blocks makes setting up featureless object scans much faster

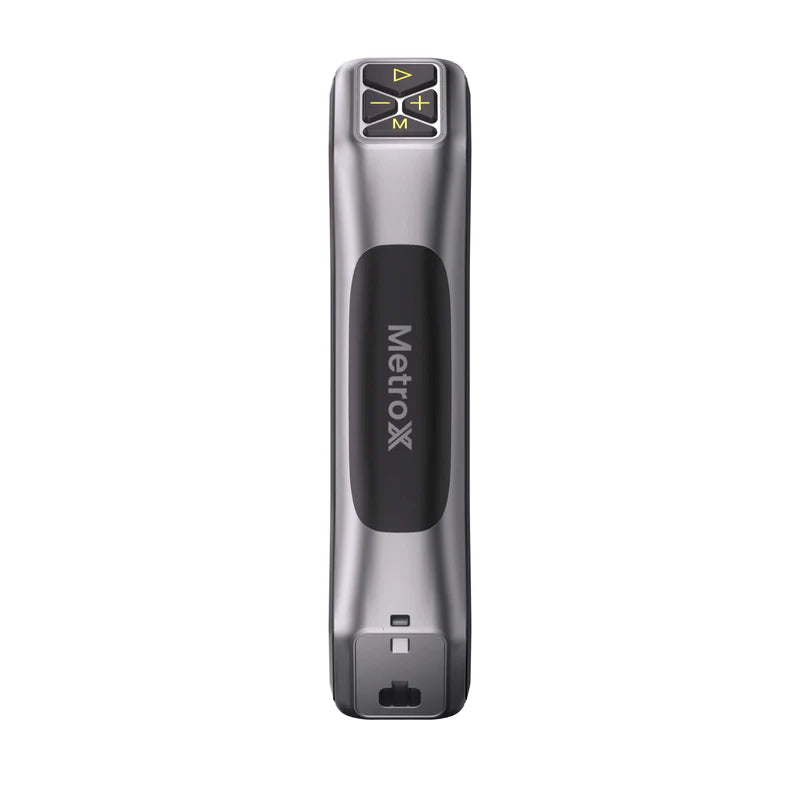

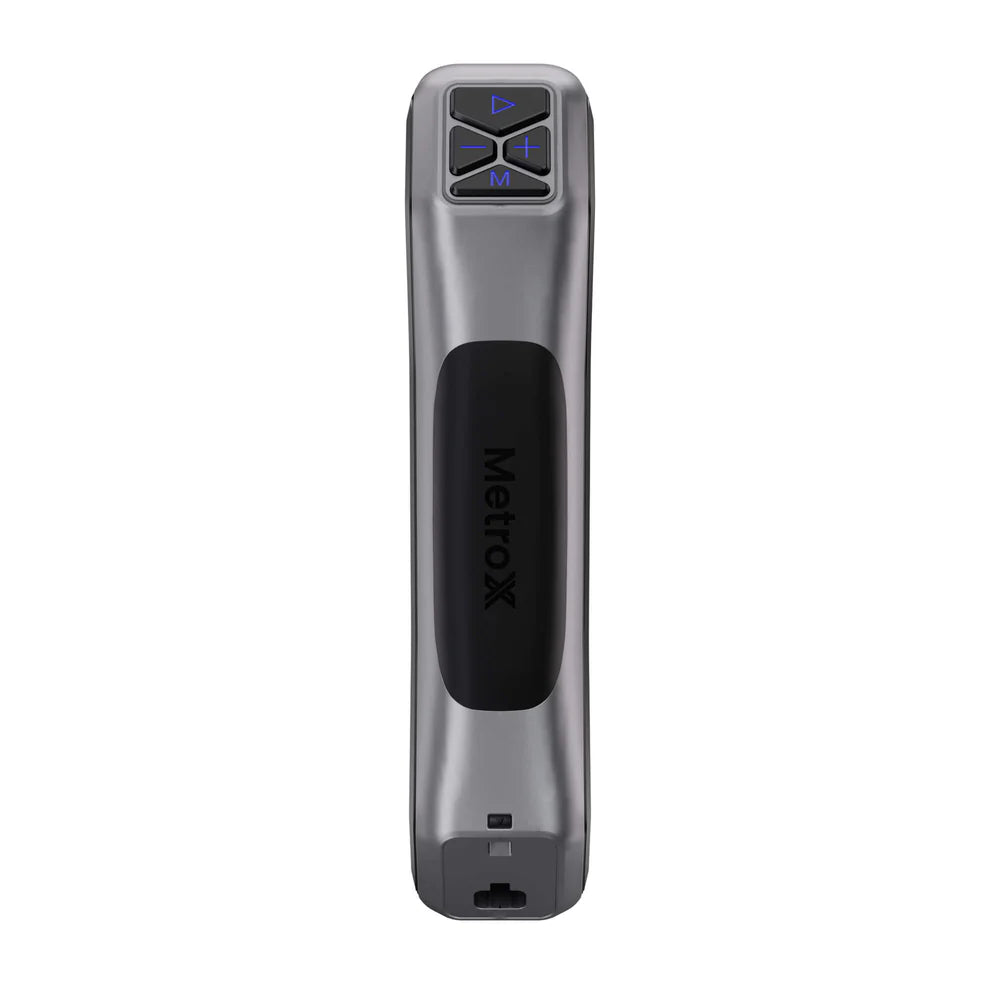

Easy to Control

4 Buttons

HD RGB Camera

Create vibrant 3D models

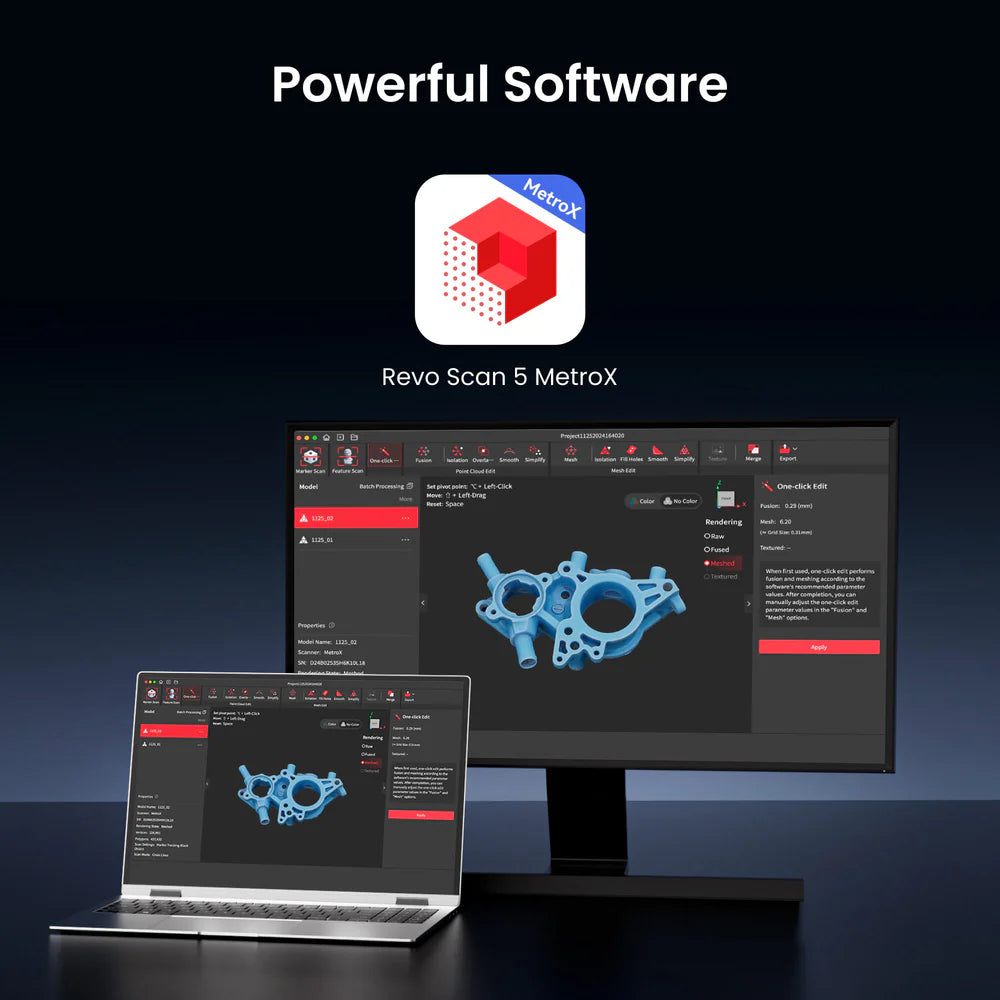

Powerful Software Revo Scan 5 MetroX

Revo Scan 5 MetroX does everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting

See some of MetroX's impressive scans:



MetroX vs. MetroX Pro

Name	MetroX	MetroX Pro
Scanning Type	Handheld and Desktop
Technology	Multi-line Laser Scan and Full-field Structured Light Scan
Scannable Object Size	Small to Medium
Single-frame Precision, up to	0.01 mm
Single-frame Accuracy, up to	0.02 mm
Volumetric Accuracy	0.025 mm + 0.05 mm × L (m), L is the length of the object.	0.02 mm + 0.04 mm × L (m), L is the length of the object.
Fused Point Distance, up to	0.05 mm
Working Distance	200 ~ 400 mm
Single Capture Area at Nearest Distance	160 × 70 mm at 200 mm
Single Capture Area at Furthest Distance	320 × 215 mm at 400 mm
Angular Field of View (H x V)	43 × 33°
Minimum Scan Volume	10 × 10 × 10 mm
Maximum Scan Volume	1 × 1 × 1 m
Scanning Speed, up to	Multi-line Blue Laser: 800,000 Points/s Full Field Blue Light: 7,000,000 Points/s	Multi-line Laser Scan: 2, 000, 000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s
RGB Camera Resolution	2 Megapixels
Color Scanning	Only in Auto Turntable Mode
Tracking Methods	Feature, Marker, Global Marker
Outdoor Scanning	No
3D Light Source	14 Blue Cross Laser Lines 7 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light	30 Blue Cross Laser Lines 15 Blue Parallel Laser Lines 62 Line Blue Full-field Structured Light
Fill Lights	12 Blue LEDs
CPU	4 core ARM, 2.0 GHz
Built in Chip Computing	Depth Computing
Buttons	4
Minimum PC Requirements	macOS: CPU: M1 Pro/Max/Ultra, RAM ≥ 16GB Windows: CPU: Intel i7 13th Gen or AMD Ryzen 7 5800, RAM ≥ 32GB, GPU : NVIDIA GeForce RTX 3060 (8GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.	macOS: CPU: M2 Pro, RAM ≥ 16GB Windows: CPU: Intel i7 13th Gen or AMD Ryzen 7 5800, RAM ≥ 32GB, GPU: NVIDIA GeForce RTX 3060 (8GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.
Recommended PC Requirements	macOS: CPU: M2 Pro/Max/Ultra, M3 Pro/Max/Ultra, RAM ≥ 24GB Windows: CPU: Intel i9 12th Gen or better, RAM ≥ 64GB, GPU: NVIDIA RTX 4060 (8 GB) or better	macOS: CPU: M4 Pro or better, RAM ≥ 24GB Windows: CPU: Intel i9 12th Gen or better, RAM ≥ 64GB, GPU: NVIDIA RTX 4060 (8 GB) or better
Compatible Operating Systems	Windows 10/11 (64-bit), macOS 11.0 or better
Output File Formats	PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
Ready to Print 3D Models	✔
Connector Type	USB Type-C	USB Type-C to Type-C
Power Requirements	DC 12V, 3A
Scanner Weight	508 g
Dimensions (L x W x H)	209 × 88 × 44 mm
Special Object Scanning	Please use scanning spray when scanning transparent or specular surfaces in Multi-Line Laser modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
User Recalibration	Yes
Supported Accessories	Dual-axis Turntable, Marker Block Kit

Note:

1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.

2. Class 2M Laser Safety Tips:

(1) The product uses a Class 2M laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details.

(2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses).

(3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam.

3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy.

4. If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
