MoTech  |  SKU: MT-1703HS200EC-1000

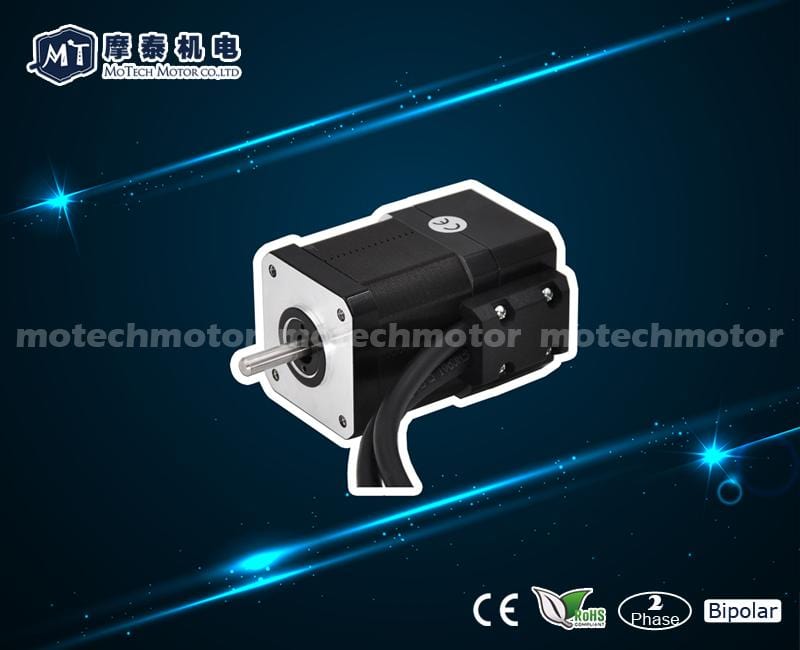

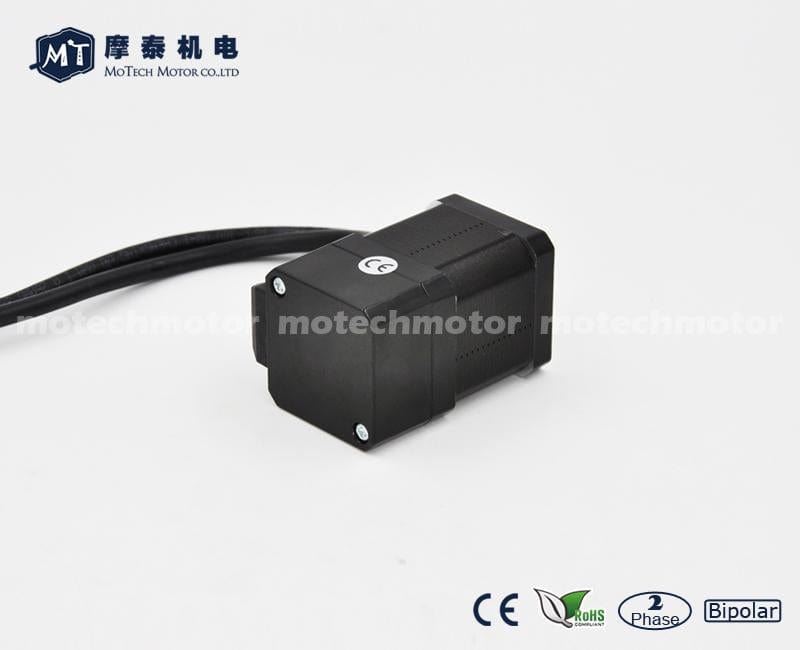

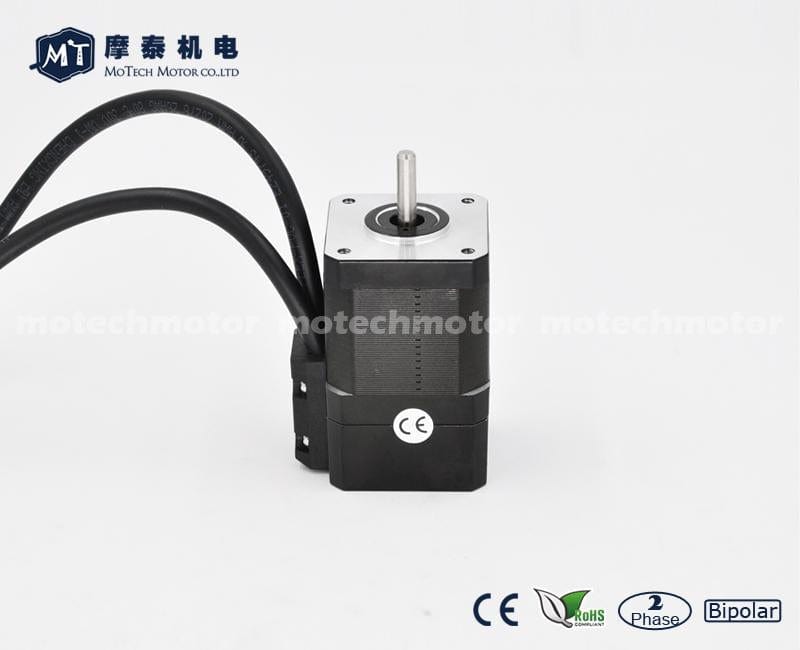

MoTech Closed Loop NEMA 17 Stepper Motors

$59.99 $75.00

Description

MoTech Closed Loop NEMA 17 Stepper Motors

MoTech Motor offers premium quality closed loop Stepper Motors. HartSmart Products had these closed loop stepper motors custom made by MoTech to ensure they will work well in most 3D printers. As a part of our customizations, all of these NEMA 17 stepper motors include:

  • 27mm shaft length
  • Full-length D-cut for a flat side the entire length of the 27mm shaft

NOTE:
Closed Loop Steppers will require a Closed Loop Stepper Driver, and are not drop-in replacements for Open Loop Stepper Motors.

Motor Specifications



Motor Length

Model #

Step Angle

Rated Current

(Amps/Phase)

Holding Torque

(oz.in)

Holding Torque

(kg.cm)

Resistance

(Ohms/Phase)

48mm+20mm
(68mm total)

 MT-1704HS200EC-1000
 1.8° 2.00 83.3 6.0 1.4

60mm+20mm

(80mm total)

 MT-1705HS200EC-1000
 1.8° 2.00 114.0 8.2 2.0


Product Specifications

Item
 Specifications
Degrees Per Step 1.8°
Step Angle Accuracy
 1.8°±5% (full step, no load)
Resistance Accuracy
 ±10%
Inductance Accuracy
 ±20%
Temperature Rise
 80°C Max.(2 phase on)
Ambient Temperature
 -20°C~+50°C
Insulation Class
 B, 130°C
Insulation Resistance
 100MΩMin. , 500VDC
Shaft Radial Play
 0.02Max. (450 g-load)
Shaft Axial Play
 0.08Max. (450 g-load)
Max. radial force
 28N  (20mm from the flange)
Max. axial force
 10N
Resolution 1000 CPR
Speed Range ≤3000rpm


Encoder Specifications

Driving Voltage
 5V
Current Consumption
 ≤50mA
Output Current
 0-5mA
Output Method Output Differential (Line Driver Output), Two Channels
Response Frequency
 0-20KHz
Working Tem.
 --25℃-85℃
Working Humidity
 30-85% (no condensation)
IP Protection
 IP20
