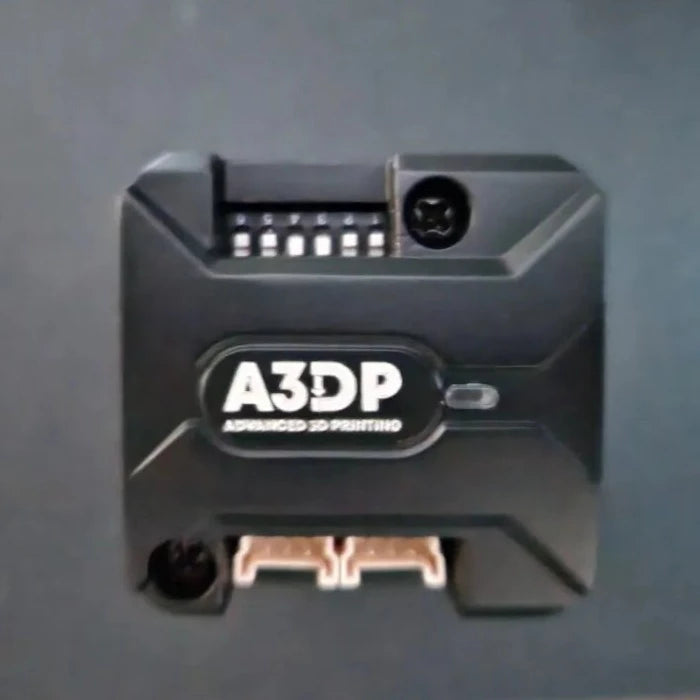

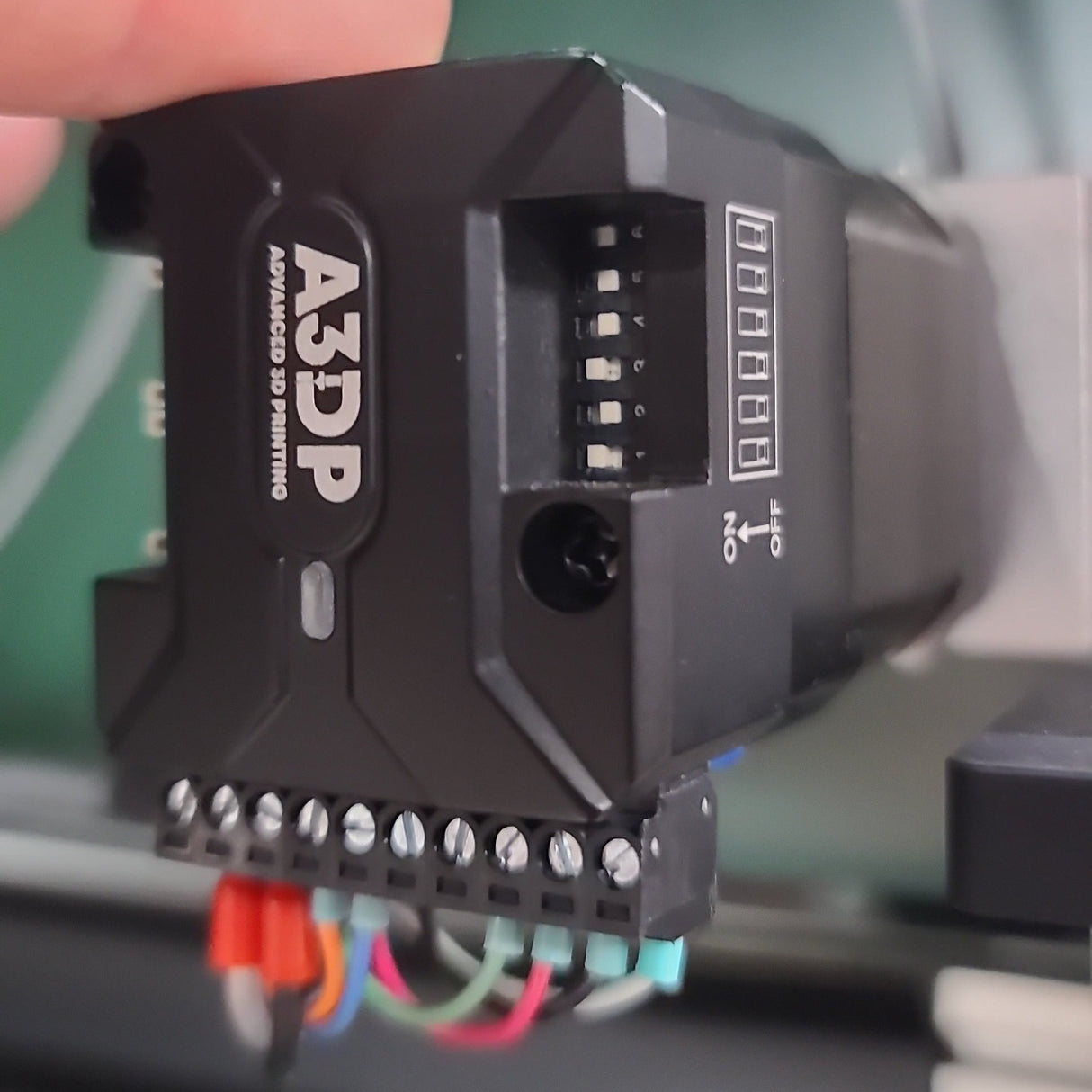

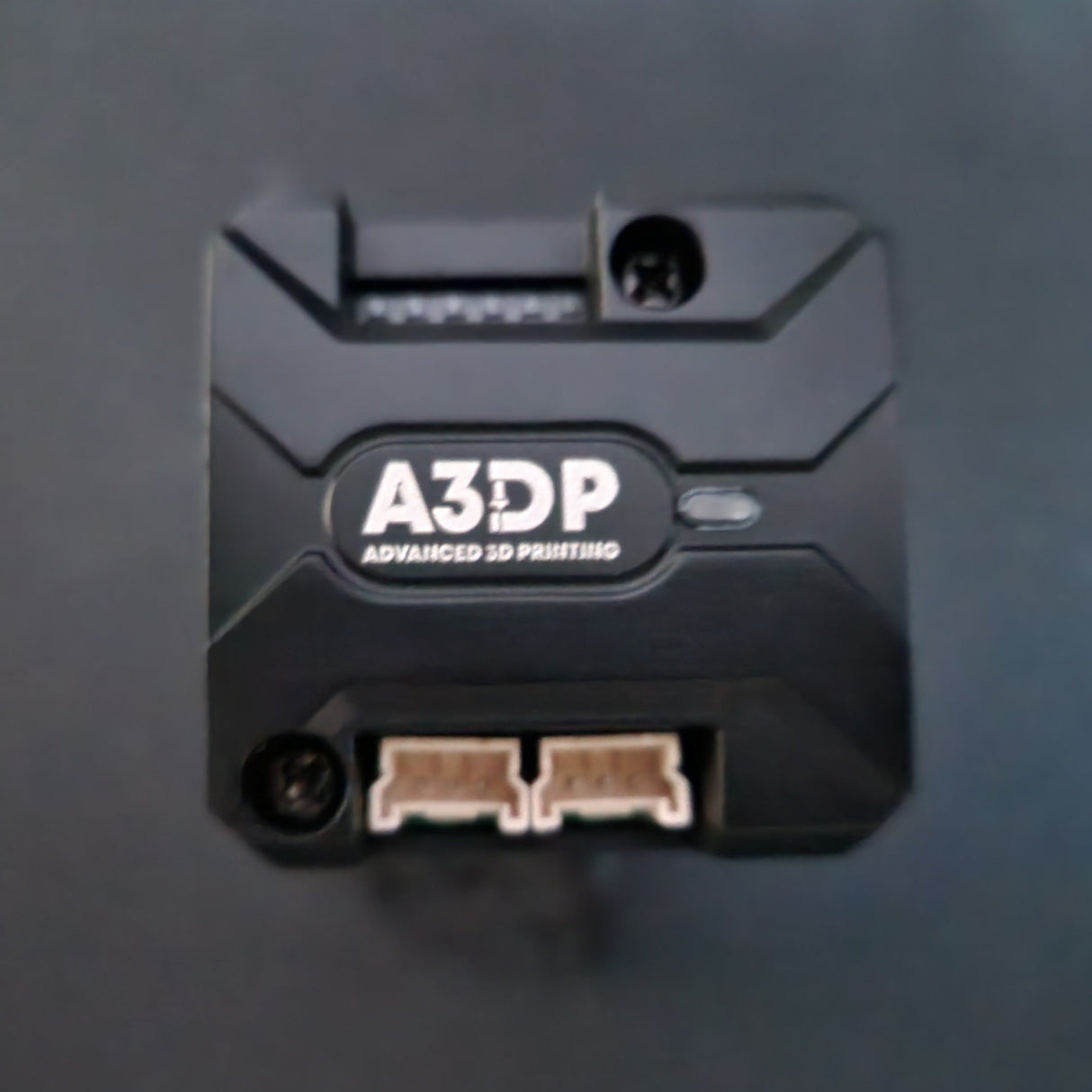

A3DP Closed Loop Stepper Motors

A3DP Closed Loop Stepper Motors

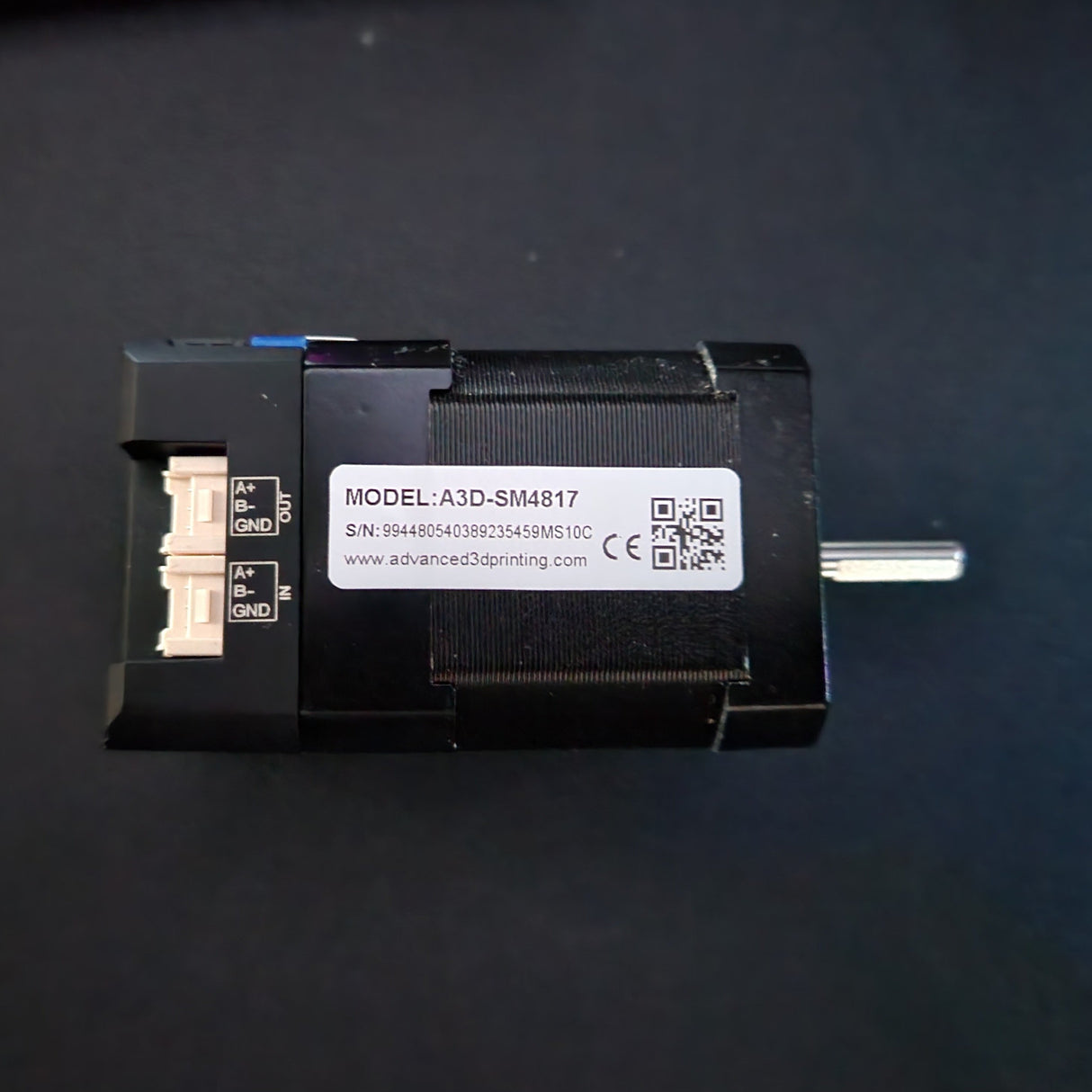

The Performance of a high-end servo/stepper drive integrated into a plug-and-play setup for 3d printing. No need for high voltage unless you want it. Most comparable cost solutions have a 1000-line encoder which provides 4000 counts per revolution. The A3DP-4817 modbus-enabled motor has a 16384 position encoder and with current implementation we are achieving 4096 steps per rotation. With 20-tooth GT2 pulleys this is providing a resolution of .009mm.

• All-in-one solution
• Easy setup, high reliability
• Built-in motion commands
• RS485 modbus
• Enhanced compact design

These will work with any printer that uses TMC 2208/2209/2130/5160, etc. or Allegro-based designs. They also can work with any MCU with open GPIO pins or differential outputs or external stepper support.

The preloaded firmware is setup for 3D printing not a repurposed CNC solution. These are ready to install and wires will be available for purchase just make sure to note the length you want and what motherboard so a wire harness can be made up to 2 meters in length.
