xTool | SKU:
P5010341-1
xTool F1 Ultra 20W Fiber & Diode Dual Laser Engraver
$2,499.00
$2,999.00
Unit price
/
Unavailable
xTool F1 Ultra 20W Fiber & Diode Dual Laser Engraver
From
$2,499.00
$2,999.00
Unit price
/
Unavailable
Description
Description

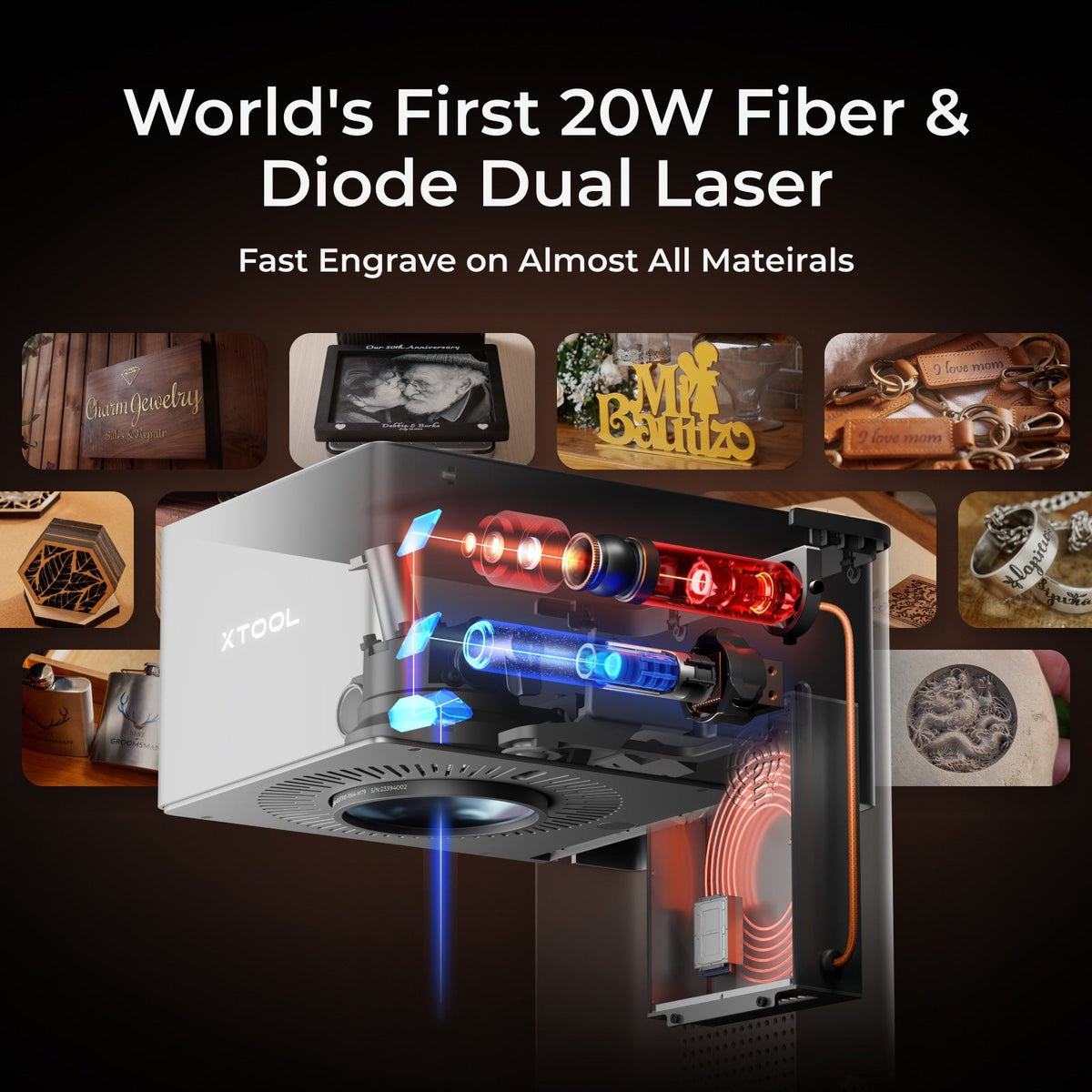

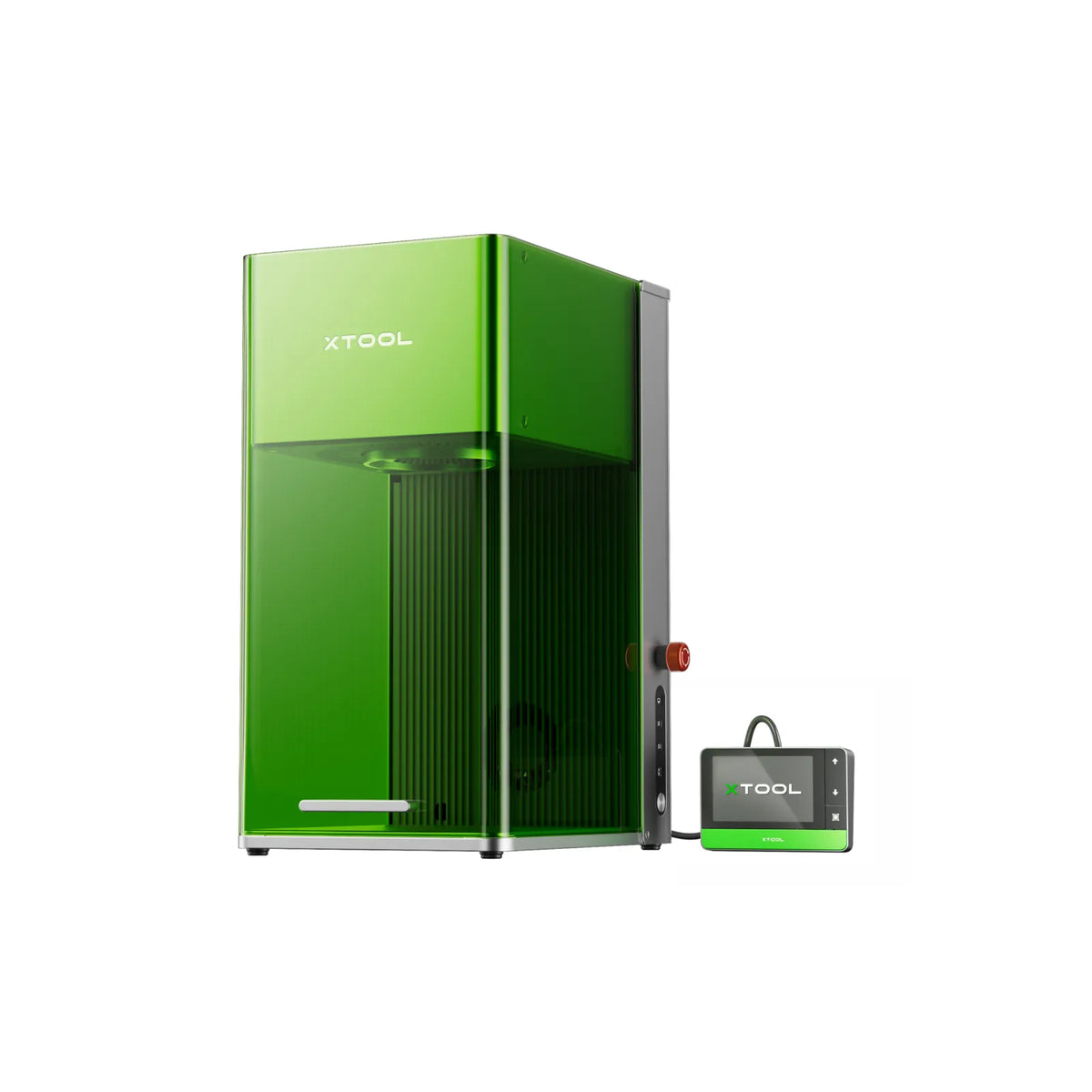

xTool F1 Ultra 20W Fiber & Diode Dual Laser Engraver
- 20W Fiber laser: Deep engraving, embossing, and thin metal cutting.
- Dual laser engraves almost all materials: wood, acrylic, leather, metal, and more.
- Speedy and precise: 10000mm/s engraving on almost all metals

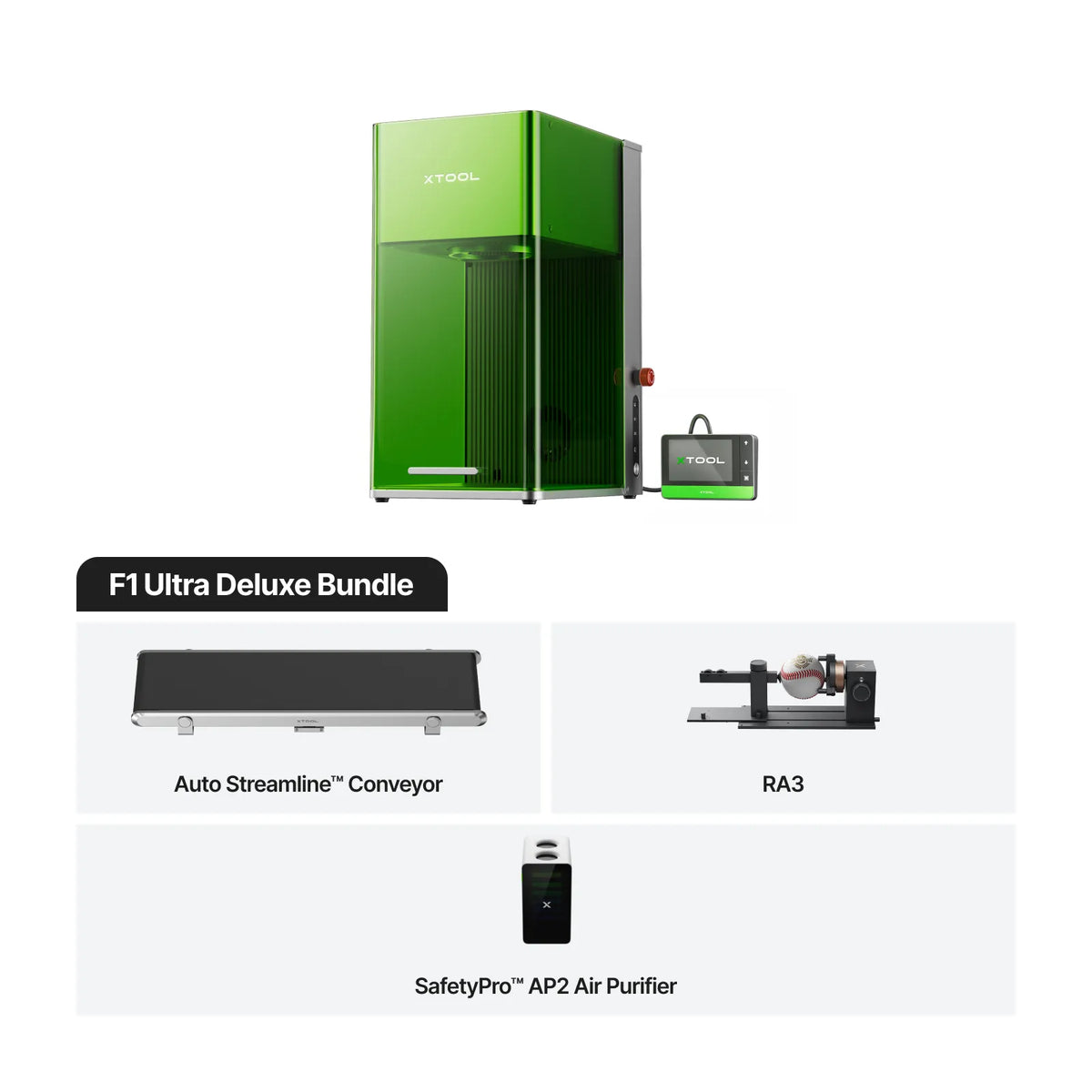

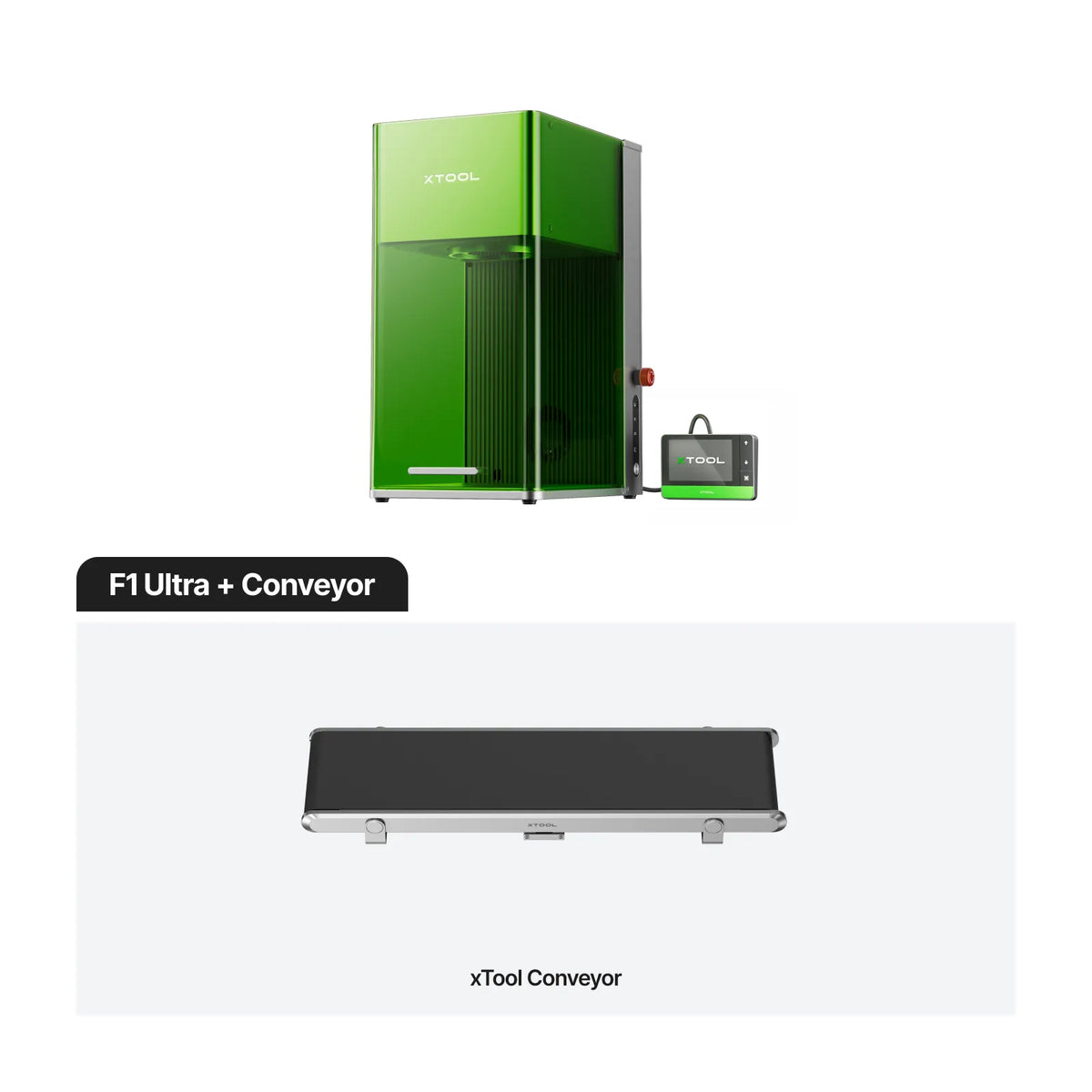

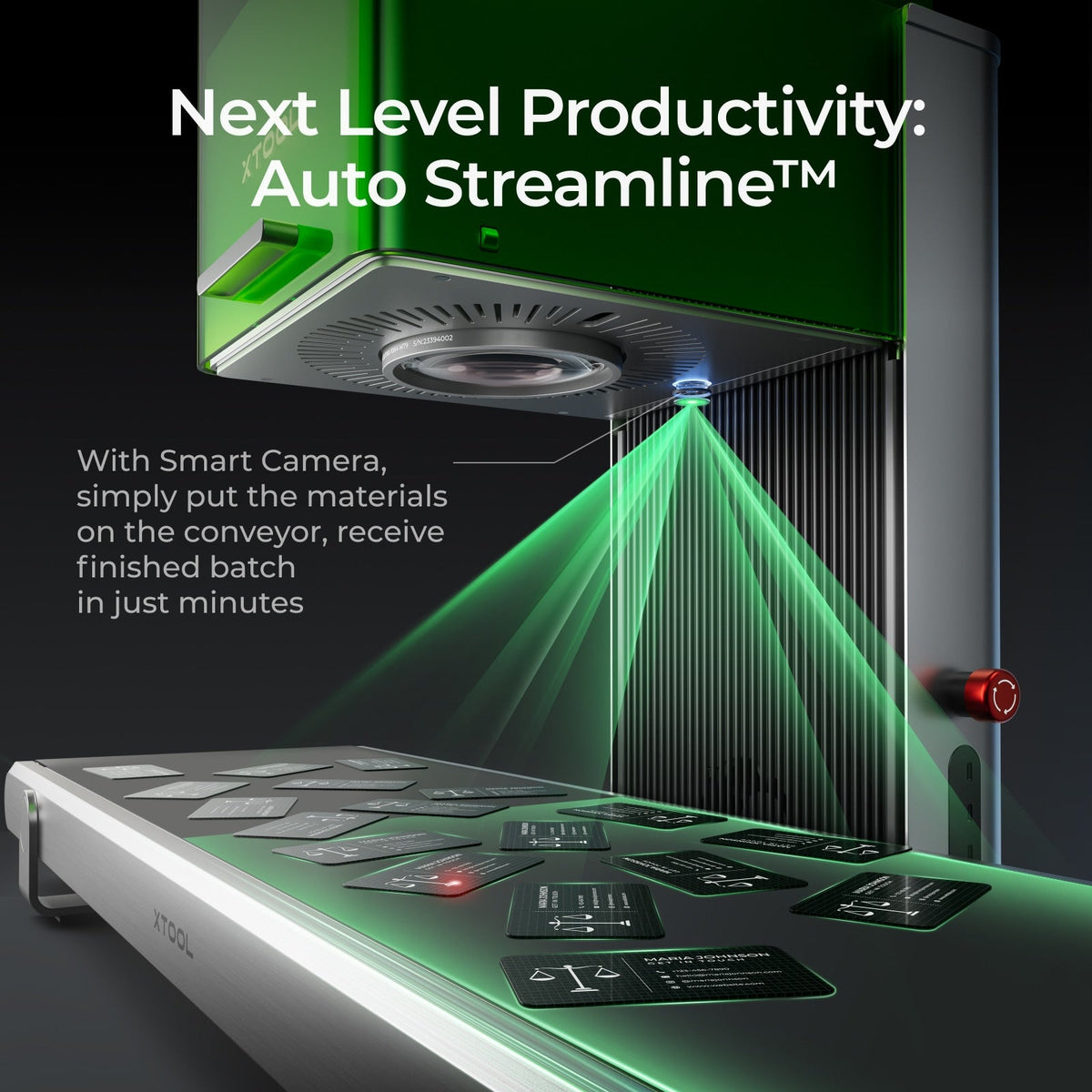

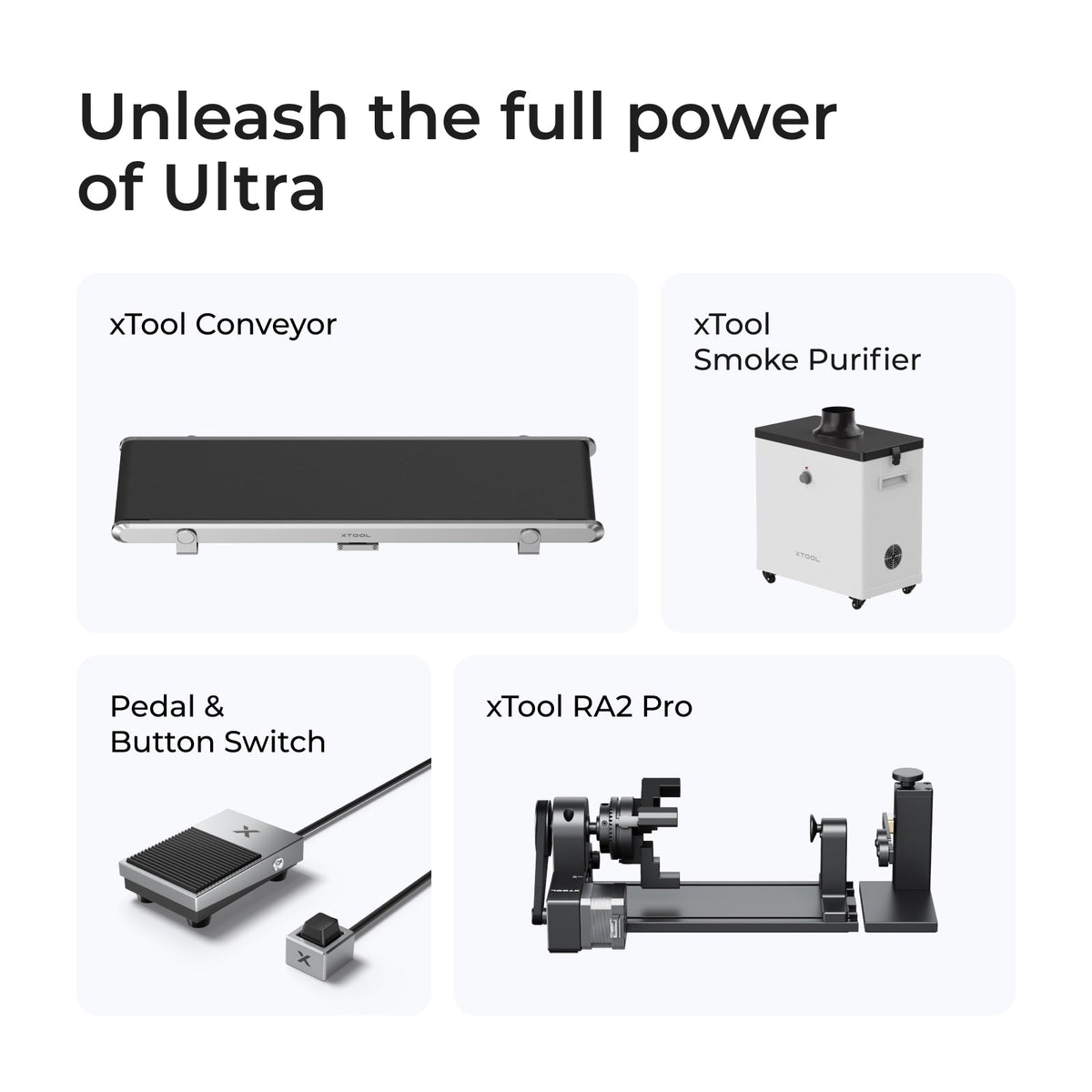

- Auto Streamline™ production: Batch processing with conveyor.
- Safety-Assured: Enclosed cover. Eye-protection cover. Fire safety stop.
Specifications
| Model | xTool F1 Ultra | xTool F1 |
|---|---|---|
| Processing Capacity | ||
| Laser Type | 20W Diode Laser + 20W Fiber Laser | 10W Diode Laser + 2W Infrared Laser |
| Processing Mode | Laser Engraving, Laser Cutting | Laser Engraving, Laser Cutting |
| Supported Materials (Cuttable) |
Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic Fiber Laser: Brass, Stainless Steel, Aluminum |
Diode Laser: Paper, Wood, Leather, MDF, Felt, Some dark opaque acrylic |
| Supported Materials (Engravable) |
Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal Fiber Laser: Stainless Steel, Aluminum, Brass, Sliver, Plastic, Platinum, Titanium, Gold |
Diode Laser: Paper, Wood, Leather, MDF, Stainless steel, Some dark opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal 1064nm Infrared Laser: Metal, Plastic, Black Acrylic |

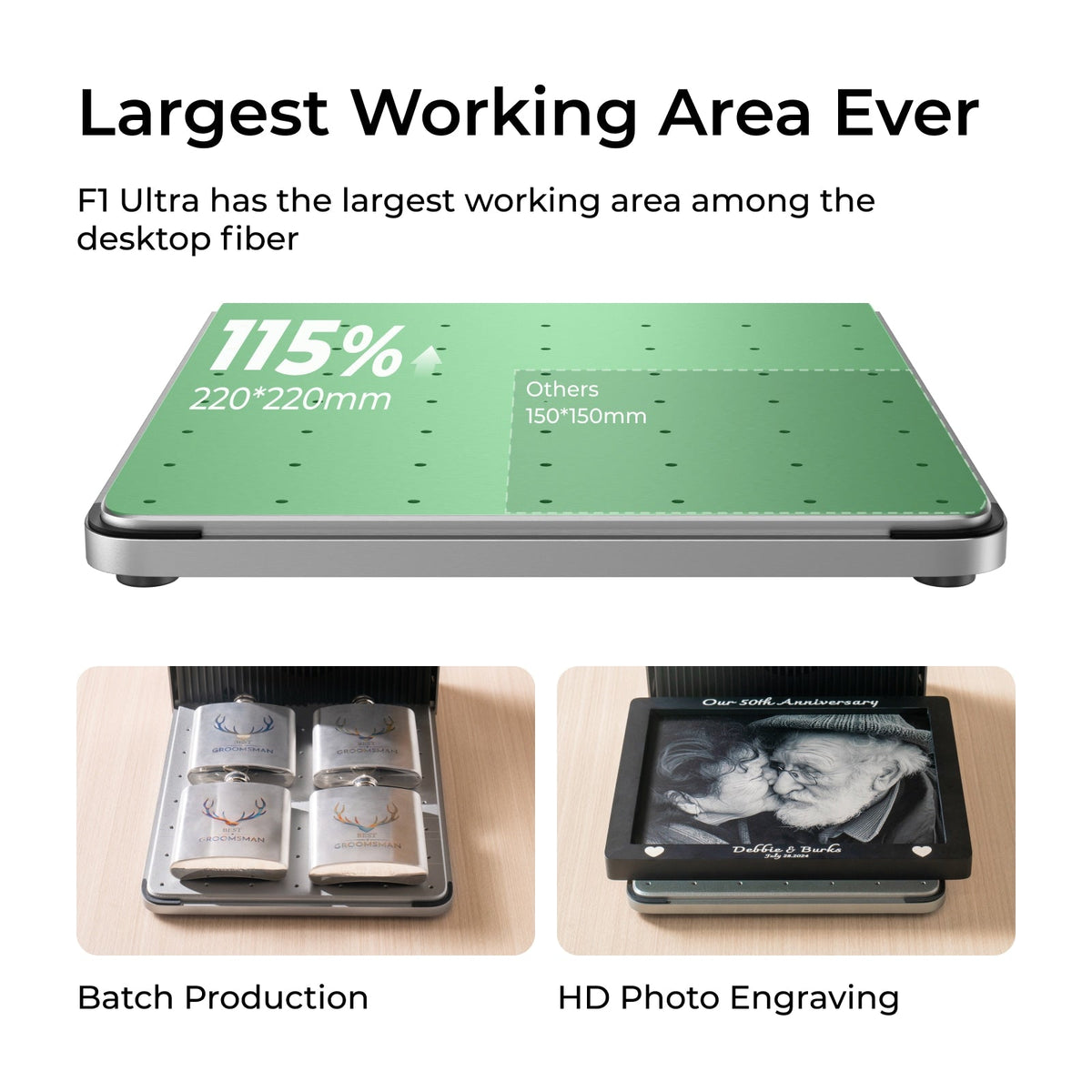

| Working Area | 8.6" × 8.6" (220 mm × 220 mm) 8.6" × 19.6" (with conveyor) (220 mm × 500 mm) |
4.53" × 4.53" (115 mm × 115 mm) 15.75" × 4.53" (with accessories) (400 mm × 115 mm) |
| Max. Working Speed | 10000mm/s | 4000mm/s |
| Max. Laser Cutting Capacity (Basswood) | 15 mm in Multiple Passes | 8 mm in Multiple Passes |
| Max. Laser Cutting Capacity (Acrylic) | 12 mm in Multiple Passes | 6 mm in Multiple Passes |
| Max. Processing Height | 145 mm | 113 mm |

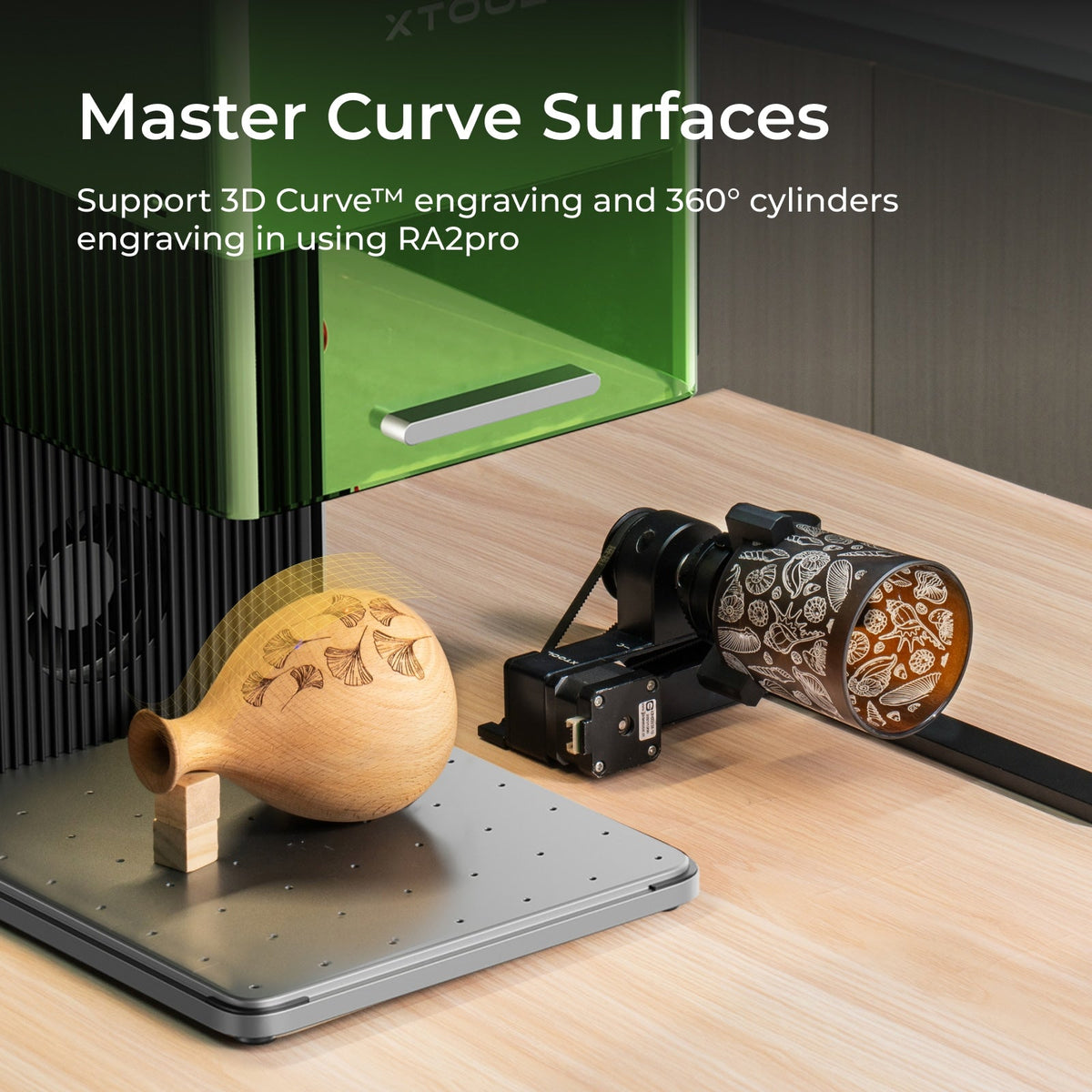

| Max. Rotary Engraving Diameter | 145 mm | 113 mm |
| Smart Software | ||
| Supported Software | xTool Studio | xTool Studio |
| Operating System | Windows/macOS | Windows/macOS |
| Connection Method | USB/Wi-Fi/IP/Hotspot | USB/Wi-Fi |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP/TIF | SVG/DXF/JPG/JPEG/PNG/BMP/TIF |
| AImake Compatibility | Yes | Yes |
| Easy Operation | ||
| Pre-assembled | Yes | Yes |
| Built-in Camera | 16 MP Smart Camera | N/A |
| Positioning Method | Camera Positioning | N/A |
| Focus Mode | Autofocus | Manual Focus |
| Preview Method | Smart Camera Preview | High-speed Light Live Preview |
| Accuracy & Precision | ||
| Laser Spot Size | 0.08*0.1mm (20W Diode Laser) 0.03*0.03mm (20W Fiber Laser) |
0.08*0.06mm (10W Diode Laser) 0.03*0.03mm (1064nm Infrared Laser) |
| Ranging Precision | 0.5 mm, Camera | N/A |
| Motion Accuracy | 0.00482 mm | 0.00199 mm |
| General Information | ||
| Safety Certification | Class 4 Laser Safety | Class 4 Laser Safety |
| Product Size | 10.75" x 14.69" x 19.37" (273 mm × 373 mm × 492 mm) |
7.05" × 9.25" × 13.15" (179 mm × 235 mm × 334 mm) |
| Product Weight | 32.4 lb (14.7kg) | 10.14 lb (4.6kg) |
| Max. Machine Input Power | 250 W - 275 W | 120 W |
| Power Adapter Input Voltage | 100 V - 240 V, AC 50/60 Hz | 100 V - 240 V, AC 50/60 Hz |
