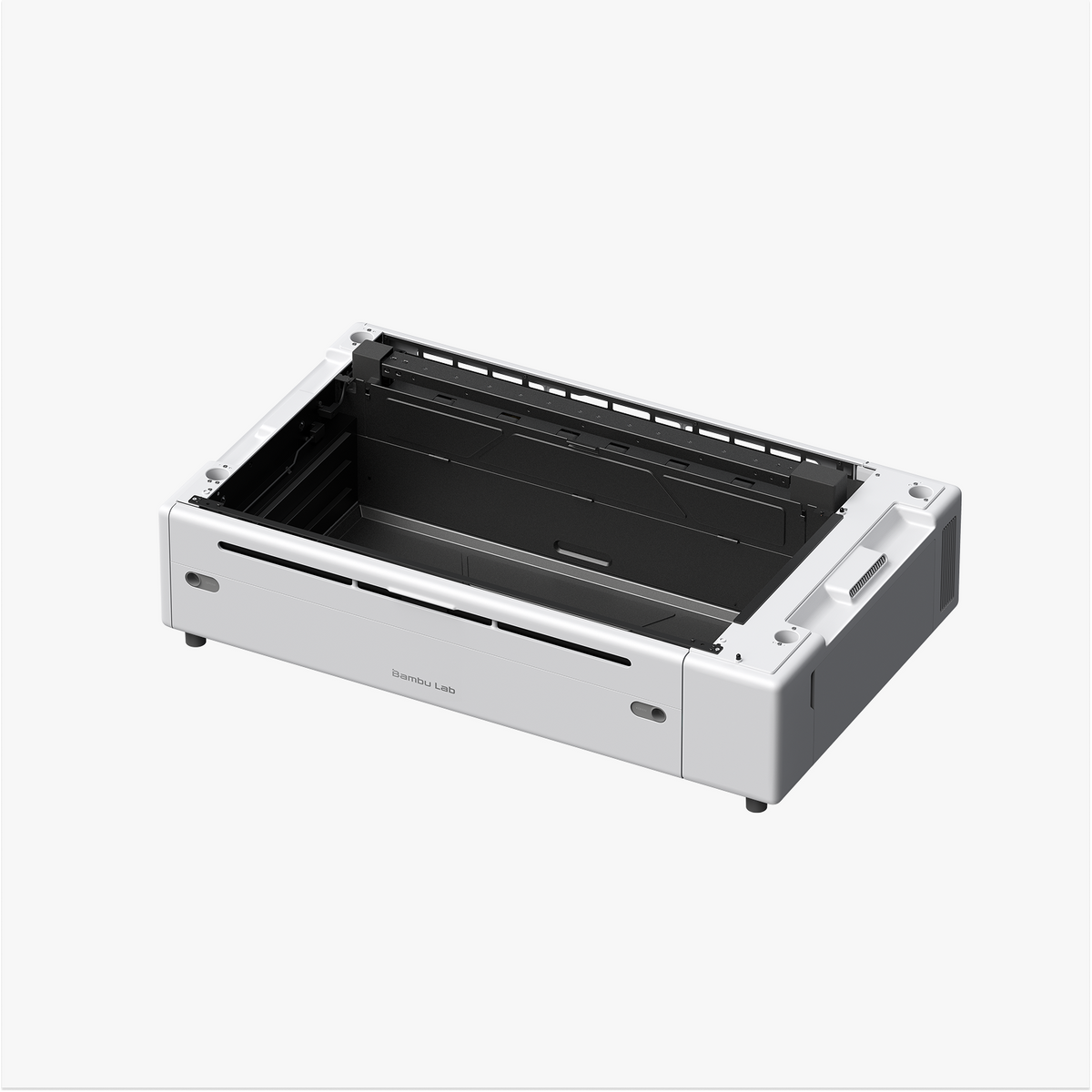

Bambu Lab Riser Base for R1 Laser Cutter
Description
Description
Bambu Lab Riser Base for R1 Laser Cutter
- Enables Auto-Passthrough Processing for long materials
- Enables Rotary Processing
- Creates Extra Clearance for Thicker Objects

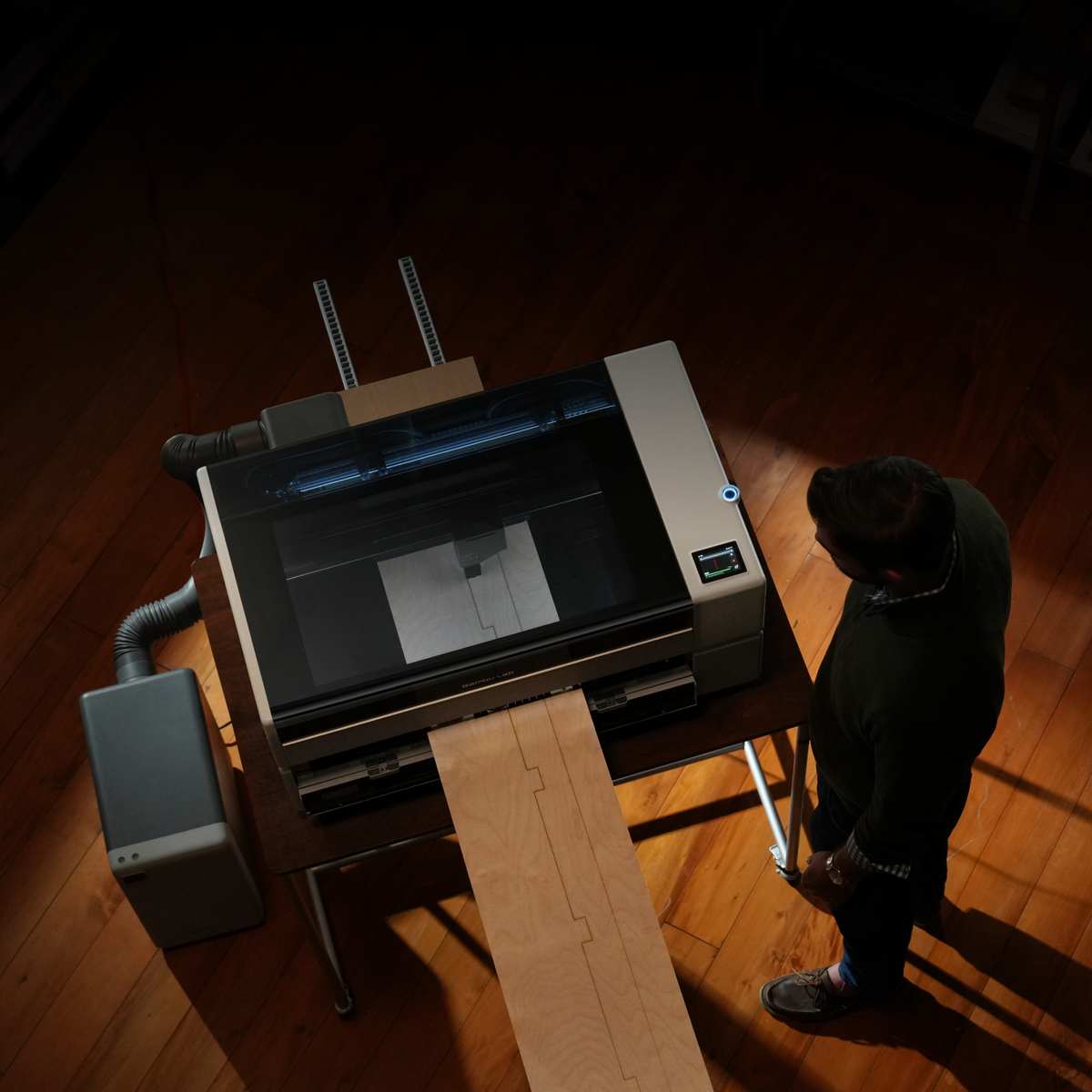

Make room for long materials
Raise R1 to create the pass-through space required for the Conveyor, enabling Auto-Passthrough Processing for long materials.
Ready for rotary projects
The added clearance makes room for the Rotary Attachment, so you can engrave cylindrical and round objects such as bowls, tumblers and bottles.

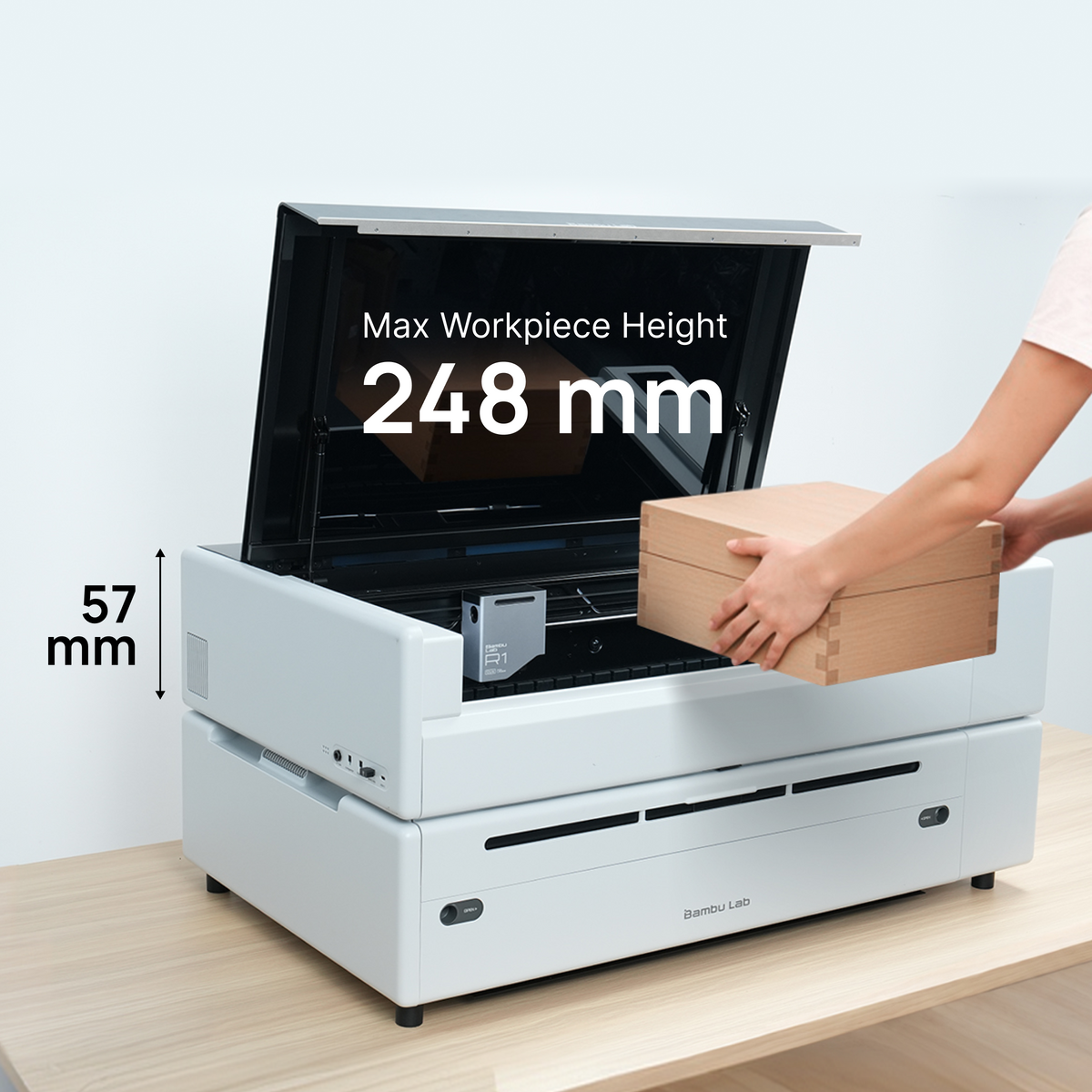

More room for thicker objects
Raise the working space to engrave thicker objects — from wooden boxes to other bulky projects that wouldn't normally fit inside R1.
Installation Guide
For more installation guidance on the Riser Base, please refer to Bambu Lab Wiki.
Parameter
| Parameter | Specification |
| Max. Workpiece Height | 248 mm |
| Riser Interlock |
Front door open detection: Supported Front upper door open detection: Supported Rear door open detection: Supported |
| Flame Detection Sensor | 4 built-in flame sensors |
| Dimensions | 940 mm*560 mm*234 mm |
| Product Weight | 12.6kg |
| Power Supply | Powered via 8-pin cable connected to the R1 |
| Working Area |
R1: 600*300 mm With Conveyor: 600*3000 mm |
In the box
| Item | Quantity |
| Left Assembly | 1 |
| Right Assembly |
1 |
| Back Assembly | 1 |
| Front Assembly | 1 |
| Bambu Bus Cable 8-pin | 1 |
| Screws | 16 |
| Allen Key |
1 |
