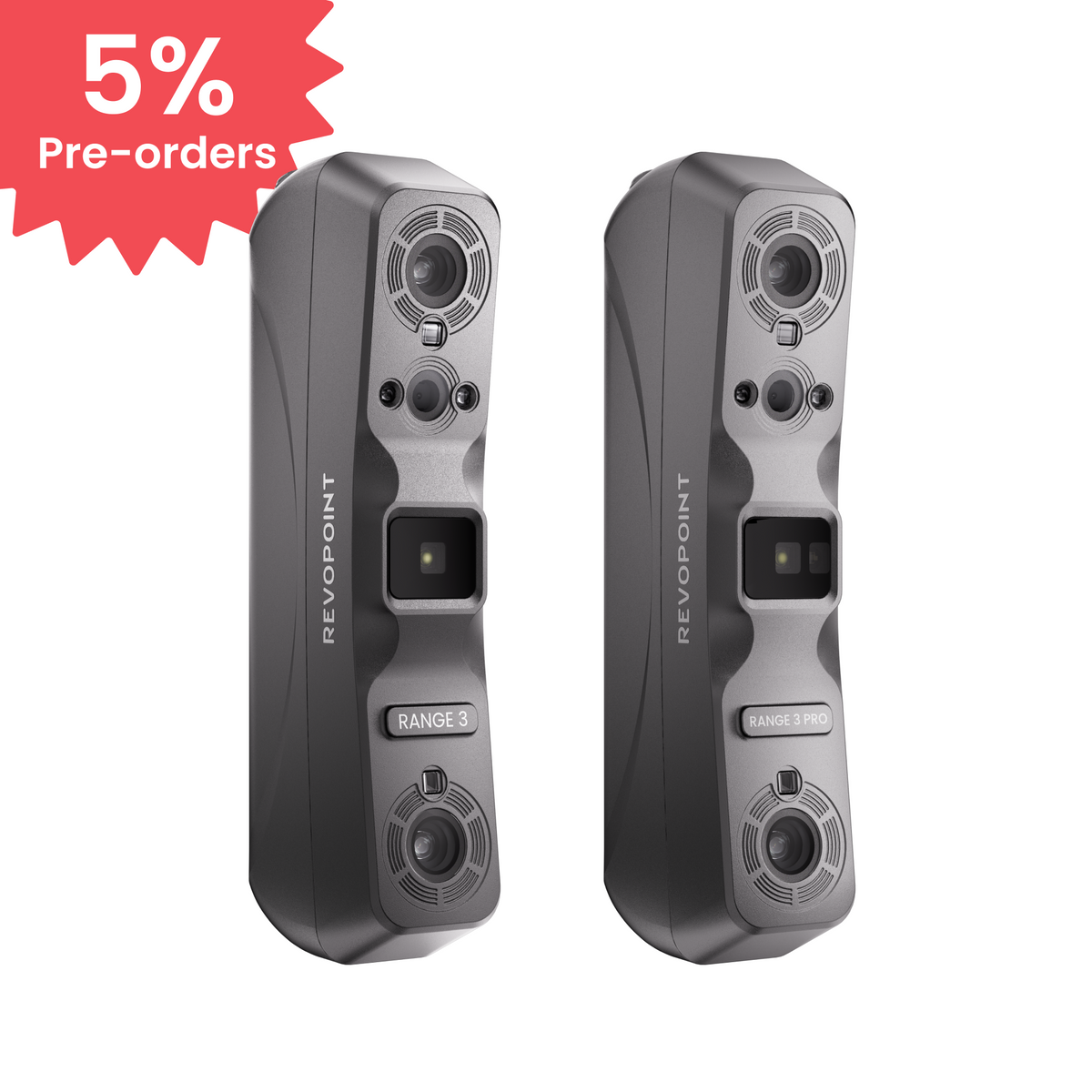

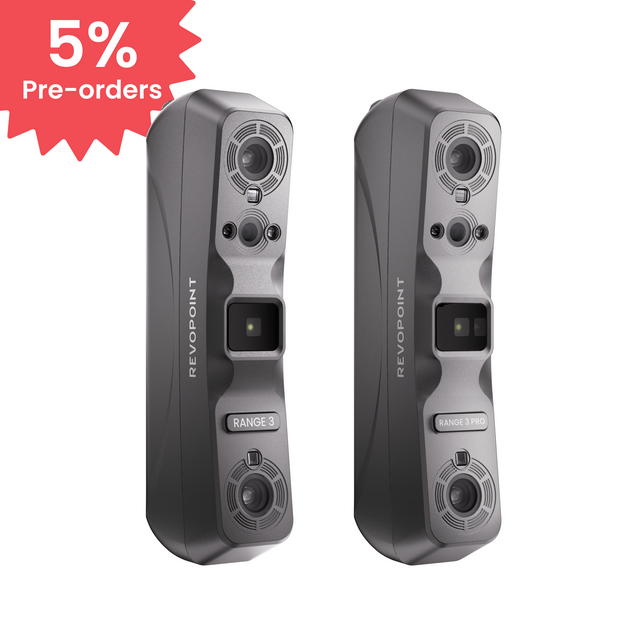

[Pre-order] Revopoint RANGE 3 & RANGE 3 Pro: Wireless VCSEL & Laser 3D Scanner for Large Objects
Description
Description

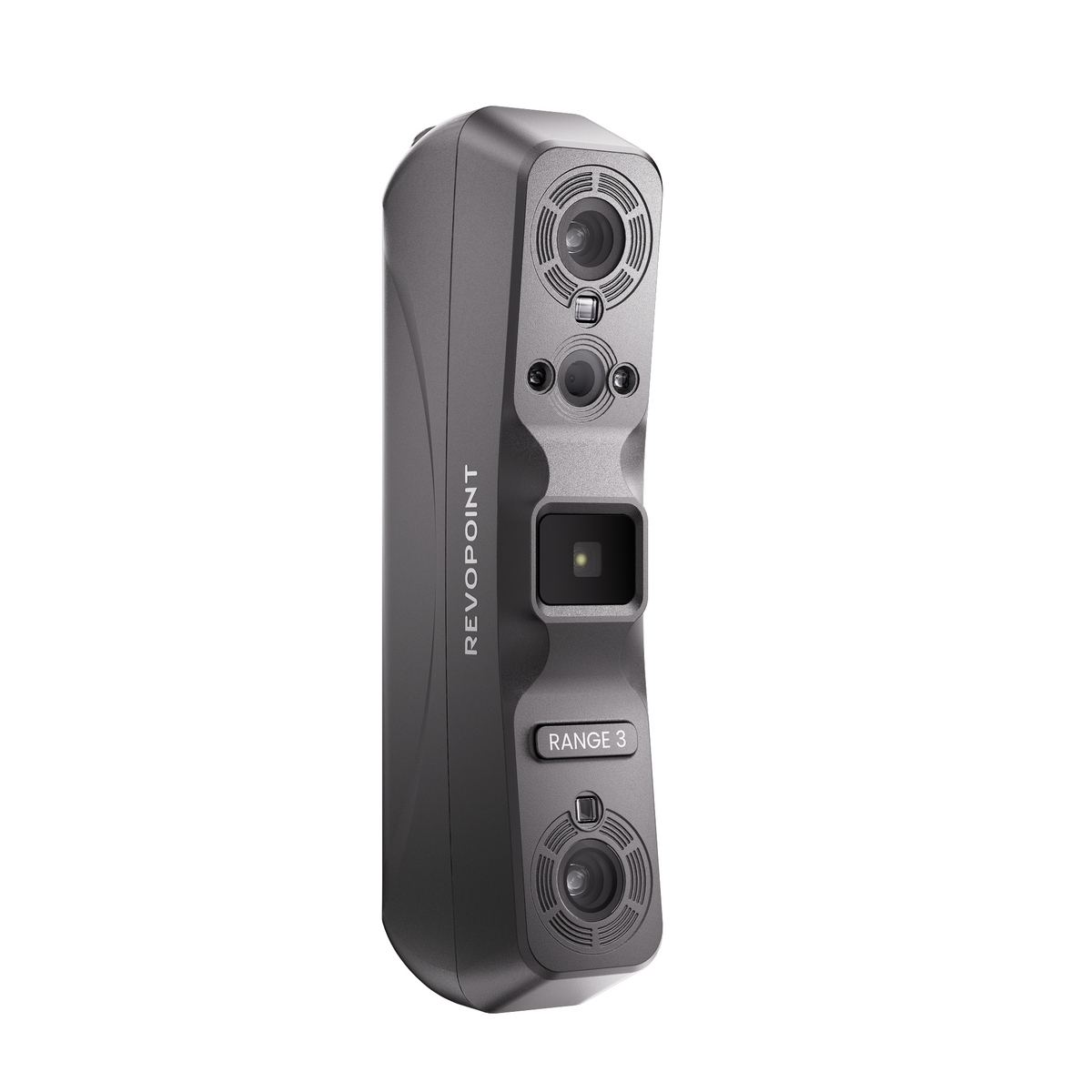

Revopoint RANGE 3 & RANGE 3 Pro Wireless Handheld 3D Scanner
- Wide Coverage: 687 × 672 mm at 1000 mm
- Scanning Volume: 20 mm to 4 m
- Dual Scanning Modes
- Volumetric Accuracy: Up to 0.03 mm + 0.2 mm × L (m)
- Up to 105 fps Multi-line Laser Scans
- Wi-Fi 6 Wireless & Markerless Scanning
- 3-Hour Continuous Power
- Vivid Color Tracking
- 100,000 Lux Outdoor Scanning

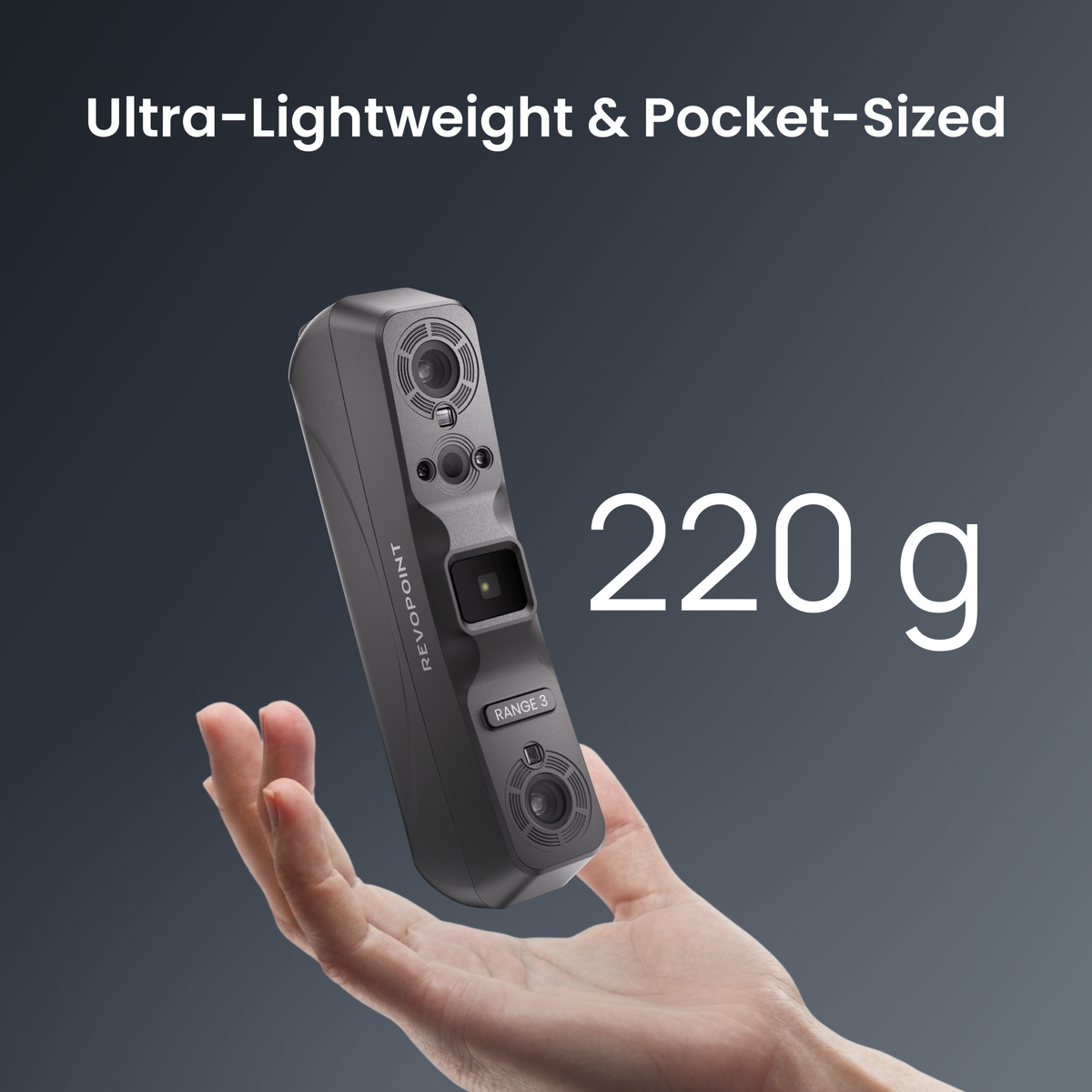

- Ultra-Lightweight & Pocket-Sized
- Intelligent AI Segmentation & Crop
- 3DGS Gaussian Splatting
The Revopoint RANGE 3 is a wireless 3D scanner designed to perform in any environment — scan large objects outdoors in direct sunlight or navigate tight indoor spaces, all completely cable-free.
Features

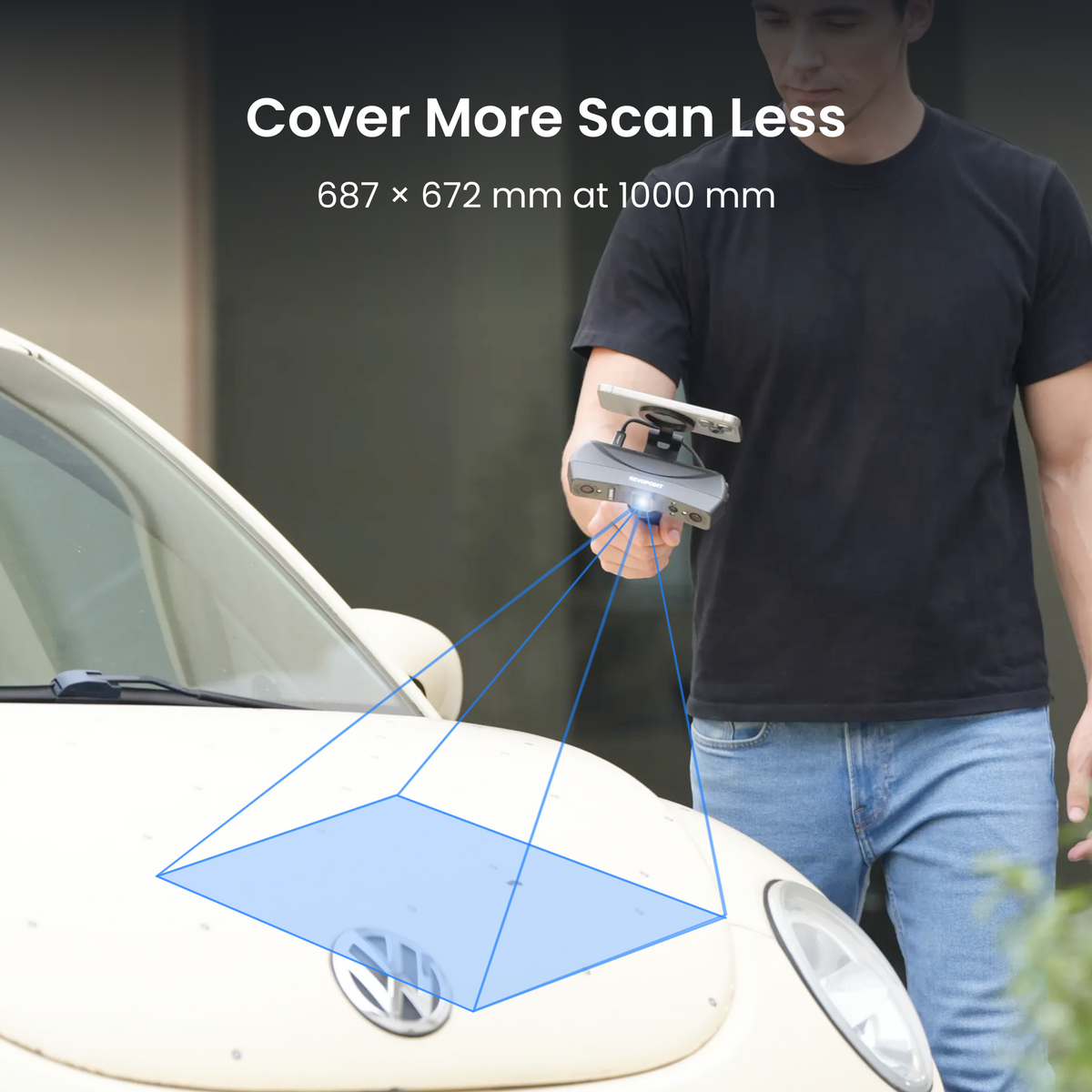

Cover More Scan Less
687 × 672 mm single-frame range at 1000 mm — fewer passes, faster results across medium-to-large objects.
Dual Scanning Modes
Near-Infrared VCSEL (up to 30 fps) for fast large-object capture. *11 parallel lines mode (up to 105 fps) for industrial-grade accuracy.
*RANGE 3 Pro Supports.
One Scanner Every Size
From 20 × 20 × 20 mm components to 4 × 4 × 4 m scenes — no device switching required.

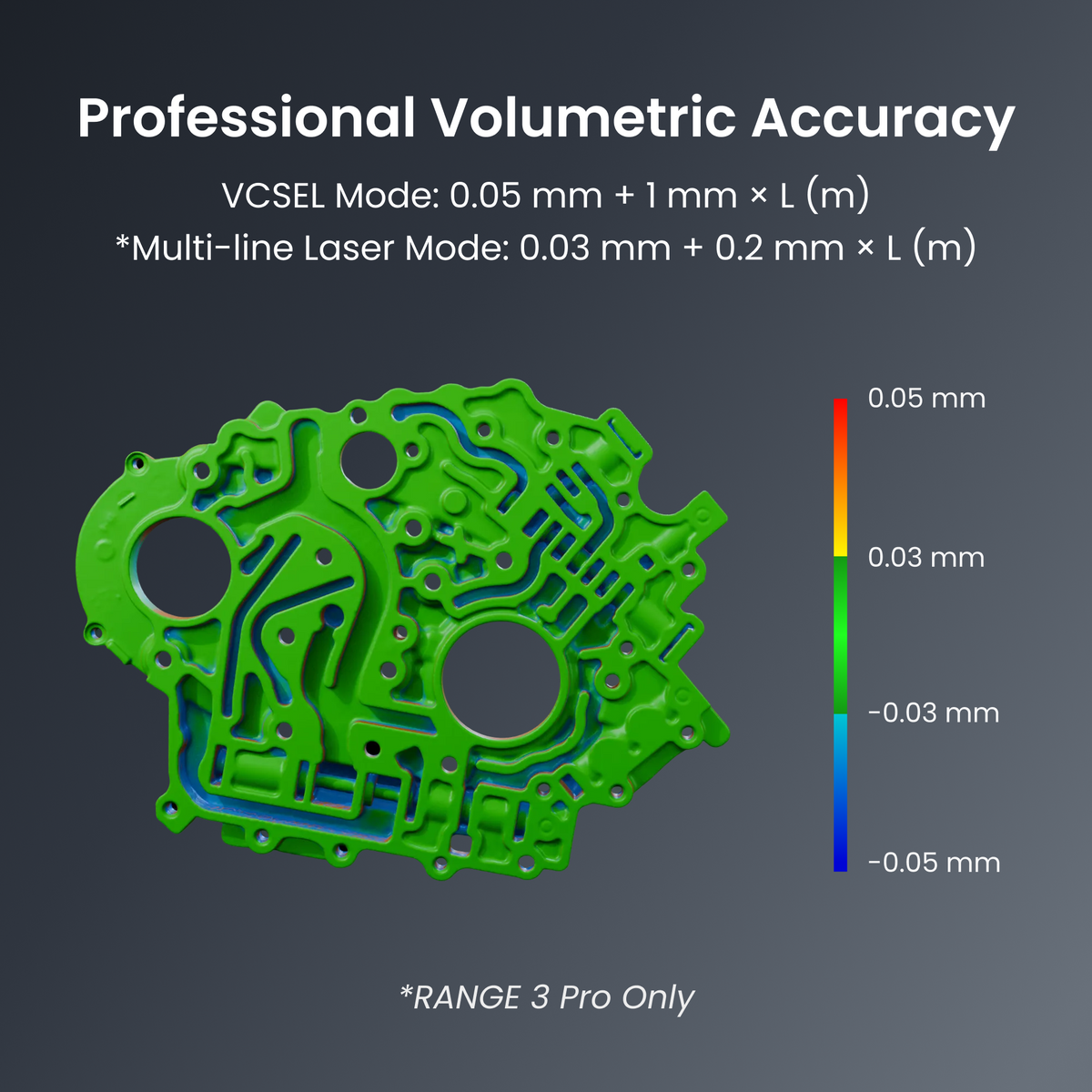

Professional Volumetric Accuracy
Scan complex parts and large-scale objects with professional accuracy. Built for 3D print and reverse engineering.
RANGE 3: 0.05 mm + 1 mm × L (m)
RANGE 3 Pro: Up to 0.03 mm + 0.2 mm × L (m)

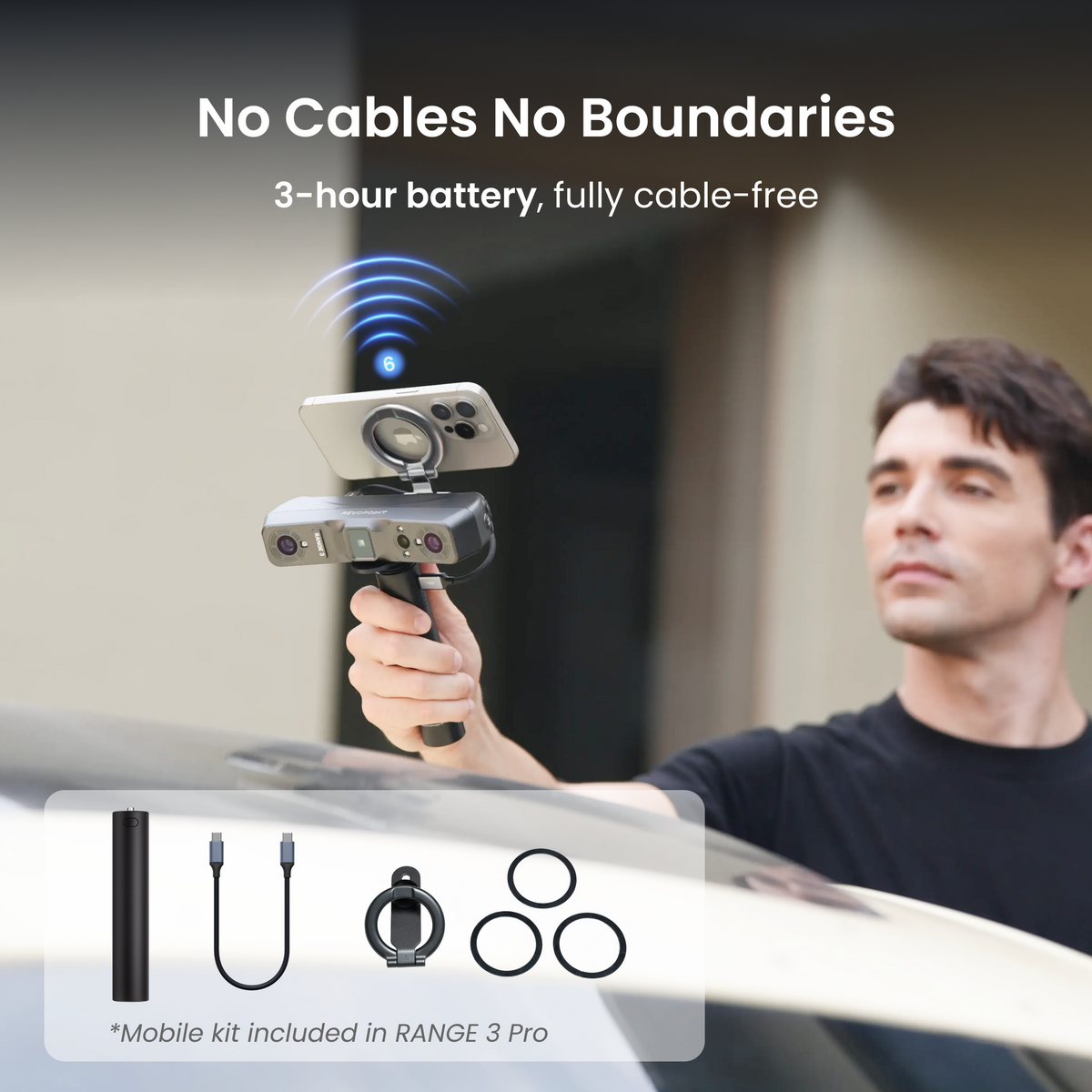

Snap & Go
Built-in Wi-Fi 6 and up to *3 hours of battery life — ideal for walk-around scanning of large objects.
*Mobile kit included with RANGE 3 Pro.
Visual Color Tracking
Effortlessly captures color and texture for flexible, geometry-independent tracking.
*PC Only, Dedicated GPU Required.

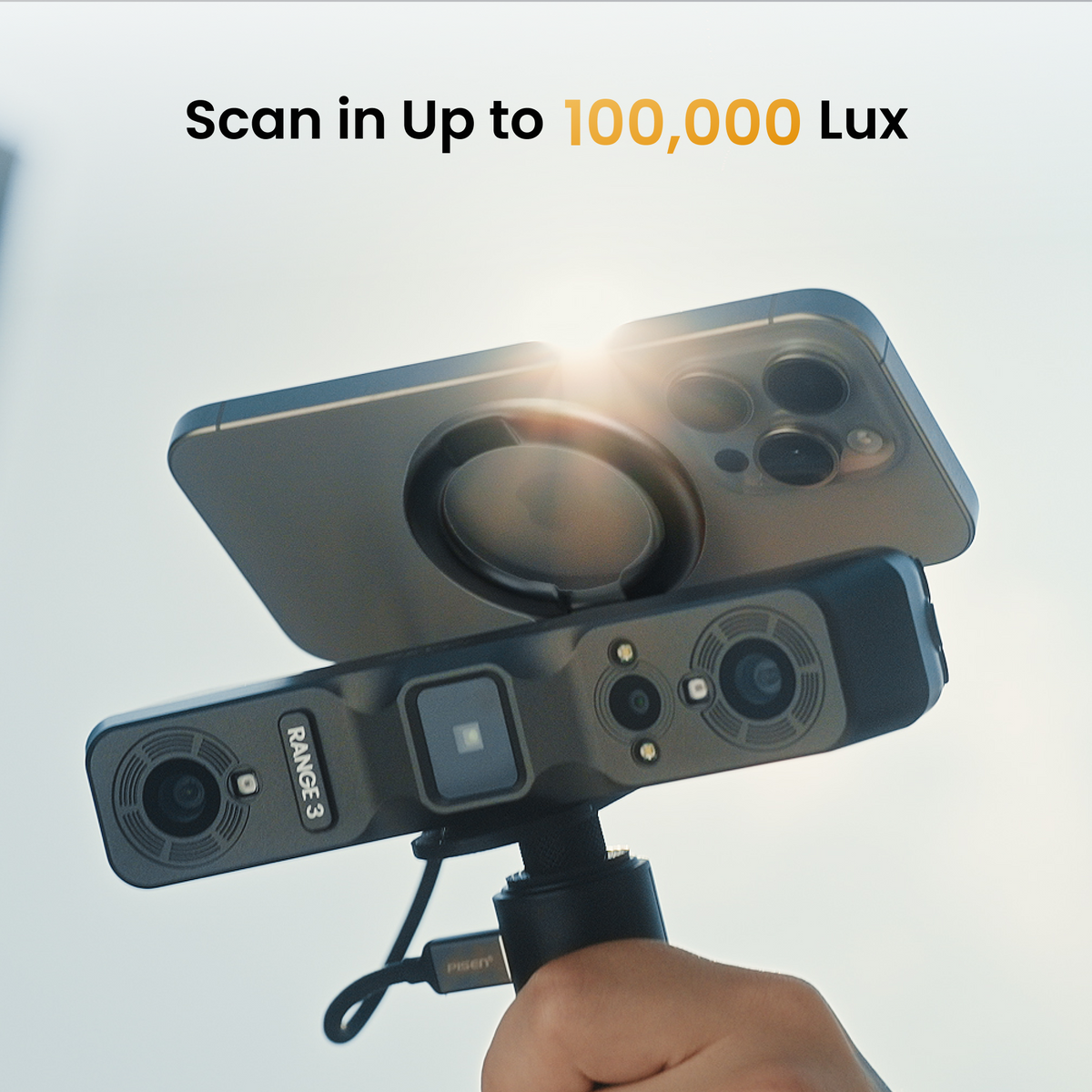

100,000 Lux Outdoor Scanning
Supports ambient light up to 100,000 lux, ensuring smooth, uninterrupted outdoor scanning.
No Markers No Stops
RANGE 3 Pro enables markerless scanning in laser line mode — feature-based and color tracking reduce prep time.
3DGS Gaussian Splatting
Remaster phone textures into 1:1 photorealistic 3DGS .splat models for immersive exhibitions.

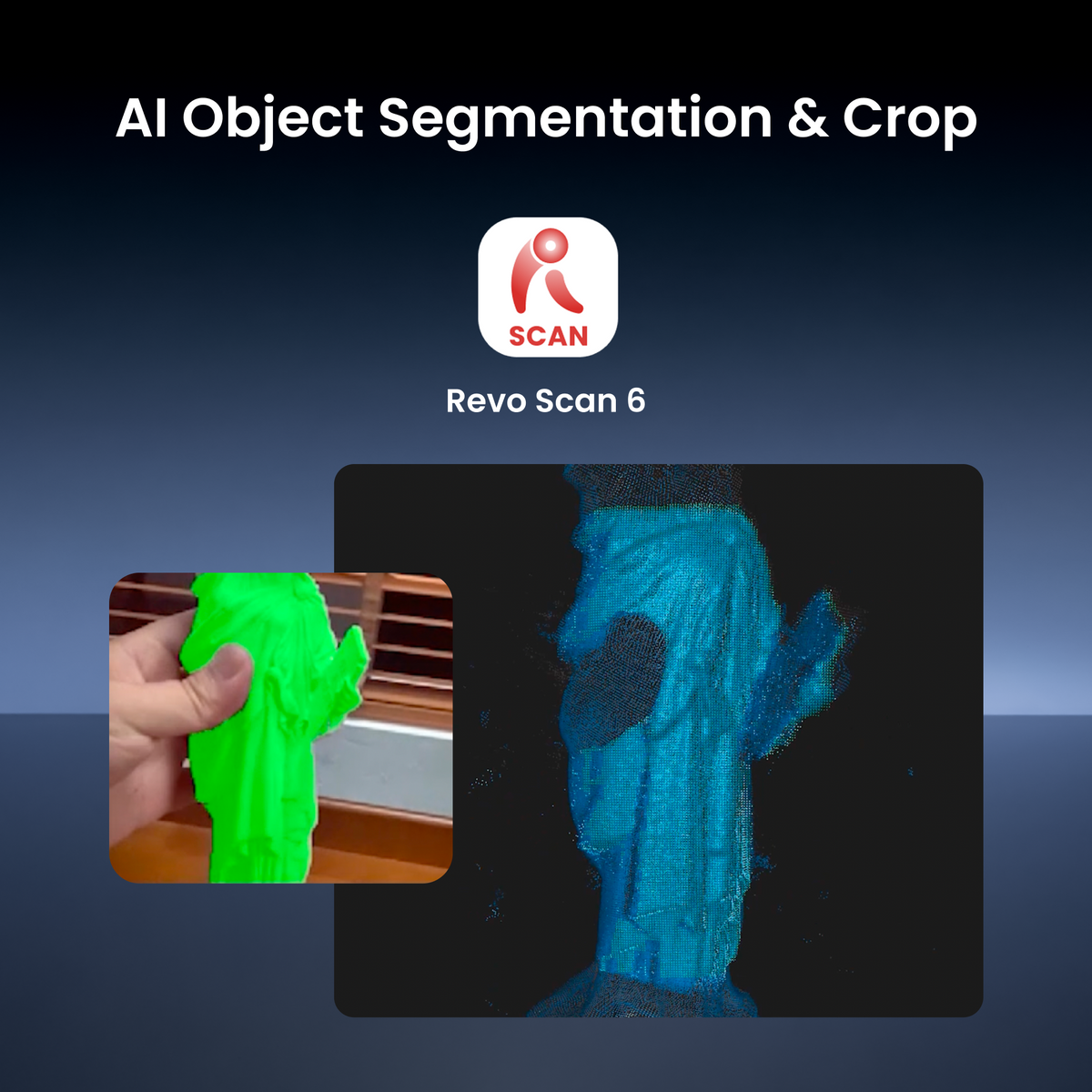

AI Segmentation & Crop
One-click AI removes background point cloud and crops directly in RGB view.

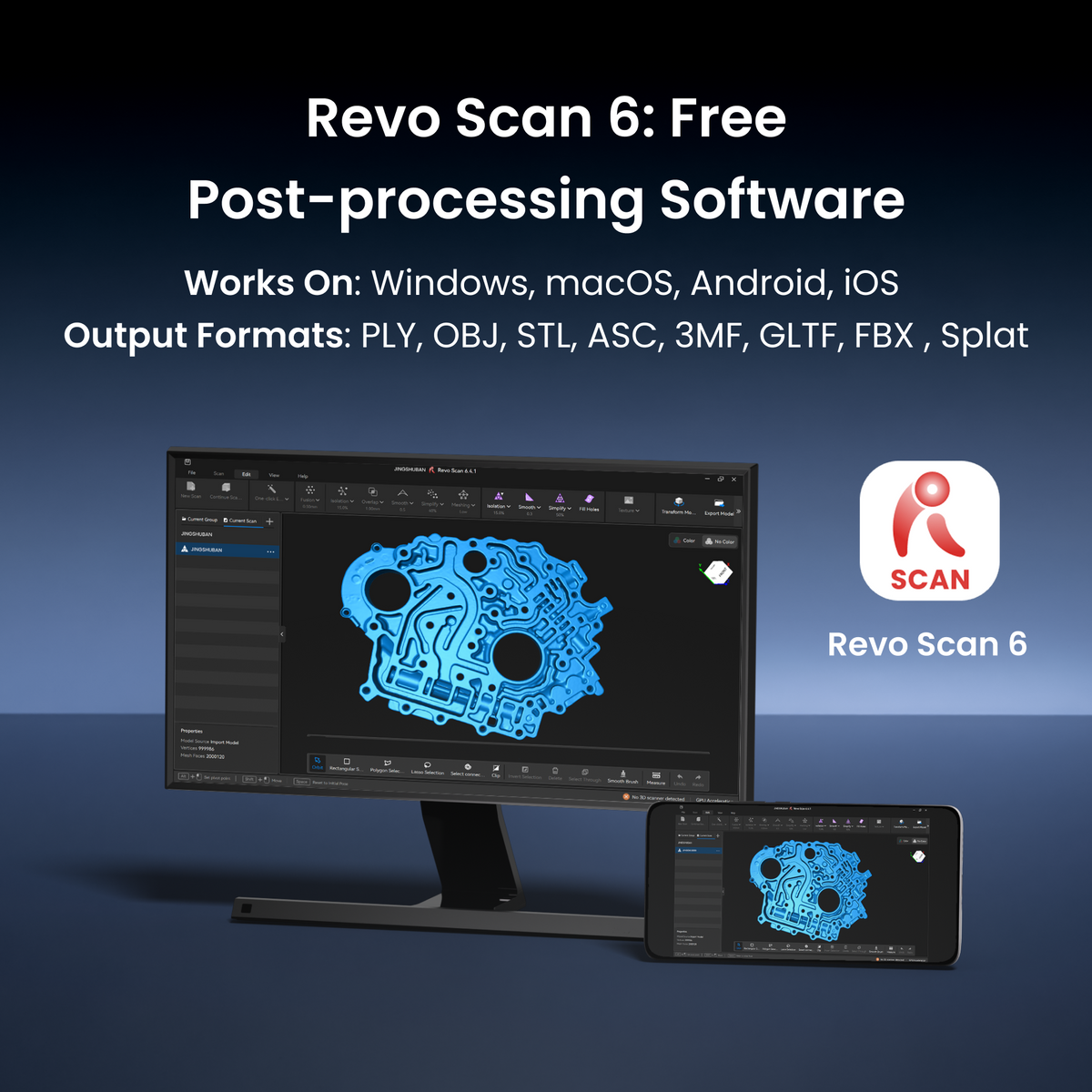

Revo Scan 6: AI-Powered Post-processing Software
Revo Scan 6 transforms raw scans to production-ready models — intelligently automated.
Works On: Windows, macOS, Android, iOS
Output Formats: PLY, OBJ, STL, ASC, 3MF, GLTF, FBX , Splat

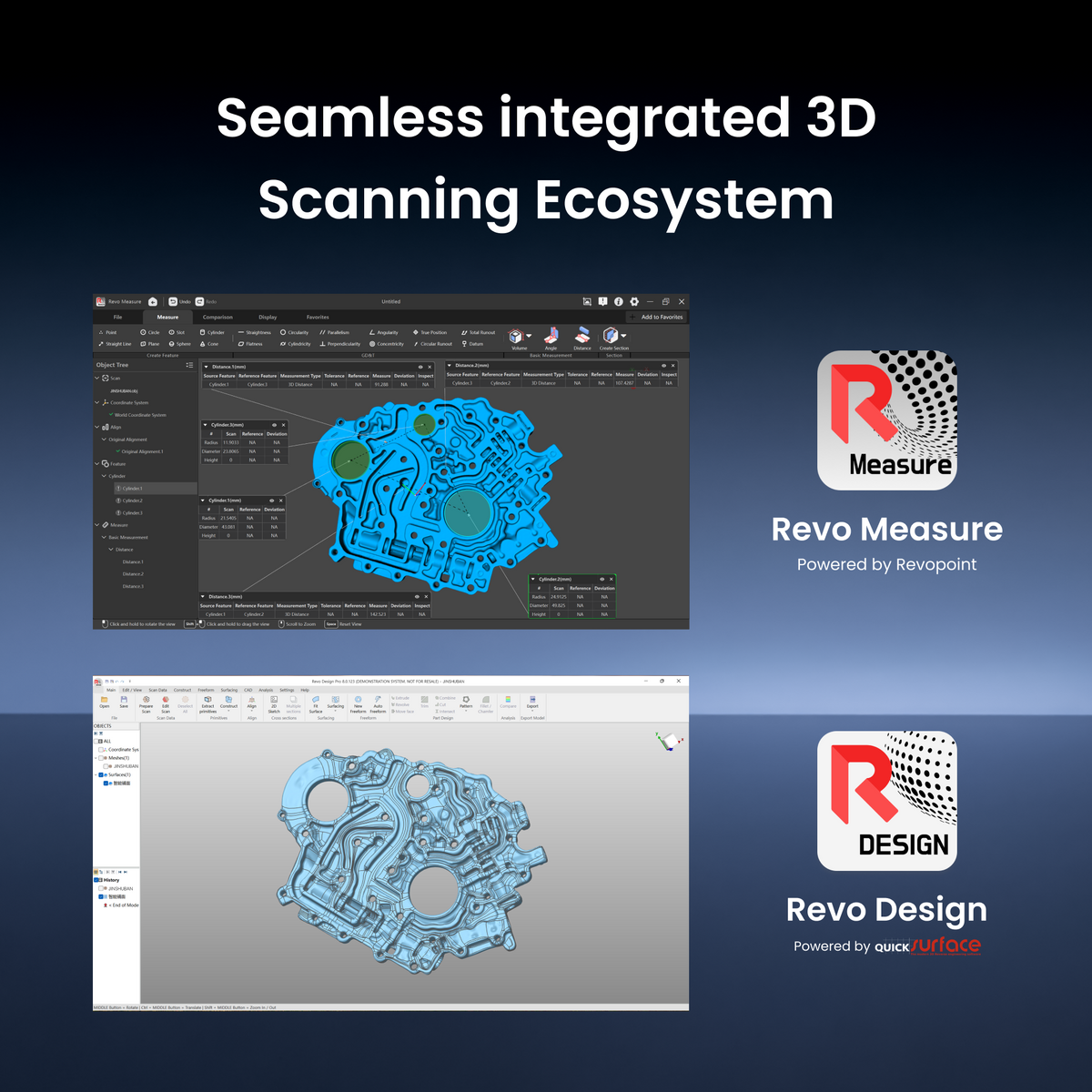

Seamless integrated 3D Scanning Ecosystem
Revo Scan 6, Revo Design, and Revo Measure — one unified scan-to-inspection workflow.

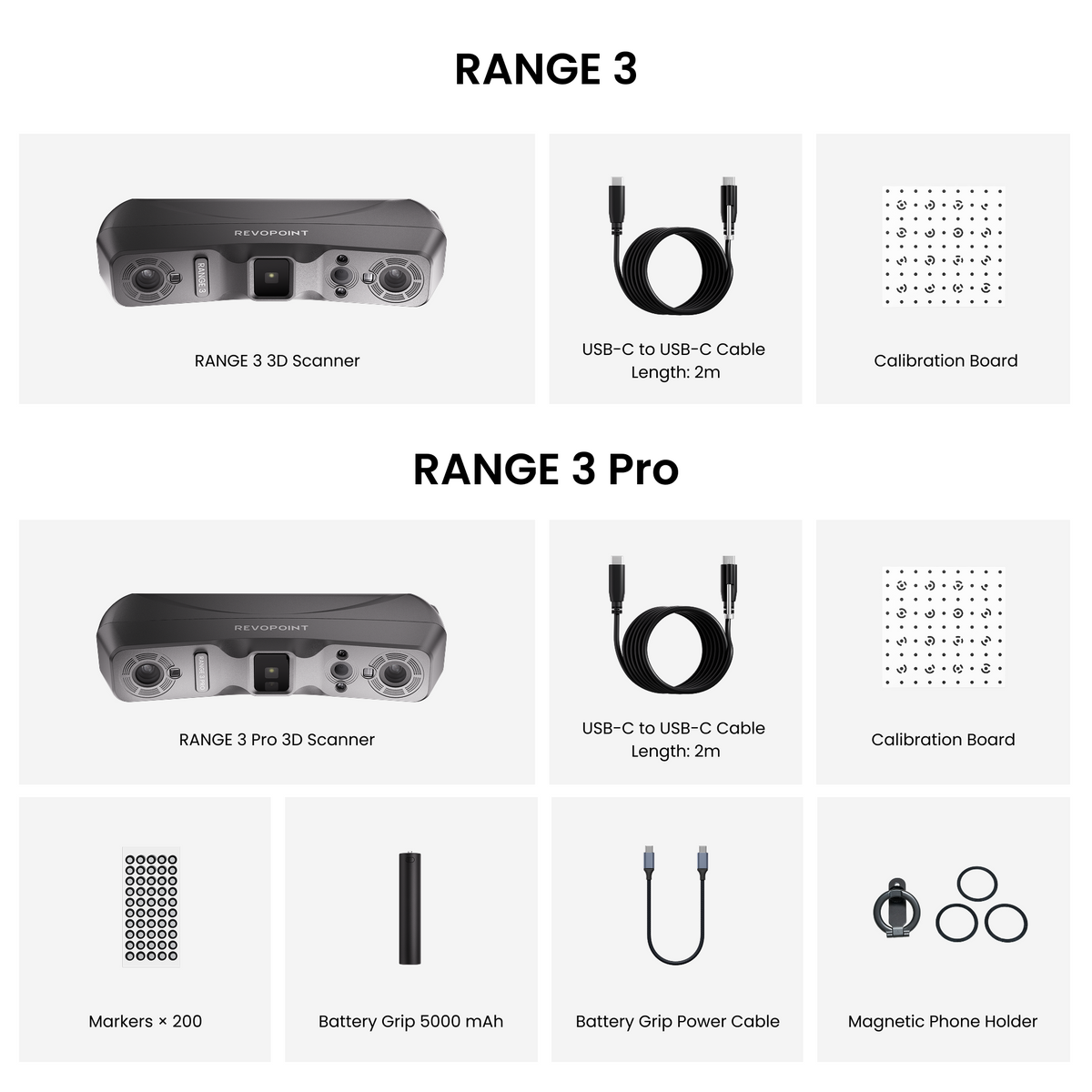

What's in the Box — RANGE 3
RANGE 3 3D Scanner
USB-C to USB-C Cable, Length: 2m
Calibration Board
What's in the Box — RANGE 3 Pro
RANGE 3 Pro 3D Scanner
USB-C to USB-C Cable, Length: 2m
Calibration Board
Markers × 200
Battery Grip 5000 mAh
Battery Grip Power Cable
Magnetic Phone Holder
Specifications
| Name | RANGE 3 | RANGE 3 Pro |
|---|---|---|
| Scanning Type | Handheld | |
| Technology | VCSEL Structured Light | VCSEL Structured Light and Infrared Multi-line Laser |
| Scannable Object Size | Small to Large | |
| Volumetric Accuracy① | VCSEL Mode: 0.05 mm + 1 mm × L (m), L is the length of the object. | Multi-line Laser Mode: 0.03 mm + 0.2 mm × L (m), L is the length of the object. VCSEL Mode: 0.05 mm + 1 mm × L (m), L is the length of the object. |
| Fused Point Distance, up to | 0.1 mm | |
| Working Distance | VCSEL Mode: 200 - 1000 mm | Multi-line Laser Mode: 200 - 600 mm VCSEL Mode: 200 - 1000 mm |
| Single Capture Area at Nearest Distance | 113 × 134 mm at 200 mm | |
| Single Capture Area at Furthest Distance | 687 × 672 mm at 1000 mm | |
| Minimum Scan Volume | 30 × 30 × 30 mm | 20 × 20 × 20 mm |
| Maximum Scan Volume | 4 × 4 × 4 m | |
| Scanning Speed | VCSEL Structured Light Scan: 20 - 30 fps | Multi-line Laser Scan: 80 - 105 fps (NVIDIA GPU), 40 - 60 fps (CPU) VCSEL Structured Light Scan: 20 - 30 fps |
| RGB Camera Resolution | 1.3 Megapixels | |
| Color Scanning | Yes | |
| Tracking Methods | Feature, Color, Marker | Feature, Color, Marker, Global Marker |
| Outdoor Scanning | Yes, Ambient illuminance < 100,000 lux | |
| 3D Light Source② | Near-Infrared VCSEL Structured Light | 11 Parallel Infrared Laser Lines Near-Infrared VCSEL Structured Light |
| Fill Lights③ | 2 | |
| RGB Lights③ | 2 | |
| Built in Chip Computing | Depth Map Computing | |
| Buttons | 4 | |
| Minimum PC Requirements | macOS CPU: M1 Pro/Max/Ultra RAM ≥ 16 GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 16 GB GPU: NVIDIA GeForce RTX 3060 (8 GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores ≥ 8, threads ≥ 16, and a base frequency ≥ 2.4 GHz. ② Supports NVIDIA GPU, AMD GPU, and Apple Mac GPU. |
|
| Recommended PC Requirements | macOS CPU: M3 Pro/Max/Ultra or better RAM ≥ 24 GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 32 GB GPU: NVIDIA RTX 4060 (8 GB) or better |
|
| Mobile Requirements | ① Android CPU: Snapdragon 8 Gen1, Dimensity 9000, Kirin 9000S equivalent performance or better RAM: 12 GB or better System Version: Android 11 or better Storage: 128 GB or better ② iPhone Models after iPhone X; System Version: iOS 14.0 or better; RAM > 4 GB; Storage ≥ 64 GB ③ iPad 10th Gen iPad or later |
|
| Compatible Operating Systems | Windows 10/11 (64 bit), Android, iOS, macOS 11.0 or better | |
| Output File Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX, Splat | |
| Ready to Print 3D Models | ||
| Wi-Fi | 6 | |
| Connector Type | Type-C to Type-C USB 3.0; 2 m Data Cable | |
| Power Requirements | DC 5V, 2A; USB-powered via PC | |
| Scanner Weight | 218 g | 220 g |
| Dimensions (L × W × H) | 163 mm × 57 mm × 32 mm | |
| Special Object Scanning | Please use scanning spray when scanning transparent or specular surfaces. | |
| User Recalibration | Yes | |
| Power Bank Capacity | Optional 5,000 mAh Battery Grip | Standard 5,000 mAh Battery Grip |
| Supported Accessories | Marker Block Kit | |
| Note | 1.Volumetric accuracy was obtained using a standard test method in a controlled laboratory environment. Actual results may vary depending on the operating environment. 2.RANGE 3 and RANGE 3 Pro use a Class 1 laser projector. Avoid looking directly at it at close range! Please refer to the Class 1 laser standard document for details. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy. | |
FAQ
What tracking methods are supported?
RANGE 3 supports feature, color, and marker tracking. RANGE 3 Pro additionally supports global marker tracking. Feature tracking uses the object's geometry, while color tracking uses surface color and texture to assist alignment. Choose according to the object's characteristics.
Are markers always required? Can RANGE 3 Pro scan without markers in laser mode?
Markers are not required for every scan. Both scanners support feature and color tracking. RANGE 3 Pro also supports color tracking in multi-line laser mode, enabling markerless scanning when the surface has texture details, or color variations.
Can the scanners be used outdoors?
Yes, the RANGE 3 and RANGE 3 Pro support scanning under ambient light up to 100,000 lux, meeting the lighting requirements for most indoor and outdoor scanning scenarios.
Can the RANGE 3 / RANGE 3 Pro scan the human body?
Both the RANGE 3 and RANGE 3 Pro utilize Class 1 infrared light. This is an invisible, eye-safe light source suitable for capturing human silhouettes, clothing, and digital avatars.
Is scanning spray needed for transparent or specular objects?
Yes. Use scanning spray when scanning transparent or specular surfaces with either scanner.
Is color scanning supported, and what does color tracking do?
Yes. Both scanners have a 1.3-megapixel RGB camera, two RGB fill lights, and two depth fill lights for capturing color and texture. Color tracking uses the color and texture features of the object surface to assist with scan registration. For objects with limited geometric features but rich patterns or color variations, it provides a more flexible and robust tracking method.
How should I choose between VCSEL and laser mode on RANGE 3 Pro?
Choose VCSEL mode for rapid overall capture of medium-to-large objects, a wider field of view, or a longer working distance. Choose 11 parallel infrared laser lines mode for finer local structures and better volumetric accuracy.

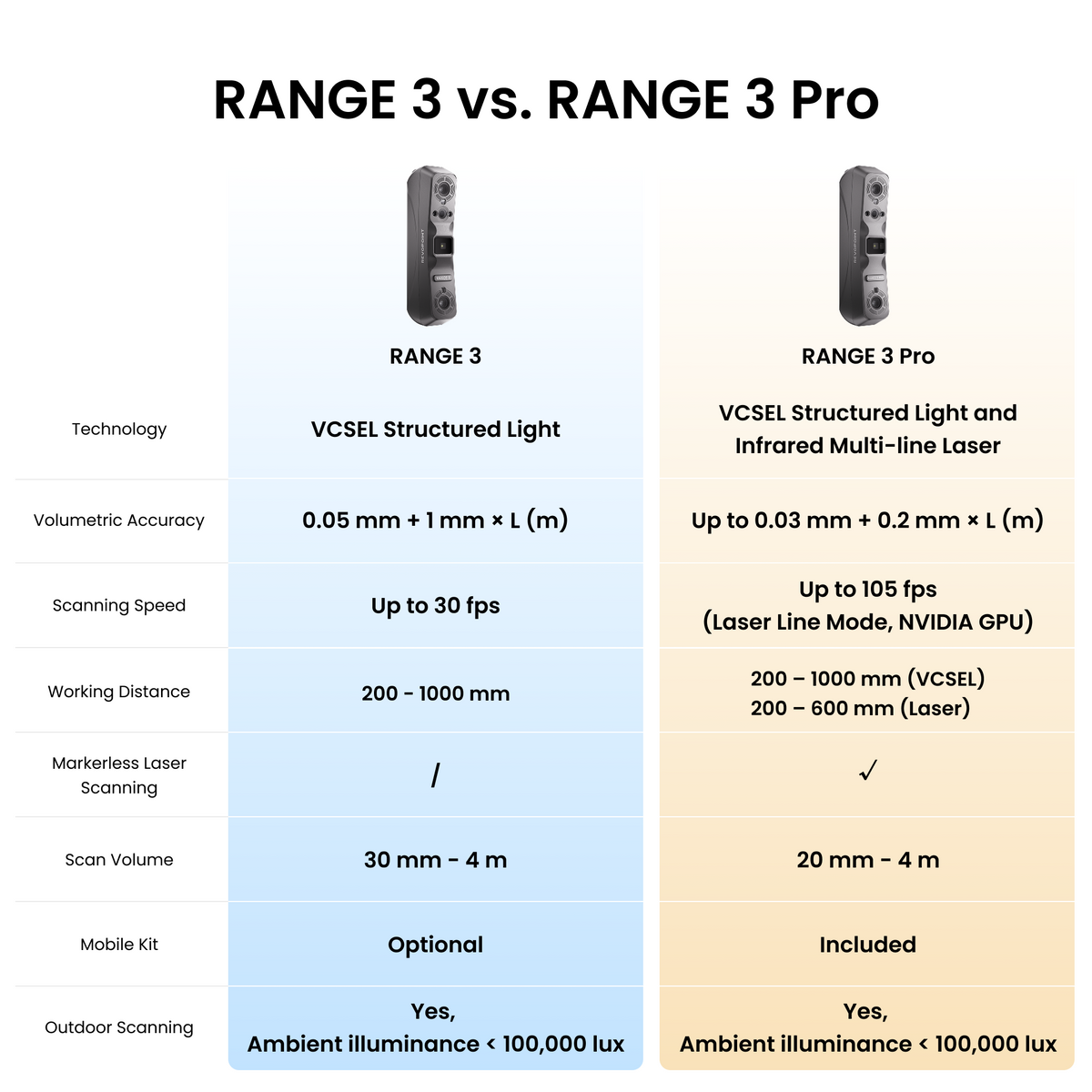

What are the differences between RANGE 3 and RANGE 3 Pro?
The main differences between RANGE 3 and RANGE 3 Pro are scanning technology, accuracy, minimum scan volume, tracking methods, and included accessories.
RANGE 3 uses VCSEL near-infrared structured light. RANGE 3 Pro adds an 11 parallel infrared laser lines mode on top of VCSEL near-infrared structured light.
For volumetric accuracy, RANGE 3 reaches 0.05 mm + 1 mm × L (m) in VCSEL mode. RANGE 3 Pro has the same VCSEL-mode volumetric accuracy and reaches 0.03 mm + 0.2 mm × L (m) in infrared multi-line laser mode. L is the object length in meters.
For recommended minimum scan volume, RANGE 3 supports 30 × 30 × 30 mm, while RANGE 3 Pro supports 20 × 20 × 20 mm, making it more suitable for detailed local structures.
For tracking methods, RANGE 3 supports feature, color, and marker tracking. RANGE 3 Pro additionally supports global marker tracking.
Which model should I choose?
Choose RANGE 3 for rapid capture of medium-to-large objects such as people, sculptures, furniture, and equipment exteriors. It features VCSEL scanning, color capture, and Wi-Fi 6 connectivity. Consider RANGE 3 Pro if you need fine detail capture, faster scanning speeds, and convenient mobile scanning accessories.
How are the scanners powered, and what is the Battery Grip's capacity and runtime?
RANGE 3 scanner can be powered directly by a PC or by the Battery Grip. The mobile kit is optional for RANGE 3 and included with RANGE 3 Pro. The Battery Grip has a capacity of 5000 mAh, provides up to about 3 hours of power support, and takes about 80 minutes to charge.
What software, operating systems, and connections are supported?
The compatible software is Revo Scan 6, with support listed for Windows 10/11 (64-bit), macOS 11.0 or later, Android, and iOS. Both scanners support Wi-Fi 6 wireless connectivity and come with a USB-C to USB-C (USB 3.0) cable for wired connections.
Can I measure dimensions directly in the software?
Yes. Basic measurement lets you select two points in point clouds, meshes, textured models, and 3DGS models to measure distance, verify key dimensions, check data before modeling, or confirm model scale. Results depend on scan quality and the accuracy of the selected mode. Revo Measure can support professional 3D measurement workflows.
What formats does Revo Scan 6 support exporting?
Revo Scan 6 supports exporting files in the following formats:
Point Cloud model: PLY, OBJ, ASC
Mesh model: PLY, OBJ, STL, FBX, GLTF, 3MF
Texture model: PLY, OBJ, FBX, GLTF
3DGS (3D Gaussian Splatting): PLY, Splat
Can the scanned models be used for 3D printing?
Yes. Output data from both scanners is compatible with 3D printing. Choose a suitable format such as STL, OBJ, or 3MF according to the slicer's requirements.
