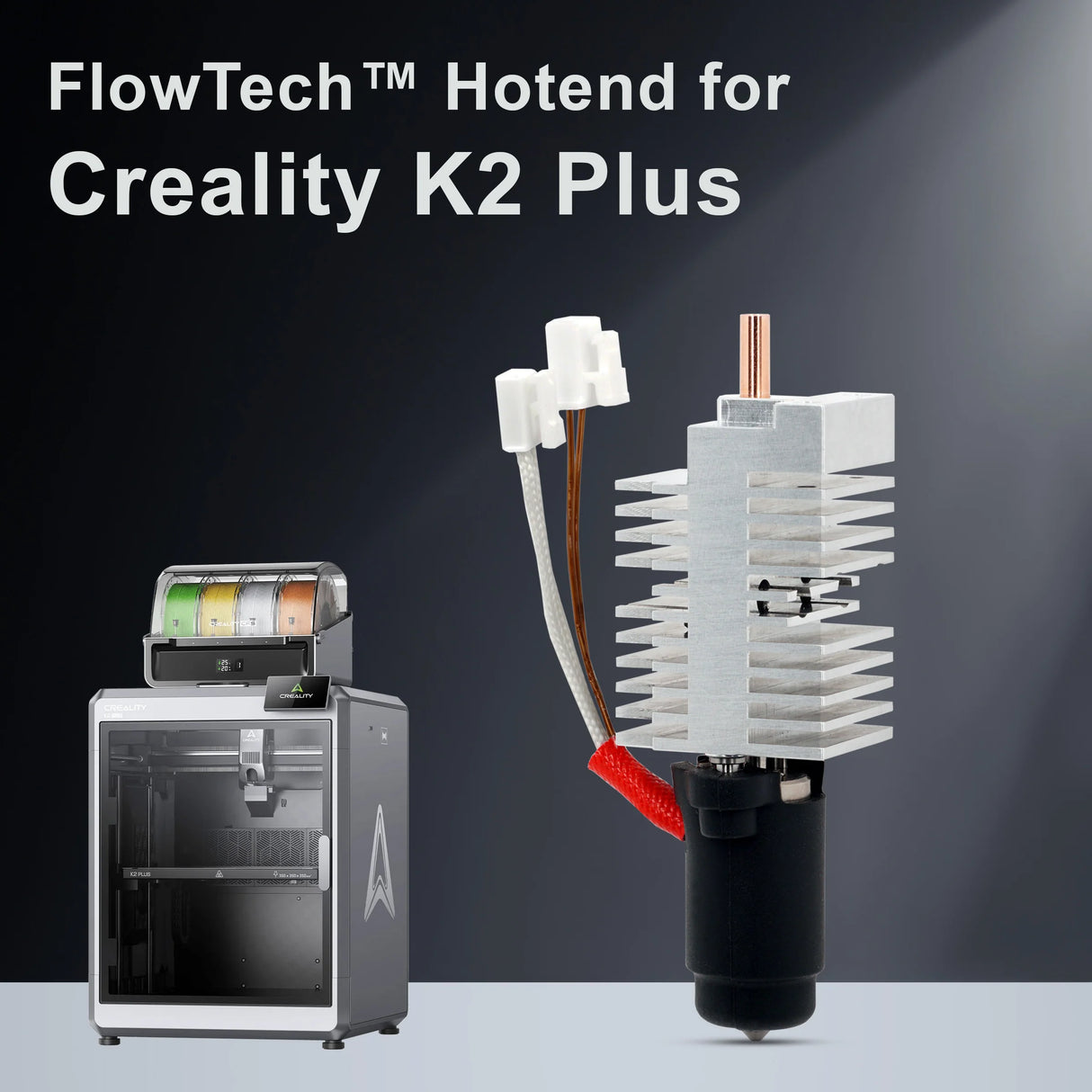

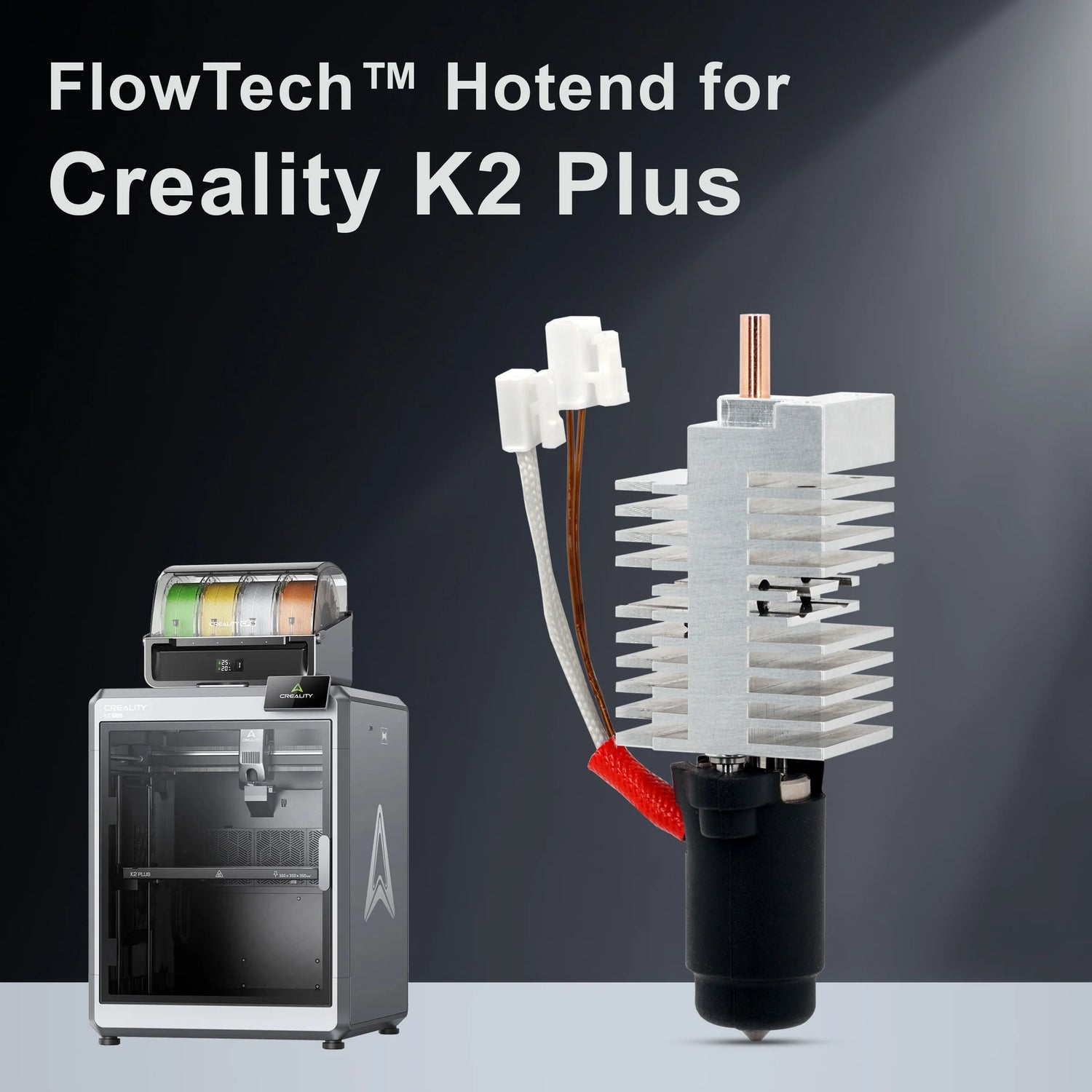

Micro Swiss FlowTech Hotend for Creality K2 Plus

Micro Swiss FlowTech Hotend for Creality K2 Plus

Microswiss FlowTech Hotend is designed with advanced features for optimized performance. Paired with Bondtech CHT High Flow Nozzles, this hotend delivers up to 50 mm³/sec for ultra-fast printing without compromising quality. Installation is simple and plug-and-play, allowing you to integrate it seamlessly into your Creality K2 Plus 3D printer.

Features:

• Leak-Proof Nozzle:
  Tired of messy nozzle leaks that ruin your prints and waste filament? FlowTech Hotend combines nozzle and thermal break into one permanently sealed assembly that ensures a leak-proof hotend.

• Cold Nozzle Change:
  Swapping out nozzles used to be a time-consuming and potentially hazardous task. With a FlowTech Hotend, nozzle changes are effortless, and there's no need for hot tightening, and you can do it with just one hand.

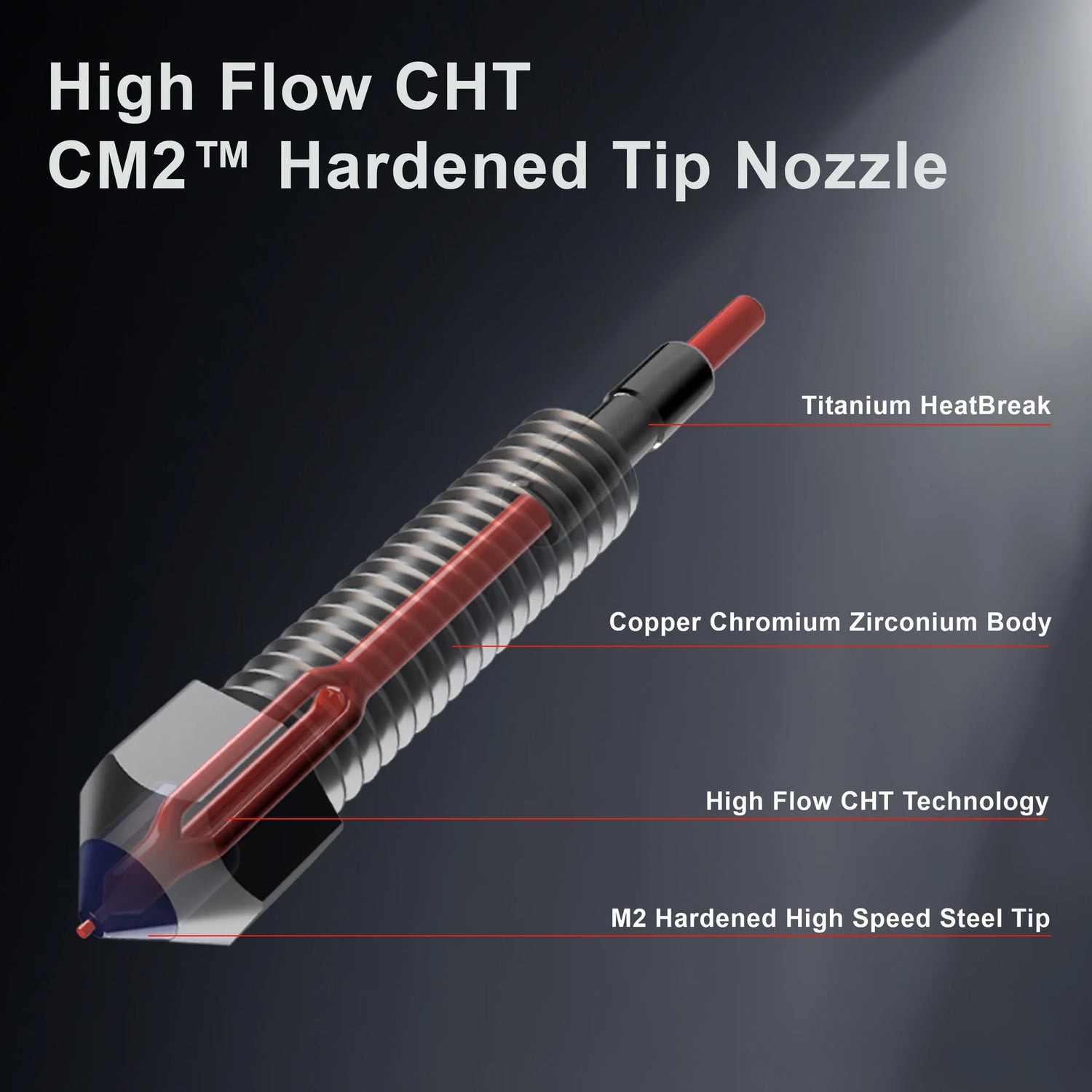

• CHT High-Flow Performance:


  An official collaboration between Microswiss and Bondtech brings the CHT High Flow nozzle to the FlowTech ecosystem. This nozzle incorporates proprietary CHT technology, specifically engineered to boost the flow rate and improve layer adhesion.

  • High Flow CHT
    The FlowTech nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec
  • Better layer adhesion
    More uniform layer deposition is achieved by splitting the filament flow into multiple chambers as it passes through the melt zone. This reduces gaps and weak points between layers

  *If the CHT Nozzle option is selected

• All-Metal Design:
  Built to last! FlowTech hotend features an all-metal design that can handle most modern 3D printing filaments. The entire hotend is machined and assembled in-house, with quality control performed at multiple stages during the manufacturing process. At the end, each hotend undergoes a full thermal cycling test before it is packaged.


• 300°C Max Temperature:
  This hotend is rated at 300°C temperature with a properly tuned NTC thermistor for each specific printer. This particular edition is perfectly tuned for Creality K1 and K1 Max so no firmware changes are needed.


Compatible With:

• Creality K2 Plus

Installation Instructions - PDF

Volumetric Flow Rate Analysis
