Wham Bam Systems  |  SKU: 330_330_MAG

Magnetic Base - 330 x 330

$38.00

Description

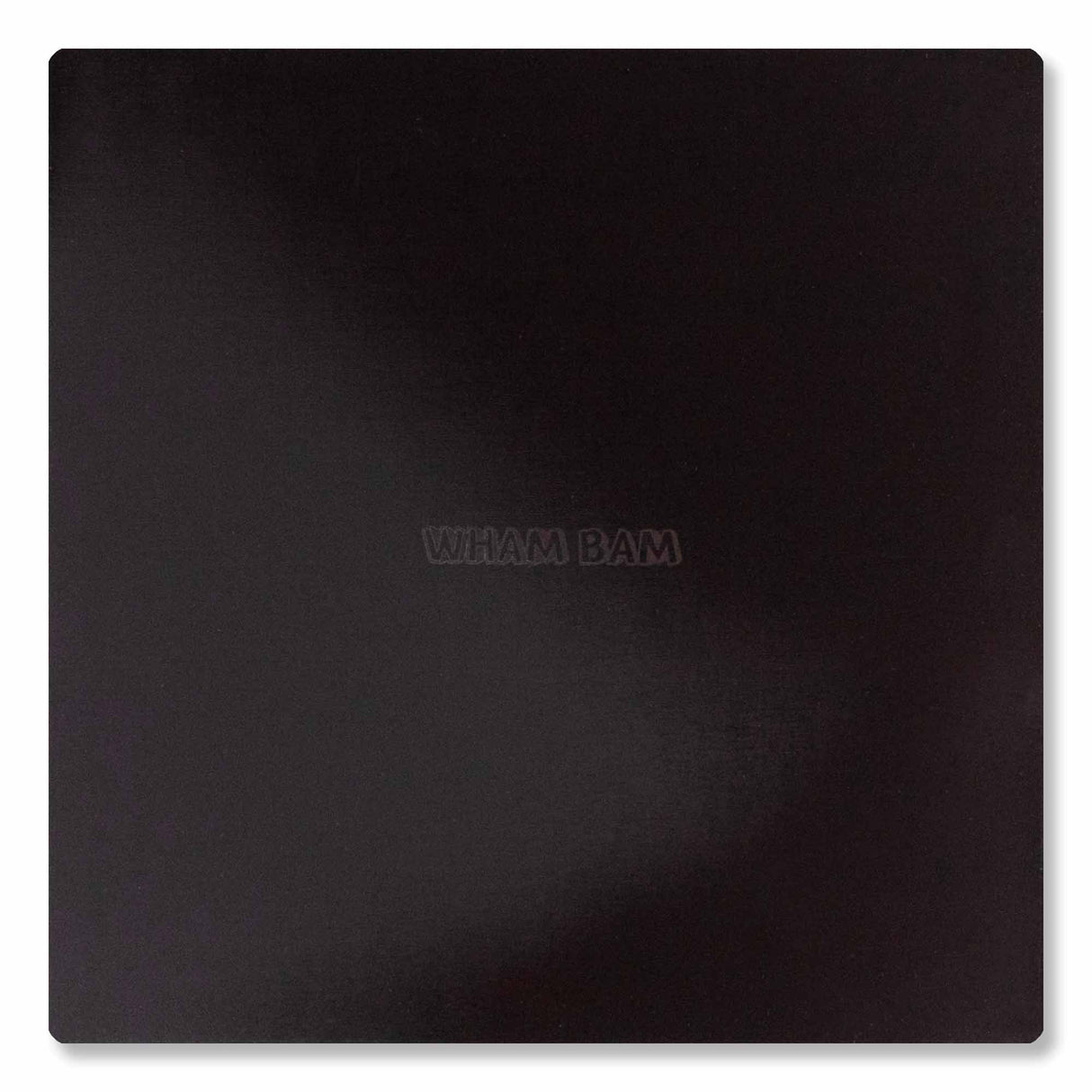

Magnetic Base - 330 x 330

The Wham Bam Magnetic Base has been specially formulated to resist high temperatures for long periods of time, while giving the best performance on the market. They are 1mm thick and pre-backed with high-temperature 3M adhesive making installation a breeze! These powerful, temperature resistance magnets that ensure the build plate stays perfectly aligned during printing. Explore more info on the Flexible Build System.

Compatibility

Fits:

  • Elegoo Neptune 3 Plus
  • Elegoo Neptune 4 Plus
  • Geeetech A30
  • QIDI TECH X-Max 3
  • Tronxy X3S
  • Tronxy X5S
  • Tronxy X5SA Pro

May fit:

  • Raise3D Pro 2
  • Raise3D Pro 2 Plus

Contents & Tech Info

Includes:

  • 1 Magnetic Base

Dimensions:

  • 330 x 330 mm
  • Magnetic Base 1mm

Heat Limits:

  • Magnetic Base with 3M Glue rated to 150°C continual use

Magnetic Base Install

Please follow these steps when applying a new Magnetic Base:

  1. Remove old magnet (if any), and clean the bed well to remove any glue. Use isopropyl alcohol and a fresh paper towel.
  2. Use 220 grit sandpaper to rough up the metal surface uniformly and remove any excess contaminants. If your surface is painted, try to break through the paint layer with the sandpaper at least partially.
  3. Clean with 90% isopropyl alcohol and a fresh paper towel. Repeat with alcohol and a fresh paper towel a few times until the paper towel comes away clean. Do not use shop rags, wipes, etc., as these will propagate contaminants back to the surface. Use only fresh paper towels.
  4. Let the bed completely dry before applying the magnet.
  5. Let 3M cure for a full 72 hours before use.

Magnetic Base install video clip:

Level after install

  • If your machine has automatic bed leveling, run the leveling process and set your gap such that the first layer is well squished. For more details on achieving the right first layer squish, refer to this bed leveling guide.
  • If your printer uses manual leveling, follow the same guide for instructions on the leveling process.

Full support info can be found on our support page.
