Bambu Lab

Bambu PA6-CF Carbon Fiber-Reinforced Nylon

$42.99

Description

Bambu PA6-CF Carbon Fiber-Reinforced Nylon

Product Features
  • Superior Strength and Stiffness
  • Toughness & Vibration Resistance
  • Exceptional Thermal Resistance
  • Comes with High Temperature Reusable Spool
  • Diameter: 1.75mm +/- 0.03mm
Cautions for Use
    • 0.2 mm Nozzle NOT Compatible
    • Stainless Steel Nozzle NOT Recommended
    • Dry before Use for the Highest Print Quality
    • All AMS Series NOT Compatible
      Normal PA-CF PA6-CF Improved %
    Strength (Bending Strength - XY, dry state) 128 MPa 151 MPa 18%
    Stiffness (Bending Modulus - XY, dry state) 4420 MPa 5460 MPa 24%

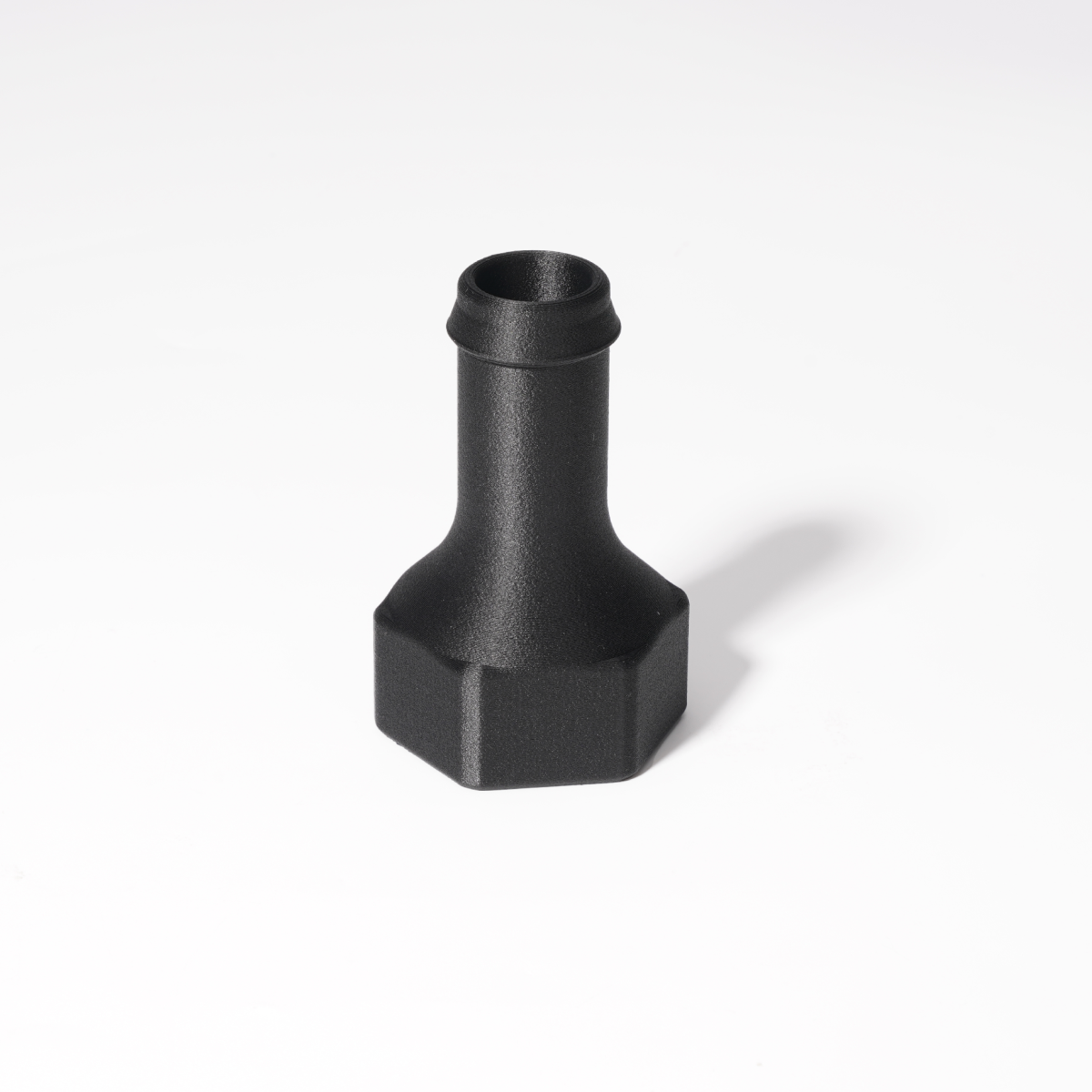

    Superior Strength and Stiffness

    As a new member of Bambu high performance filaments, PA6-CF keeps superior stiffness and strength properties in dry environments, it is perfect for printing load-bearing structural components.

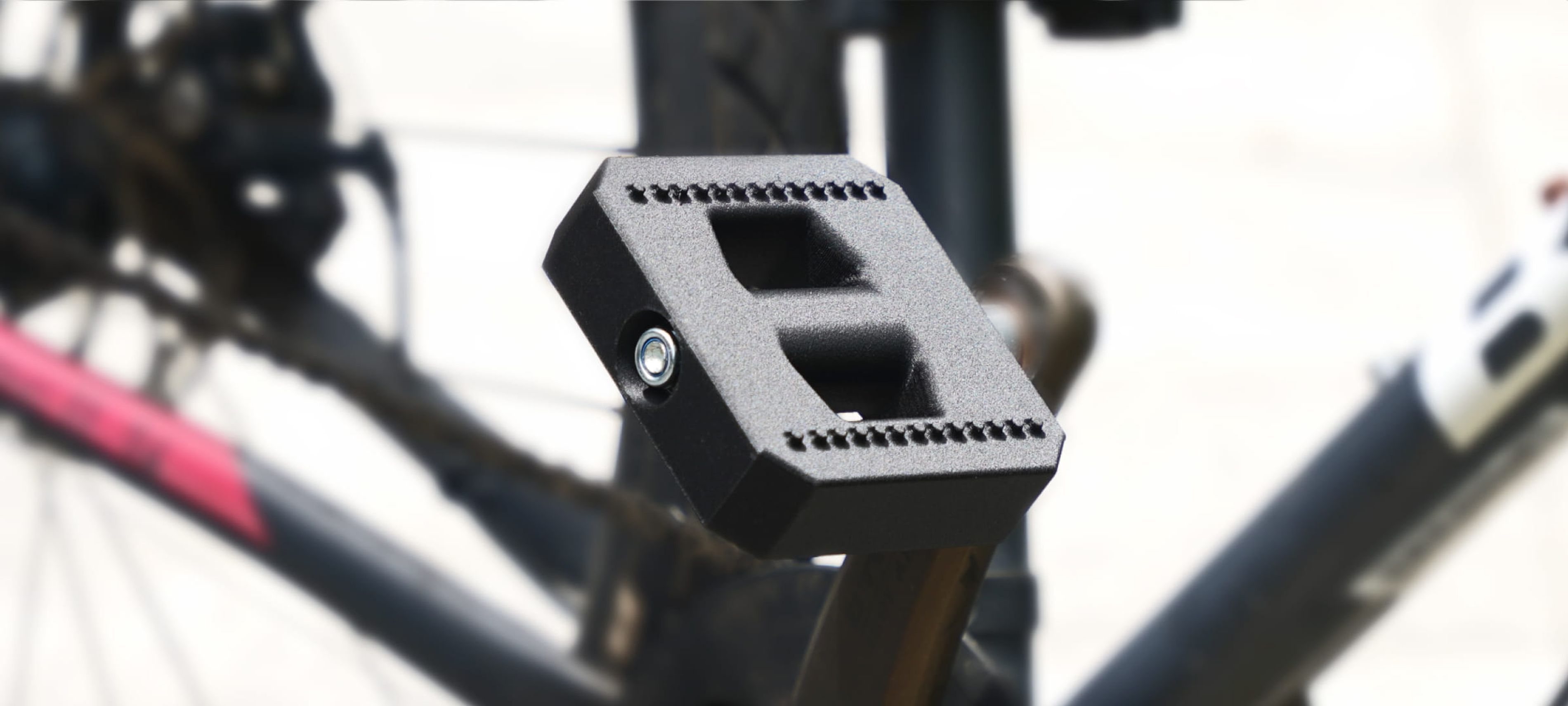

    Impact & Vibration Resistance

    Bambu PA6-CF offers excellent impact resistance, ensuring effective vibration resistance for your prints. It is commonly used to print models that need to withstand impact, collision, and vibration. * The prints of PA6-CF will be tougher after putting in humid environment more than 1 day.

    Exceptional Thermal Resistance

      PLA Basic PETG Basic ABS ASA PC PA6-CF PAHT-CF PET-CF
    Heat Deflection Temperature / ℃ (0.45 MPa) 57 ℃ 71 ℃ 87 ℃ 100 ℃ 117 ℃ 186 ℃ 194 ℃ 205 ℃

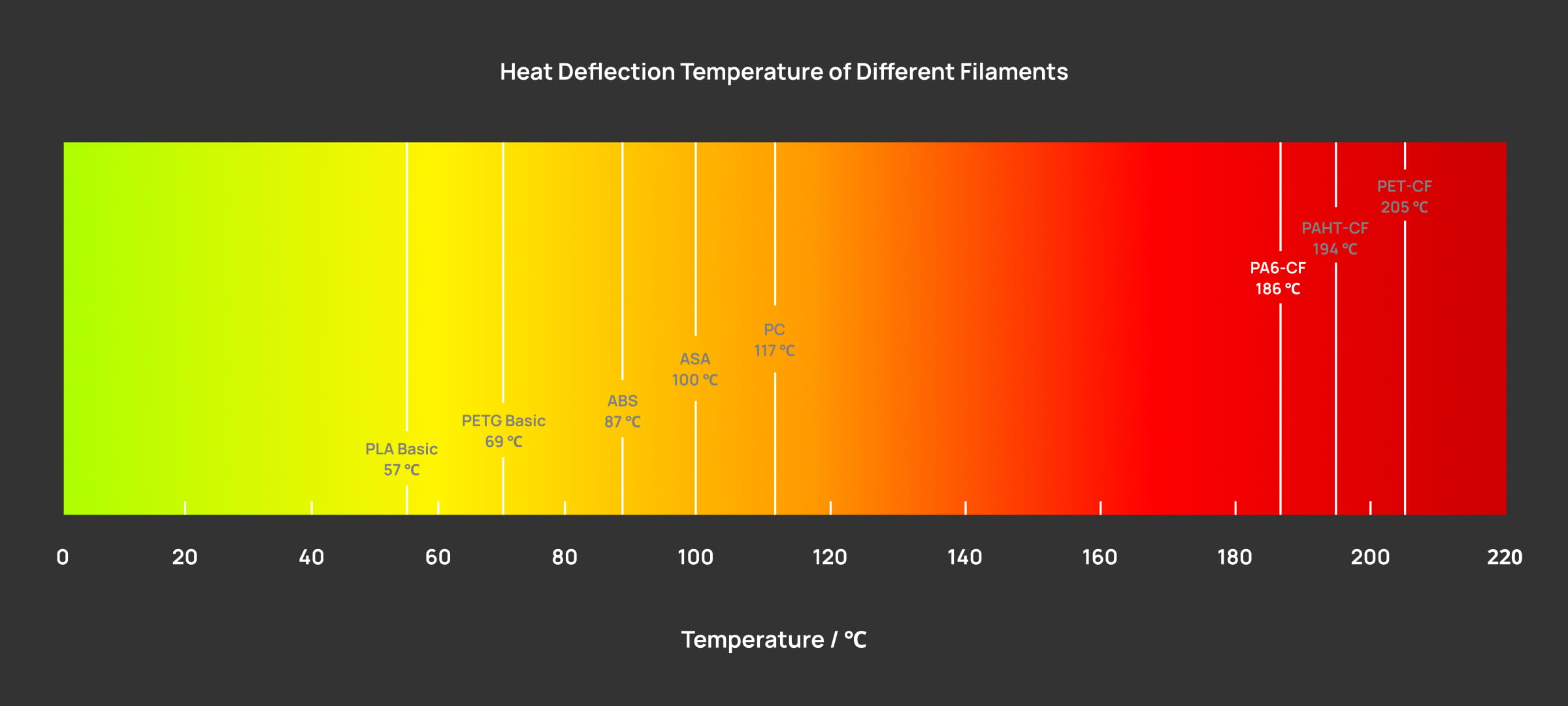

    Heat Deflection Temperature Chart

    Parameters Comparison

      PA6-CF Normal PA6-CF PAHT-CF
    Composition Nylon 6, carbon fiber Nylon 6, carbon fiber PA12 and other long-chain PA, carbon fiber
    AMS Compatibility NO NO YES
    Toughness (Impact Strength - XY, dry state) 40.3 kJ/m² 35.7 kJ/m² 57.5 kJ/m²
    Toughness (Impact Strength - XY, wet state) 57.2 kJ/m² 65.4 kJ/m² 62.3 kJ/m²
    Strength (Bending Strength - XY, dry state) 151 MPa 141 MPa 125 MPa
    Strength (Bending Strength - XY, wet state) 95 MPa 67 MPa 115 MPa
    Layer Strength (Bending Strength - Z, dry state) 80 MPa 72 MPa 61 MPa
    Layer Strength (Bending Strength - Z, wet state) 45 MPa 31 MPa 49 MPa
    Stiffness (Bending Modulus - XY, dry state) 5460 MPa 4870 MPa 4230 MPa
    Stiffness (Bending Modulus - XY, wet state) 3560 MPa 1890 MPa 3640 MPa
    Layer Adhesion (Impact Strength - Z, dry state) 15.5 kJ/m² 11.6 kJ/m² 13.3 kJ/m²
    Heat Resistant（HDT, 0.45 MPa） 186 ℃ 177 ℃ 194 ℃
    Saturated Water Absorption Rate / % (25 °C，55% RH) 2.35 3.80 0.88



    Filament TDS

    Filament MSDS

    Printing Tips

    1. Accessory Compatibility. Not compatible with AMS Series, Cool Plate SuperTack, Hotend with Stainless Steel Nozzle 0.2 mm.
    2. Drying Recommendations. PA6-CF is highly sensitive to humidity. To achieve optimal printing performance, it is recommended further drying before use and after storage. For more details, please refer to: Filament drying instructions on WIKI.
    3. Mechanical Properties & Moisture Impact. Bambu PA6-CF will experience a decrease in strength and stiffness after absorbing water, making it not recommended for printing models with high requirements for strength, stiffness, and dimensional stability, especially thin and elongated models. The prints of PA6-CF usually become tougher and more resistant to impacts, drops, and collisions when they get damp; you can dampen and soften the prints in advance if the model requires high toughness.
    4. Support Removal & Post-Printing Timing. When printing a model with support, it is necessary to remove the support structure within 2 hours to prevent it from being difficult to remove after being damp and softened. Please dry the prints and let them cool down if it is difficult to remove the support, and then remove the support in time.
    5. Surface Protection & Treatment. Fully impregnating the surface of the prints with paint, wax and other waterproof coatings can inhibit water absorption and prevent them from becoming soft.
    6. Safety Tips. This product is a carbon fiber reinforced filament that may produce fine fiber debris during use, post-processing, or contact with rough or fractured surfaces, posing a risk of mechanical skin punctures or foreign body irritation. To ensure safety, please avoid rubbing or touching rough edges and cross-sections with bare hands; it is highly recommended to wear gloves when loading or unloading the filament, as well as during cutting, sanding, or other post-processing operations, while using additional protective equipment as required by your specific working conditions.
