Takoto HE50, BMG-M/LGX Mount - Complete

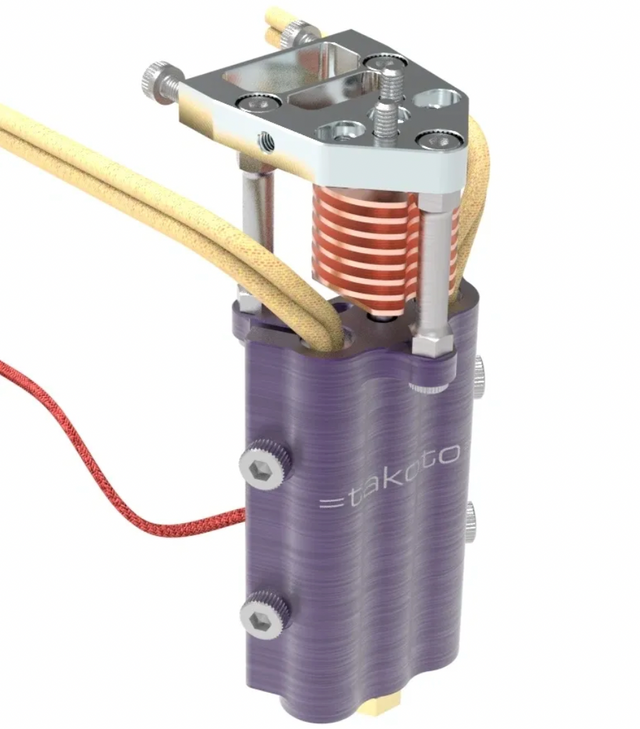

Takoto HE50, BMG-M/LGX Mount

  • All metal (tested to >320°C)
  • Dual vertical heater cartridges (standard Ø6.0 x 20mm, any wattage that your machine can support), clamped in for good thermal transfer
  • Standard Ø3.0 x 15mm temp-sensor (thermistor or PT100/1000) clamped between the heaters & the nozzle for accurate sensing
  • Standard E3D Volcano nozzle, because they are readily available in various metals & work well
  • Very rigid structure via 3 titanium hollow pillar mounts, because crashes happen and threaded heat-breaks can bend, tear out, or break
  • The heat is retained to the melt zone by the titanium feed tube & copper heat sink, significantly limiting heat-soak to the filament in the feed mechanism
  • Very well cooled via modular fan options, and design protected for future liquid cooling
  • Thermally protected with a high-temperature silicon sock to minimize heat loss (increase efficiency) & for safety
  • Independently proven to flow >30mm3/s consistently, continuously, repeatably (PLA+ @ 215C, 0.8 nozzle, 0.4 layer)
  • Designed for mounting to Bondtech BMG-M; Bondtech LGX; Titan Aero; Hemera; Raise 3D N1; ...  with designs for alternative mounting options in future
  • Extra processing capacity - independently proven to consistently & continuously deliver >55mm3/sec (PLA+ @ 215C, 1.0 nozzle, 0.5 layer) .This dual-cartridge Hotend chews through filament at an astonishing rate.
  • It is strong! The Body is held rigid by the same 3 titanium pillars that have proven near indestructible on the HE20, and it is interchangeable with the HE20. There is no chance of shearing off a weak heat-break with this Monster.

Please note that this is a complete hotend. It includes a hotend, cooling fan, dual 65W heaters, PT1000 temp sensor, and a 0.8mm SuperVolcano Brass Nozzle.

Find more information here!

4 items left

Category: Hotend, Modix, Takoto, Upgrade
