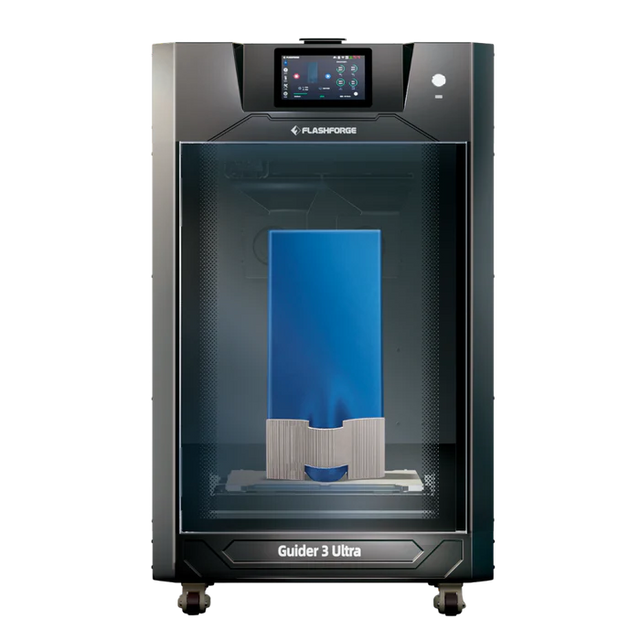

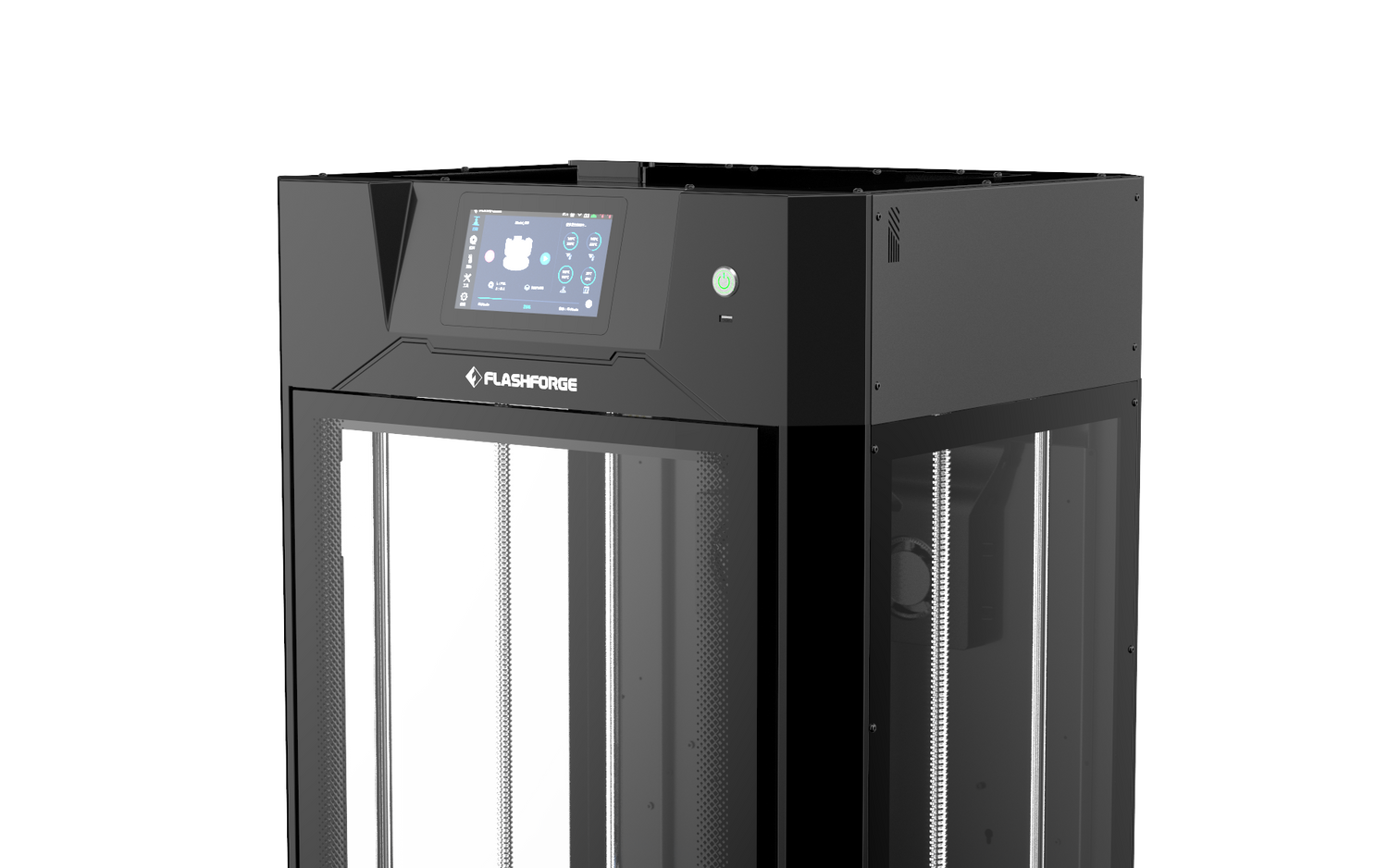

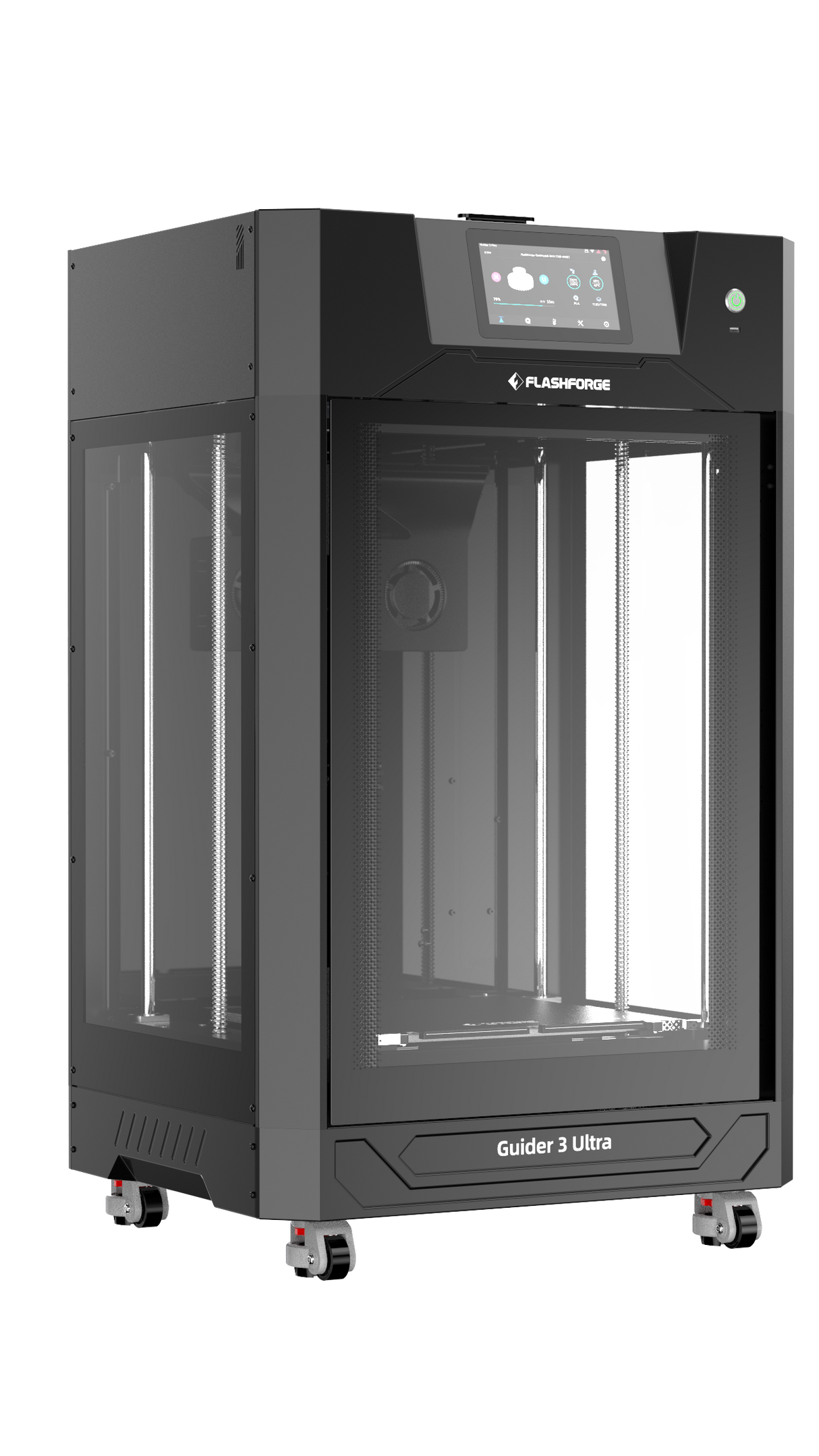

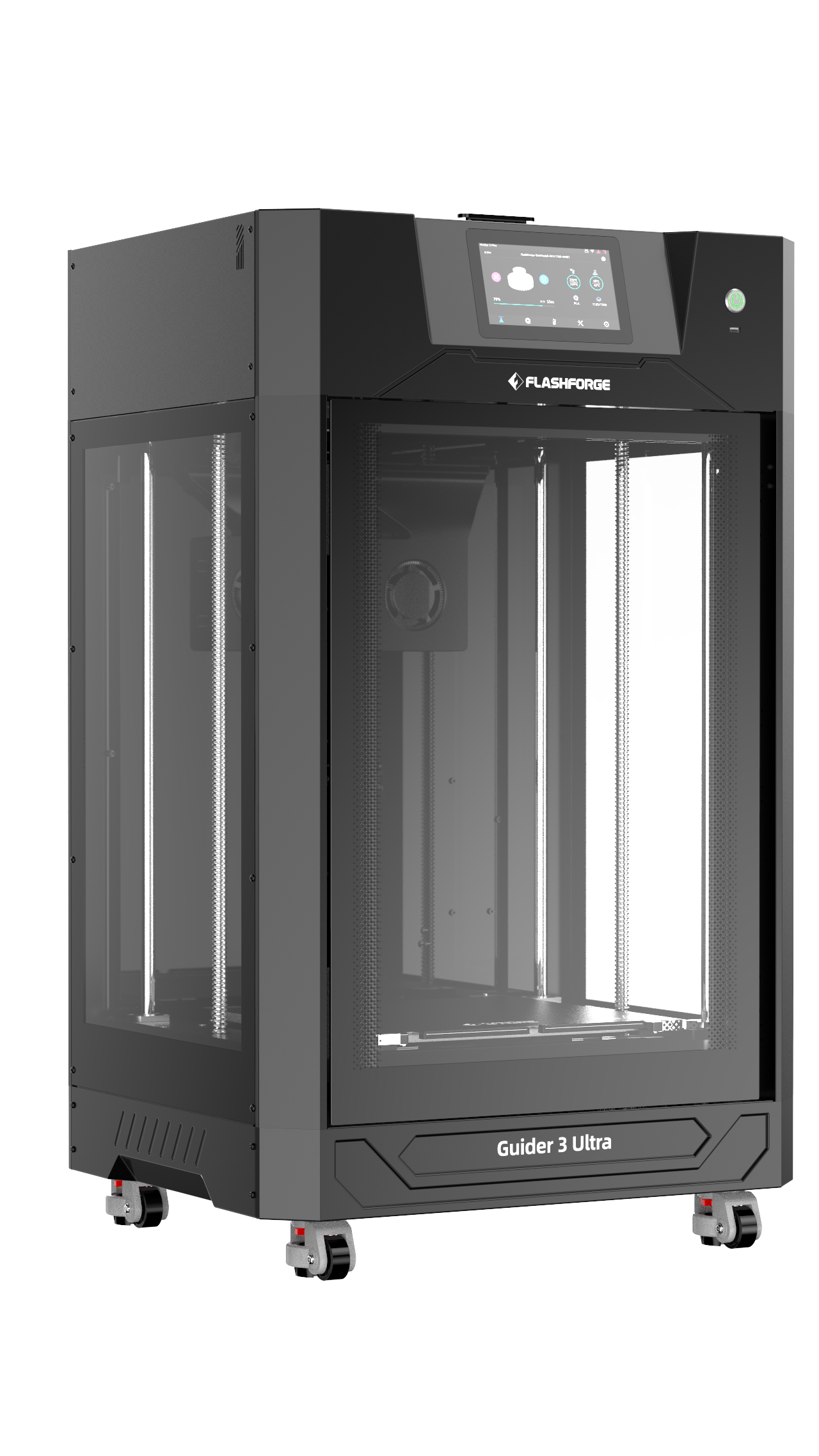

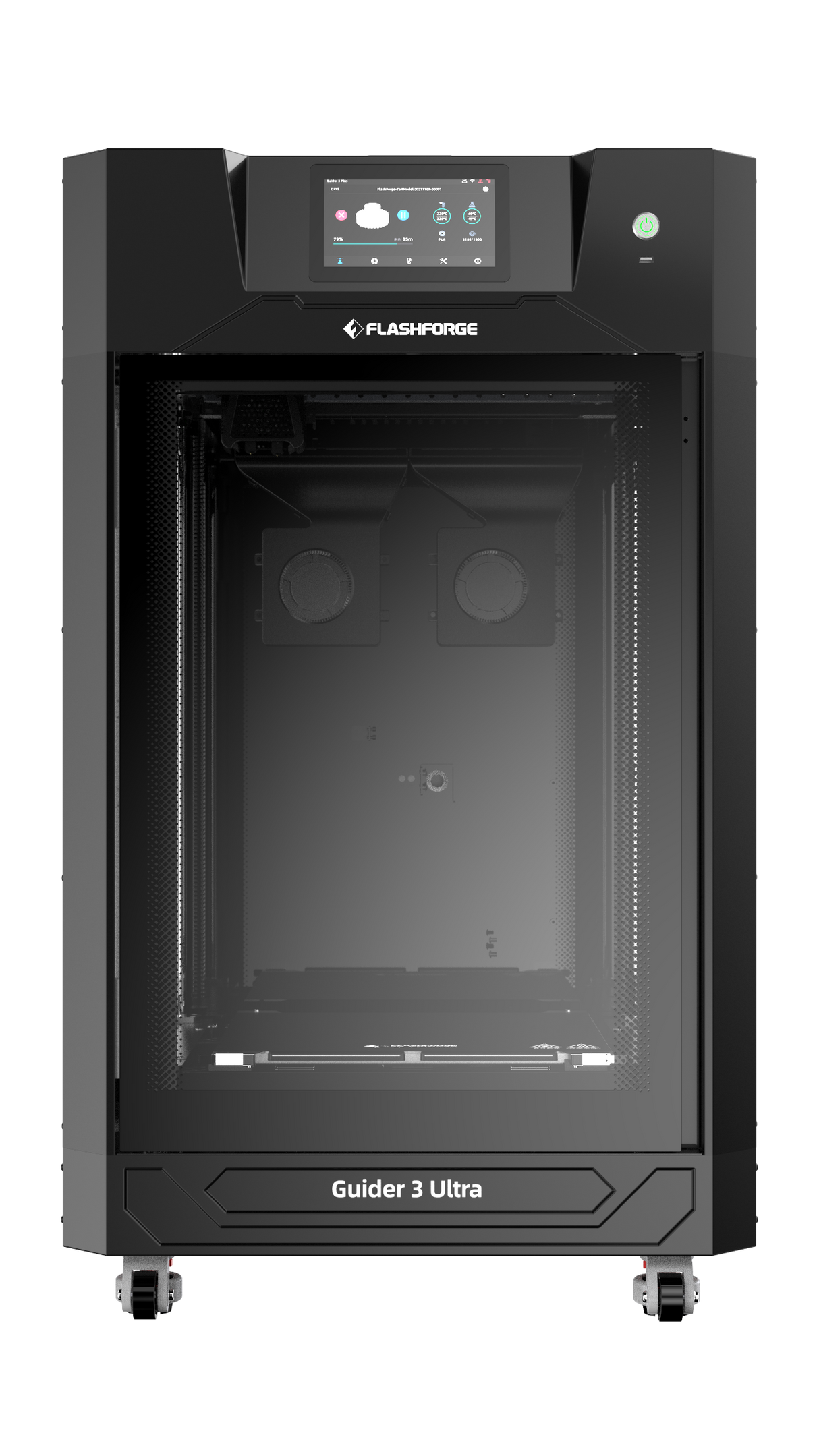

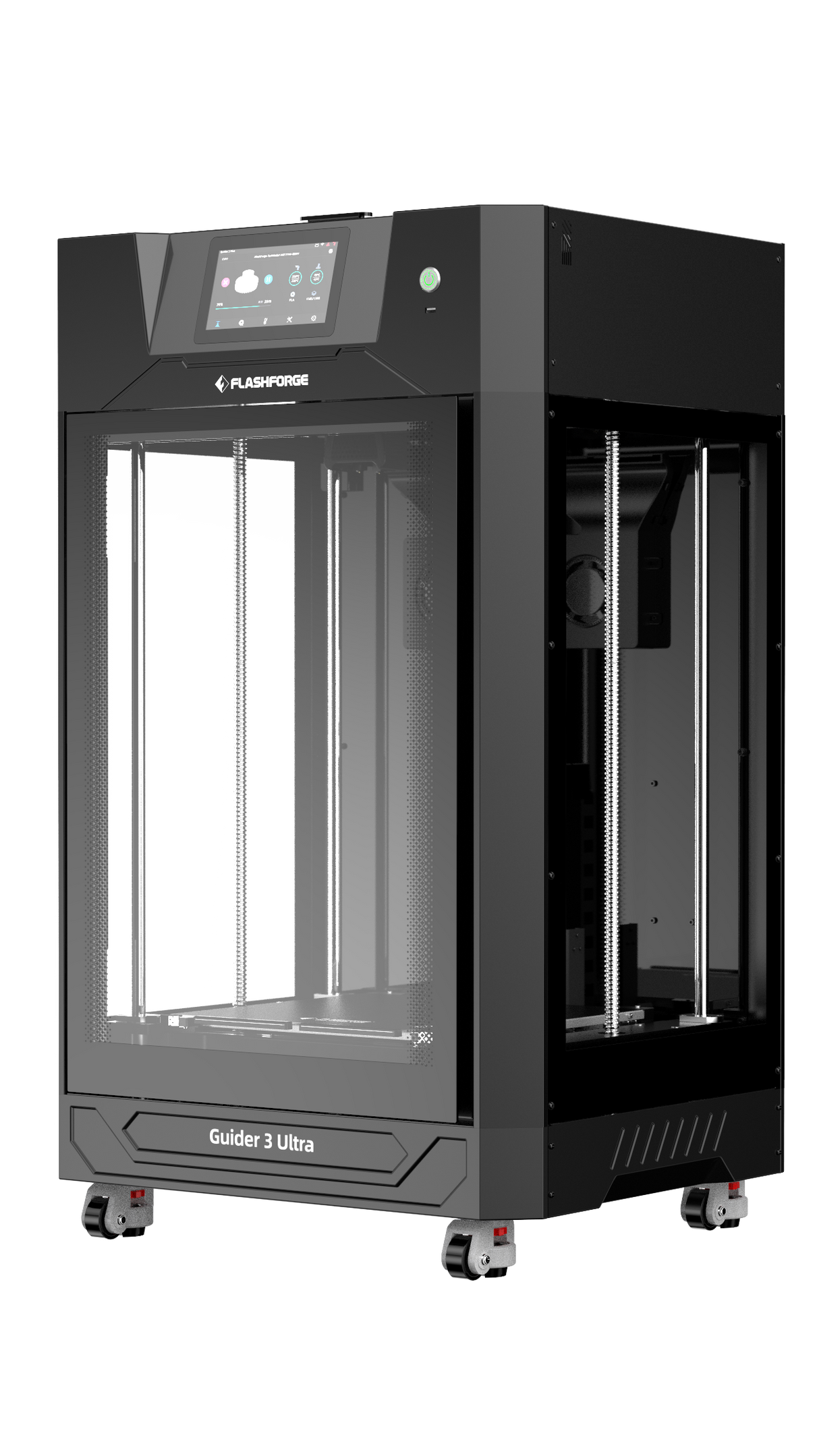

Flashforge Guider 3 Ultra 3D Printer

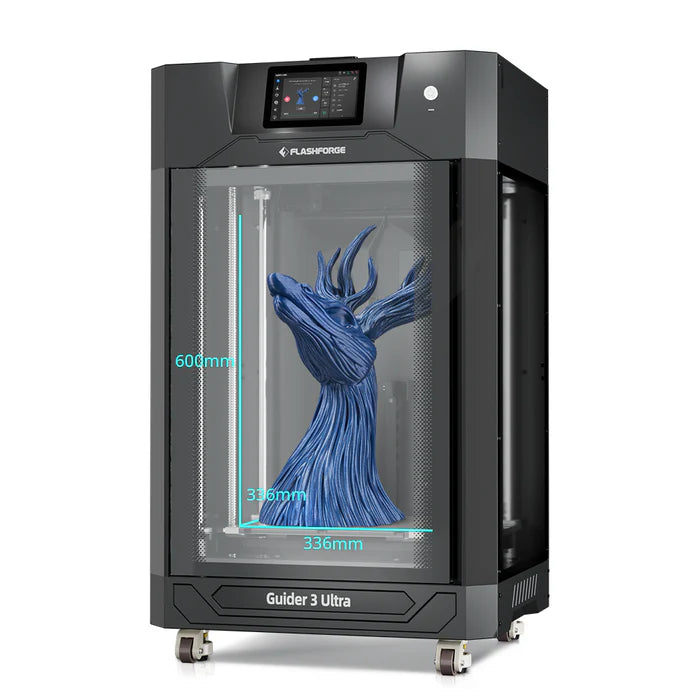

- 500mm/s Printing Speed& 330*330*600mm Large Build Volume
- Hands-free fully automatic bed leveling and calibration
- Core-XY structure ensures rigidity and precision for stable, accurate prints
- Dual extruders simplify complex models with soluble supports
- 1-year warranty on printers, 3-months on extruder parts

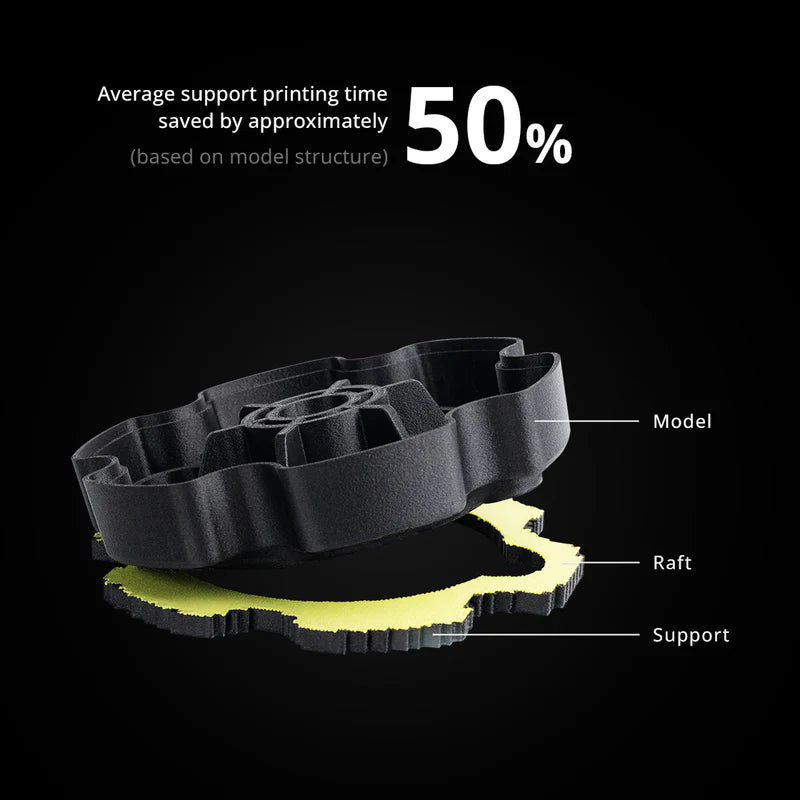

Raft Support
Combining advantages of self-supporting and breakaway supports, it saves support printing time and enables effortless support removal.

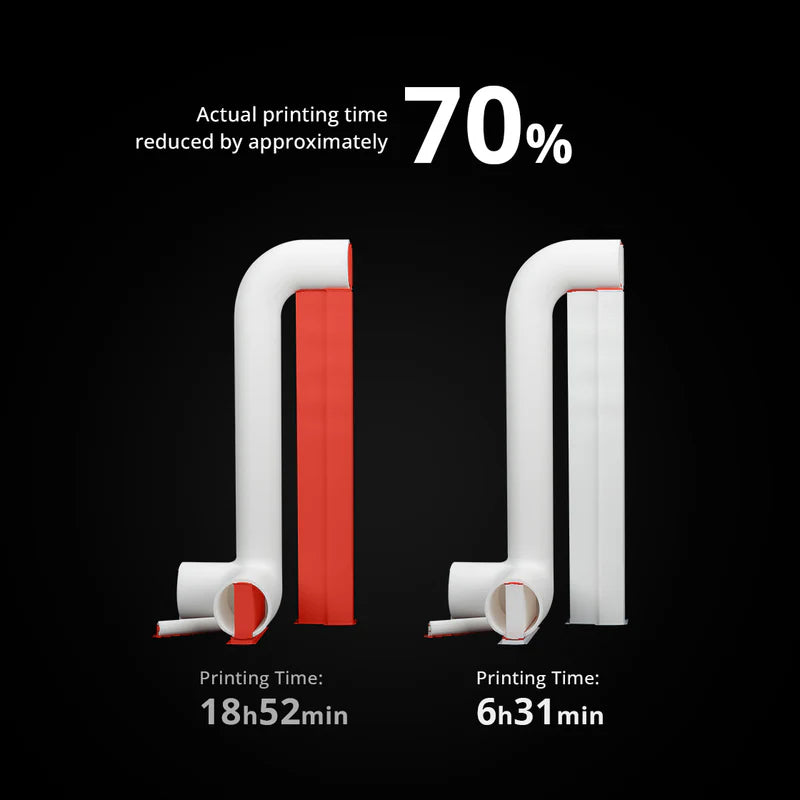

Why is Time Saved?
The support is printed with the same material as the model, minimizing extruder switches and reducing waiting time.
High Surface Quality

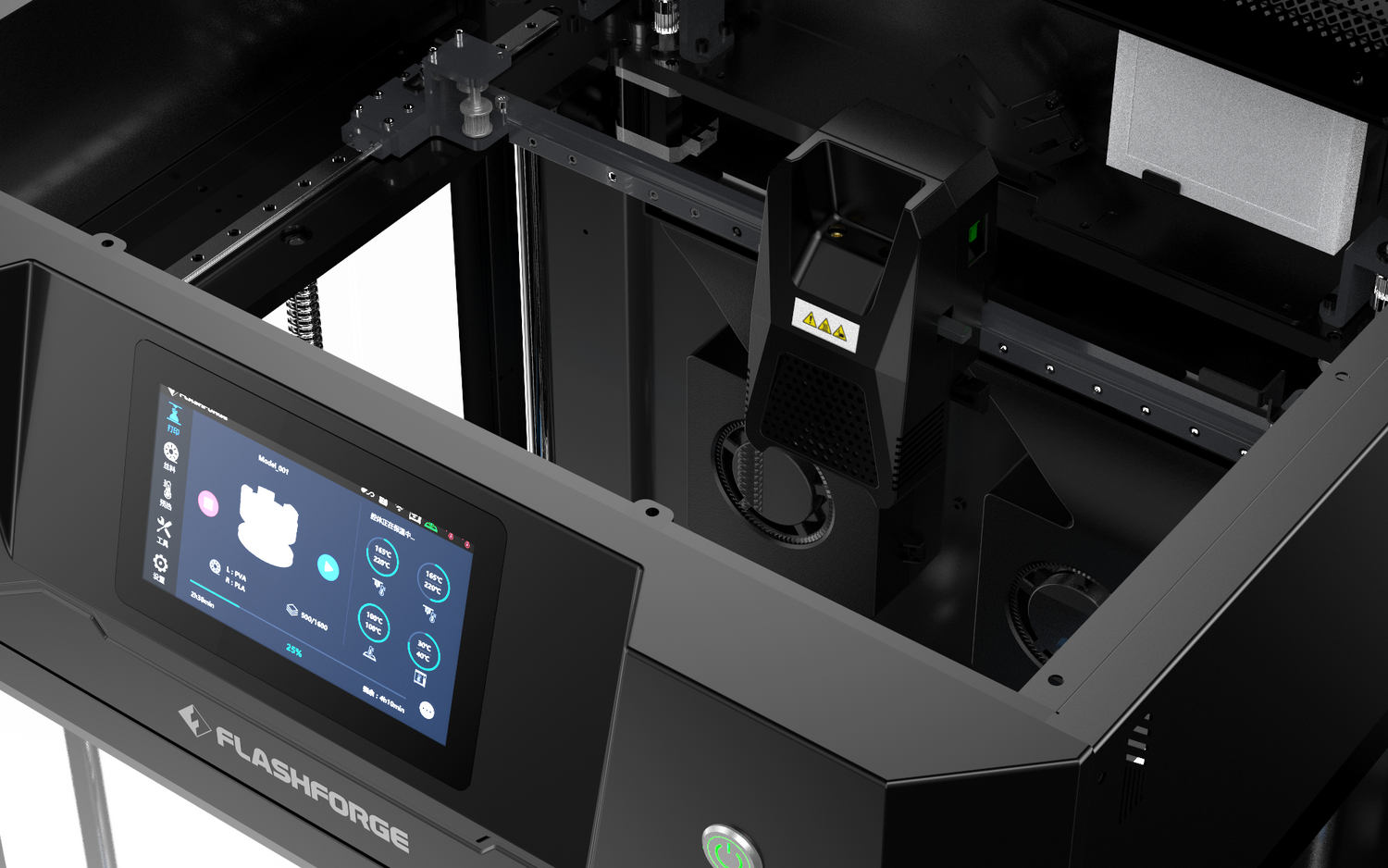

Dual Z-axis ball screws ensure precision, while vibration suppression and controlled extrusion improve surface quality and detail.
Additional Features
Auto Shutdown Once Print is Done: Safely print your models at night and pick them up during the day.
Power Loss Recovery: Avoid failed prints due to accidental power outages and guarantee normal printing.
Filament Run-out Reminder: Automatically detect filament shortage and pause printing. Printing can be resumed after filament fed.

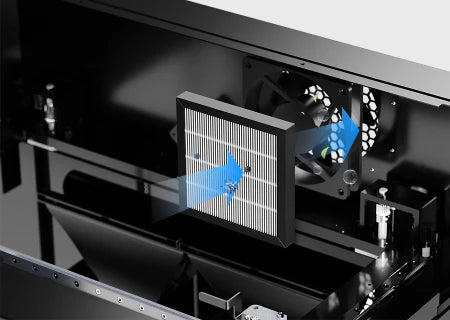

HEPA 13 Air Filtration System: Filter particles and odors for a safe, eco-friendly workspace.
Guider 3 Ultra Specifications
| Guider 3 Ultra | |
| Extruder Quantity | 2 |
| Printing Precision | ±0.15 mm or ±0.002mm/mm (The larger values shall prevail.) |
| Positioning Accuracy | X/Y-axis: 0.011 mm; Z-axis: 0.0025 mm |
| Layer Thickness | 0.05~0.4 mm |
| Build Volume | Single extruder: 330x330x600mm Dual extruders: 300x330x600mm |
| Nozzle Diameter | 0.4(Default), (0.6/0.8mm)(Optional) |
| Nozzle Type | High-strength nozzle |
| Printing Speed | 10-500mm/s |
| Acceleration | 20000mm/s² |
| Maximum Extruder Temperature | 350℃ |
| Supported Filament | PLA/PETG/ASA/ABS/PC/PA/PLA-CF/PETG-CF/PETG-GF/PA-CF/PA-GF |
| Power Supply | AC100-240V, 50-60Hz, 850W MAX |
| Equipment Size | 635(L)*550(W)*1070(H)mm (Excluding the protruding width of the filament box) |
| Package Size | 775(L)*690(W)*1235(H)mm |
| Net Weight | 70kg |
| Slicing Software | FlashPrint 5 |
| Input/Output File Format | Input: 3MF/ STL / OBJ/FPP/BMP/PNG/JPG/JPEG; Output: GX/G / gcode |
| Connectivity | USB/Ethernet/Wi-Fi |
| Certification | CE / FCC / RoHS |
| Operation Temperature | 15-30℃ |
| Compatible Operating System | Win7/8/10/11；Linux 支持 Ubuntu 20.04 及以上版本；Mac OS 支持 10.9 及以上版本 |
| Compatible Slicing Software | Slic3r, Cura(Need to set up) |
| Maximum Platform Temperature | 120℃ |
| Quick-release Extruder | √ |
| Fully-enclosed Design | √ |
| Automatic Leveling | √ |
| Filament Run-out Reminder | √ |
| Replaceable Build Plate | √ |
| Ultra-silent Design | √ |
| Power Loss Recovery | √ |
| Smart LCD Touch Screen | 7-inch |
| Thermostatic Circulation System | × |
| Remote Video Monitoring | √ |
| Wi-Fi | √ |
| Ethernet Port | √ |
| USB Port | √ |
| Air Filter Net | √ |
| Build Plate | Flexible steel plate |
| Cloud Platform | √ |
