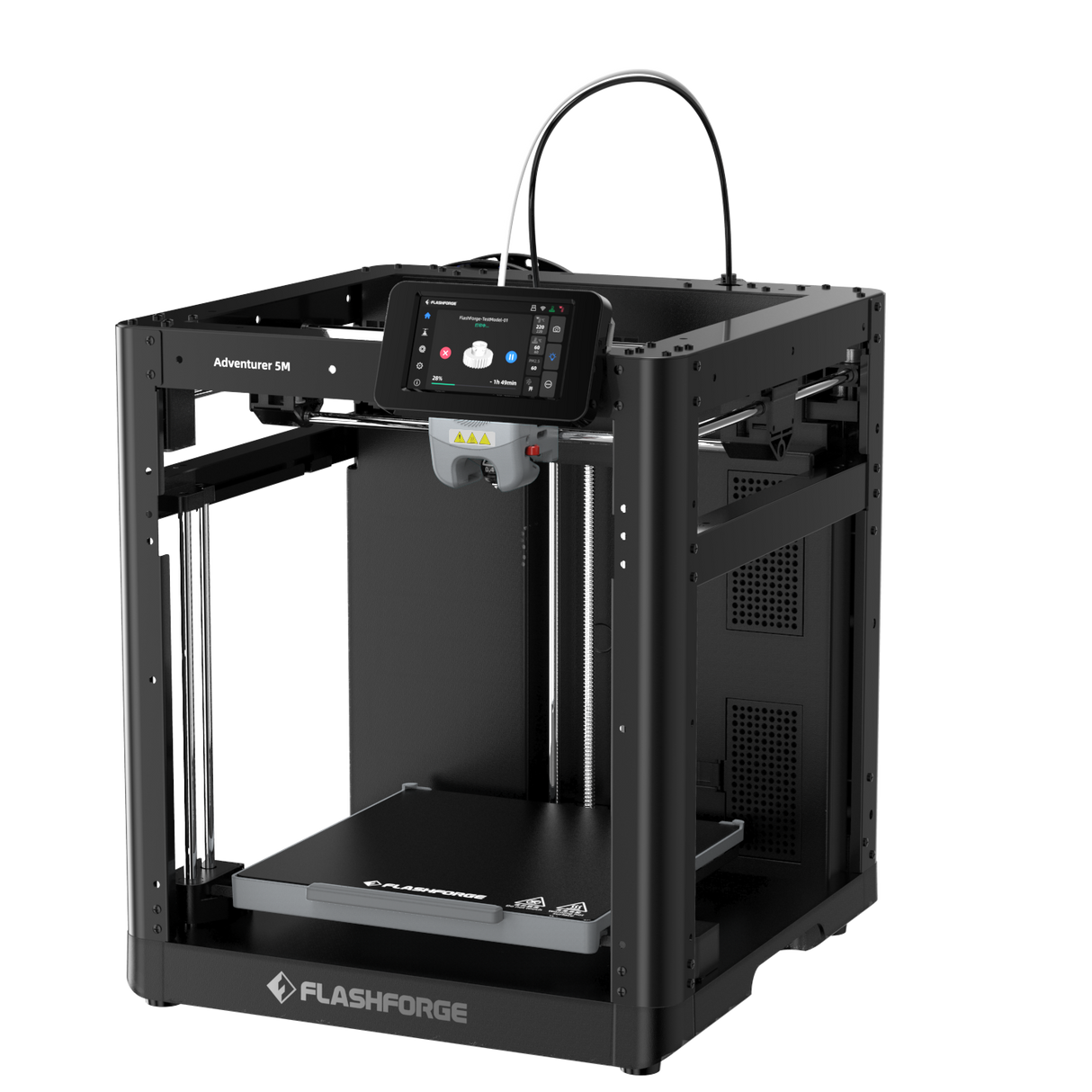

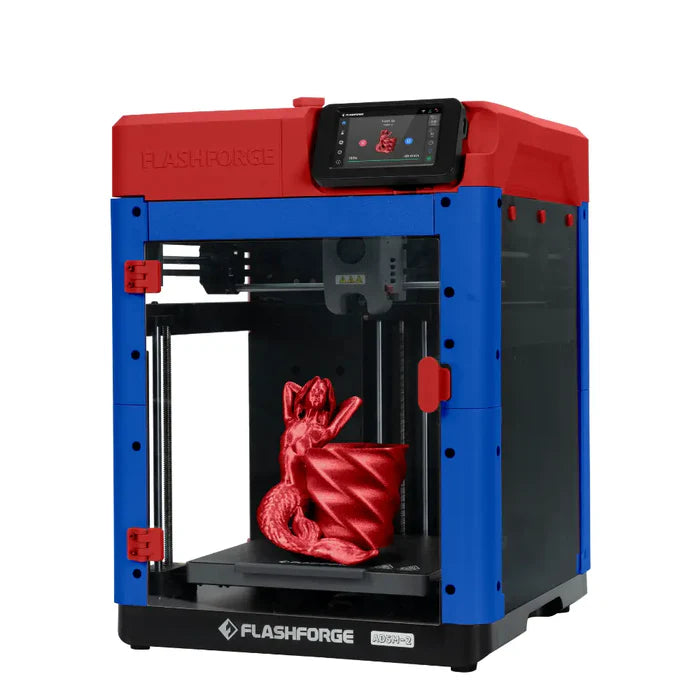

Flashforge Adventurer 5M 3D Printer

Flashforge Adventurer 5M 3D Printer

One-Click Automatic Printing: Experience the future of 3D printing with the Adventurer 5M Series. Ensure impeccable bed leveling every time you print, without the need for manual adjustments. Effortlessly achieve consistent adhesion and flawless first layers, saving time and eliminating frustration.

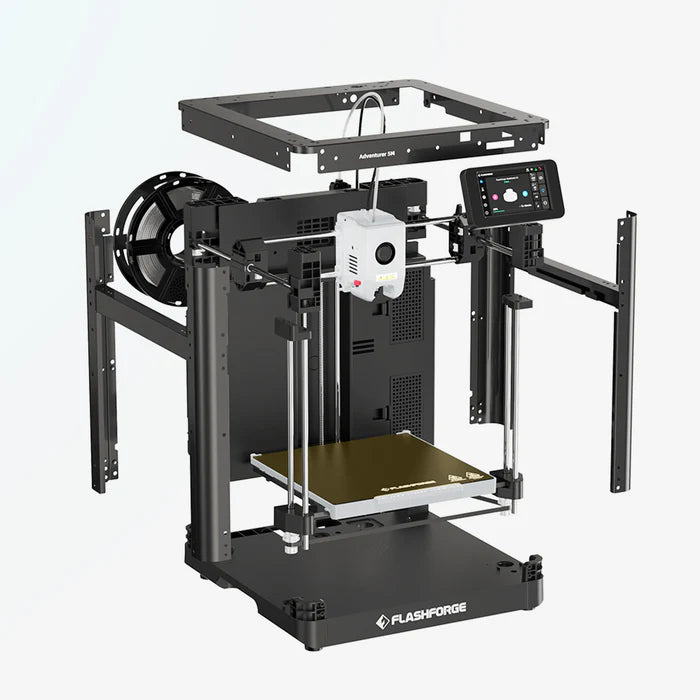

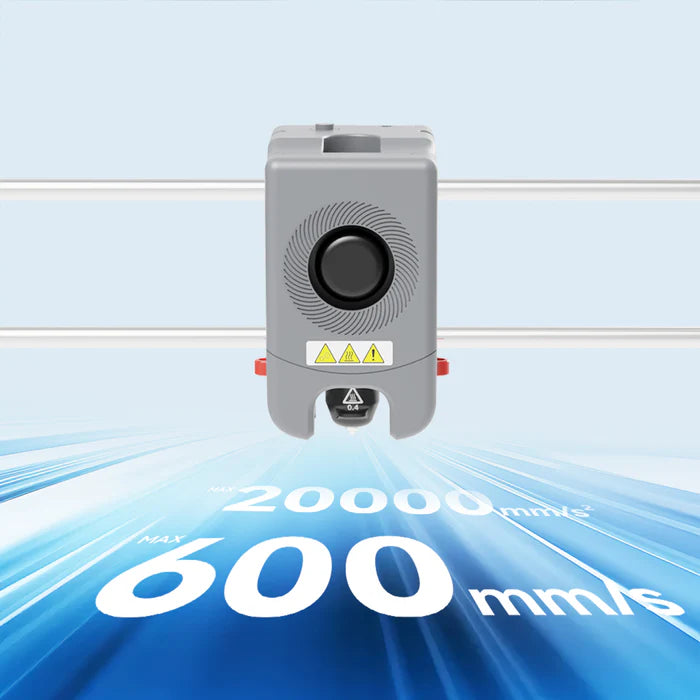

12X Ultra Fast Printing: The AD5M uses a Core XY structure, with a travel speed of 600mm/s and 20000mm/s² acceleration. Its unique lightweight design and stability boost efficiency, reduce production cycles, and ensure high precision and quality, ideal for rapid prototyping and mass production.

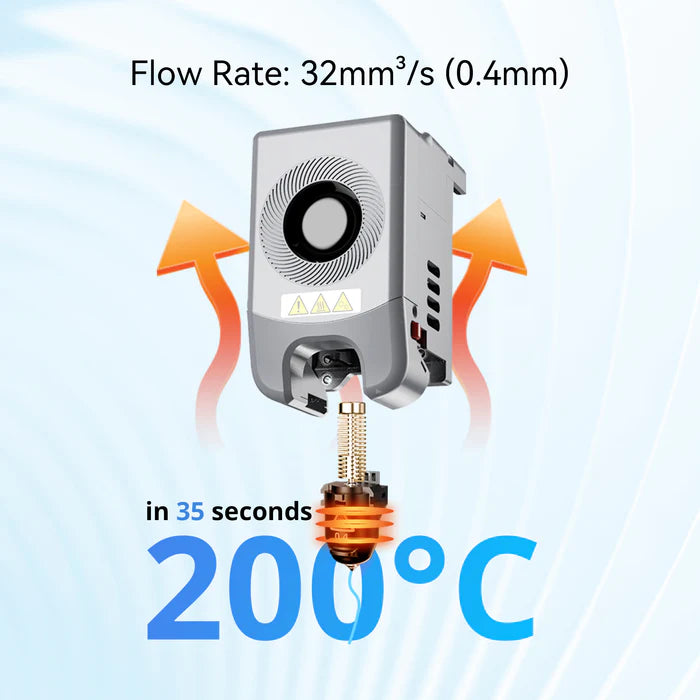

Your Smart Choice: Offers rapid nozzle changes in 3 seconds, a high-flow 32mm³/s nozzle for stable high-speed printing With a quick 35-second warm-up to 200°C, dual-sided PEI platform for easy removal, and multiple platform options, it's a smart and efficient choice for creative projects.

Superior Print Quality and Adaptability: Dual-fan nozzles, vibration compensation, multiple nozzle sizes (0.25, 0.4, 0.6, 0.8mm), and a 280°C direct extruder cater to various materials. From intricate details to rapid prototypes, superior results are guaranteed.

Real-time APP Monitoring: It also supports the use of a mobile App-Flash Maker, allowing for remote real-time monitoring of print progress, adjustment of parameters, receiving message alerts, and other functionalities. These features enable intelligent operation, ensuring seamless and uninterrupted printing.

Parameters:

• Printing Number of Extruders:  Single
• Print Technology:  FFF (Fused Filament Fabrication)

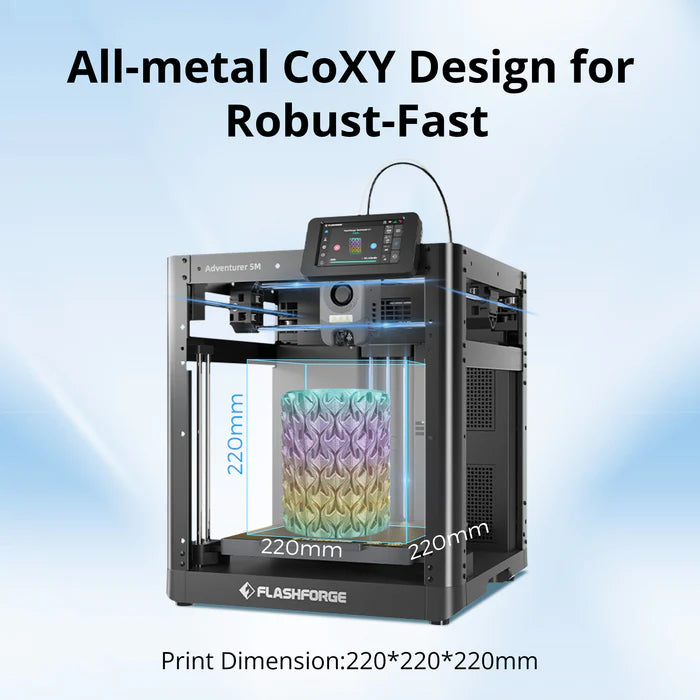

• Print Volume:  220 x 220 x 220 mm (8.7 x 8.7 x 8.7 in)
• Print Precision:  ±0.2 mm
• Positioning Precision:  X/Y-Axis: 0.025 mm; Z-Axis: 0.0025 mm

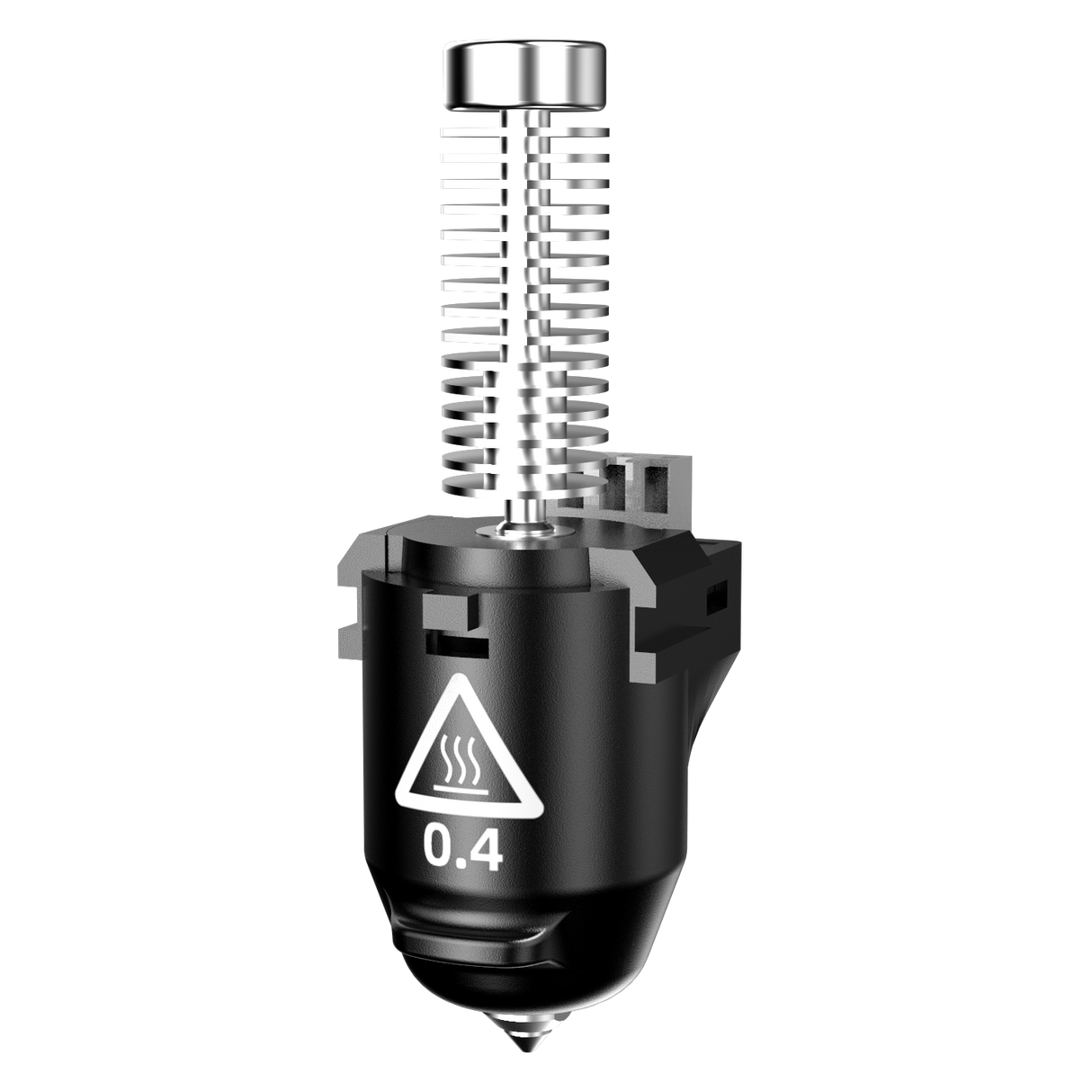

• Nozzle Diameter:  0.4 mm (Standard); 0.25 mm, 0.6 mm & 0.8 mm (Optional)
• Layer Thickness:  0.1 ~ 0.4 mm
• Print Speed: Up to 300 mm/s
• Extruder Speed:  Up to 600 mm/s
• Acceleration: 20,000 mm/s²
• Maximum Extruder Temperature:  280°C (536°F)
• Filament Compatibility:  PLA, PETG, TPU (0.4mm nozzle), PLA-CF, PETG-CF (0.6/0.8mm nozzle)
• Heated Build Plate Temperature:  Up to 110°C (230°F)

Mechanical & Dimensions

• Screen: 4.3-inch Touch LCD Screen

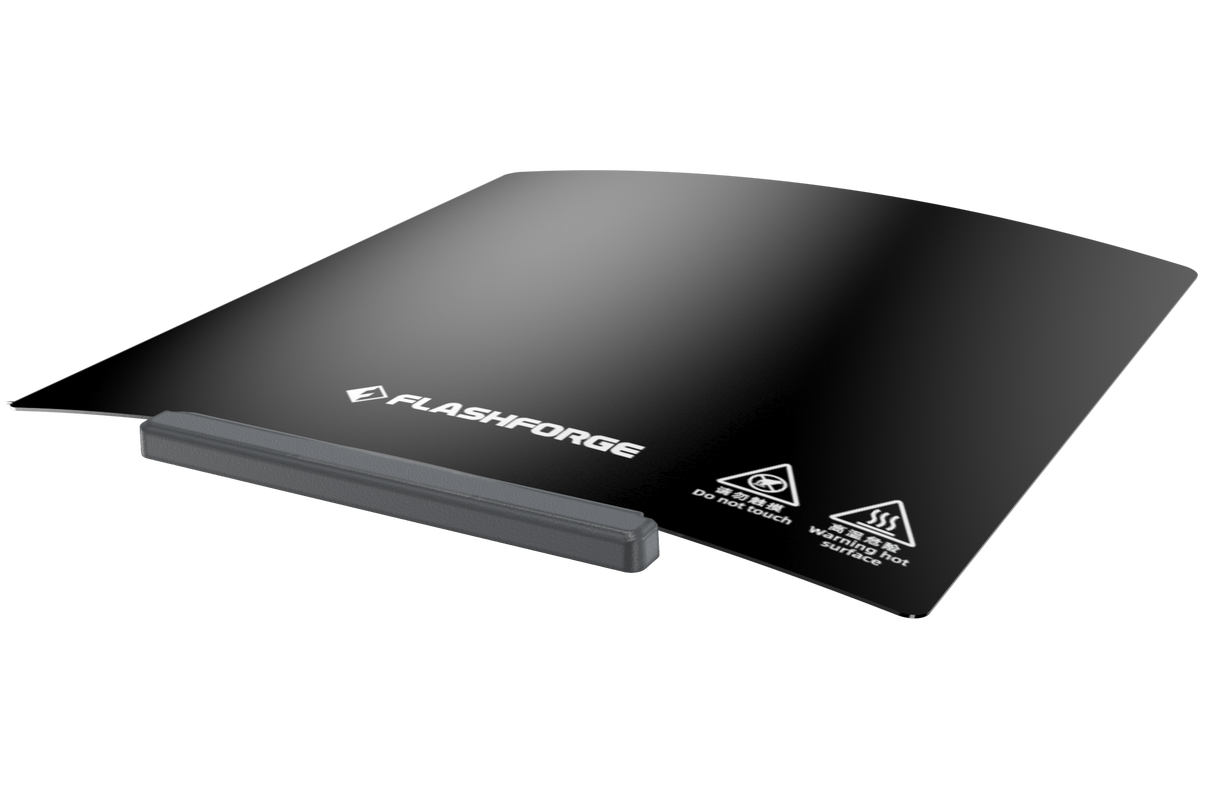

• Print Platform: PEI Build Plate (Double Sided)
• Printer Dimensions: 363(L) x 376(W) x 413(H) mm, (14 x 15 x 16 in)
• Package Dimensions: 440(L) x 440(W) x 490(H) mm, (17 x 17 x 20 in)
• Net Weight: 24 LBS (10.8 kg)
• Gross Weight: 31 LBS (14 kg)

Electrical

• Power Supply: AC 100-240V / DC 24V / 13.3A, 320W
• Connectivity: USB Stick, Wi-Fi, Ethernet, and Cloud Printing

Software

• Slicing Software: Orca-Flashforge/FlashPrint / Polar Cloud
• File Input Format: 3MF / STL / OBJ / FPP / BMP / PNG / JPEG
• File Output Format:  GX / G
• Supports (OS): Win7/8/10/11, Linux supports Ubuntu 20.04 and later, Mac OS 10.9 and later

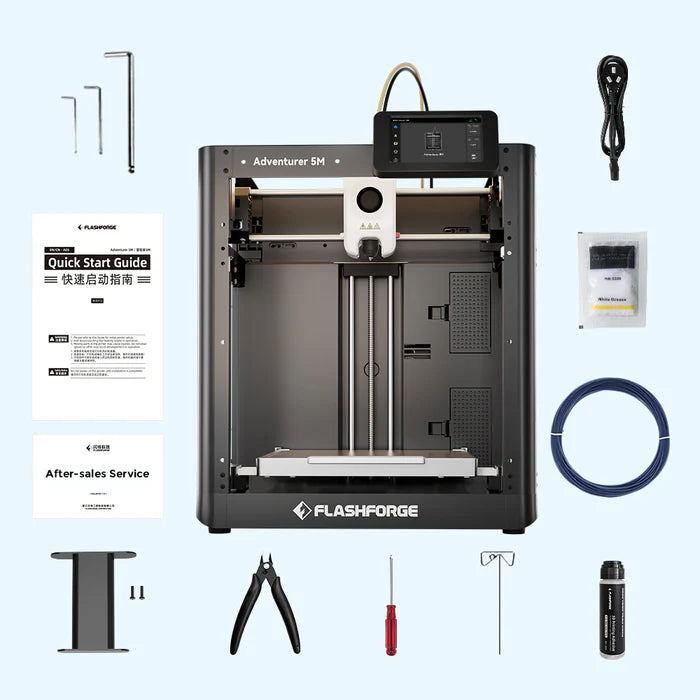

What’s in the box:

• Adventurer 5M 3D Printer
• 50G PLA Filament
• Power Cord
• Quick Start Guide
• Screw Driver
• Hex Wrench Set
• Grease
• USB Drive
• Leveling Tool
• Filament Holder
• Pliers
• Glue

Specifications Comparison:
