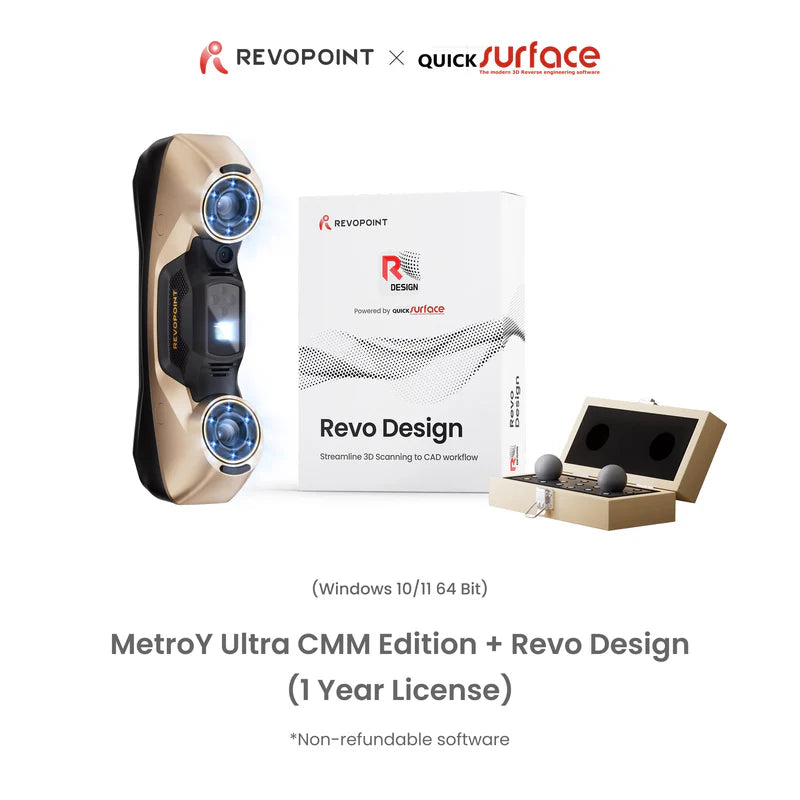

Revopoint MetroY ULTRA: High Performance Wireless 3D Scanner
Revopoint MetroY ULTRA: High Performance Wireless 3D Scanner
Description
Description
Revopoint MetroY ULTRA: High Performance Wireless 3D Scanner
**Small to Medium Workpieces**
ꔷ Volumetric Accuracy: 0.015 + 0.04 mm x L (m)

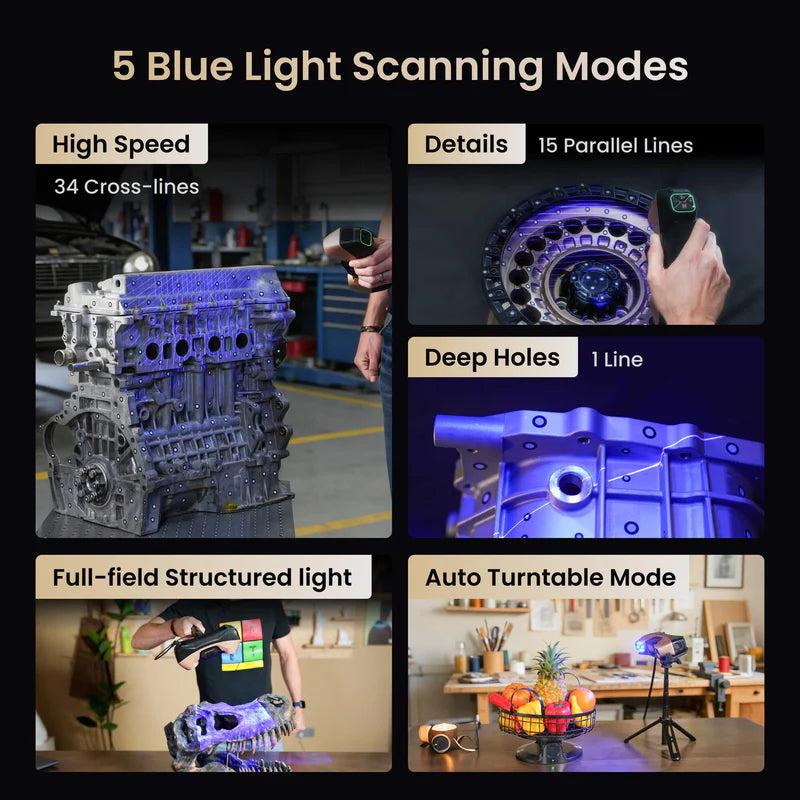

ꔷ 5 Blue Light Scanning Modes
ꔷ Faster Scans: Up to 3,000,000 Points/s
ꔷ Ultra-Rapid Scans: 34 Cross-lines
ꔷ Scanning Volume: Small to Medium
ꔷ Certified 3D Measurement & Inspection -Requires Revo Measure(*Only Windows 10/11 Supported.)
ꔷ Faster Scanning Speeds - Up to 90 fps

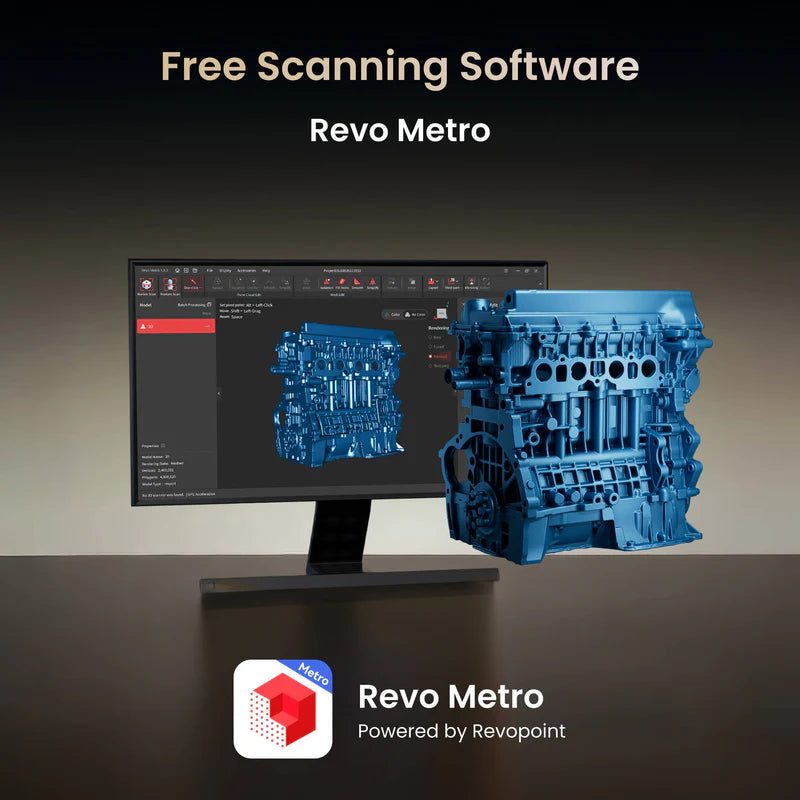

ꔷ Includes Free Scanning Software - Revo Metro
ꔷ Outdoor Laser Scans: Up to 100,000 lux
On-site, Real-time Accuracy Verification CMM-Certified Ball Plate

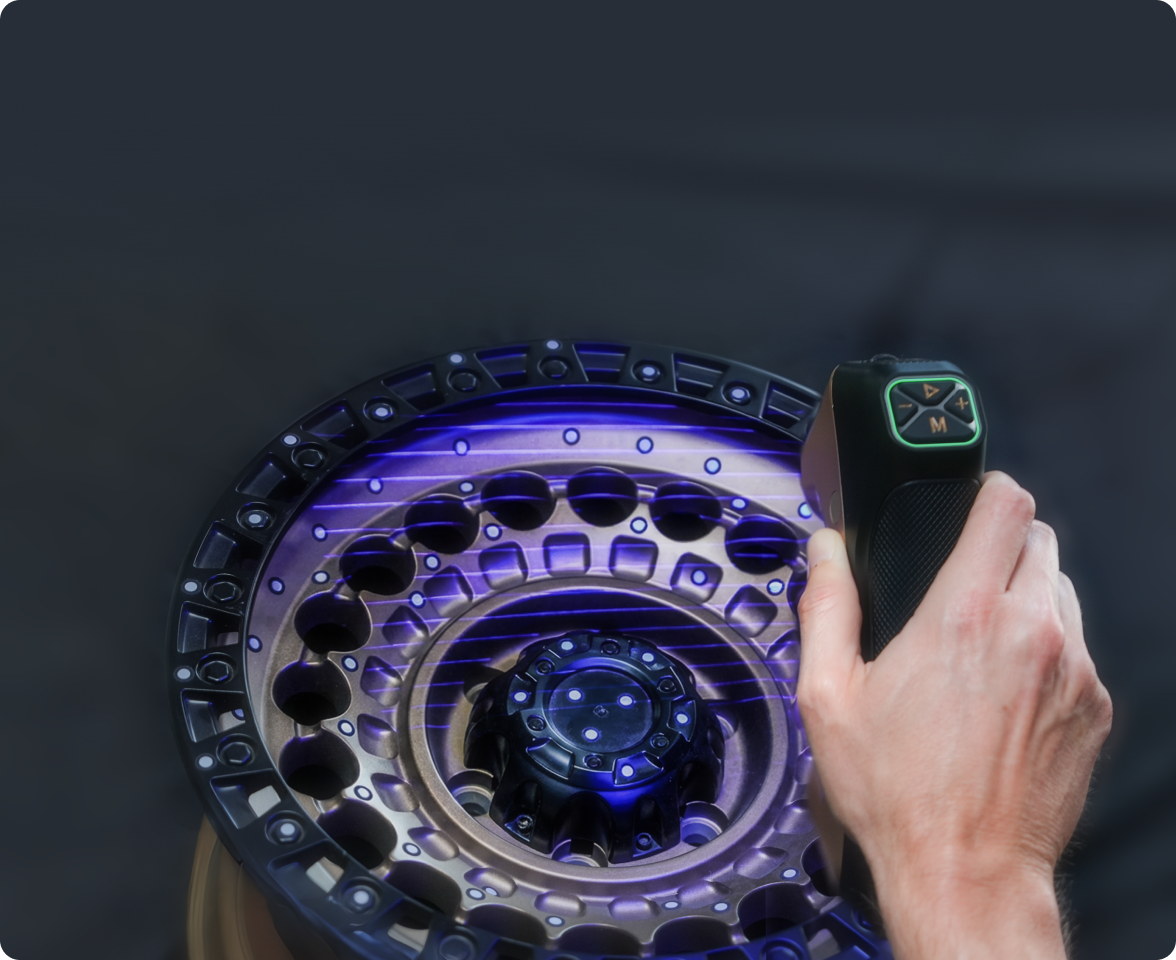

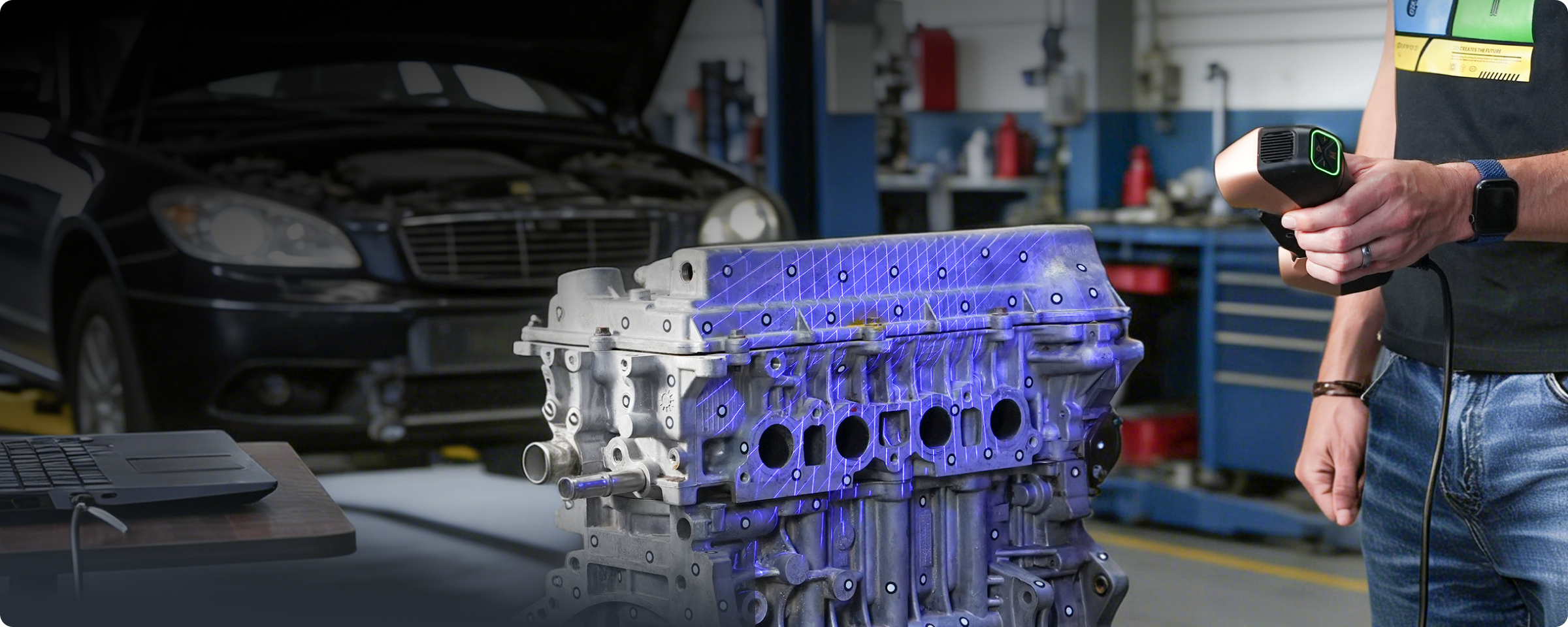

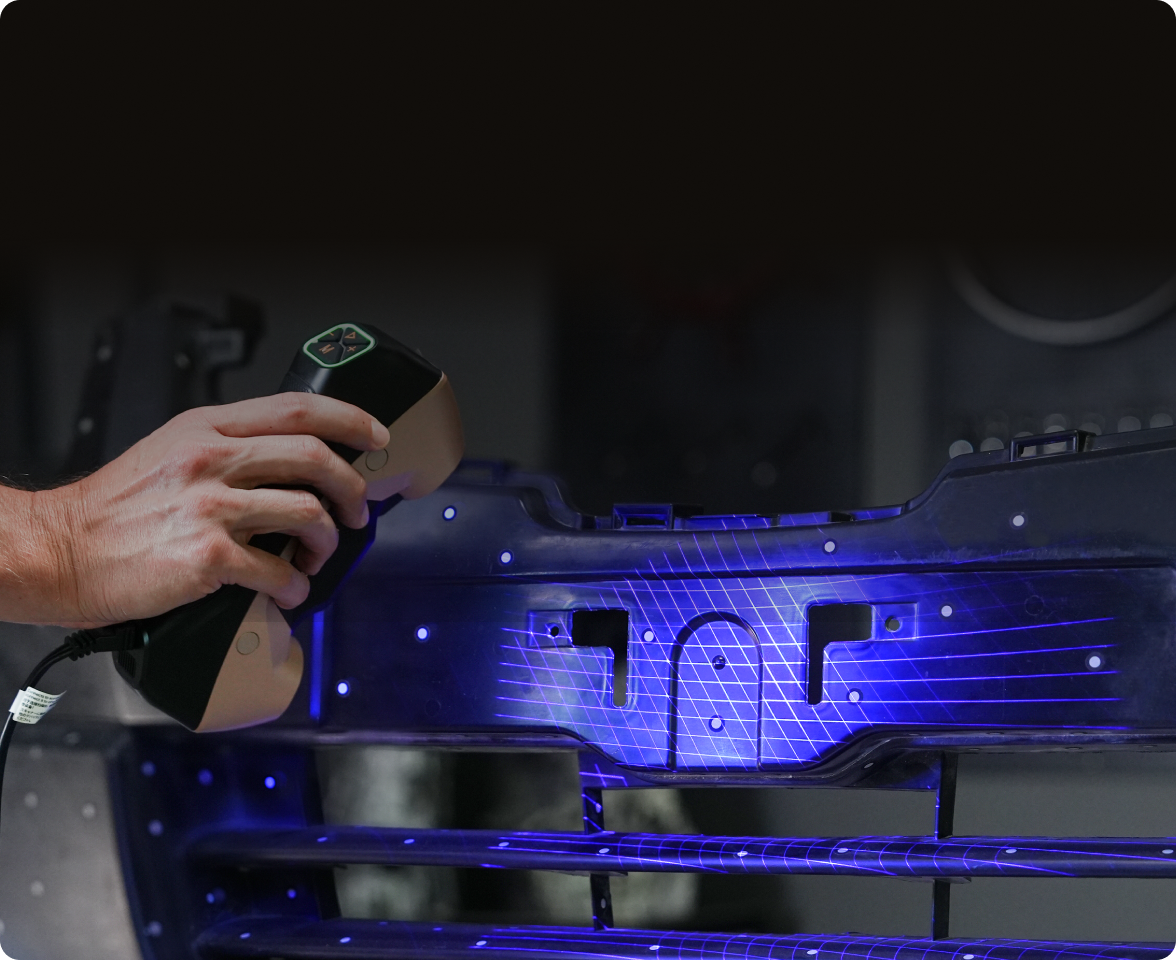

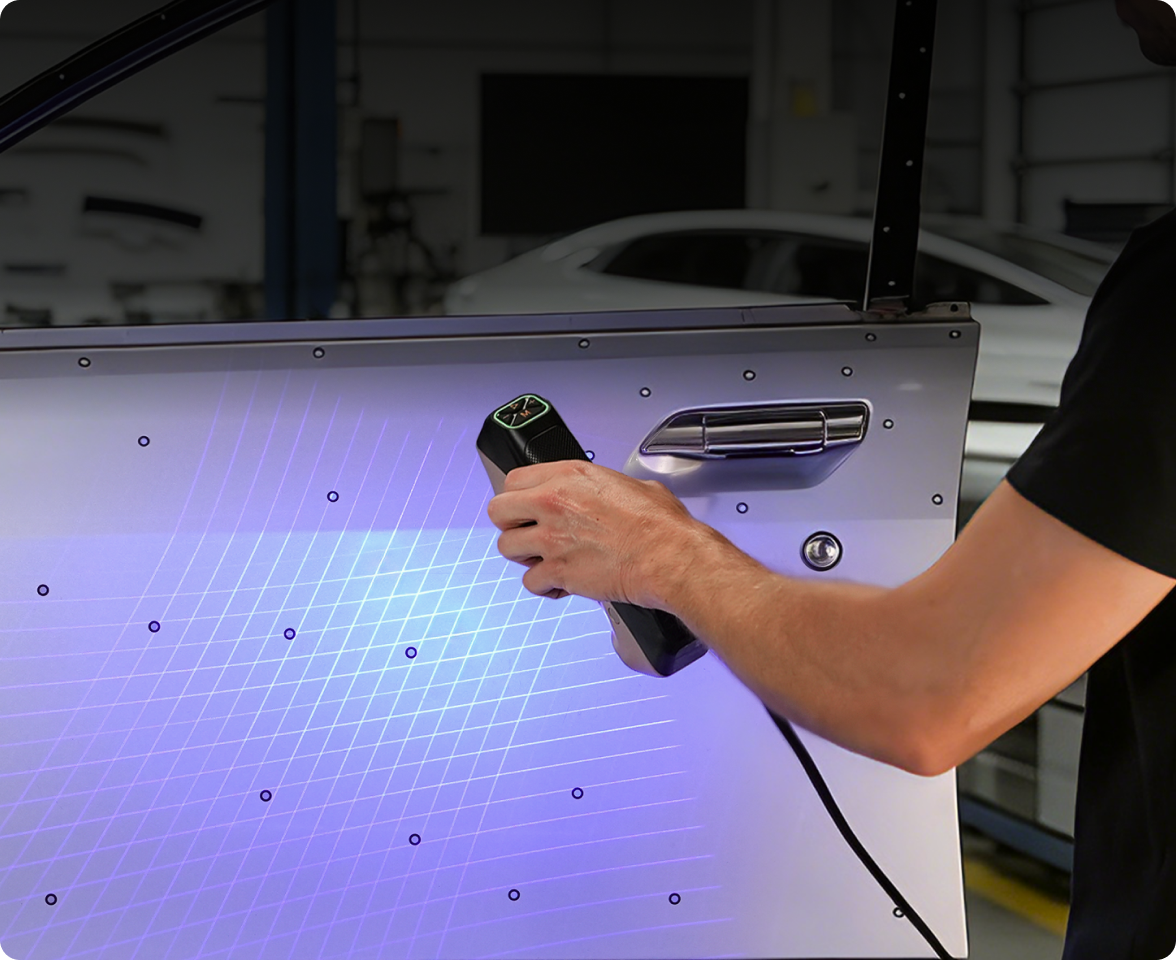

100% Faster - 34 Cross-Lines
Capture flat surfaces and shiny or black surfaces at up to 3 million points per second.
Capture Details - Up to 15 Parallel Lines
Ensure every fine detail, edge, and complex surface is captured with precision.

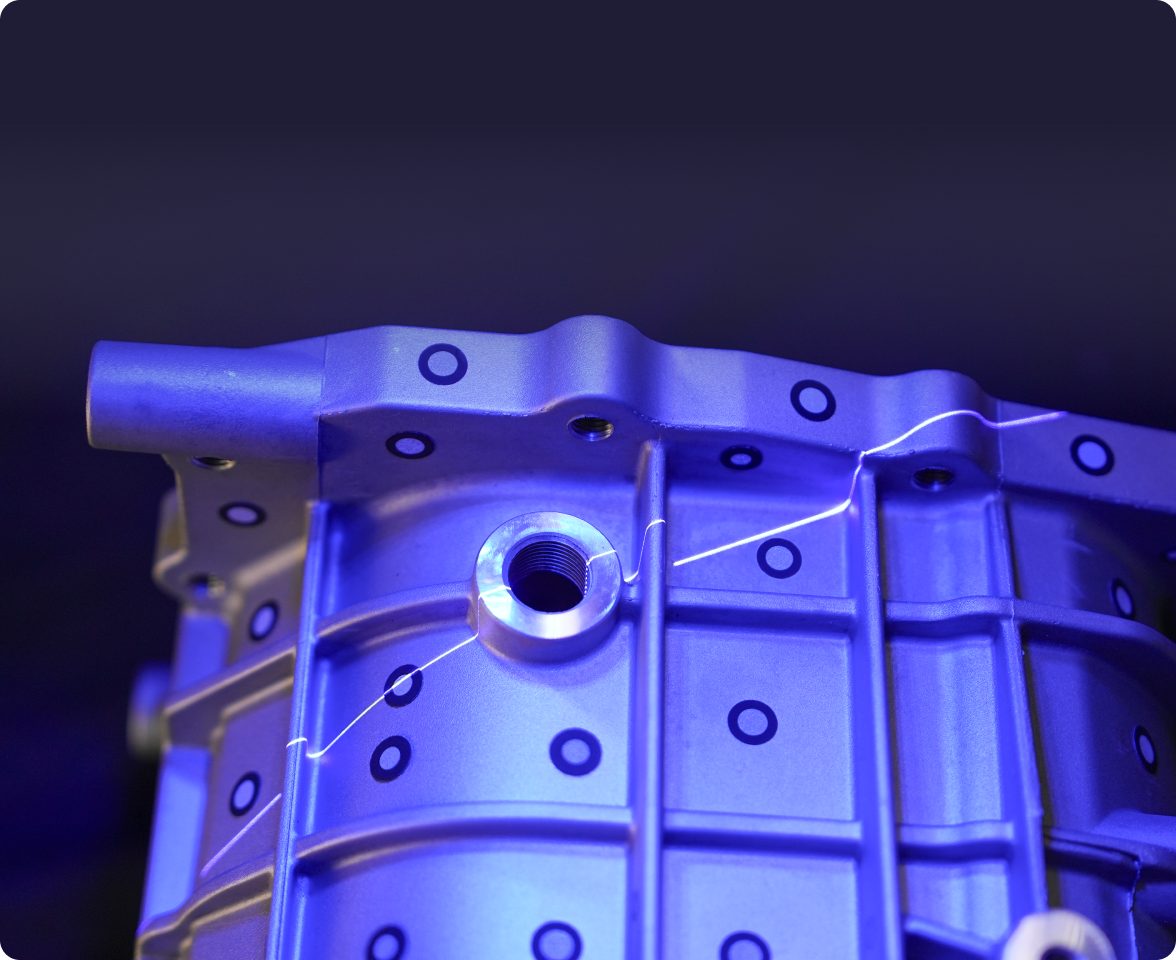

Deep Holes - Single Line Mode
Flawlessly capture deep holes, crevices, and grills.
Structured Light Mode
Quickly capture feature-rich workpieces marker-free at up to 7 million points per second for fast, accurate 3D data.

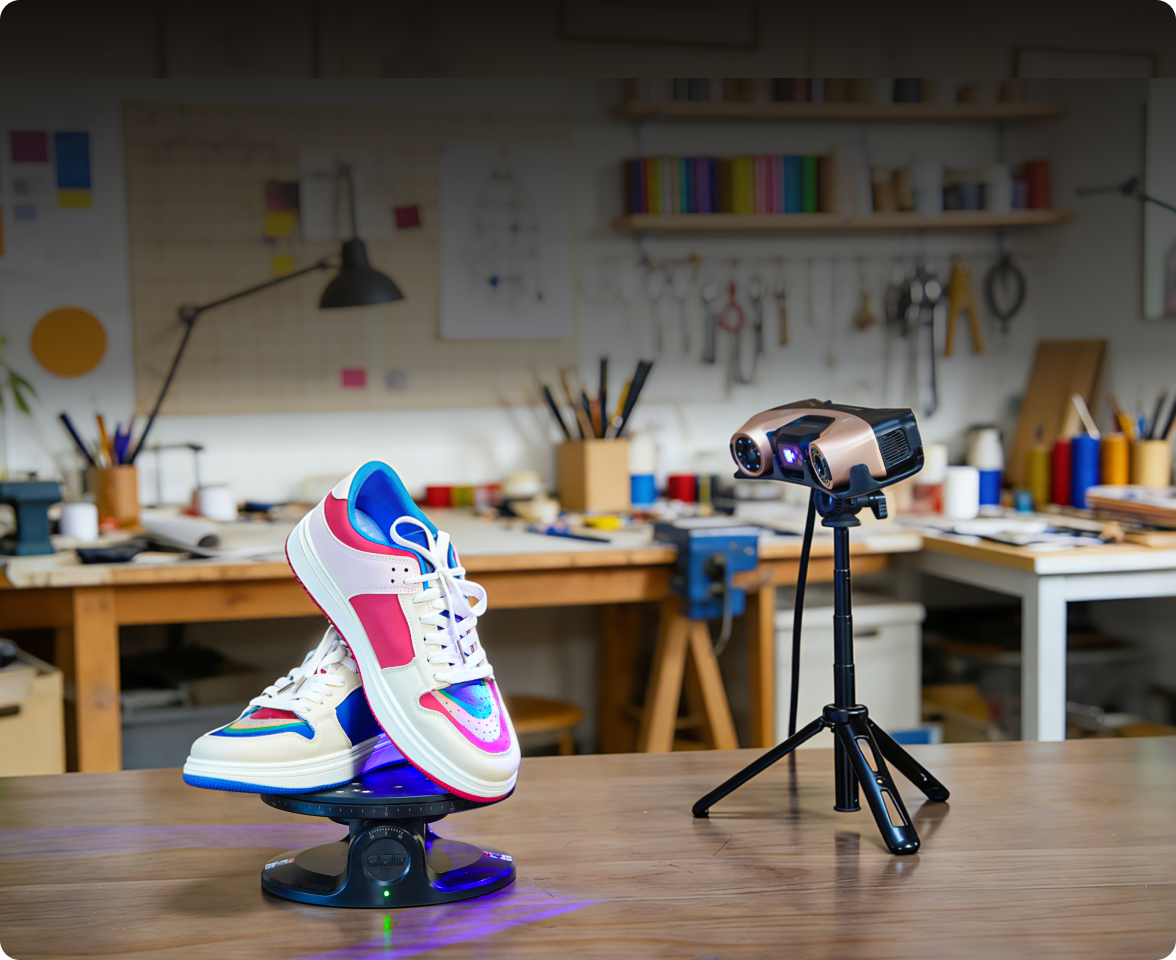

Auto Turntable Mode
Automatically create ultra-accurate models with just one click using MetroY Ultra and the Dual-axis Turntable, delivering repeatable results every time.

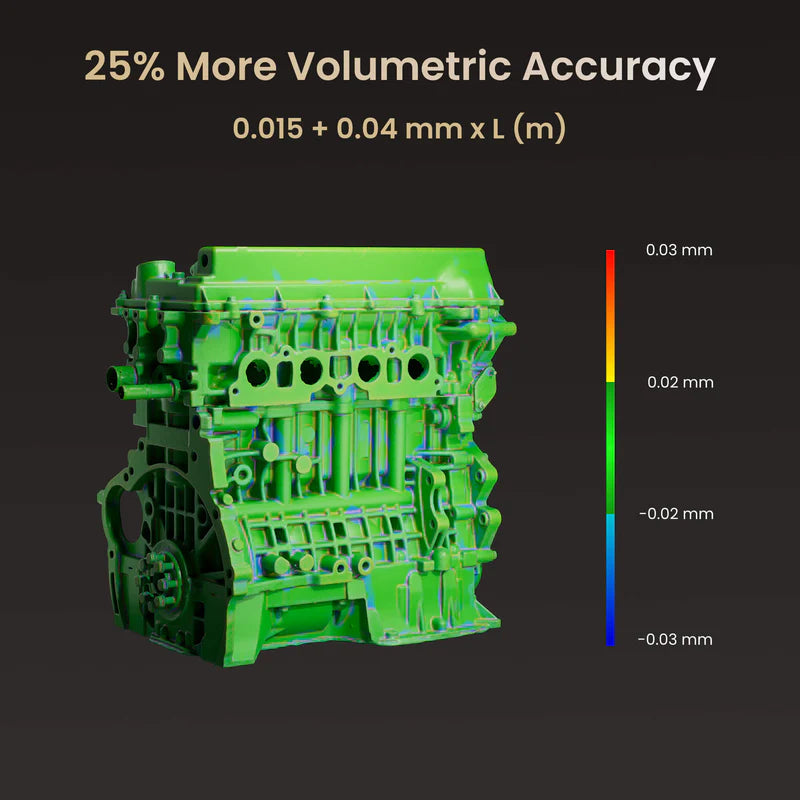

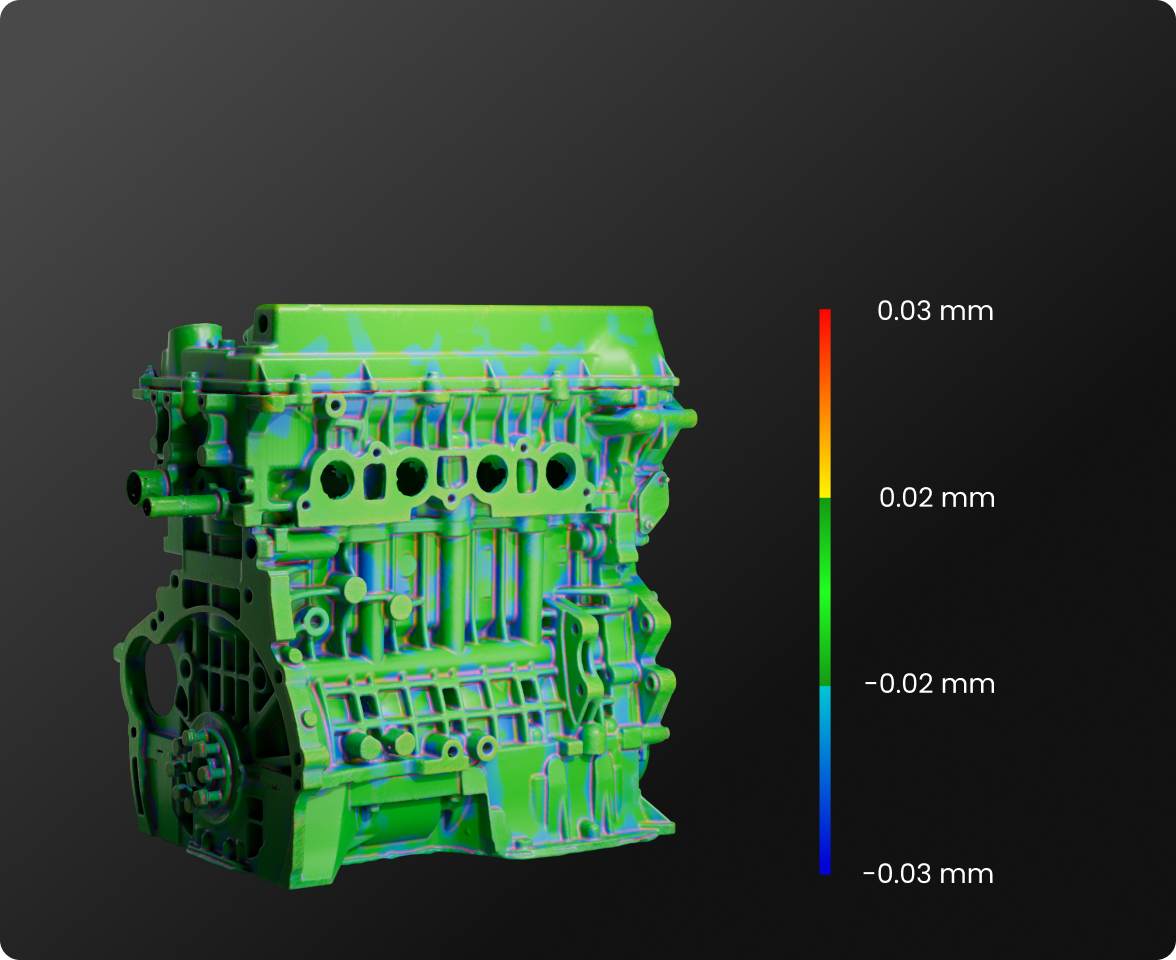

Accuracy That Delivers
Volumetric Accuracy: 0.015 + 0.04 mm x L (m)

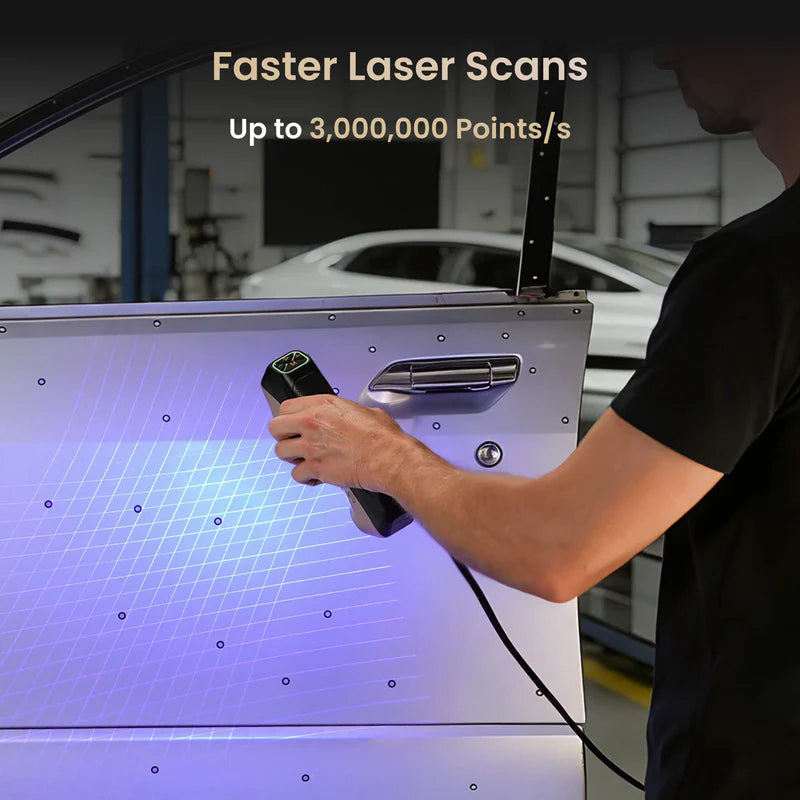

Faster Laser Scans
Up to 3,000,000 Points/s.

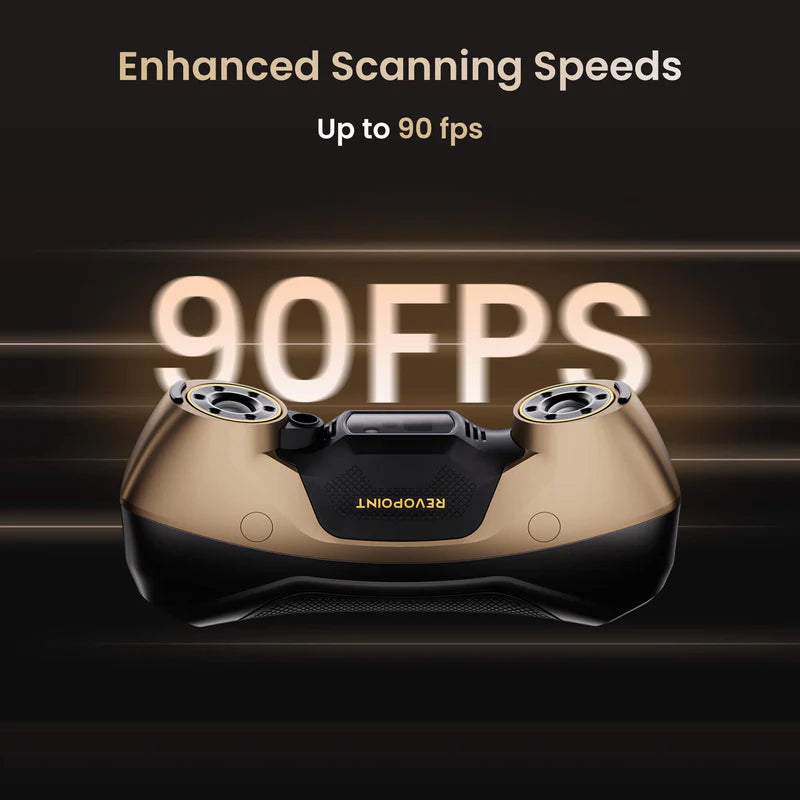

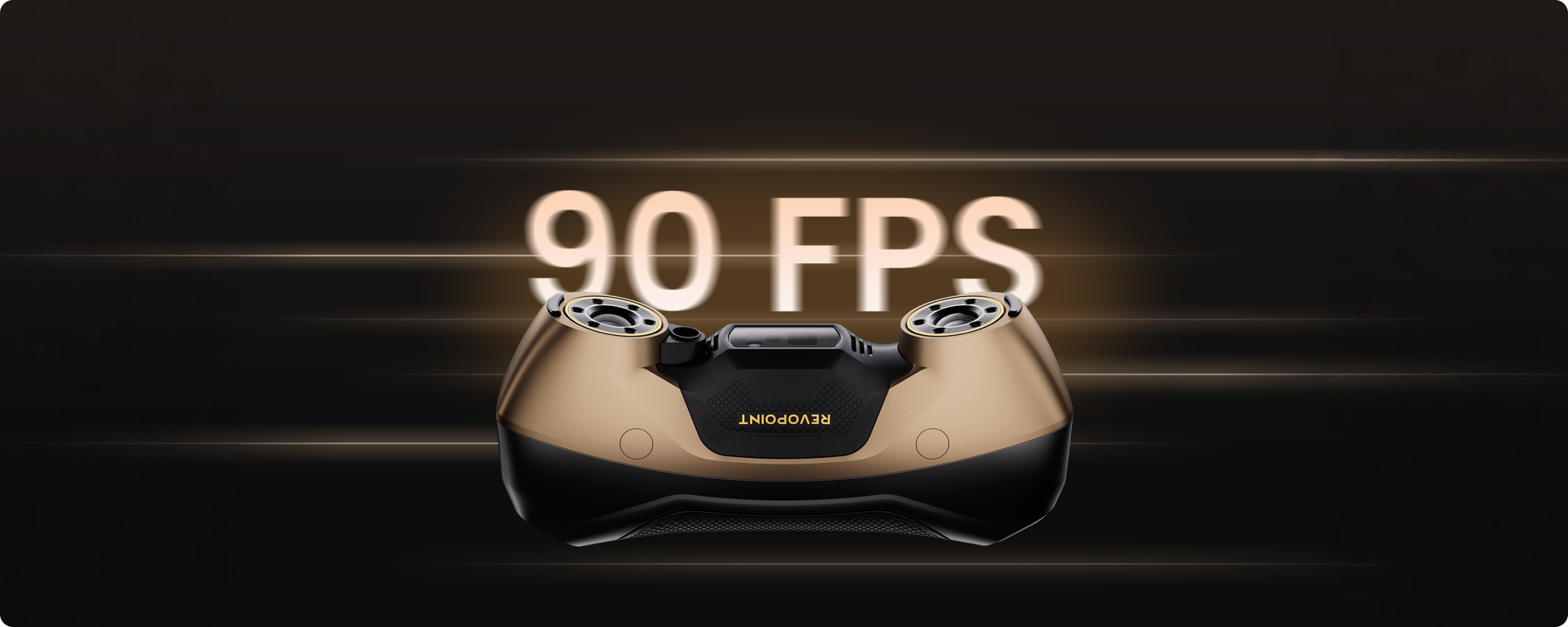

50% Faster Scanning Speeds
Up to 90 fps.

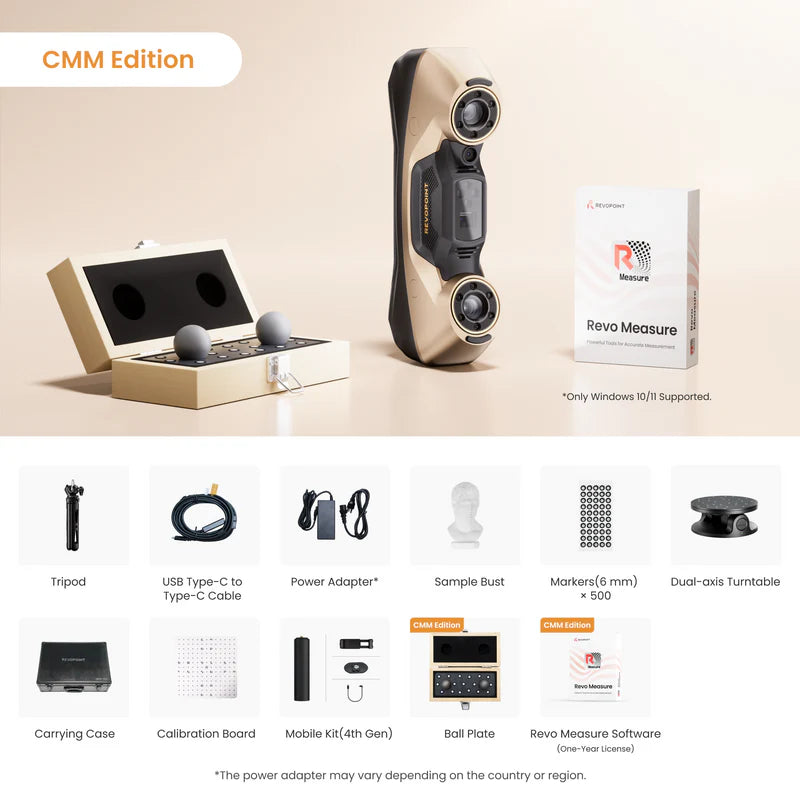

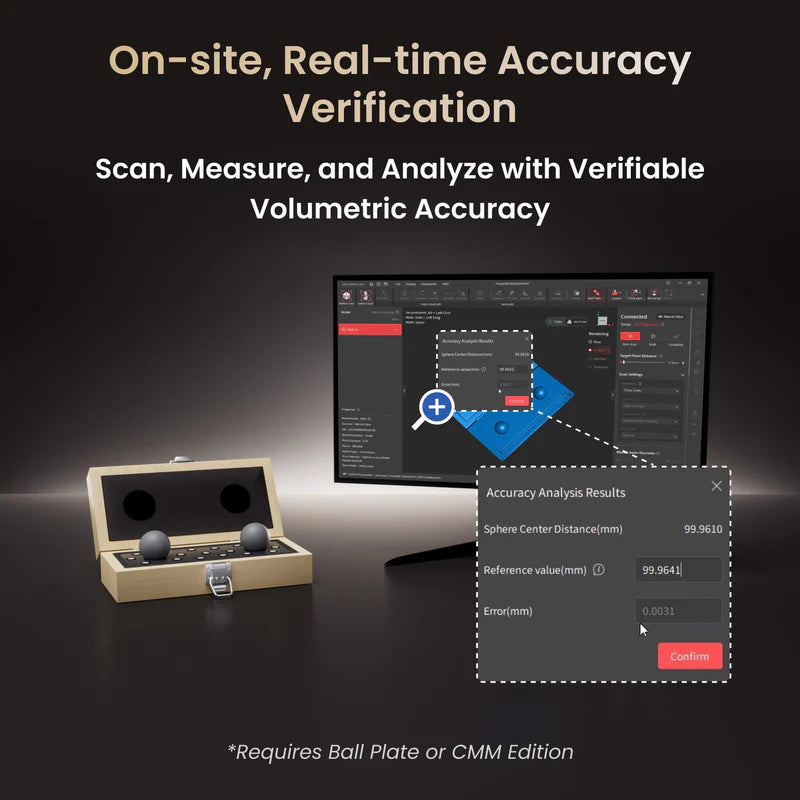

MetroY Ultra CMM Edition - Verified Measurements

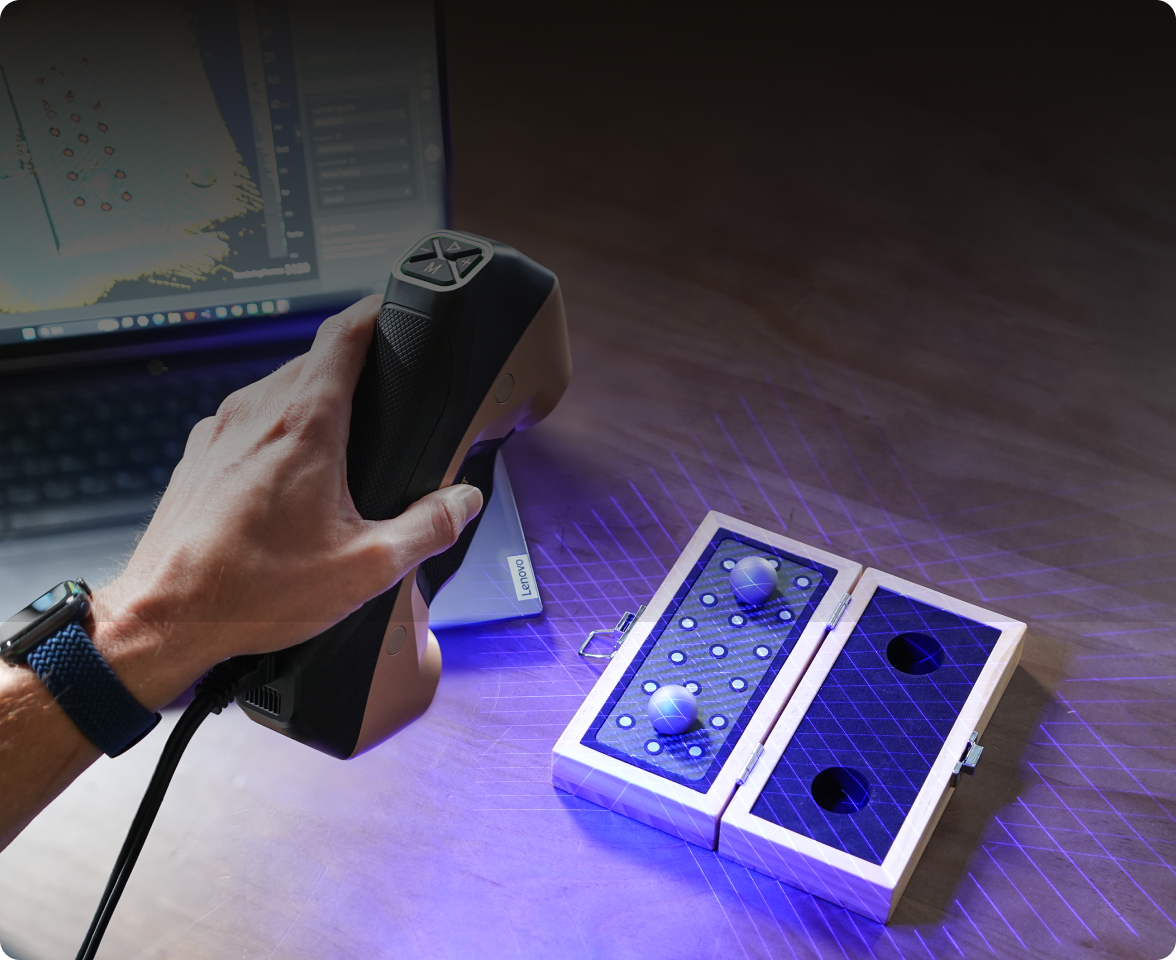

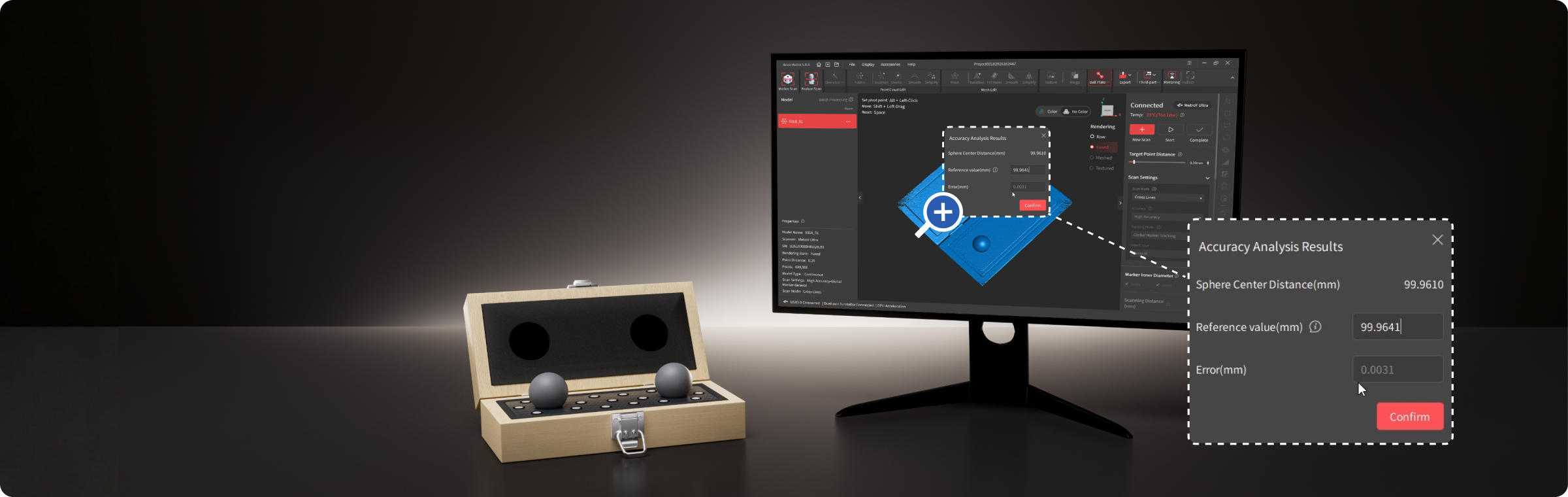

On-site, Real-time Accuracy Verification (CMM Edition)
Ensure fast, reliable, on-site, real-time accuracy verification with the CMM-certified carbon fiber ball plate and Revo Metro.

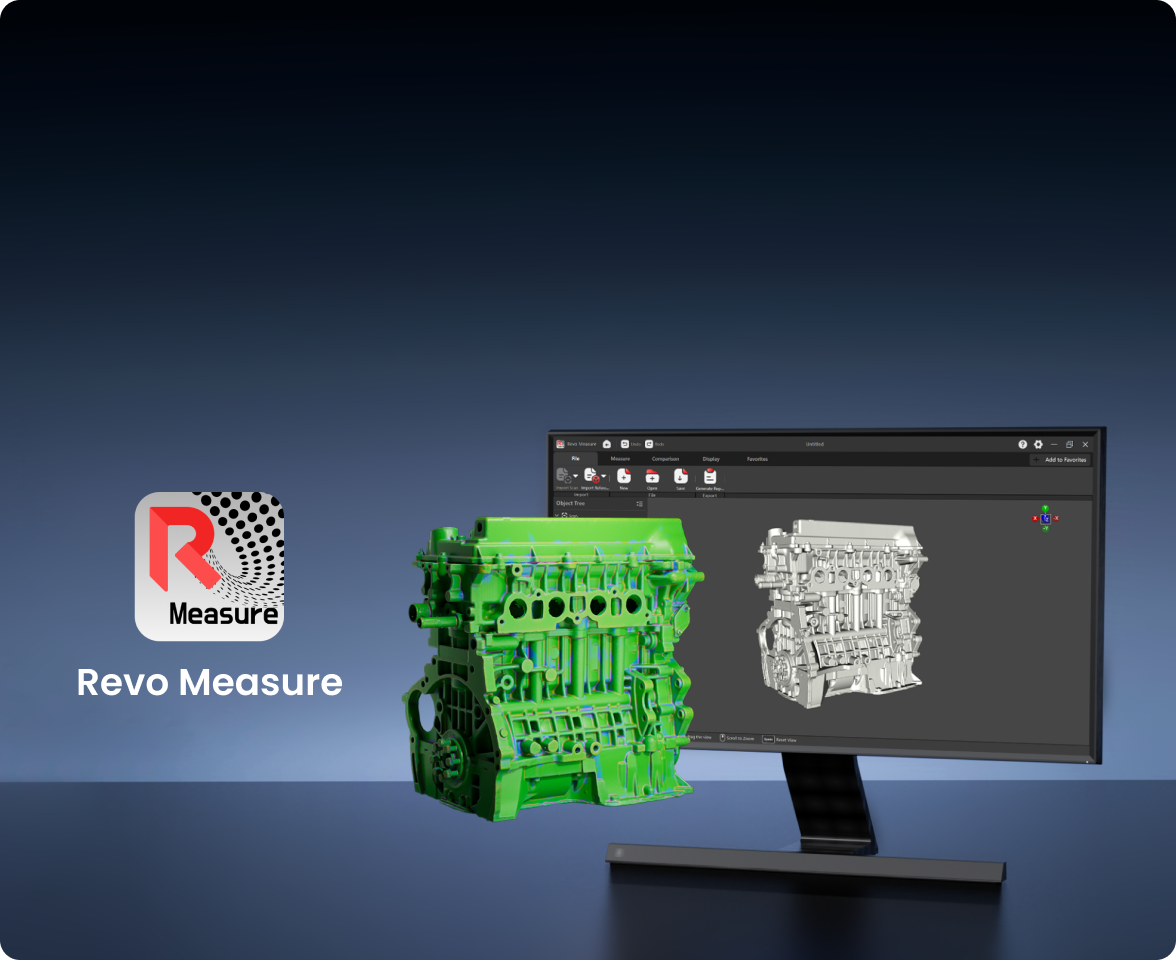

Revo Measure - From 3D Scans to 3D Measurement
Transform your 3D scan data into accurate, verifiable measurements to ensure every part meets its design specifications.
No Scanning Spray Needed
Scan Shiny or Dark Surfaces.

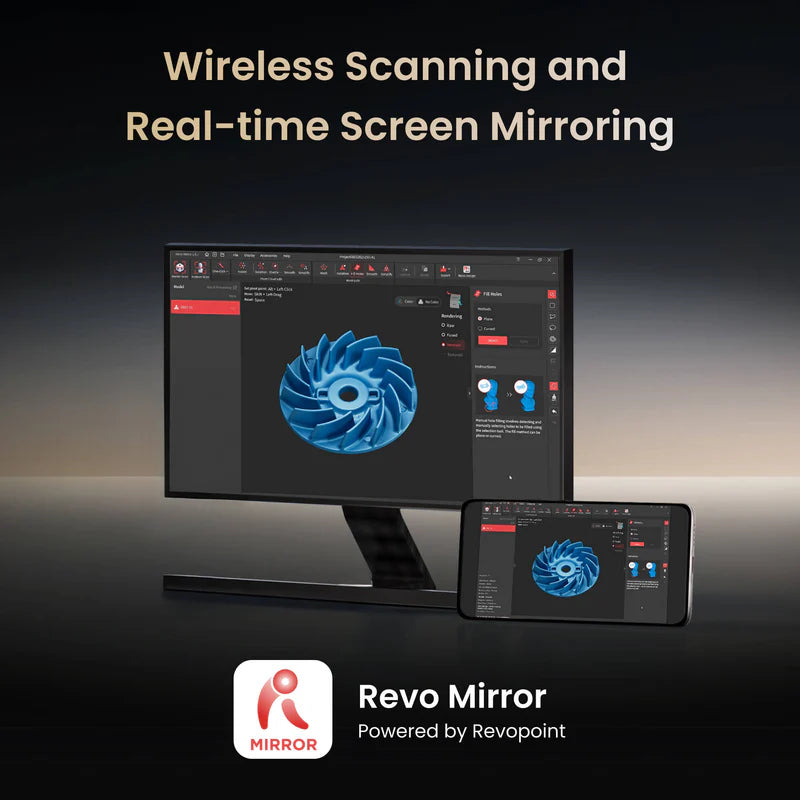

Wireless Scanning
Stream your scan in real time via Wi-Fi 6, using your PC's processing power.

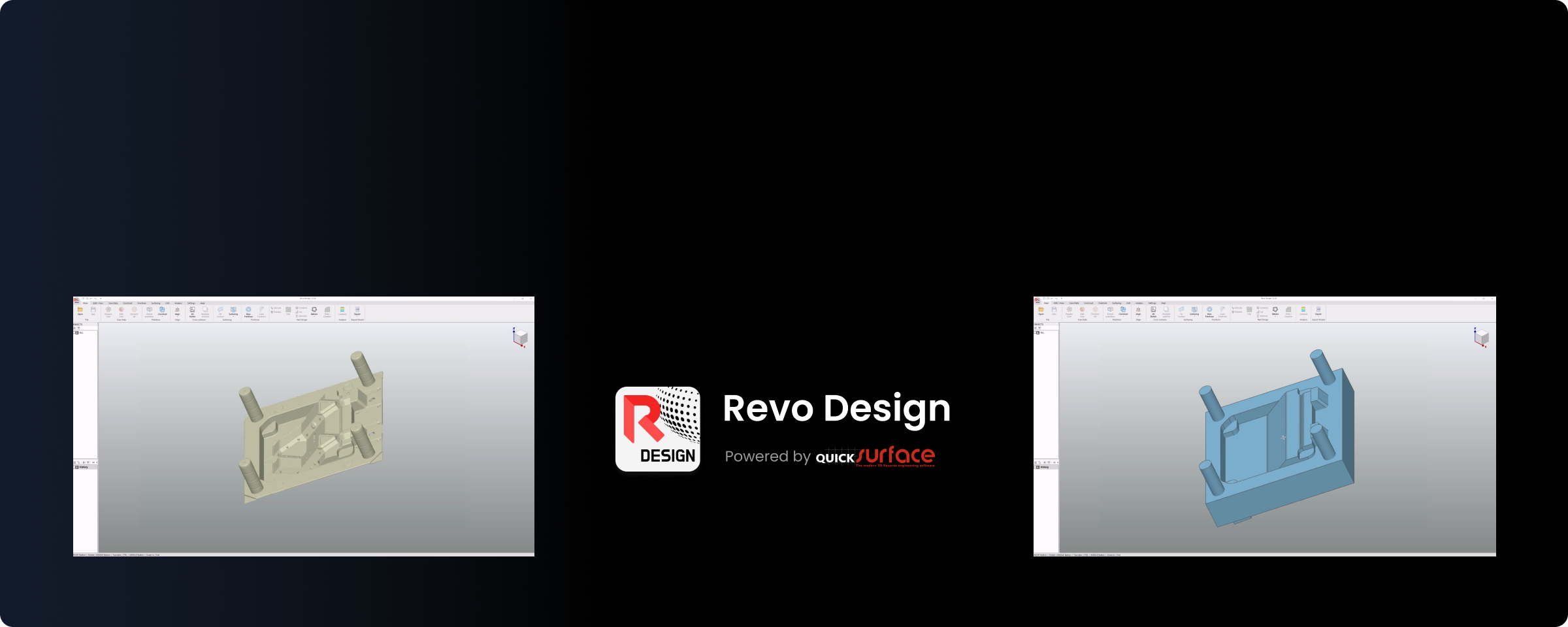

Revo Design - Scans-to-CADs
Features powerful mesh editing, freeform and parametric modeling, and
scan-to-CAD workflows, ideal for reverse engineering, product development,
and industrial design.

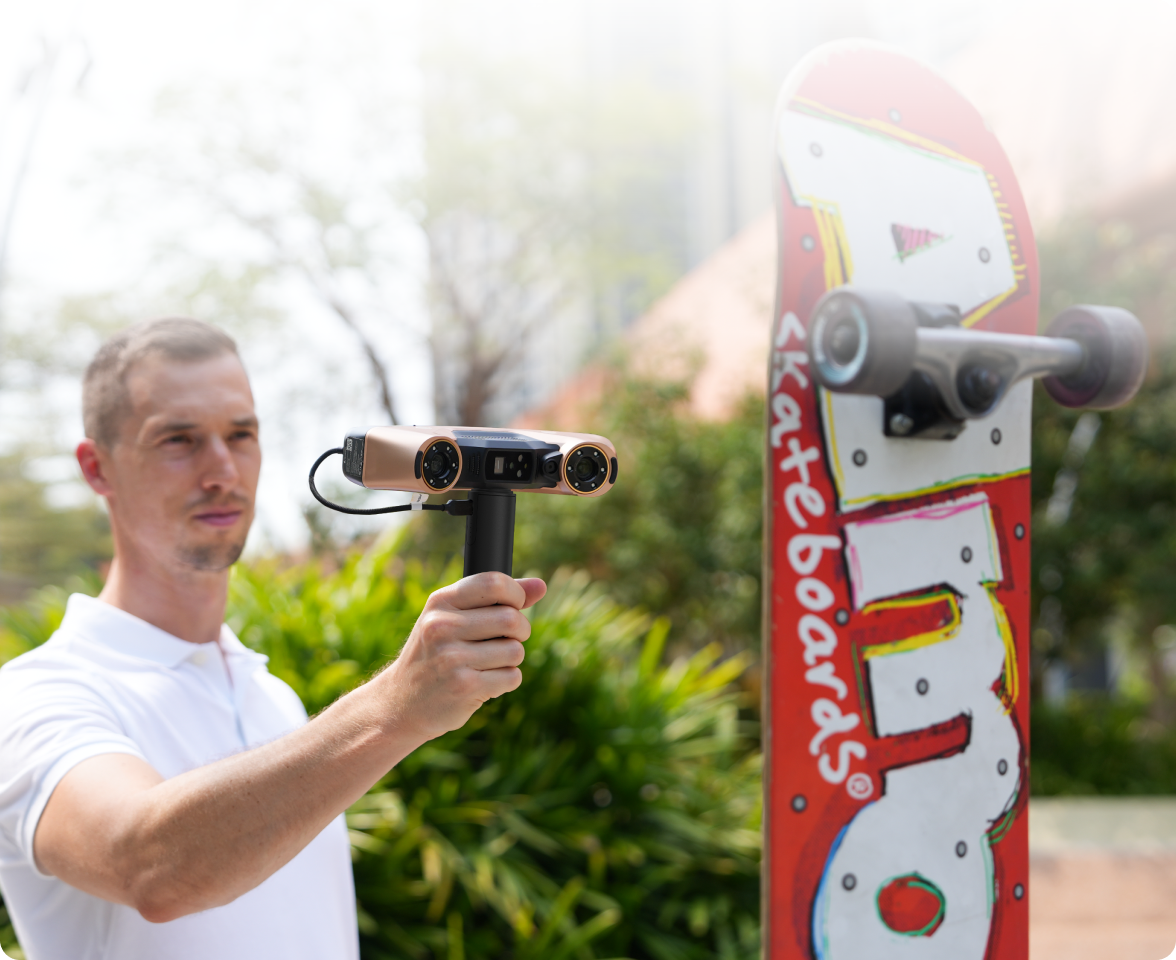

Outdoor Laser Scans
Up to 100,000 lux.

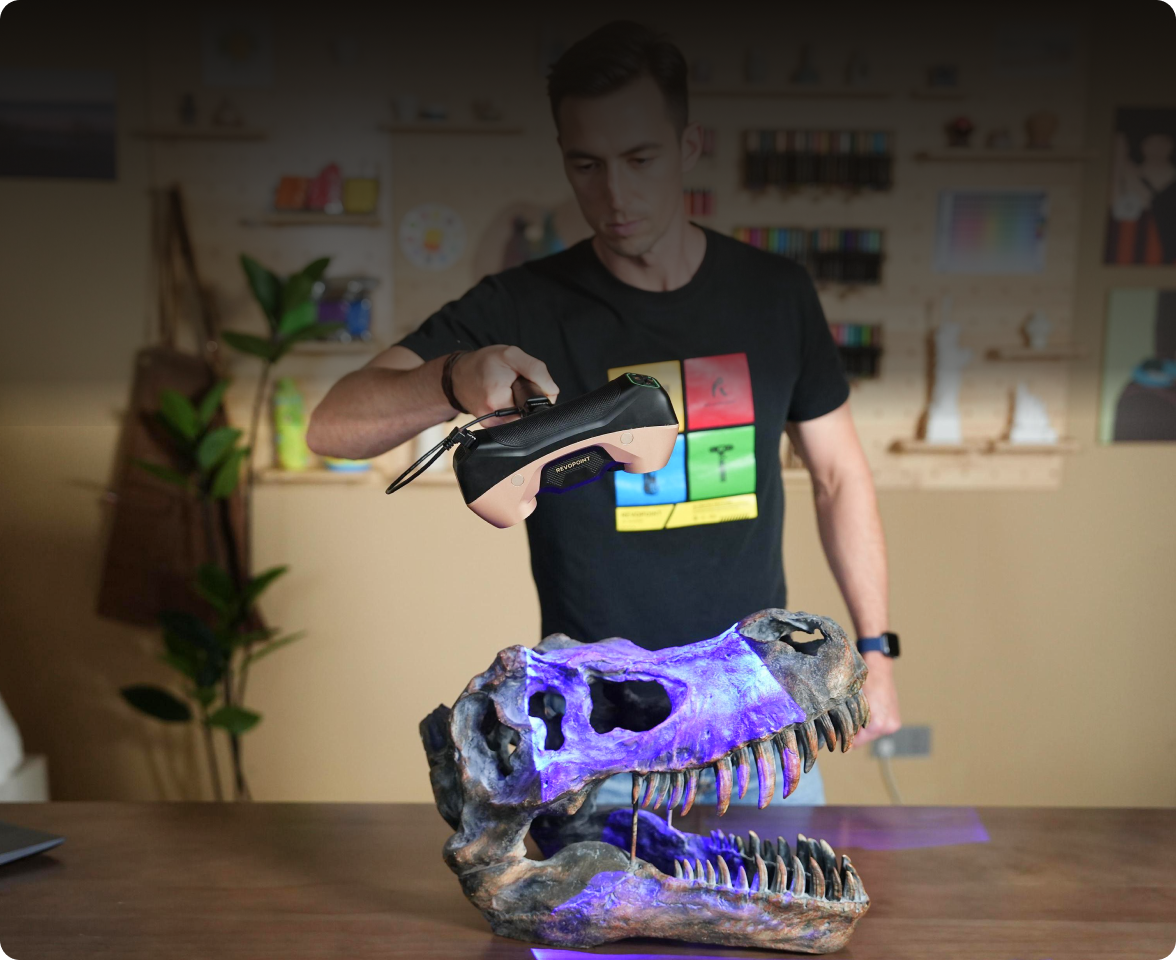

Real Color, Real Results
Create Vibrant 3D Models.

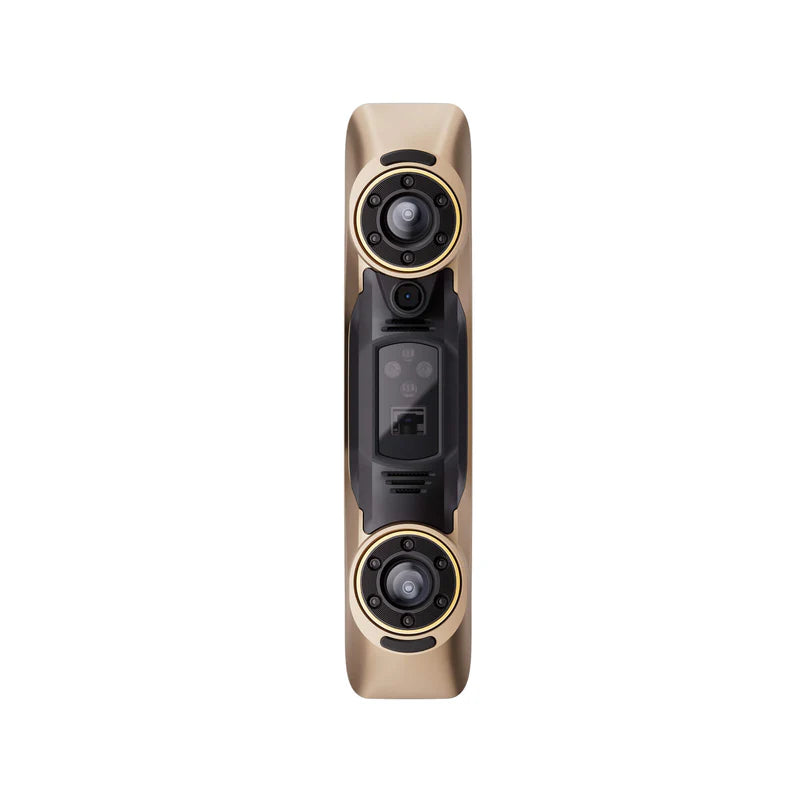

MetroY Ultra Specifications
|
Name
|
MetroY Ultra |
|
Scanning Type
|
Handheld and Desktop
|
|
Technology
|
Multi-line Laser Scan and Full-field Structured Light Scan
|
|
Scannable Object Size
|
Small to Medium
|
|
Single-frame Precision, up to*
|
0.01 mm
|
|
Single-frame Accuracy, up to*
|
0.015 mm
|
|
Volumetric Accuracy
|
0.015 mm + 0.04 mm × L (m), L is the length of the object.
|
|
Fused Point Distance, up to
|
0.05 mm
|
|
Working Distance
|
200 ~ 400 mm
|
|
Single Capture Area at Nearest Distance
|
152 × 138 mm at 200 mm
|
|
Single Capture Area at Furthest Distance
|
332 × 276 mm at 400 mm
|
|
Angular Field of View (H × V)
|
49 × 38°
|
|
Minimum Scan Volume
|
10 × 10 × 10 mm
|
|
Maximum Scan Volume
|
2 × 2 × 2 m
|
|
Scanning Speed, up to
|
NVIDIA GPU: 90 fps CPU: 60 fps
|
|
Point Return Rate
|
Multi-line Laser Scan: 3,000,000 Points/s Full-field Structured Light Scan: 7,000,000 Points/s
|
|
RGB Camera Resolution
|
2 Megapixels
|
|
Color Scanning
|
Only in Auto Turntable Mode. Laser Line Marker Mode color scanning coming soon.
|
|
Tracking Methods
|
Marker, Global Marker, Feature
|
|
Outdoor Scanning*
|
Yes （Multi-line laser mode enables scanning in lighting environments of up to 100,000 lux）
|
|
3D Light Source*
|
34 Blue Cross Laser Lines 15 Blue Parallel Laser Lines 1 Blue Deep Hole Single Laser Line 62 Line Blue Full-field Structured Light
|
|
Fill Lights*
|
12 Blue LEDs
|
|
CPU
|
4 core ARM, 2.0 GHz
|
|
Built-in Chip Computing
|
Depth Computing
|
|
Buttons
|
4
|
|
Minimum PC Requirements*
|
macOS CPU: M2 Pro RAM ≥ 16GB Windows CPU: Intel i7 13th Gen or AMD Ryzen 7 5800 RAM ≥ 32GB GPU: NVIDIA GeForce RTX 3060 (8GB) Note: ① If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz. ② Only in Laser Line Scanning modes, a dedicated graphics card is required for acceleration. AMD and MAC GPUs do not currently support acceleration.
|
|
Recommended PC Requirements*
|
macOS CPU: M4 Pro or better RAM ≥ 24GB Windows CPU: Intel i9 12th Gen or better RAM ≥ 64 GB GPU: NVIDIA RTX 4060 (8 GB) or better
|
|
Compatible Operating Systems
|
Windows 10/11 (64-bit), macOS 11.0 or better
|
|
Output File Formats
|
PLY, OBJ, STL, ASC, 3MF, GLTF, FBX
|
|
Ready to Print 3D Models
|
✔
|
|
Wi-Fi
|
6
|
|
Connector Type
|
USB Type-C to Type-C
|
|
Power Requirements
|
DC 12V, 3A
|
|
Scanner Weight
|
450 g
|
|
Dimensions (L × W × H)
|
211 × 94 × 47 mm
|
|
Special Object Scanning
|
Please use scanning spray when scanning transparent or specular surfaces in Laser Line modes. Using scanning spray is recommended when scanning transparent, black, specular, or highly reflective surfaces in Full-Field Structured Light modes.
|
|
User Recalibration
|
Yes
|
|
Power Bank Capacity
|
5500 mAh ( When MetroY Ultra using the Battery Grip, the average battery life is approximately 2.5 hours.)
|
|

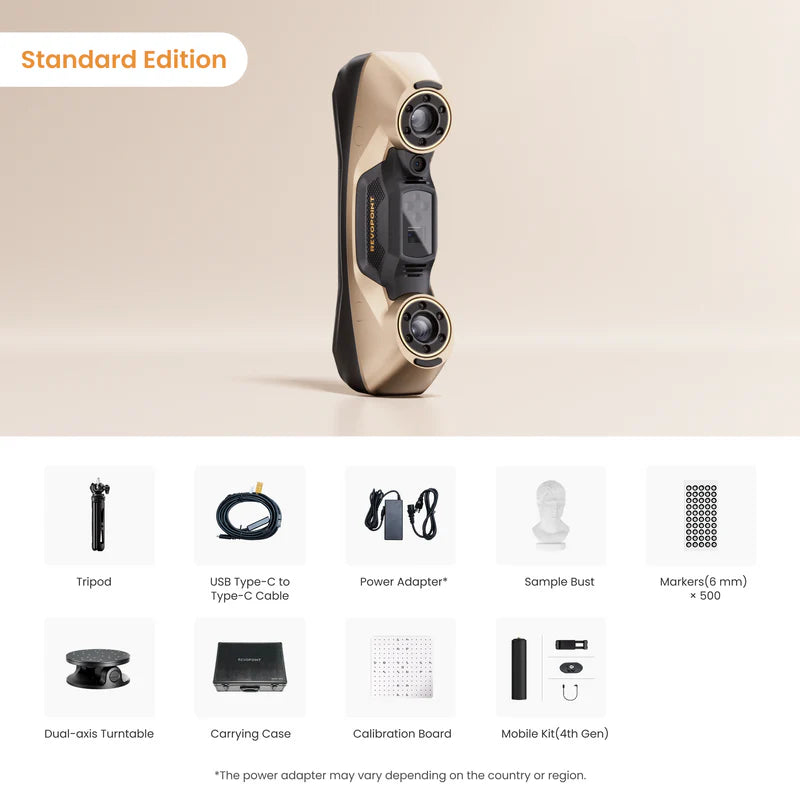

Supported Accessories
|
Marker Block Kit, Mobile Kit (4th Gen), Dual-axis Turntable, Ball Plate
|
|
Notes
|
1. Precision is how close repeated measurements of the same object at a single angle are to each other. Accuracy is how close a measured value at a single angle is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment. 2. Class 2M Laser Safety Tips: (1) The product uses a Class 2M laser projector. Avoid looking directly at it at close range! Please refer to the Class 2M laser standard document for details. (2) To avoid retina damage, don't look directly into the laser beam through optical instruments capable of magnifying it (e.g., telescopes, and camera lenses). (3) To prevent laser reflection, avoid placing reflective surfaces like mirrors or glass in the path of the laser beam. 3. This product has flashing lights, which may not be suitable for people with photosensitive epilepsy. 4. If you're unsure about the CPU configuration, please ensure that the CPU has cores≥8, threads≥16, and a base frequency ≥2.4GHz.
|
