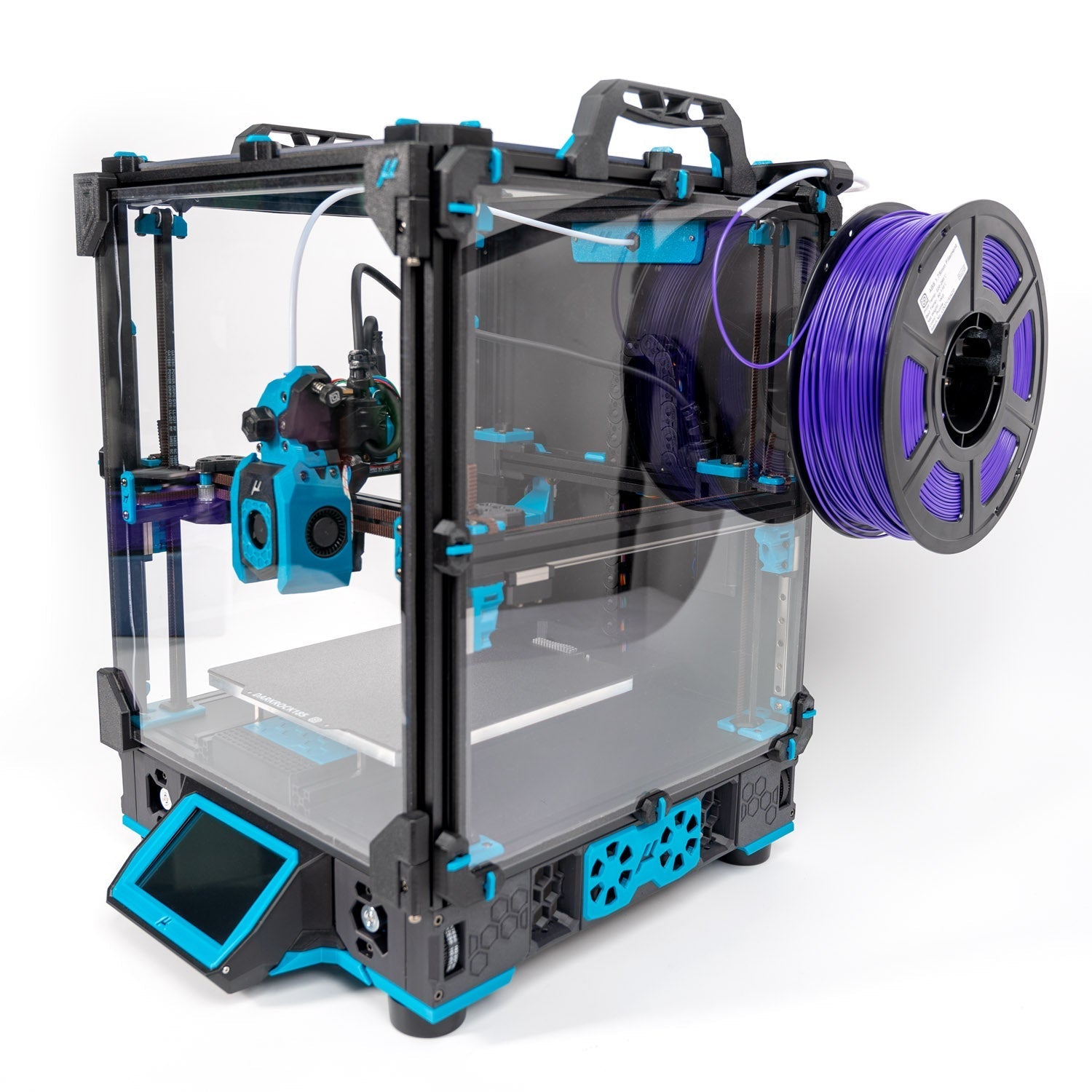

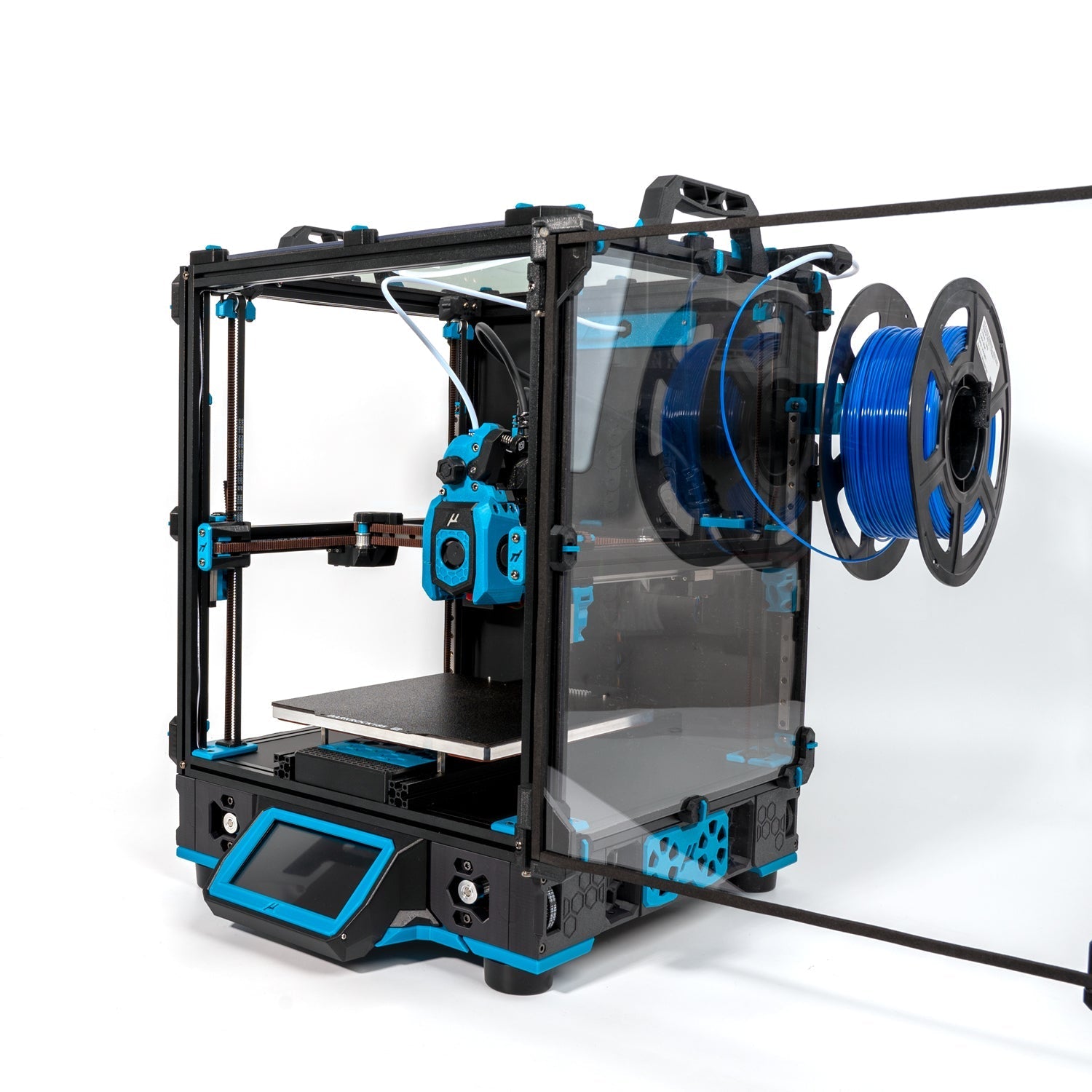

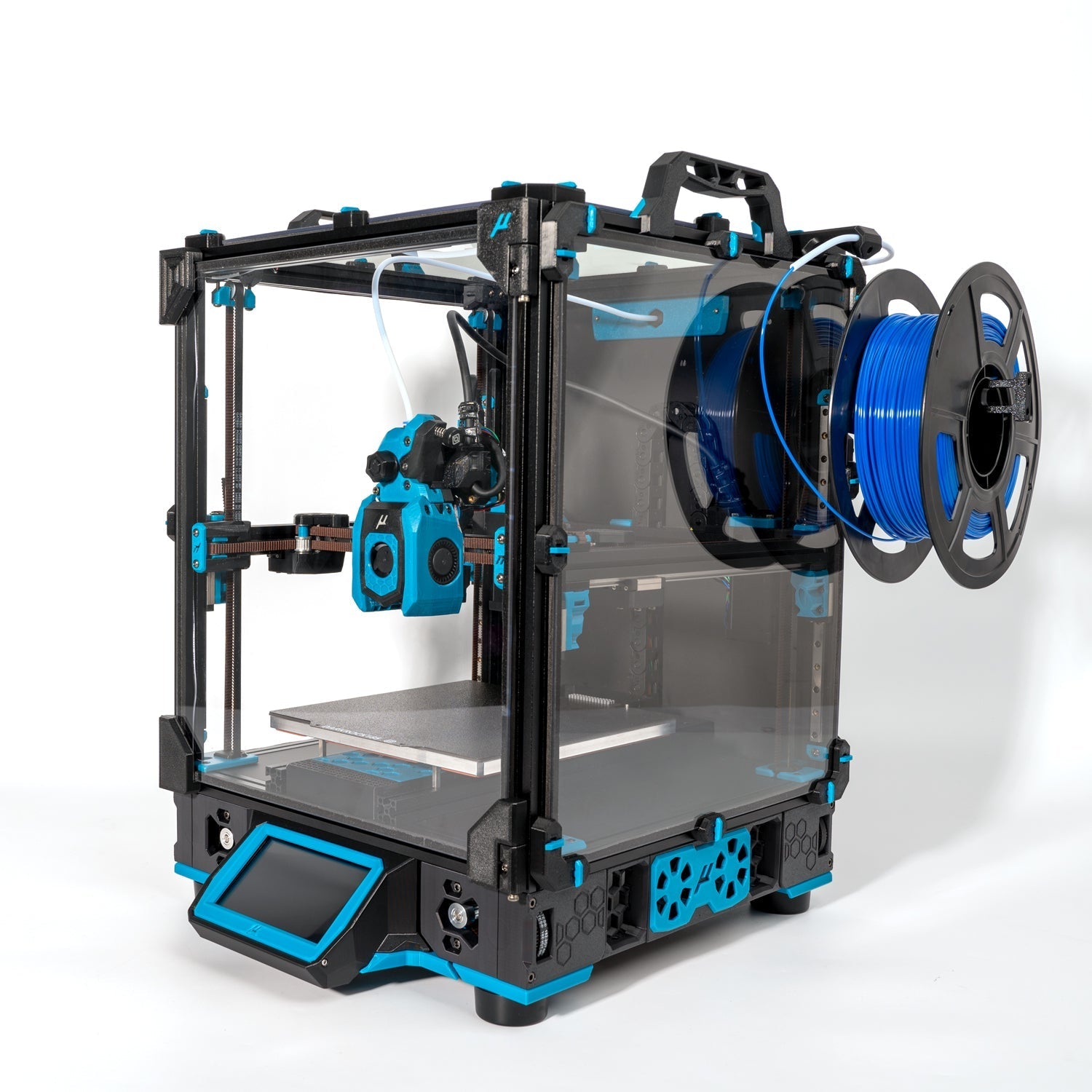

LDO Micron 3D Printer Kit - Micron Plus 180
Introducing the LDO Micron Plus (R1) 3D printer kit, complete with everything you need to get your Micron up and running, except for Printed Parts and a Hot End.
Heavily upgraded, this kit is special:
- LDO Leviathan board

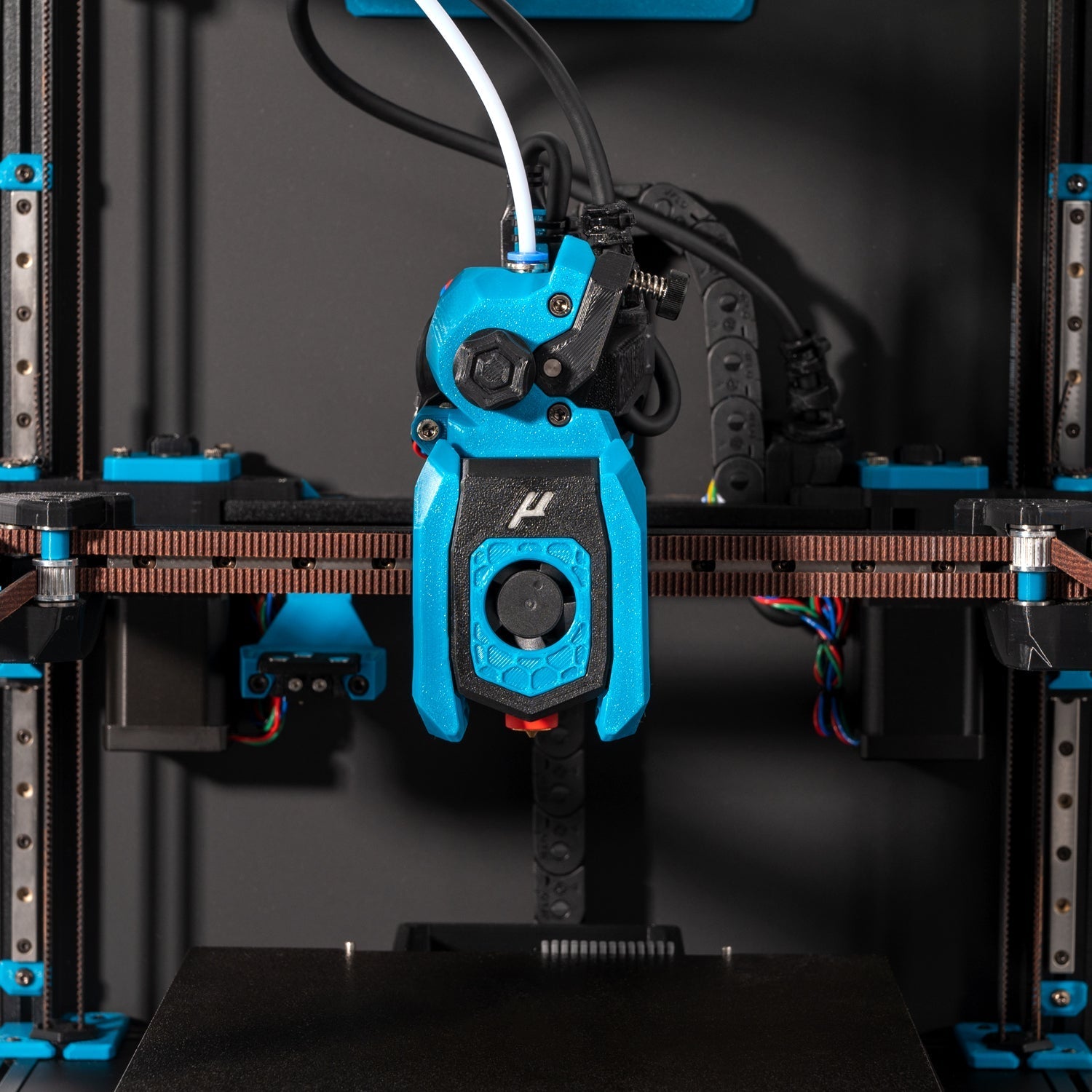

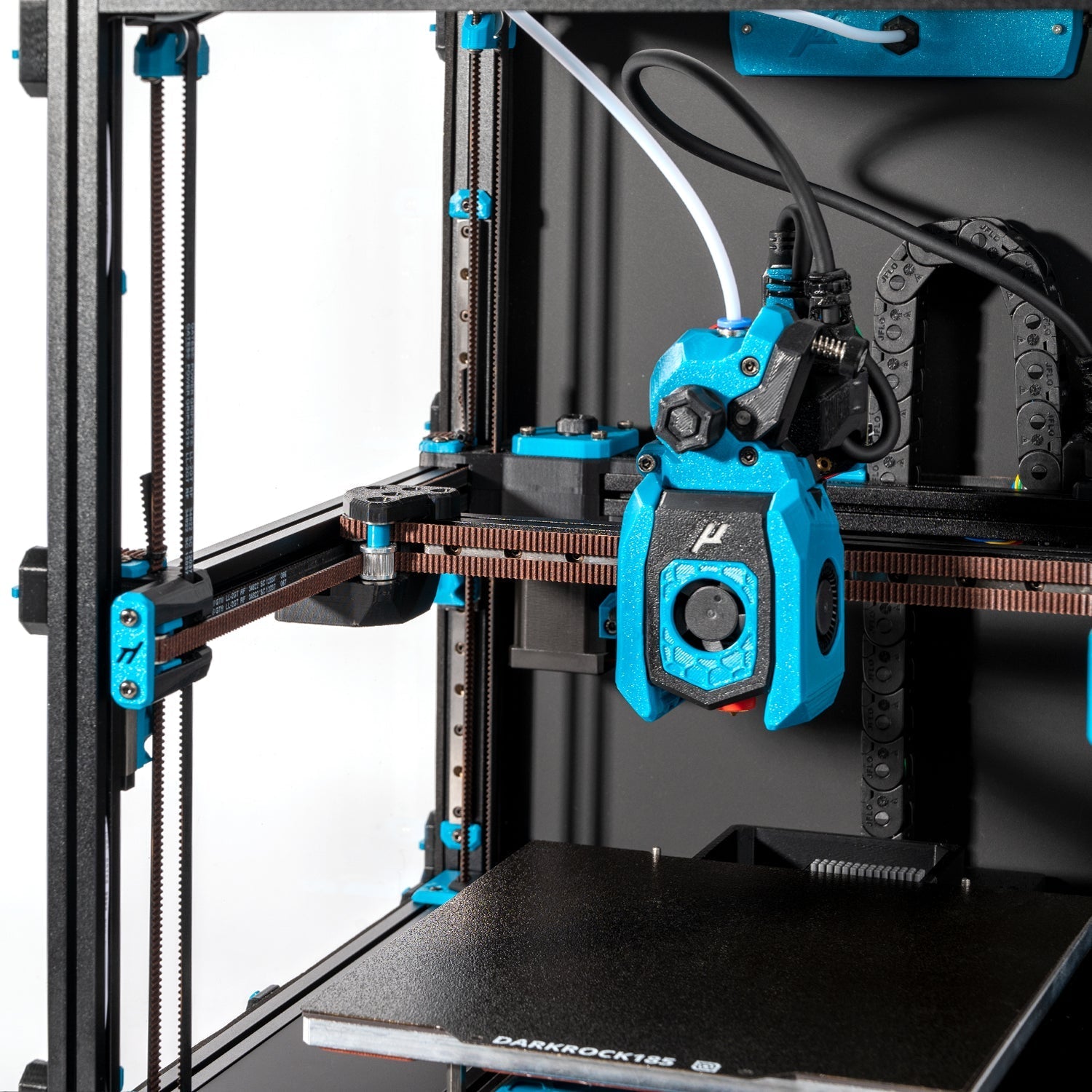

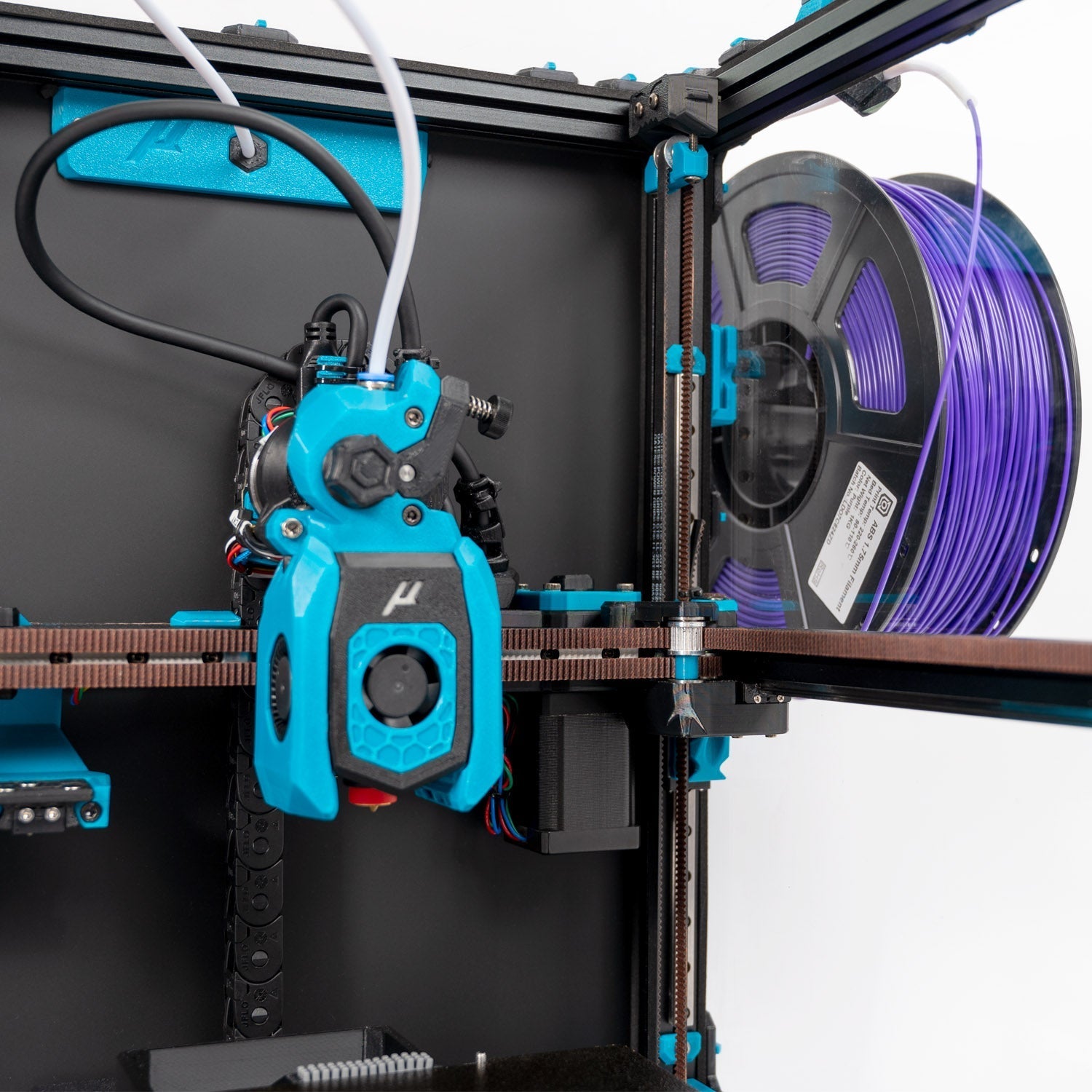

- Nitehawk-36 toolhead board

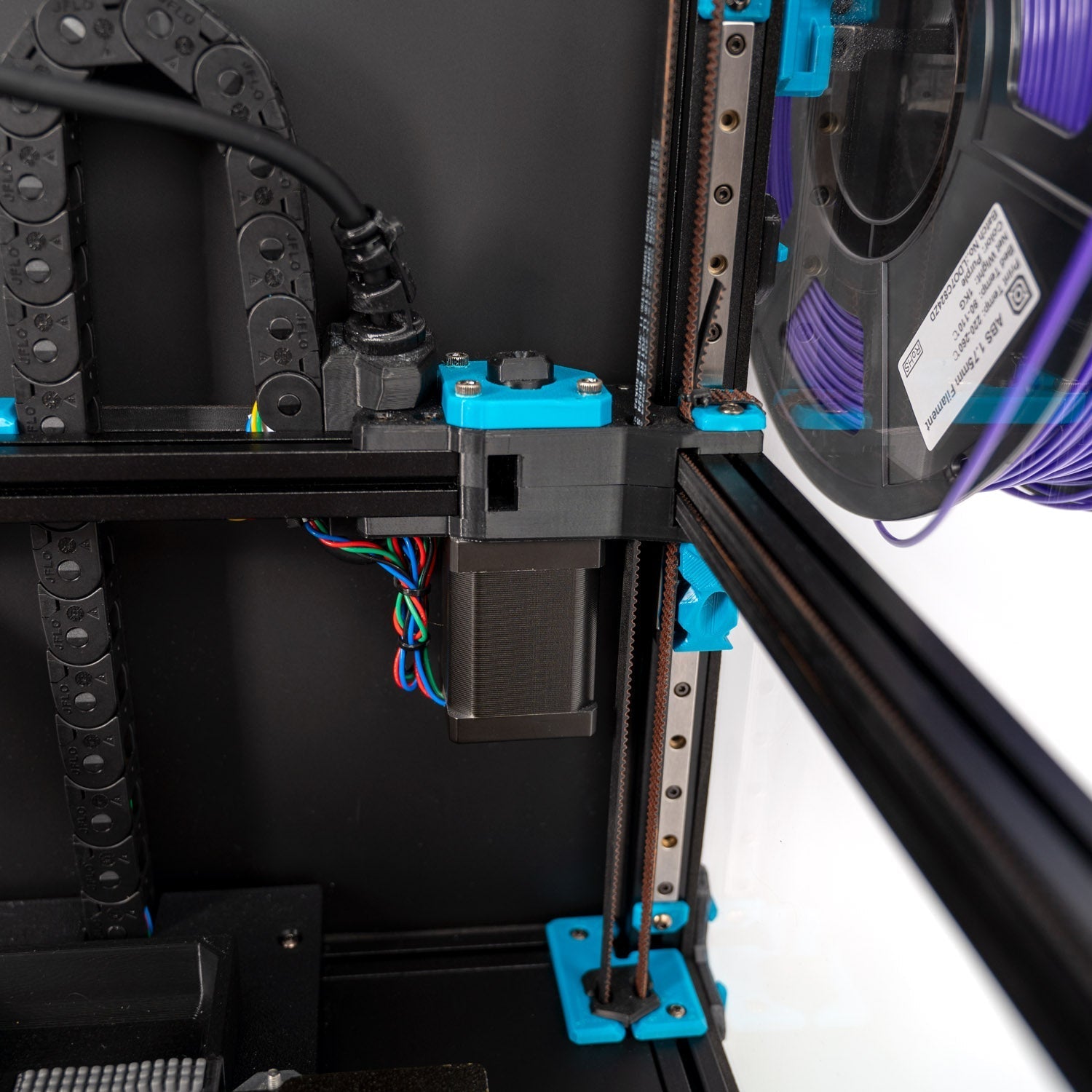

- Double Shear motor mount
- LDO-35STH52-2004AH(S35) - awesome if you want to do AWD with it down the road.

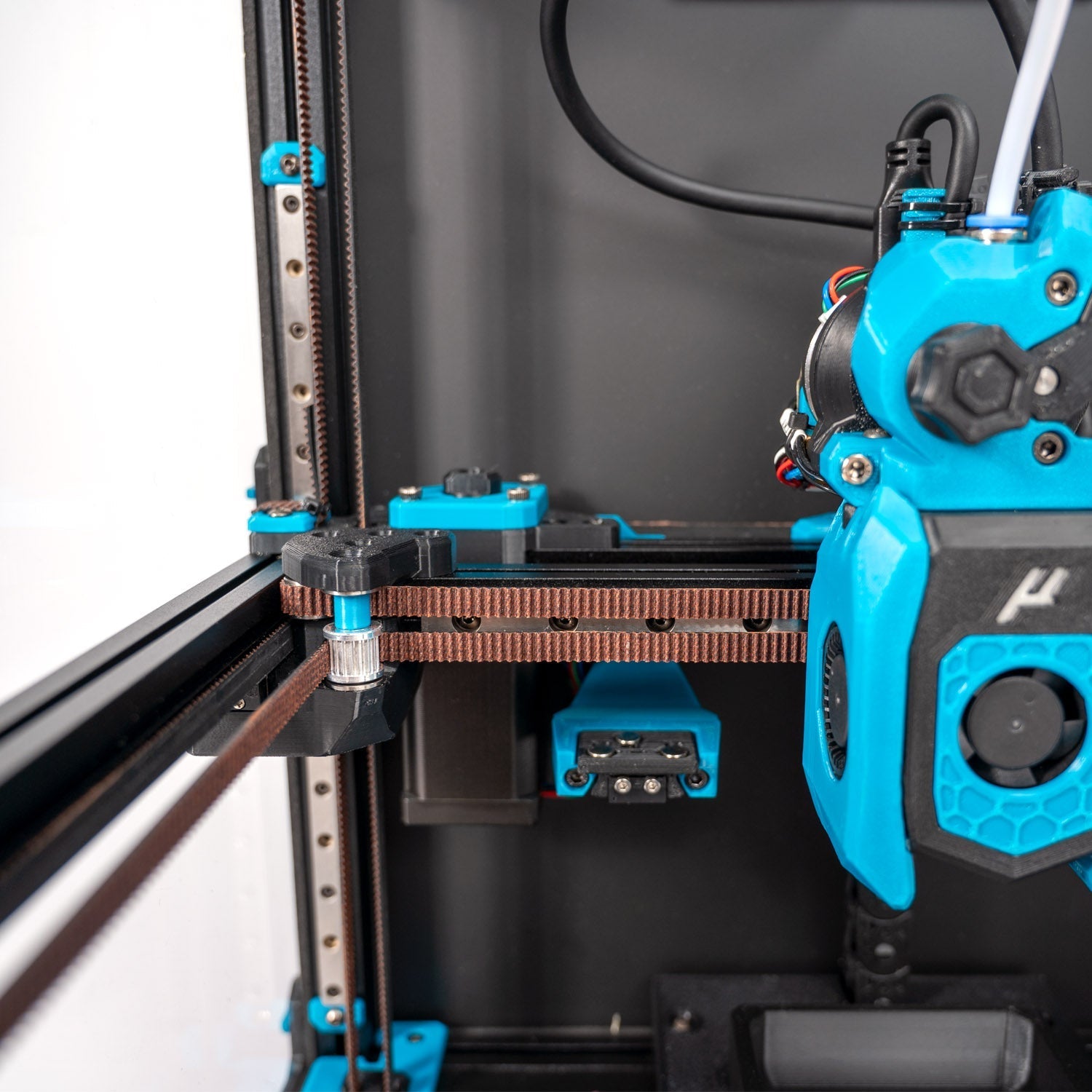

- Live Idlers for X/Y joints
- Precision pins for ABZ pulleys
- Custom under bed PCB for Bed fans and filter
- 300-watt bed heater that heats fast

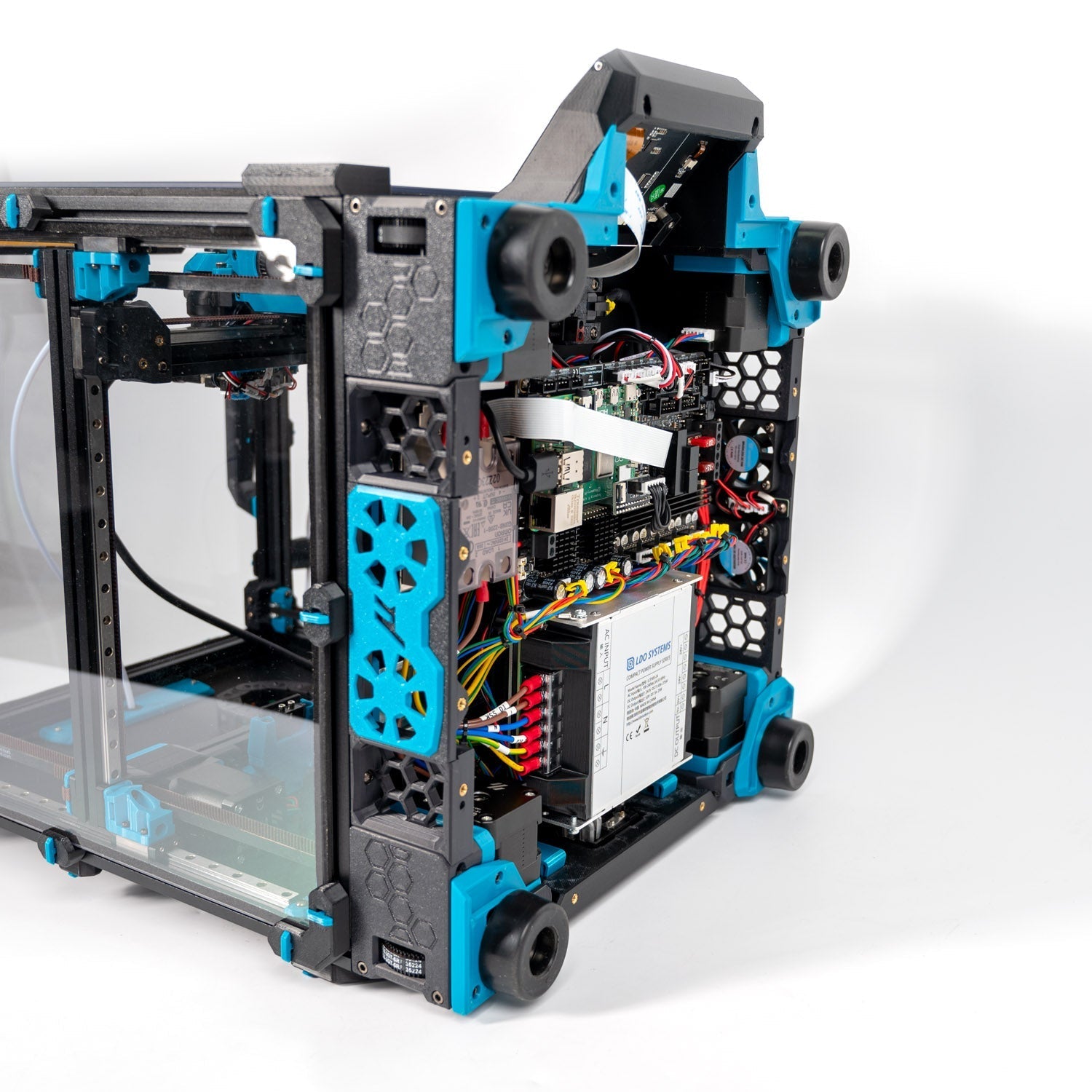

- Brand new LDO Compact PSU, with 275w 24v & 25w 5v outputs
This is the latest R1 version, tested by original designer HartK and several community members.
For more information about the Micron, please check out the Printers For Ants Git.
Specifications provided by LDO Systems:
|
Printer Type |
FDM 3D printer DIY Kit, self-assembly |
|
Model |
LDO Micron Plus R1 |
|
180*180*165 |
|
|
Construction |
Core XY |
|
Mother Board |
LDO Leviathan V1.3 |
|
Weight |
11.06 KG |
|
Pi Board* |
Yes (Rpi 4) |
|
Supported Filament |
ABS/ASA/PC/PLA/PETG/TPU/ |
|
Filament Diameter |
1.75mm |
|
Printing Speed |
Depends on choice of Hotend |
|
Acceleration |
10000mm/s² |
|
Nozzle Diameter |
0.4 |
|
Hotend Max Temperature |
Depends on choice of Hotend |
|
Heatbed Max Temperature |
120C |
|
Levelling Mode |
Quad Gantry Leveling (QGL), Klicky |
|

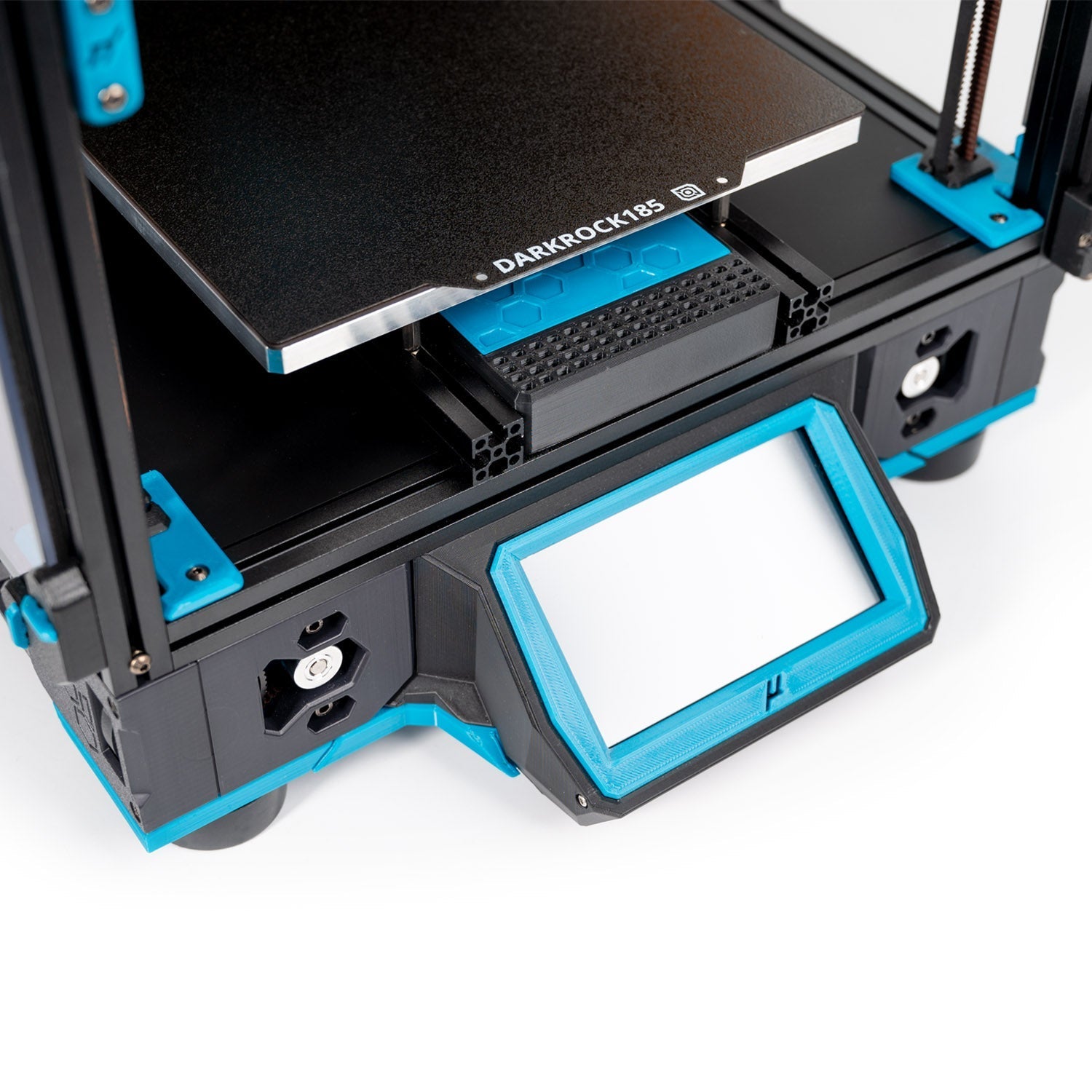

Display Screen |
Yes (BTT pi 4.3) |
|
Slicing Software |
OrcaSlicer |
|
Firmware |
Klipper |
|
Packing |
|
