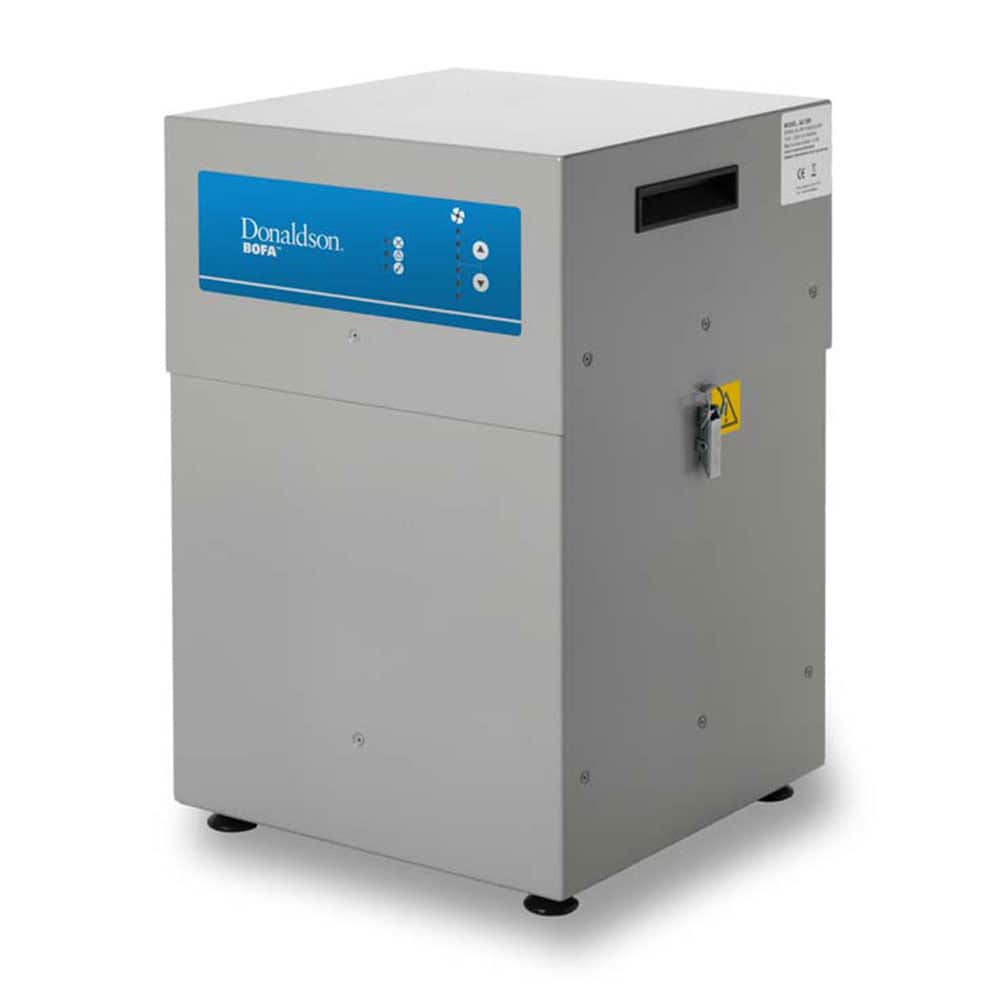

BOFA AD 350 Fume Extraction System for Laser Systems
BOFA AD 350 Fume Extraction System for Laser Systems
Description
Description
BOFA AD 350 Fume Extraction System
The AD 350 is a compact extraction system designed to filter fumes and particulate created during light-duty applications. The system helps to protect equipment, maintain quality, and reduce the number of rejects and contaminants.
- Low noise levels
- Small footprint
- Long-life, low-cost replacement filters
Approvals: UKCA and CE | cUL | UL†
†cUL | UL: Tested to the appropriate standards, but testing may be provided by alternate nationally recognized test laboratories. Certain product configurations may affect the certification. Please speak to your sales representative.
Features
DeepPleat Filter
The DeepPleat pre-filter consists of a pleated filter allowing for increased surface area within a smaller volume. This means Donaldson BOFA filters last for a long time and do not take up a large footprint.
HEPA Filter
Our HEPA filters are rated to filter 99.995% of particles at 0.3 microns. A secondary filter to remove fine particulate.
Advanced Carbon Filters
Our advanced carbon filters help to capture contaminants and odors, reducing the risk of bypass and tunneling. They are designed with specific carbon types tailored to industry applications.
Multi-Voltage Sensing
Automatically senses the local voltage and adjusts accordingly.
System OK Signal (optional)
Our system OK signal alerts you when there is a fault, and when filters are blocked, allowing you to schedule maintenance efficiently.
Remote Stop/Start Signal (optional)
Our remote stop/start signal ensures that your Donaldson BOFA fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
VOC Sensor (optional)
Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Variable Airflow Speed
Our variable airflow speed allows users to manually set the blower speed to the preferred airflow for their application.
Technical Specification
| Imperial | Metric | |
|---|---|---|
| Dimensions (HxWxD) | 23.23 x 14.76 x 18.31” | 590 x 375 x 465 mm |
| Weight | 77 lbs | 35 kg |
| Airflow / Pressure | 206 cfm / 96 mbar | 350 m³/hr / 96 mbar |
| Electrical data | 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw | 115-230 V 1 ph 50/60 Hz Full load current: 12.5 amps / 1.1 kw |
| Noise level (at typical operating speed) | < 62 dBA | < 62 dBA |
| Cabinet construction | Powder-coated mild steel | Powder-coated mild steel |
