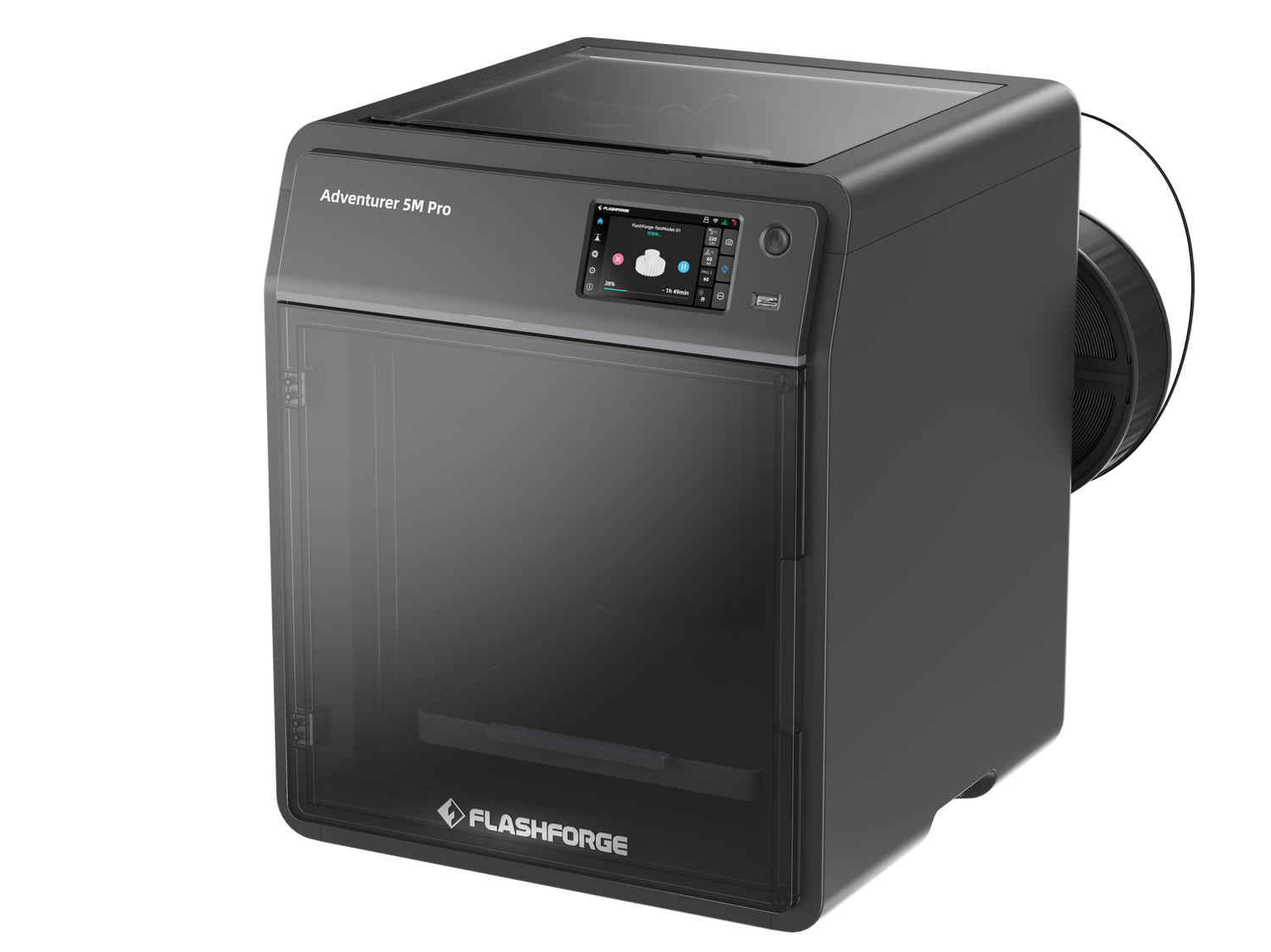

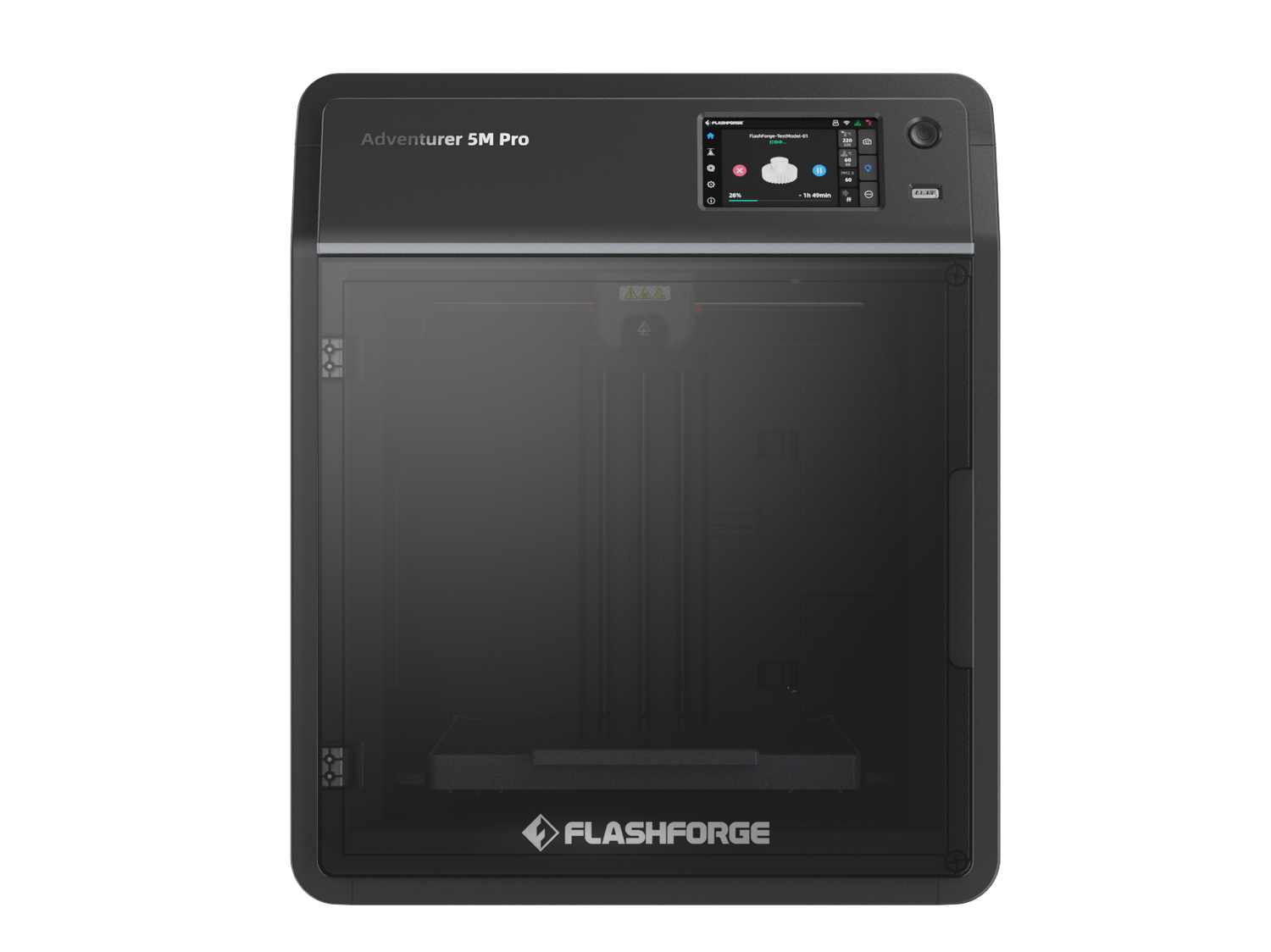

Flashforge Adventurer 5M Pro - Fully Enclosed 3D Printer

Flashforge Adventurer 5M Pro 3D Printer with Full Enclosure

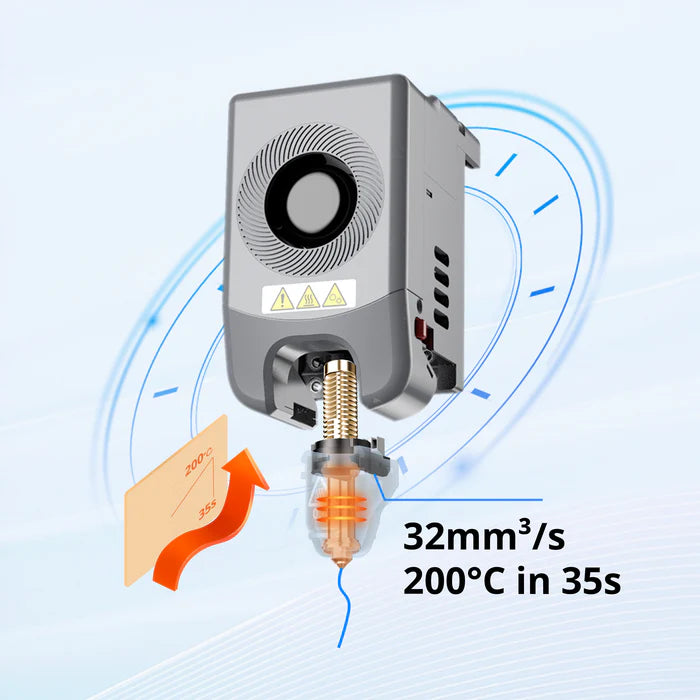

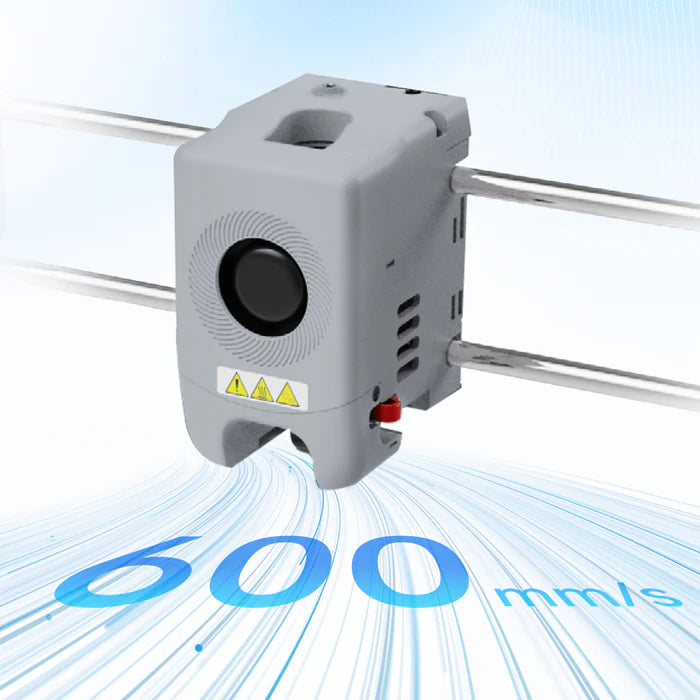

Efficiency Driving Creativity: The high-performance of the Adventurer 5M Pro 3D printer offers you greater creative potential. With a maximum travel speed of 600mm/s and with an acceleration of up to 20,000mm/s², your designs can be swiftly realized. No waiting required, the nozzle heats up to 200°C within 35 seconds, saving you valuable time.

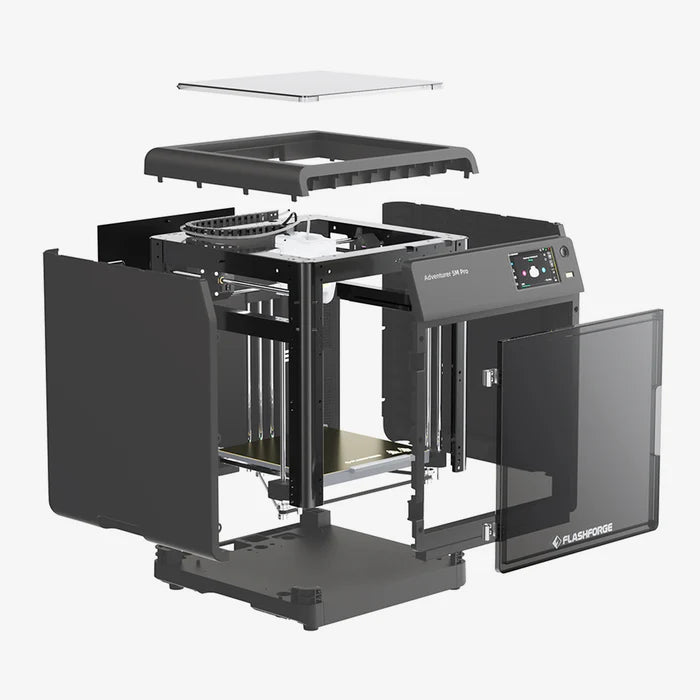

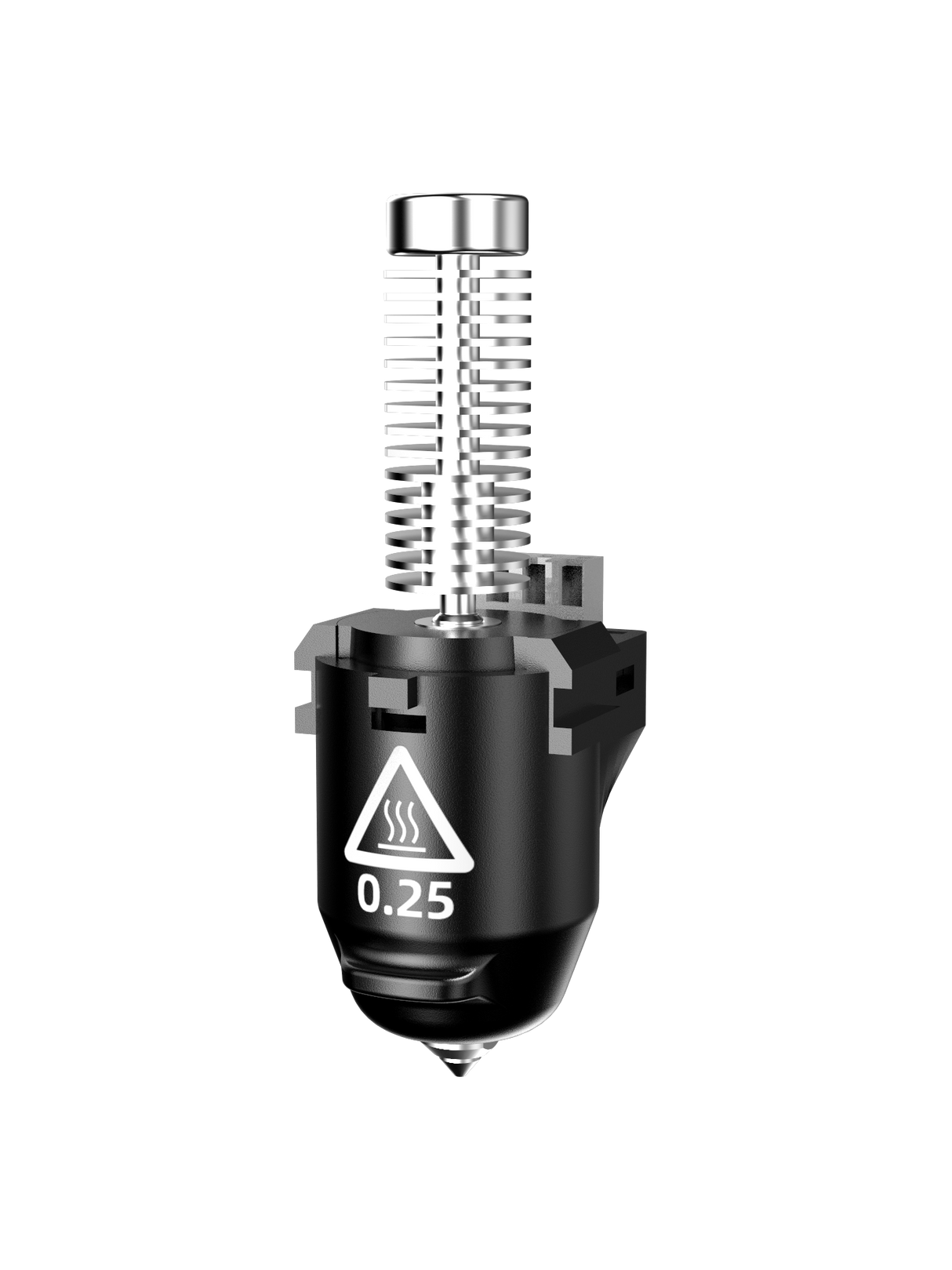

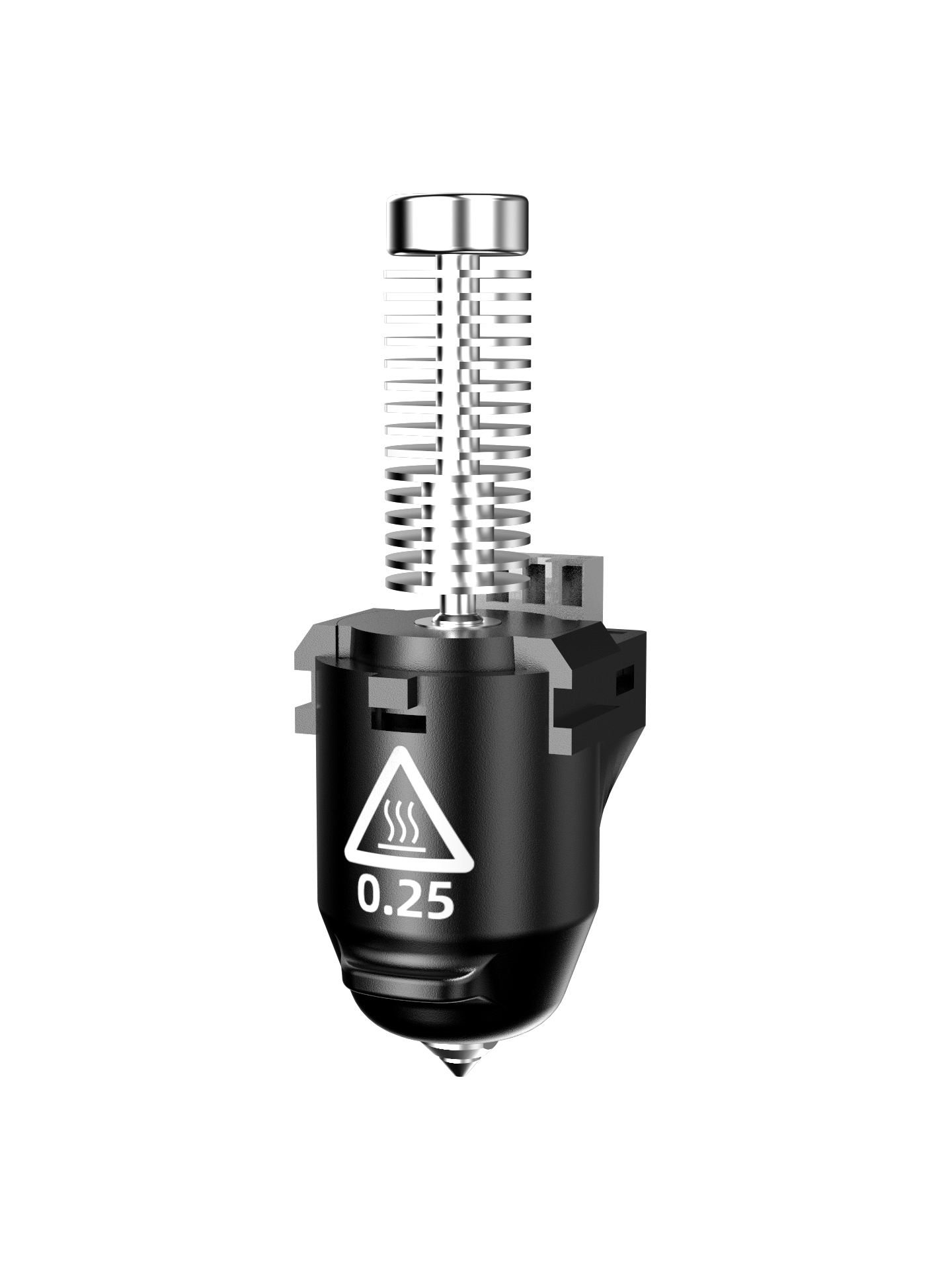

Quality Assurance for Intricate Details: Fast printing doesn't compromise on quality. The Core XY structure and all-metal frame ensure stability during high-speed movements. Offering multiple nozzle sizes (0.25mm, 0.4mm, 0.6mm, 0.8mm), you could strike a balance between speed and intricate details, achieving impeccable print quality.

Smart Convenience and Innovative Experience: Adventurer 5M Pro employs pressure sensing for automatic bed leveling. It detects platform height with multi-point precision, ensuring flawless initial layers. No manual adjustments, no Z-axis calibration, and no print raft needed. Plus, the dual-sided PEI platform enables easy tool-less model removal.

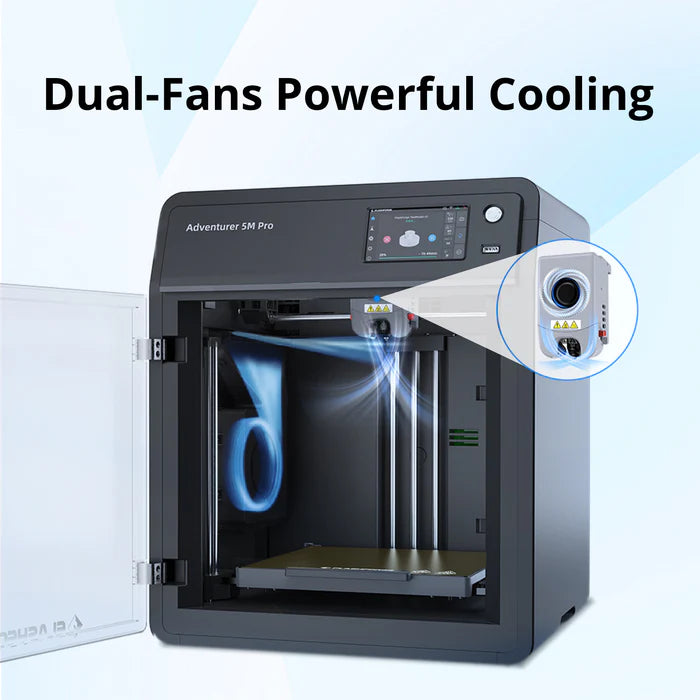

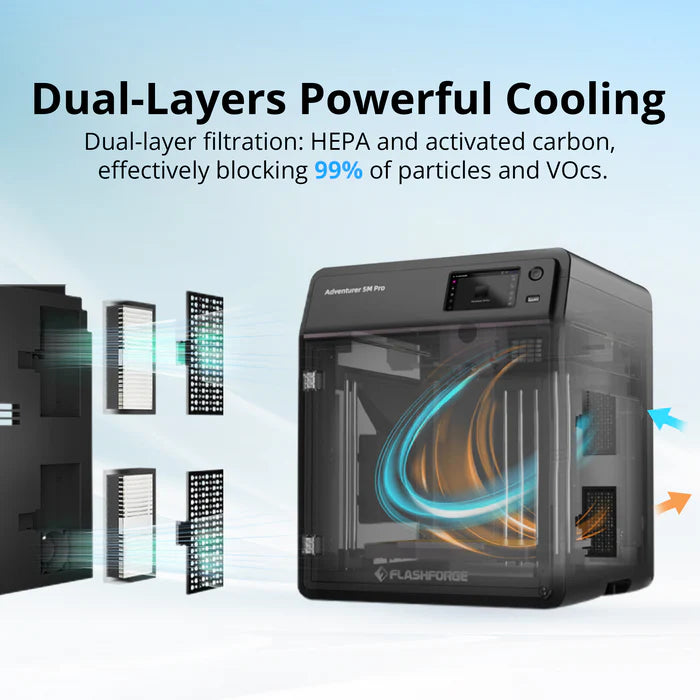

User-Friendly Operation: Unbox to print in 10 mins. Integrated smart management via mobile app-Flash Maker includes remote video monitoring, real-time progress tracking, parameter adjustments, and alerts. Features like auto shutdown, resume printing, and filament detection optimize workflow. Dual circulation system reduces dust, ensuring a safer, more convenient experience, giving you full control with ease.

Extensive Material Compatibility: Supports PLA, ABS, PETG, ASA, TPU, PC, PLA-CF, and PETG-CF materials. Its robust full-metal direct extruder, reaching 280°C, accommodates versatile printing needs, ensuring precise and reliable results across diverse projects. From functional prototypes to durable components, its adaptability empowers creative exploration.

Printing Parameters:

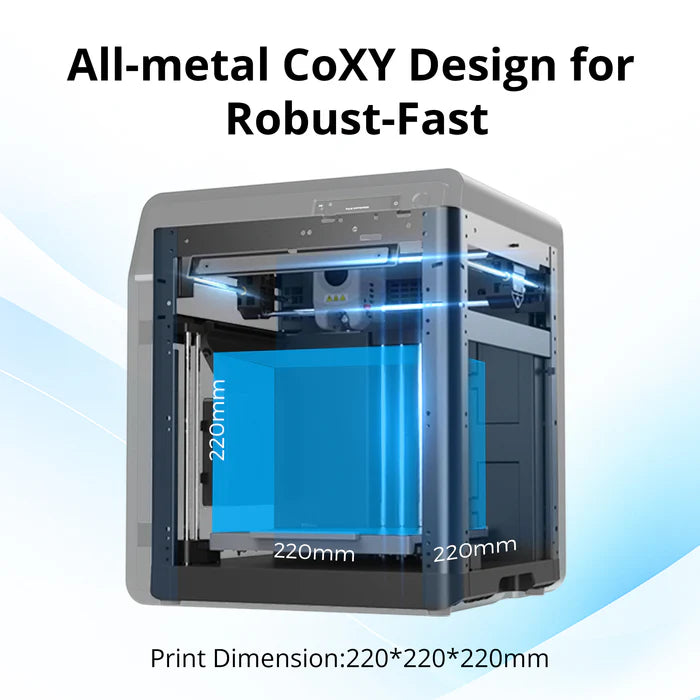

• Print Volume: 220mm x 220mm x 220mm (8.7" x 8.7" x 8.7")
• Print Speed: 300 mm/s
• Travel Speed: 600 mm/s
• Acceleration: 20,000 mm/s^2
• Printing Precision:  ±0.2mm
• Position Precision: 0.025 mm
• Layer Thickness:  0.1mm - 0.4mm
• Nozzle Diameter:  0.4mm Standard (Optional 0.6mm and 0.8mm)
• Maximum Extruder Temperature: 265°C
• Heated Build Plate Temperature: Up to 110°C
• Filament Diameter:  1.75 mm
• Filament Compatibility:  PA-CF, PA-GF, PETG-CF, PETG-GF, PA, PC, ABS, ASA, HIPS, PLA-CF, PETG, PLA

Mechanical & Dimensions

• Number of Extruders: One
• Printer Dimensions: 380mm x 400mm x 453mm (15" x 15.7" x 17.8")
• Net Weight:  44.3 lbs (20.1 kg)
• Packaging Dimensions: 460mm x 480mm x 530mm (18" x 19" x 21")
• Gross Weight: 58.4 lbs (26.5 kg)

Electrical

• Power Supply:  AC100-240V / DC24V / 13.3A, 320W

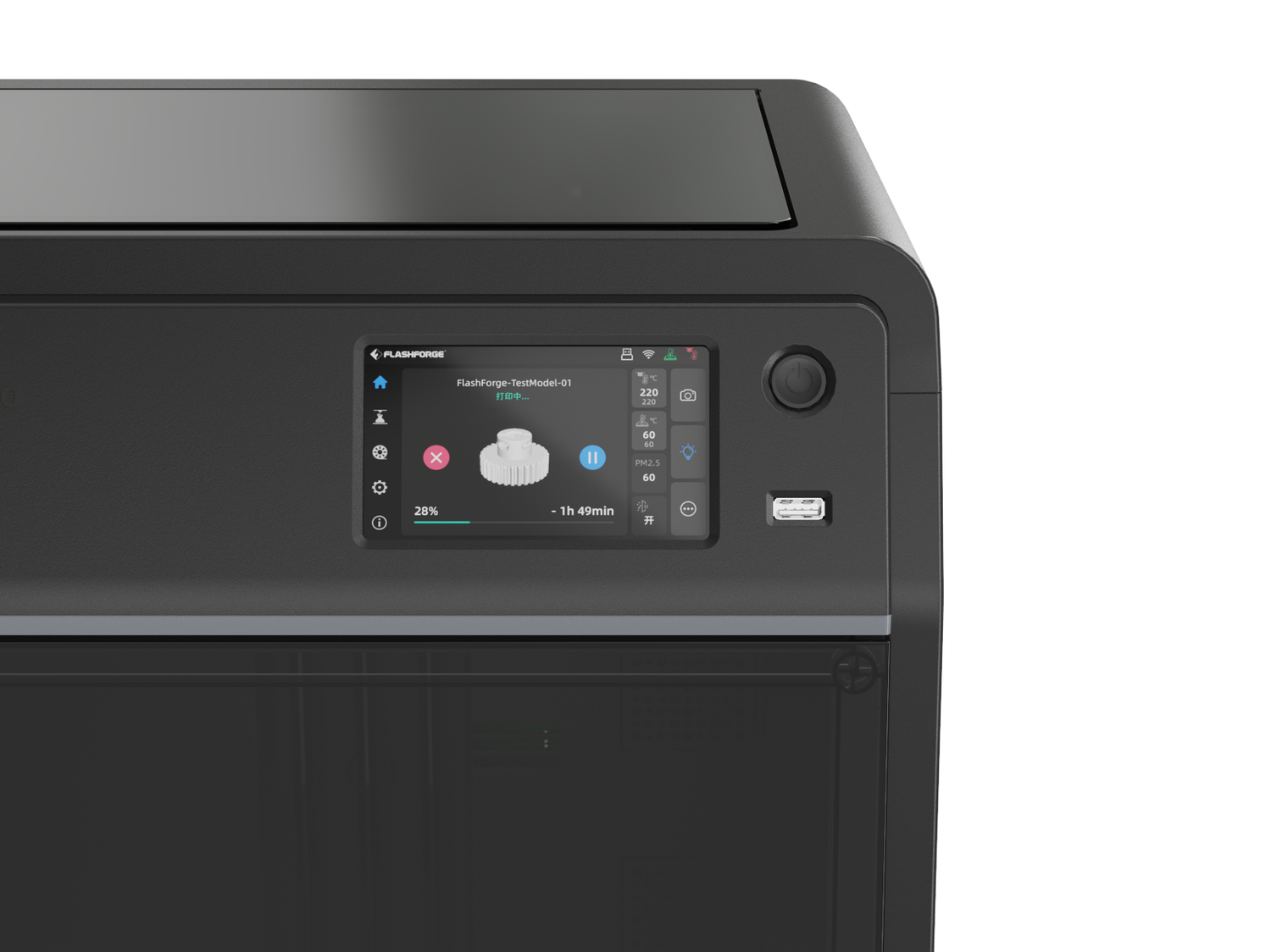

• HD Touch Screen:  4.3 inch
• Connectivity:  USB Stick, Wi-Fi, Ethernet, Cloud printing

Software

• Software: Orca-Flashforge, FlashPrint, Polar Cloud
• File Input Format: STL / 3MF / OBJ / FPP / BMP / PNG / JPEG
• File Output Format: GX / G
• Supports (OS): Windows XP/Vista/7/8/10, Mac OS 10.9 or later, Linux Ubuntu 20.04 or later

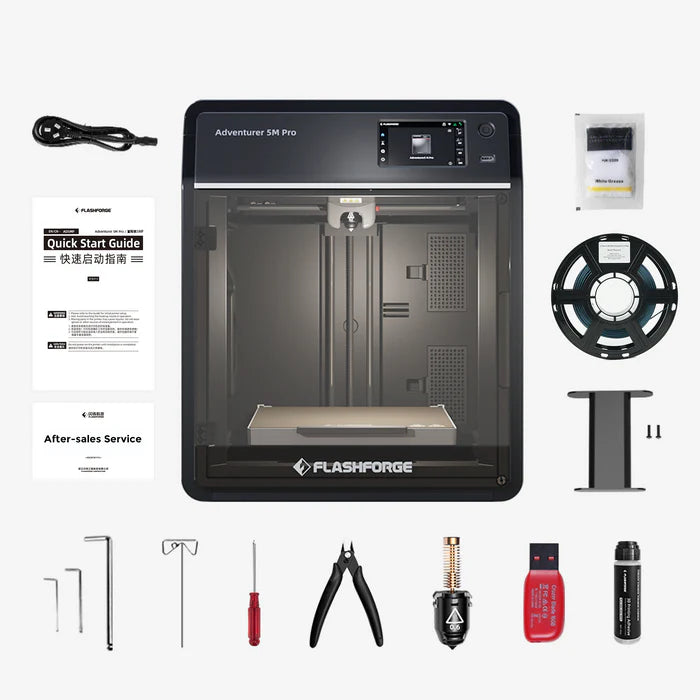

What’s in the box:

• Adventurer 5M Pro 3D Printer
• 250G PLA Filament
• Power Cord
• Quick Start Guide
• 0.6 mm Nozzle Kit
• Screw Driver
• Hex Wrench Set
• Grease
• USB Drive
• Leveling Tool
• Filament Holder
• Pliers
• Glue
